Latch - Door - Rear - LH - Remove and Replace: Remove

  1. Remove the LH rear window regulator. See WINDOW MOTOR/REGULATOR ASSEMBLY - REAR - LH (REMOVE AND REPLACE) .

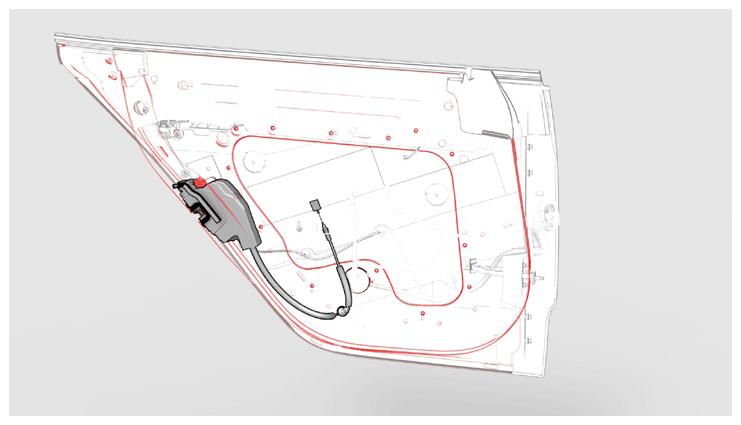

  2. Disconnect the LH rear door electrical harness from the LH rear door latch connector.
    G14739508Courtesy of TESLA, INC.

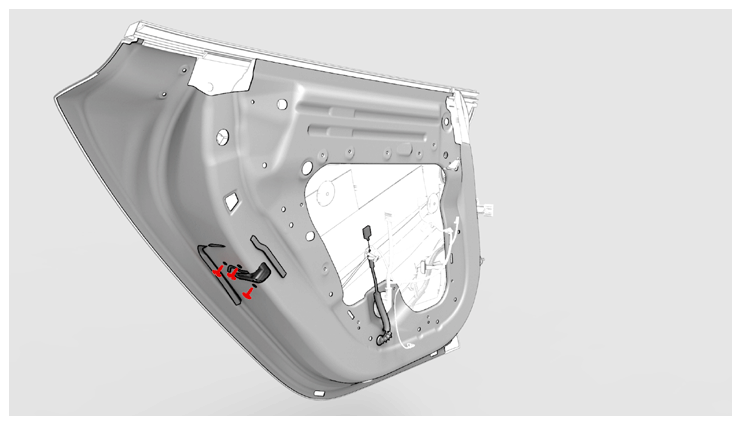

  3. Remove the bolts that attach the LH rear door latch to the rear of the LH rear door.

    Tip: Use of the following tool(s) is recommended:

    • Torx T25 socket
    • 4 in extension
    G14739509Courtesy of TESLA, INC.

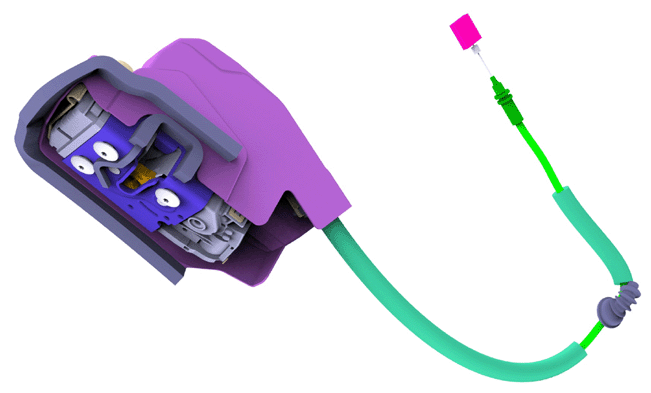

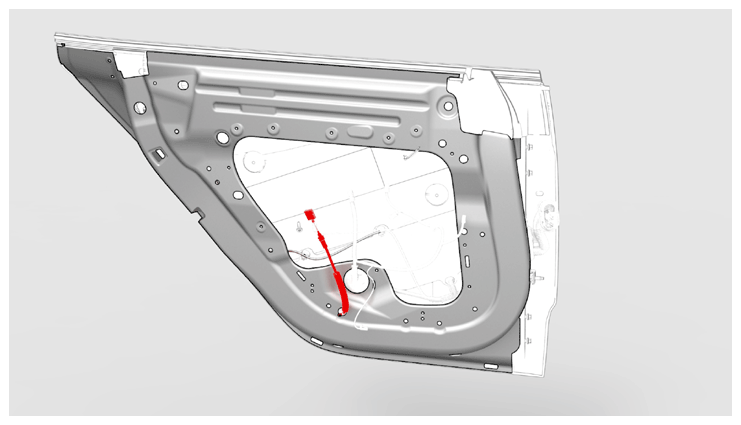

  4. Move the LH rear door latch cable grommet in through the LH rear door bulkhead, while at the same time, move the latch cable in and remove the latch from the door.
    G14739510Courtesy of TESLA, INC.
    G14739511Courtesy of TESLA, INC.
