Latch - Door - Front - LH - Remove and Replace: Remove

  1. Remove the front LH door closeout panel. See CLOSEOUT PANEL - DOOR - FRONT - LH (REMOVE AND INSTALL) .

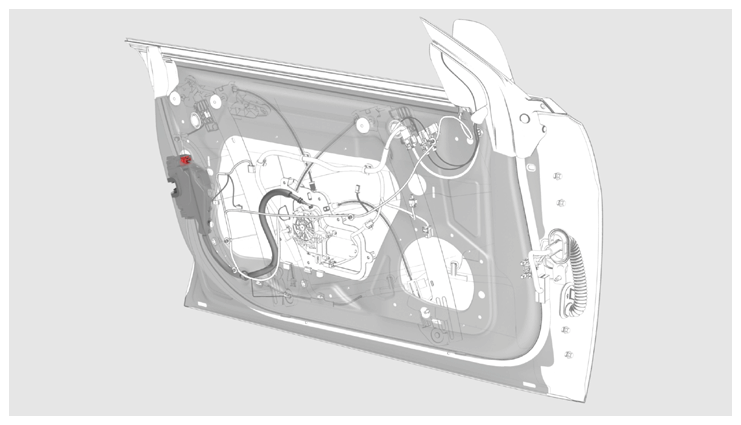

  2. Disconnect the electrical harness from the door latch connector.
    G14739503Courtesy of TESLA, INC.

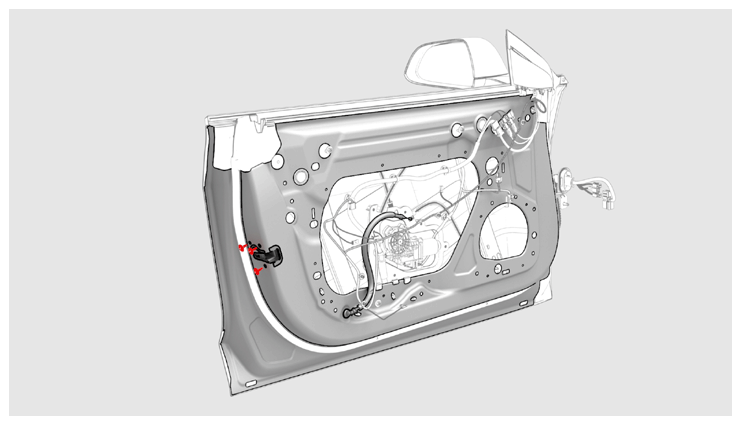

  3. Remove the bolts that attach the latch to the rear of the door.

    10 N.m (7.4 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T25 socket
    • 4 in extension
    G14739504Courtesy of TESLA, INC.

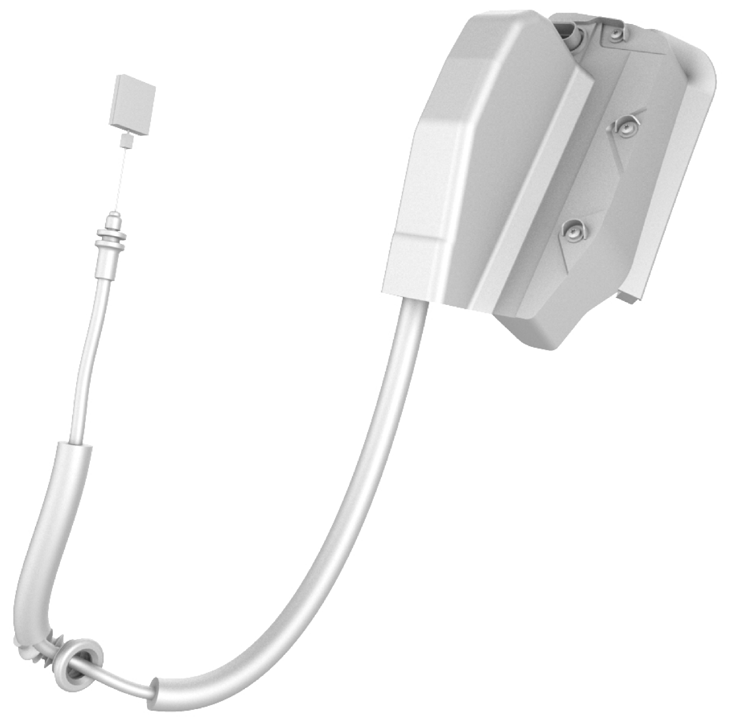

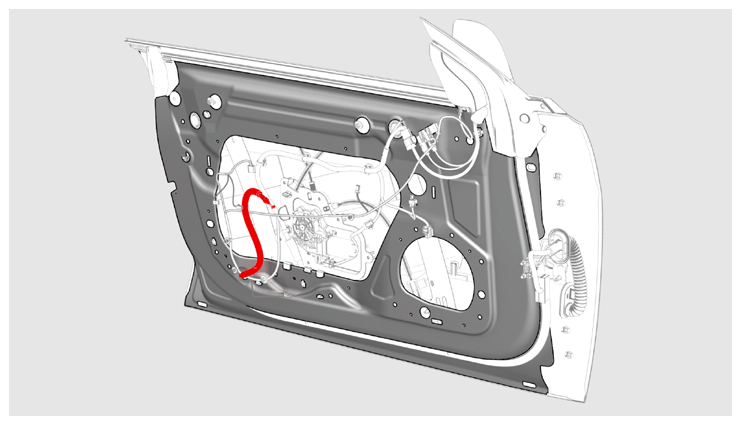

  4. Press the latch cable grommet in through the door, and move the cable in through the opening while simultaneously removing the latch from the door.
    G14739505Courtesy of TESLA, INC.
    G14739506Courtesy of TESLA, INC.
