Latch - Cinch - Trunk - Remove and Replace: Remove

  1. Remove the power trunk latch cover. See COVER - LATCH - POWER TRUNK (REMOVE AND REPLACE) .

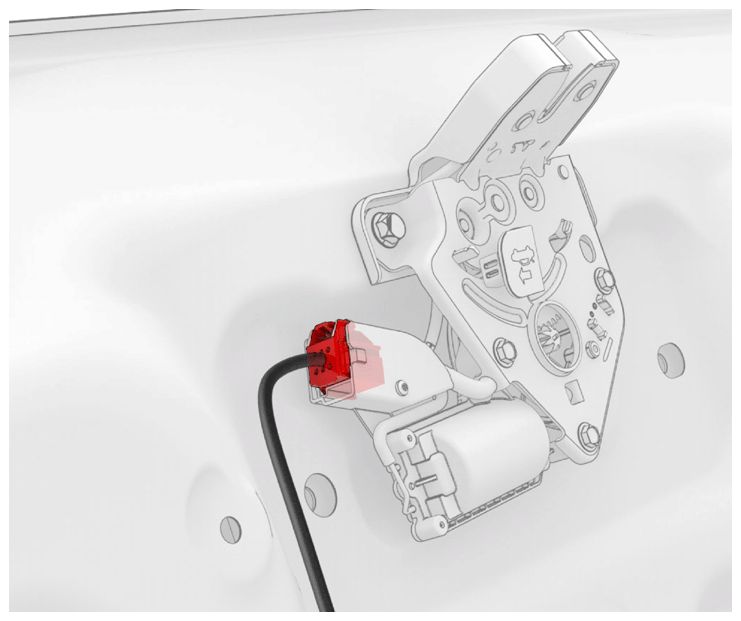

  2. Disconnect the electrical harness from the trunk cinch latch.
    G14739500Courtesy of TESLA, INC.

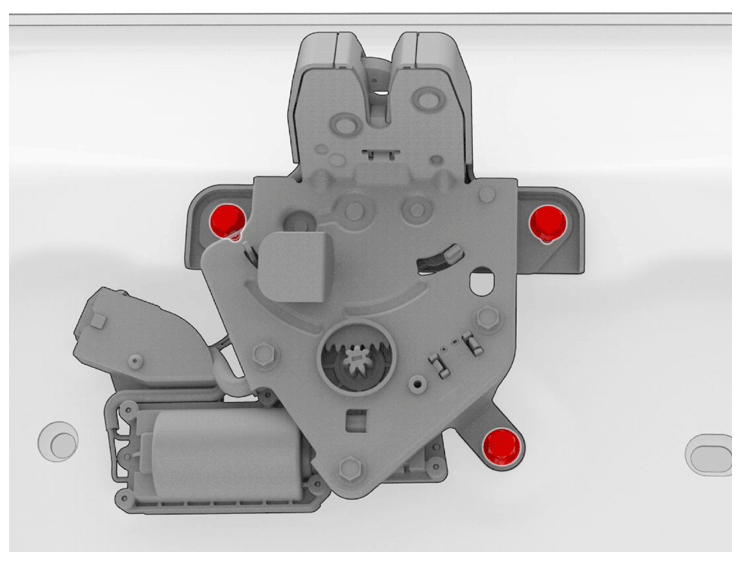

  3. Remove the bolts that attach the trunk cinch latch to the trunk lid, and then slide the latch downwards to release the tabs and remove the latch.

    8 N.m (5.9 ft-lbs)

    Use of the following tool(s) is recommended:

    • 10 mm socket
    • 4 in extension
    • Ratchet/torque wrench
    G14739501Courtesy of TESLA, INC.
