Actuator - Latch - Hood - Secondary - Remove and Replace: Install

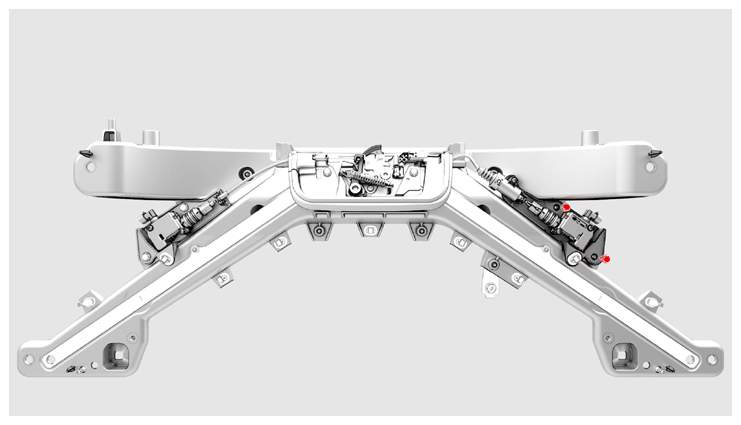

  1. Install the bolts that attach the secondary hood latch actuator to the front end carrier.

    5 N.m (3.7 ft-lbs)

    G14739488Courtesy of TESLA, INC.

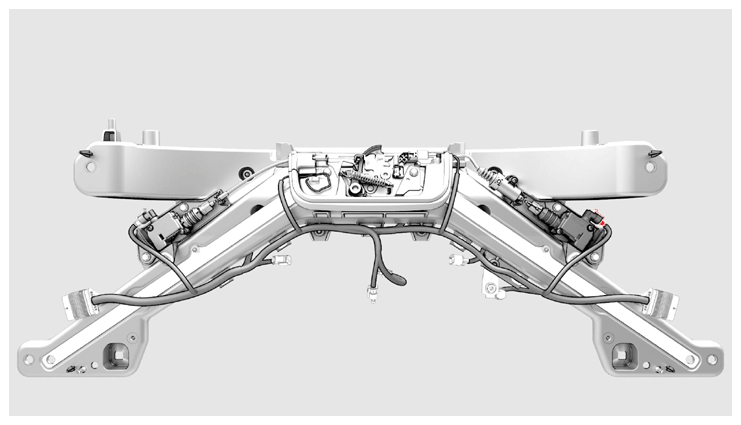

  2. Connect the electrical connector to the secondary hood latch actuator.
    G14739489Courtesy of TESLA, INC.

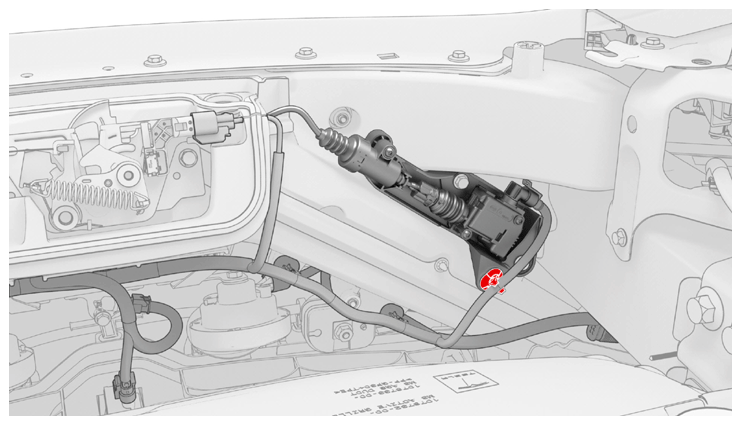

  3. Install the clip that attaches the secondary hood latch actuator to the front end carrier.
    G14739490Courtesy of TESLA, INC.

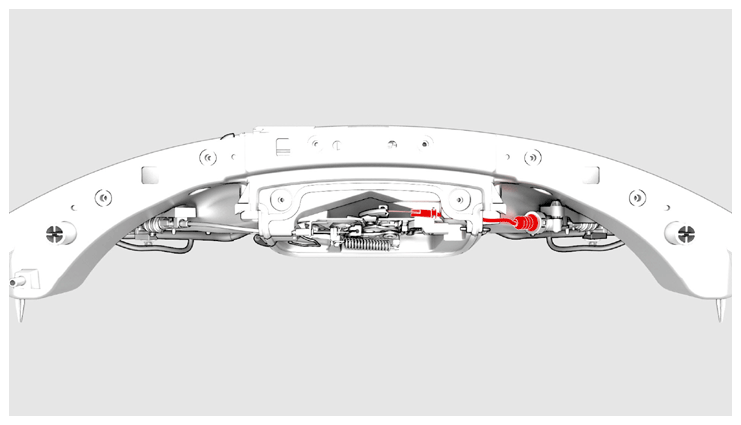

  4. Install the secondary hood latch actuator cable to the hood latch.
    NOTE: Secure the cable end to the latch arm, and then attach the clip.
    G14739491Courtesy of TESLA, INC.
  5. Install the underhood storage unit. See UNDERHOOD STORAGE UNIT (REMOVE AND REPLACE) .
  6. Install the hood latch cover. See COVER - HOOD LATCH (REMOVE AND REPLACE) .
  7. Install the cabin intake duct. See DUCT - CABIN INTAKE (REMOVE AND REPLACE) .
  8. Install the rear underhood apron. See UNDERHOOD APRON - REAR (REMOVE AND REPLACE) .
