Strut Reinforcement - Hood - LH - Remove and Replace: Install

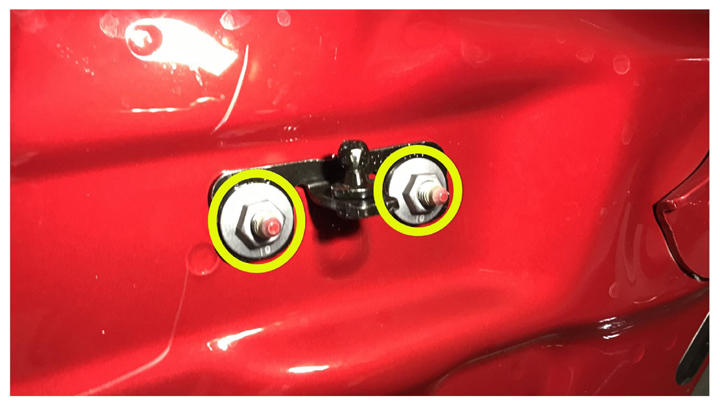

  1. Install the LH hood strut bracket from hood.
    G14739475Courtesy of TESLA, INC.
  2. Install the LH hood gas strut. See GAS STRUT - HOOD - LH (REMOVE AND REPLACE) .
