Bracket - Passive Hood Strut - LH - Remove and Replace: Remove
- Remove the underhood storage unit. See UNDERHOOD STORAGE UNIT (REMOVE AND REPLACE)
.
- Remove the LH front wheel arch liner. See WHEEL ARCH LINER - FRONT - LH (REMOVE AND REPLACE)
.

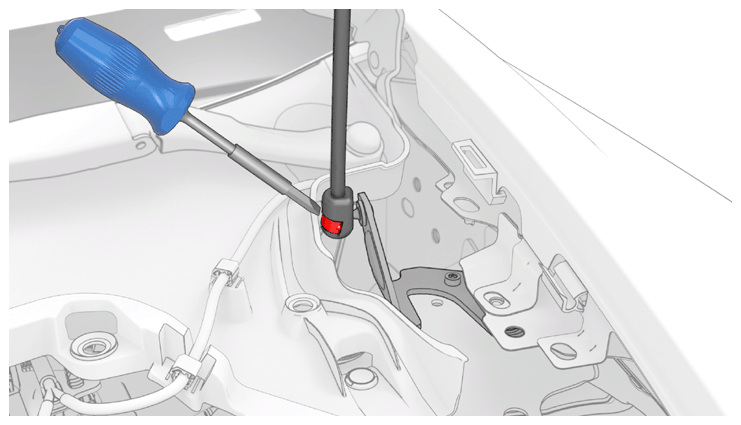

- Use a small flat head screwdriver to release the clip that attaches the gas strut to the LH passive hood strut bracket, and then remove the strut from the bracket.
 Courtesy of TESLA, INC.
|

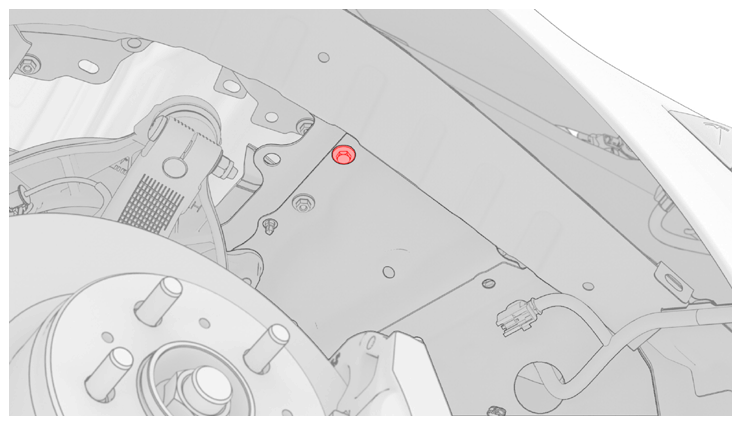

- Remove the bolt that attaches the LH passive hood strut bracket to the body, from inside the wheel arch.
NOTE:
Use of the following tool(s) is recommended:
- 10 mm socket
- 2 in extension
- Ratchet/torque wrench
 Courtesy of TESLA, INC.
|

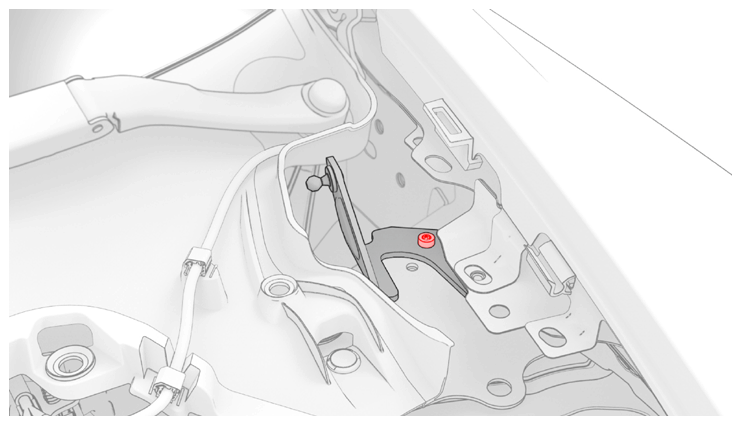

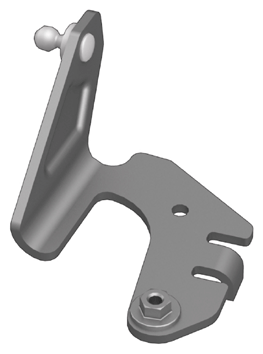

- Remove the bolt that attaches the LH passive hood strut bracket to the body, from on top of the bracket, and then remove the bracket from the vehicle.
NOTE:
Use of the following tool(s) is recommended:
- 6 mm hex
- 2 in extension
- Ratchet/torque wrench
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
