Bracket - Active Hood Strut - LH - Remove and Replace: Remove
- Remove the actuator. See ACTUATOR - PEDESTRIAN PROTECTION - LH (REMOVE AND REPLACE)
.

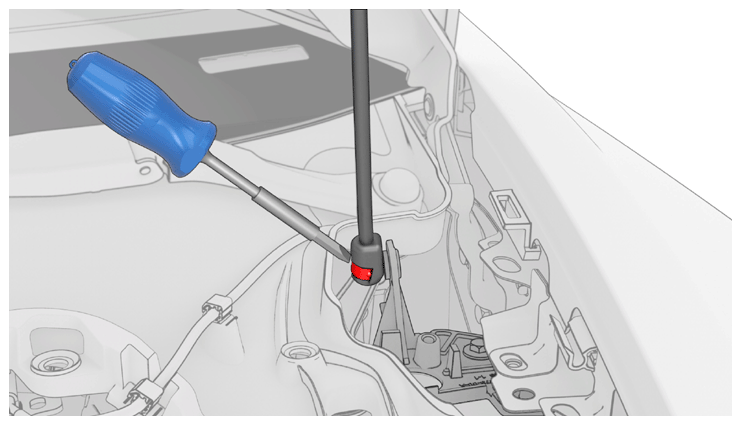

- Use a small flat head screwdriver to release the clip that attaches the gas strut to the LH active hood strut bracket, and then remove the strut from the bracket.
 Courtesy of TESLA, INC.
|
- Remove the bolt that attaches the LH active hood strut bracket to the body, from inside the wheel arch.
NOTE:
Use of the following tool(s) is recommended:
- 10 mm socket
- 2 in extension
- Ratchet/torque wrench
 Courtesy of TESLA, INC.
|
- Remove the bolts (x2) that attach the strut bracket to the body, from on top of the bracket, and then remove the bracket from the vehicle.
NOTE:
Use of the following tool(s) is recommended:
- 6 mm hex
- 2 in extension
- Ratchet/torque wrench
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
