Grille - Fascia - Front - Remove and Replace: Remove

  1. Remove the front fascia. See FASCIA - FRONT (REMOVE AND INSTALL) .

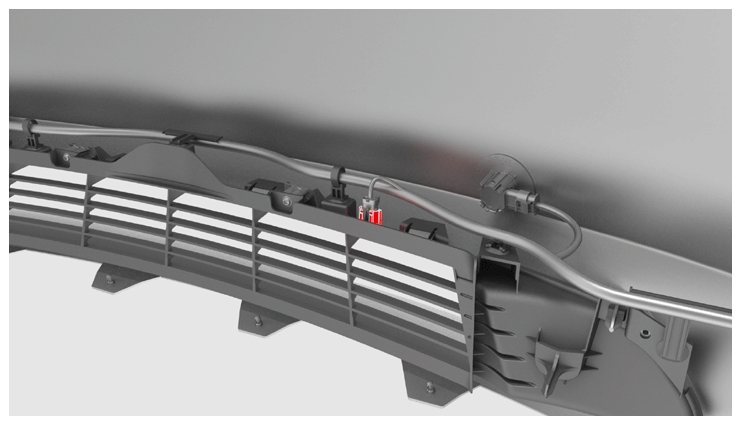

  2. Release the clip and remove the ambient air temperature sensor from the grille.
    G14738867Courtesy of TESLA, INC.
  3. Release the clips that attach the electrical harness to the grille.
    G14738868Courtesy of TESLA, INC.

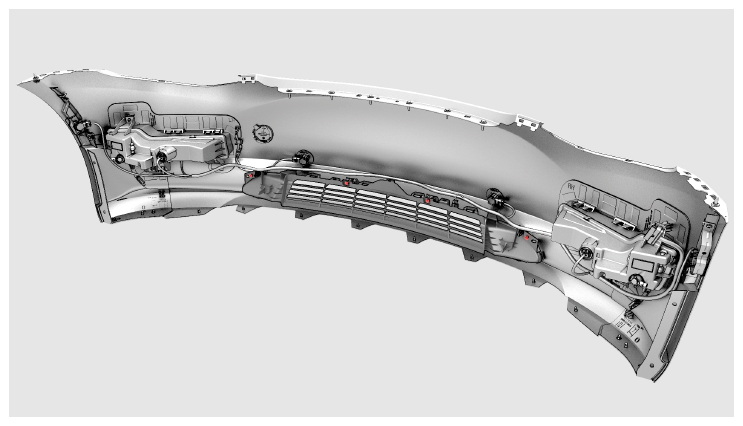

  4. Remove the screws that attach the grille to the front fascia.

    1.8 N.m (1.3 ft-lbs)

    NOTE: Use of the following tool(s) is recommended:
    • Torx T25 socket
    • 4 in extension
    G14738869Courtesy of TESLA, INC.
  5. Release the clips that attach the grille to the front fascia, and then remove the grille from the fascia.

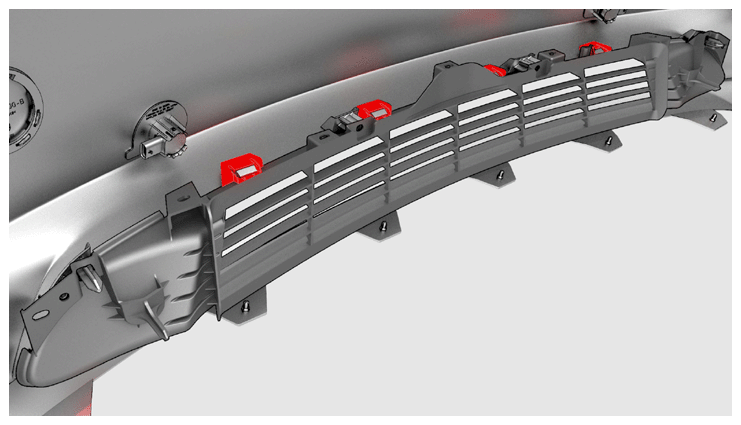

    NOTE: Top Clips Shown Below.
    G14738870Courtesy of TESLA, INC.

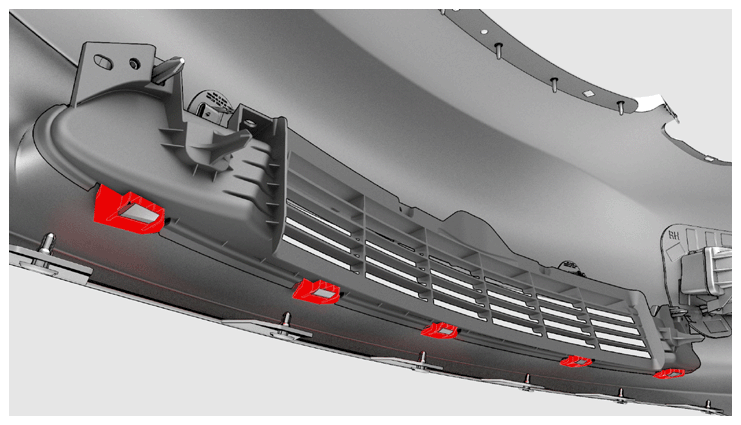

    NOTE: Bottom Clips Shown Below.
    G14738871Courtesy of TESLA, INC.
