Fascia - Rear - Upper - Remove and Replace: Remove
- Remove the rear fascia. See FASCIA - REAR (REMOVE AND INSTALL) .
- Remove the rear parking distance sensors. See SENSOR - PARKING DISTANCE - INNER - REAR (REMOVE AND REPLACE) .
- Release the tabs that attach the LH and RH rear reflectors to the rear fascia, and then remove the reflectors from the fascia.

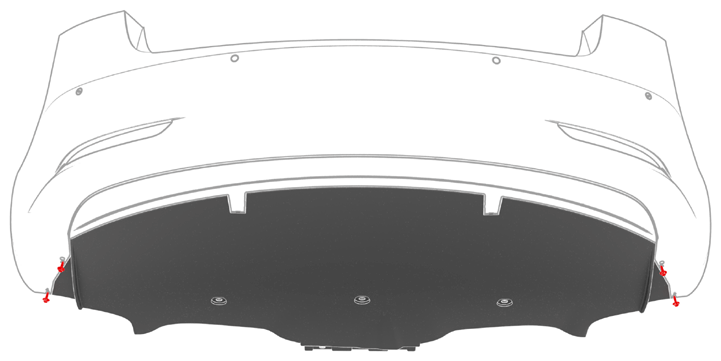

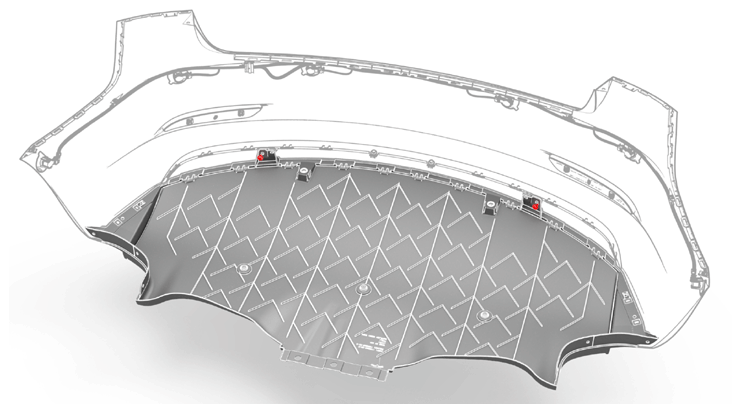

- Remove the bolts that attach the rear diffuser to the inner rear fascia.
3 N.m (2.2 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- 10 mm socket
- 6 in extension
NOTE:Inside Bolts
NOTE:Outside Bolts

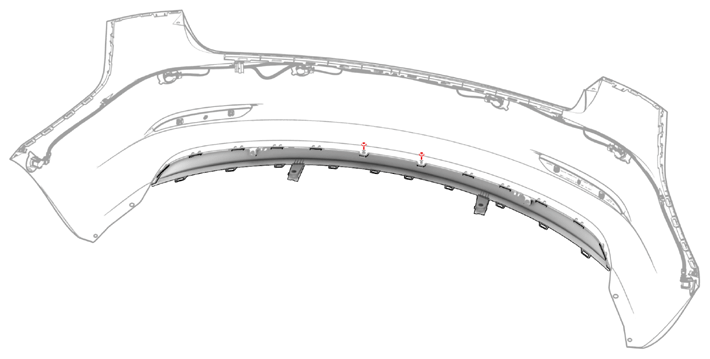

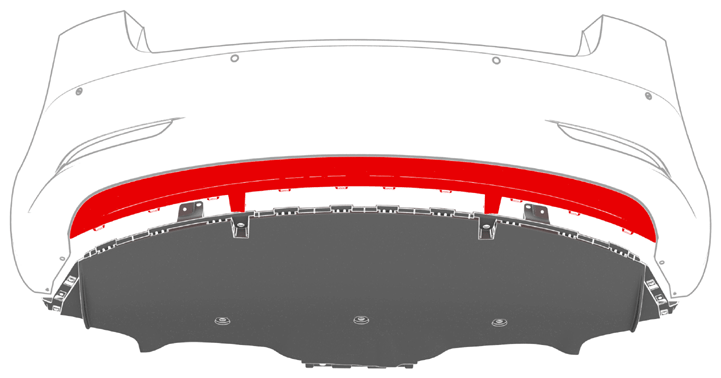

- Starting from either side, release the clips (x10) that attach the diffuser to the rear fascia, and then remove the diffuser from the rear fascia.

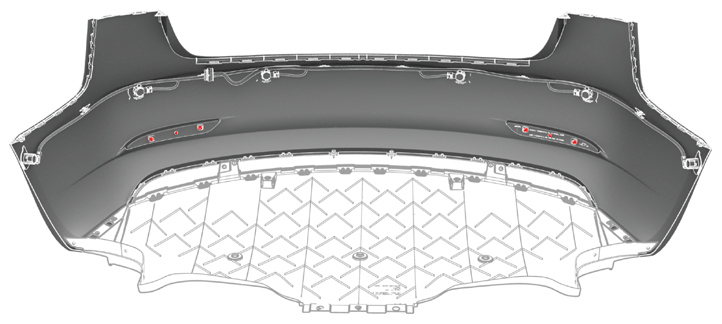

- Remove the bolts that attach the lower rear fascia to the upper rear fascia.
Tip: Use of the following tool(s) is recommended:
- 10 mm socket

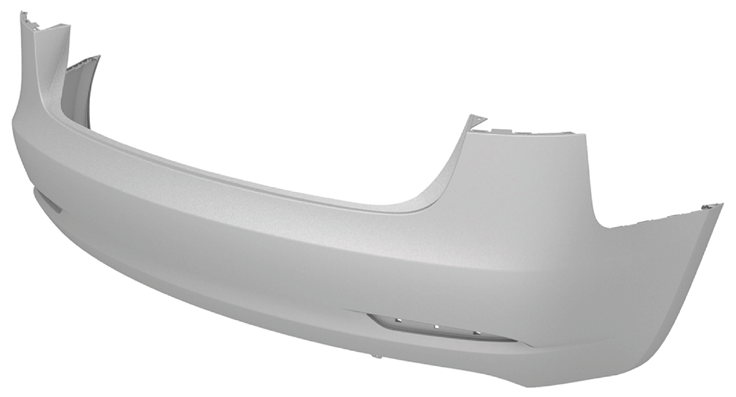

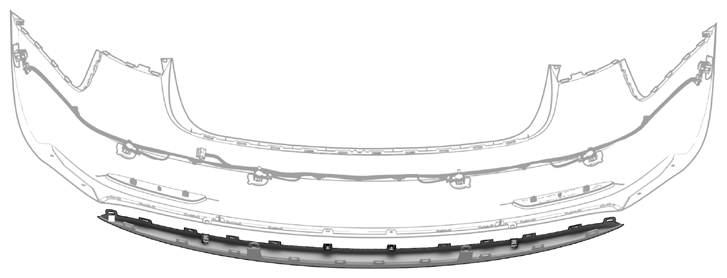

- Starting from either side, release the clips that attach the upper rear fascia to the lower rear fascia, and then separate the upper rear fascia from the lower rear fascia.
