Fascia - Rear - Lower - Remove and Replace: Remove

  1. Remove the rear fascia diffuser. See DIFFUSER - REAR FASCIA (REMOVE AND REPLACE) .

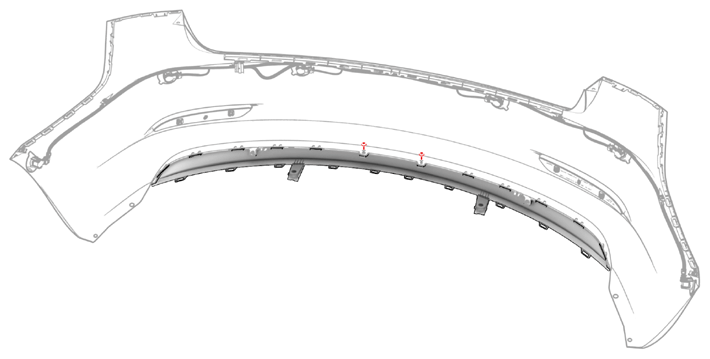

  2. Remove the bolts (x2) that attach the lower rear fascia to the upper rear fascia.

    3 N.m (2.2 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 10 mm socket
    • 4 in extension
    G14738852Courtesy of TESLA, INC.

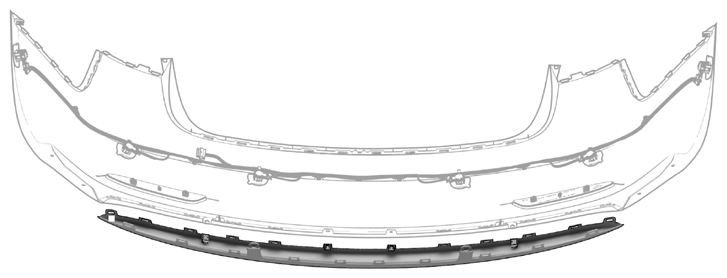

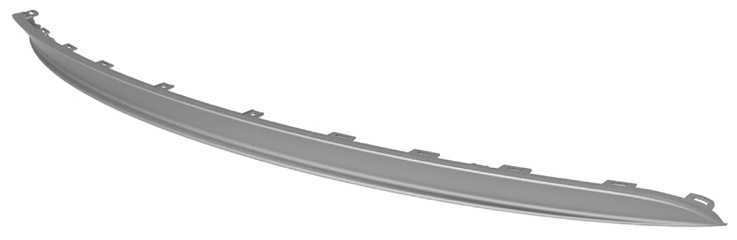

  3. Release the clips (x10) that attach the lower fascia to the upper fascia, and separate the fascias.
    G14738853Courtesy of TESLA, INC.
    G14738854Courtesy of TESLA, INC.
