Bumper Beam - Rear - Remove and Replace: Remove

  1. Remove the rear center bracket. See BRACKET - REAR - CENTER (REMOVE AND REPLACE) .

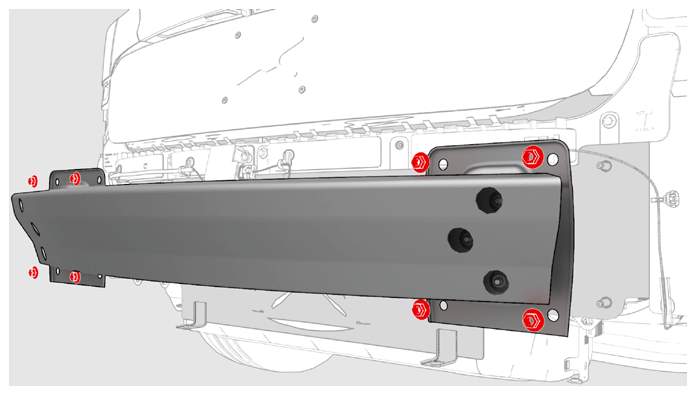

  2. Remove the nuts that attach the rear bumper beam to the body, and then remove the rear bumper beam from the vehicle.

    Tip: Recommend assistance when performing this step.

    NOTE: Use of the following tool(s) is recommended:
    • 15 mm deep socket
    • 6 in extension
    G14738769Courtesy of TESLA, INC.
