Bumper Beam - Rear - Remove and Replace: Install

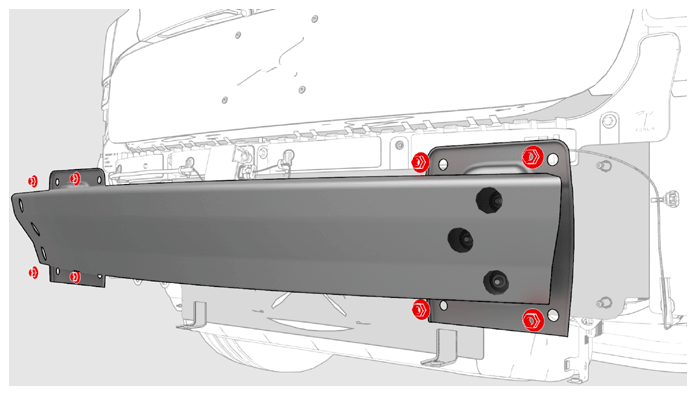

Position the rear bumper beam on the body, and then install the nuts that attach the rear bumper beam to the body.
60 N.m (44.2 ft-lbs)

Tip: Recommend assistance when performing this step.
NOTE:
Use of the following tool(s) is recommended:
- 15 mm deep socket
- 6 in extension
Courtesy of TESLA, INC.
Install the rear center bracket. See BRACKET - REAR - CENTER (REMOVE AND REPLACE) .
