Bracket - Rear - Center - Remove and Replace: Remove

  1. Remove the rear fascia. See FASCIA - REAR (REMOVE AND INSTALL) .

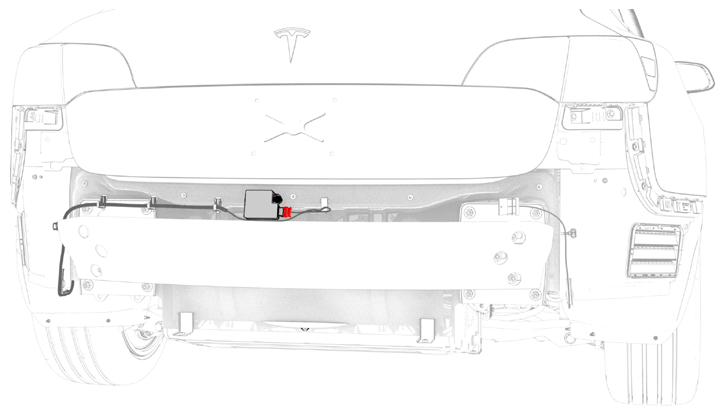

  2. Disconnect the electrical wiring harness connector from the rear Bluetooth passive entry module.
    G14738747Courtesy of TESLA, INC.

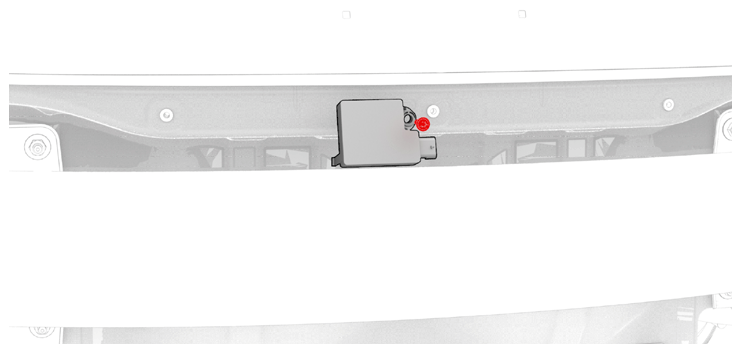

  3. Remove and discard the bolt and release the clip that attach the Bluetooth passive entry module to the body, and then remove the module from the bracket.
    NOTE: Use of the following tool(s) is recommended:
    • T30 socket
    • 2 in extension
    G14738748Courtesy of TESLA, INC.

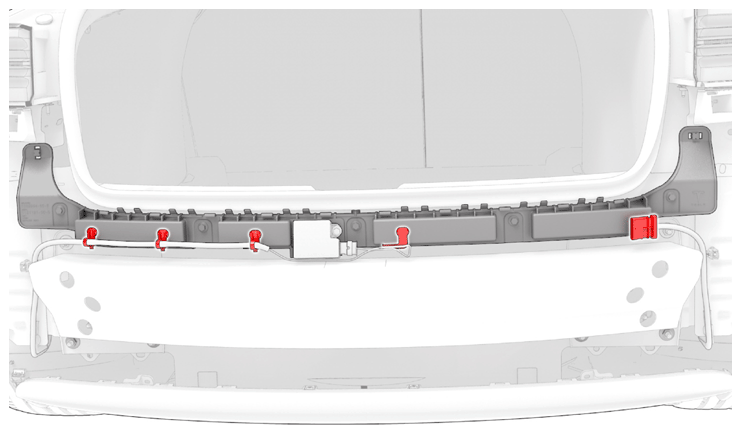

  4. Release the clips that attach the electrical harness to the rear center bracket assembly.
    NOTE: The end clip is hidden by the electrical connector.
    G14738749Courtesy of TESLA, INC.

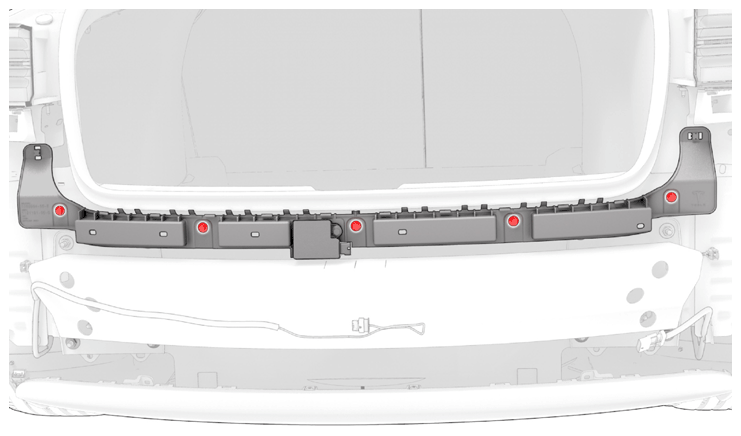

  5. Remove the bolts that attach the rear center bracket to the body.
    NOTE: Use of the following tool(s) is recommended:
    • 10 mm socket
    • 4 in extension
    G14738750Courtesy of TESLA, INC.
  6. Remove the rear center bracket from the vehicle.
