Bracket - Fascia Center To Fender - LH - Remove and Replace: Remove

  1. Remove the front fascia. See FASCIA - FRONT (REMOVE AND INSTALL) .

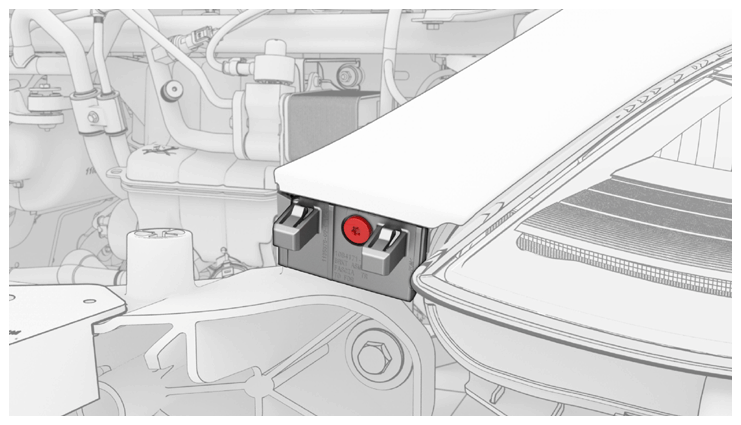

  2. Remove the bolt that attaches the LH fascia center to fender bracket to the fender, and then remove the bracket from the vehicle.

    3 N.m (2.2 ft-lbs)

    NOTE: Use of the following tool(s) is recommended:
    • Torx T20 socket
    • 4 in extension
    • Ratchet/torque wrench
    • Wurth 1/4 in hexagon 1 N.m - 5 N.m torque wrench (installation only)
    G14738739Courtesy of TESLA, INC.
