Door - Rear - LH - Remove and Replace: Remove

  1. Open the rear LH door, pass a shop towel halfway through the striker, and then close the door so that it rests against the shop towel.
  2. Remove the rear LH door glass. See GLASS - DOOR - LH - REAR (REMOVE AND REPLACE) .
  3. Remove the LH rear door outer belt seal. See SEAL - OUTER BELT - REAR DOOR - LH (REMOVE AND REPLACE) .
  4. Remove the LH rear window regulator. See WINDOW MOTOR/REGULATOR ASSEMBLY - REAR - LH (REMOVE AND REPLACE) .
  5. Remove the LH rear door latch. See LATCH - DOOR - REAR - LH (REMOVE AND REPLACE) .
  6. Remove the LH rear door exterior release handle. See HANDLE - EXTERIOR RELEASE - DOOR - REAR - LH (REMOVE AND REPLACE) .
  7. Remove the button plugs from the bottom of the door.

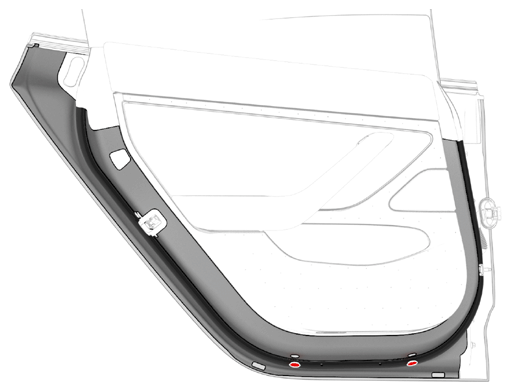

    G14738975Courtesy of TESLA, INC.
  8. Open the front LH door, and partially close the rear LH door.

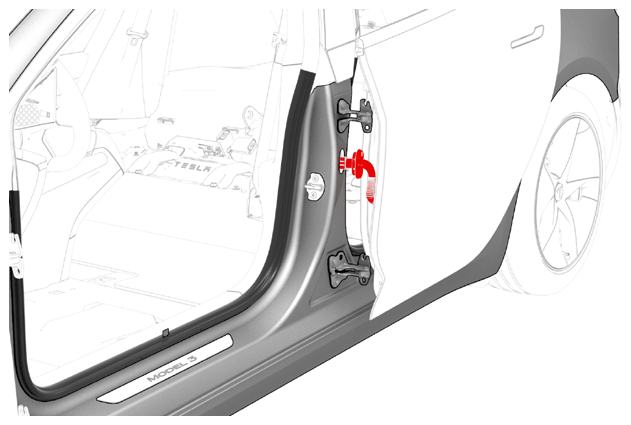

  9. Release the clips (x4) of the rear LH door electrical harness seal at the B-pillar, and pull the wiring harness out of the B-pillar bulkhead.
    G14738976Courtesy of TESLA, INC.
  10. Pull the rear LH door wiring harness connector out of the B-pillar, and then tuck the harness into the cavity at the front of the rear LH door.
  11. Carefully open the rear LH door, and then close the front LH door.
    CAUTION: Do not allow the leading edge of the rear LH door to crush the wiring harness or connector against the B-pillar.

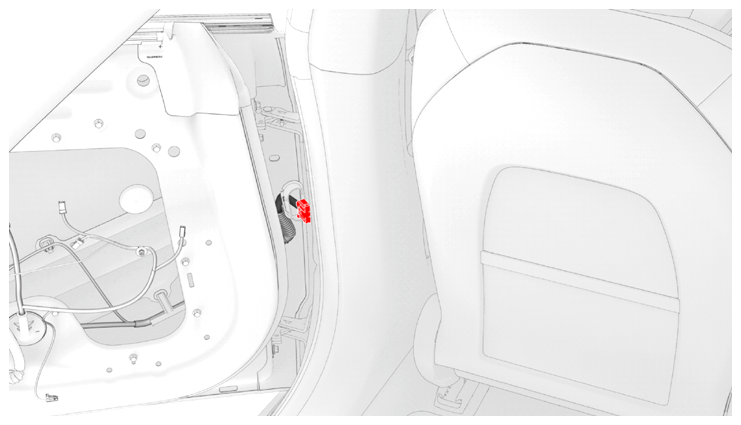

  12. Disconnect the rear LH door electrical harness, and then rotate the connector exiting the B-pillar 90 degrees, so as to prevent the connector from falling back into the B-pillar.
    G14738977Courtesy of TESLA, INC.

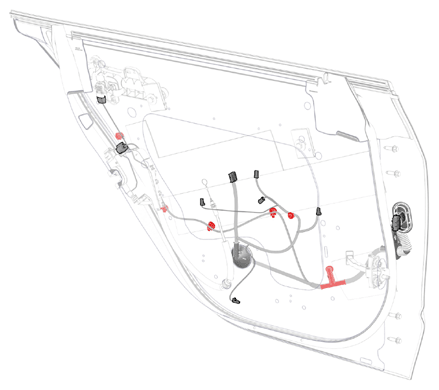

  13. Release all door electrical harness clips.
    G14738978Courtesy of TESLA, INC.
  14. Push the electrical harness out through the door bulkhead, and remove the electrical harness from the door.

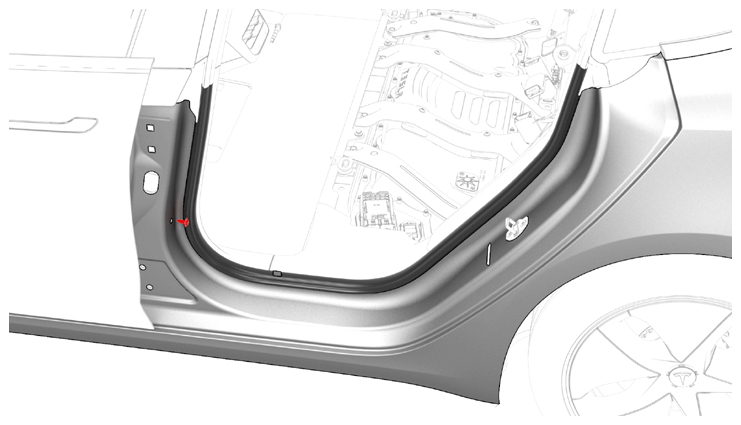

  15. Remove the bolt that attaches the door check to the B-pillar.
    G14738979Courtesy of TESLA, INC.
    CAUTION: Unbolting the door check allows the door to swing freely beyond opening limits.

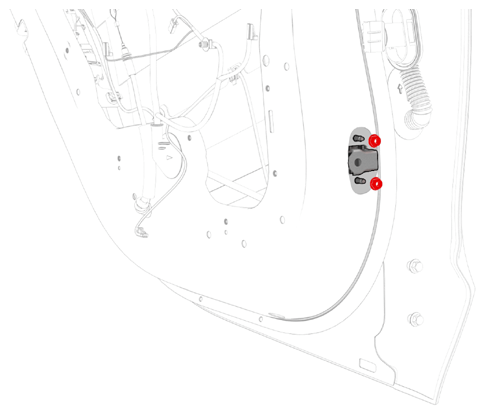

  16. Remove the nuts that attach the door check inside the door, and remove the door check from the door.

    24 N.m (17.7 ft-lbs)

    G14738980Courtesy of TESLA, INC.

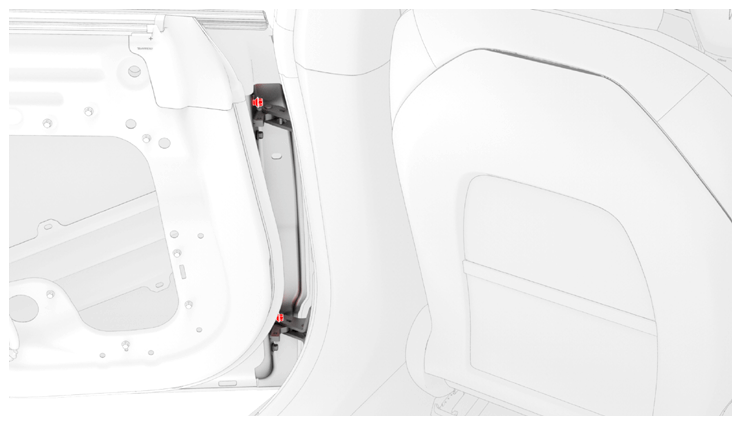

  17. Loosen the upper bolt of each hinge that attaches the rear LH door to the hinge by approximately 5 mm.
    G14738981Courtesy of TESLA, INC.

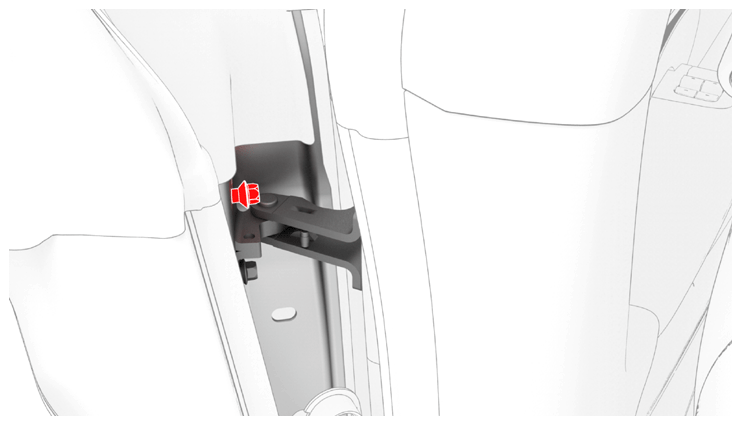

    G14738982Courtesy of TESLA, INC.

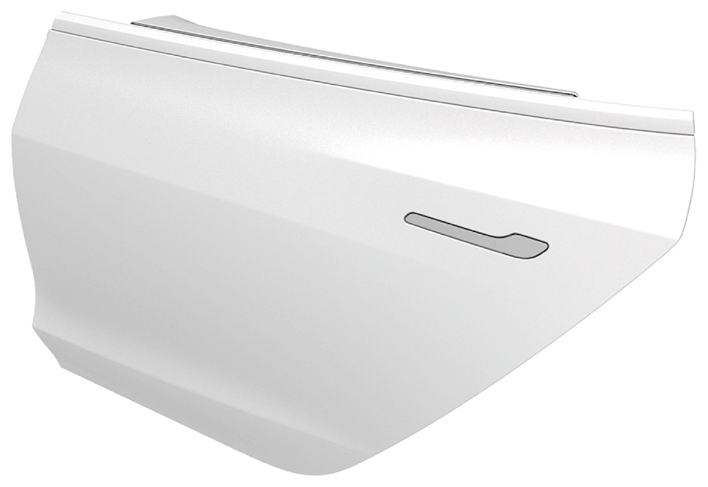

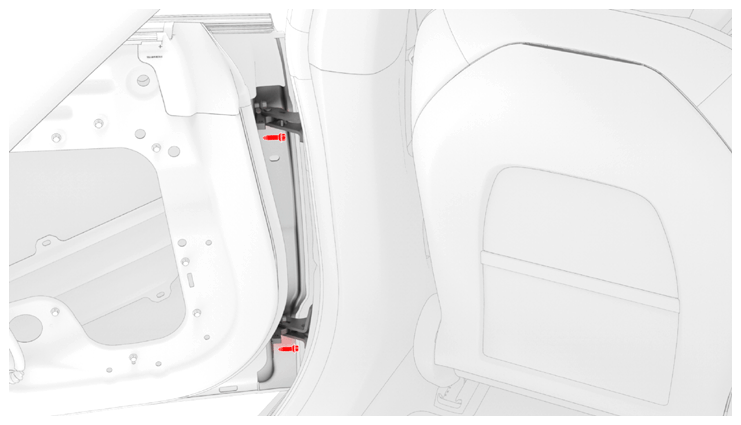

  18. With assistance, remove the lower bolt of each hinge, and then unhook and lift the door away from the vehicle.
    G14738983Courtesy of TESLA, INC.
    G14738984Courtesy of TESLA, INC.
