Door - Rear - LH - Remove and Replace: Install

  1. Install a new secondary door seal on the replacement door. See SEAL - SECONDARY - REAR DOOR - LH (REMOVE AND REPLACE) .

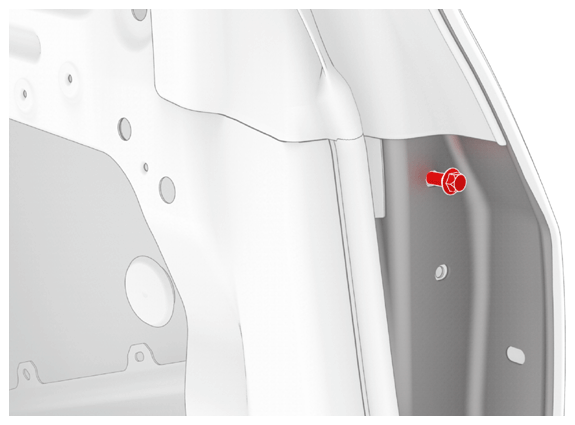

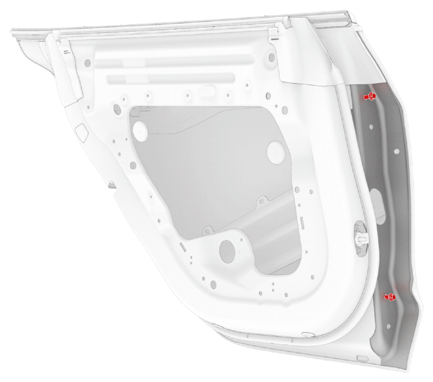

  2. Make sure that the upper bolt for each door hinge is installed, and the bolt head extends approximately 10 mm from flush.
    G14738985Courtesy of TESLA, INC.
    G14738986Courtesy of TESLA, INC.

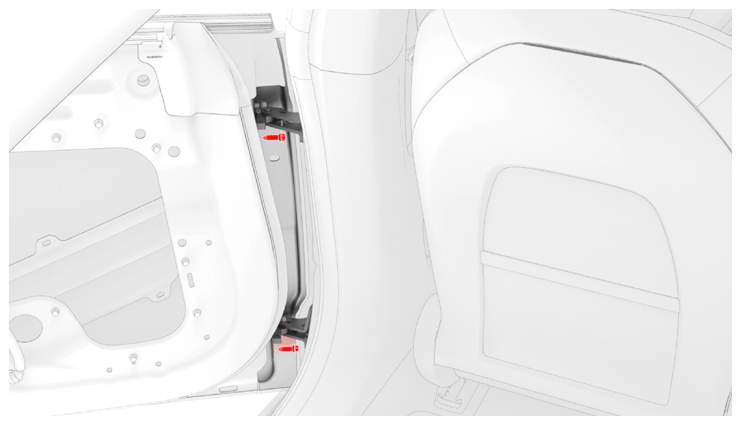

  3. With assistance, lower the rear LH door onto the door hinges, and engage the upper bolts into the hinges.
  4. Install the lower bolt of each hinge into the door and hand-tighten all bolts.
    G14738987Courtesy of TESLA, INC.

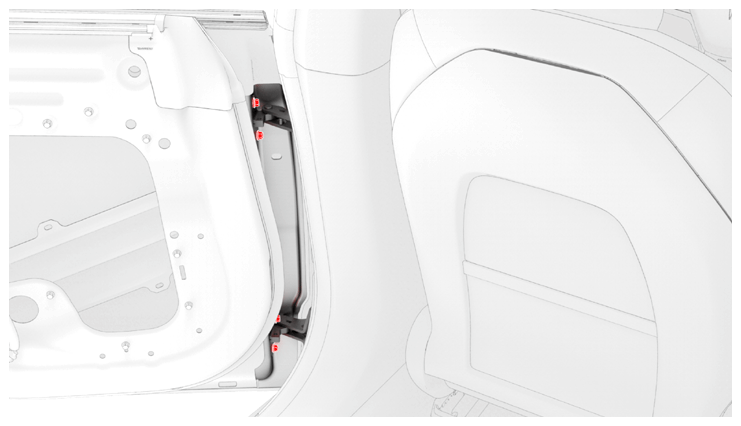

  5. Adjust the gap and flush of the door.
  6. Tighten the hinge bolts.

    24 N.m (17.7 ft-lbs)

    G14738988Courtesy of TESLA, INC.

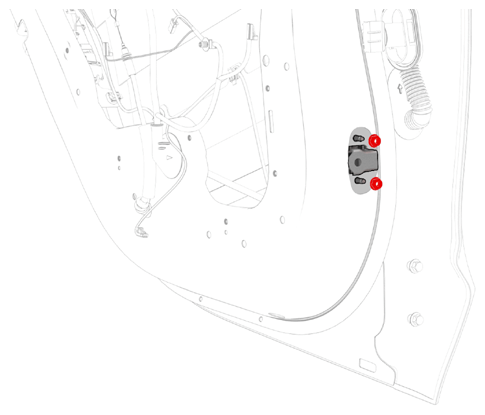

  7. Install the door check into the door, and then install the nuts that attach the door check inside the door.

    24 N.m (17.7 ft-lbs)

    G14738989Courtesy of TESLA, INC.

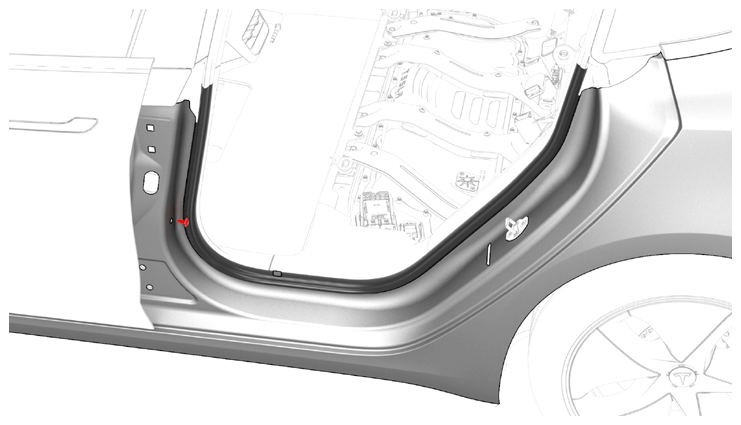

  8. Install the bolt that attaches the door check to the B-pillar.

    24 N.m (17.7 ft-lbs)

    G14738990Courtesy of TESLA, INC.

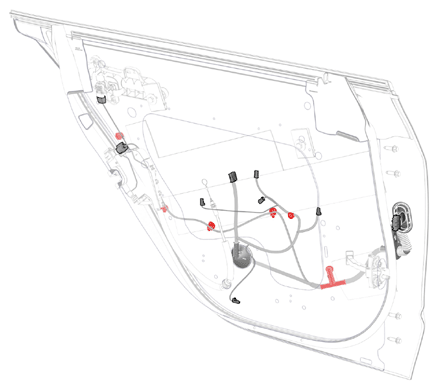

  9. Push the electrical harness in through the door bulkhead, and install the electrical harness to the door.
  10. Fasten all door electrical harness clips.
    G14738991Courtesy of TESLA, INC.

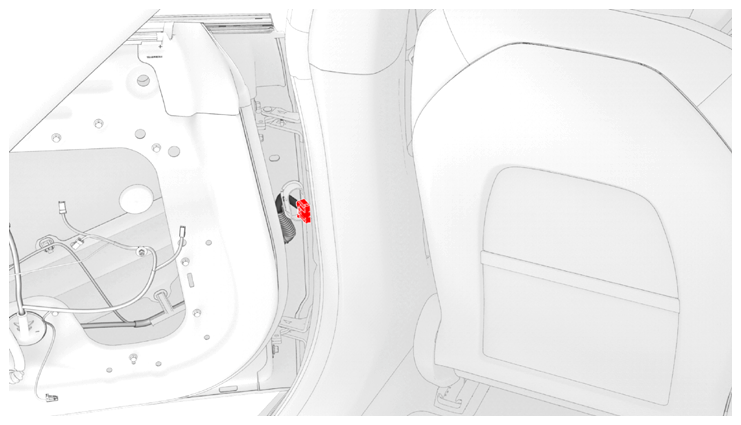

  11. Connect the rear LH door wiring harness and press the harness against the inside of the rear LH door.
    G14738992Courtesy of TESLA, INC.
  12. Open the front LH door and close the rear LH door.

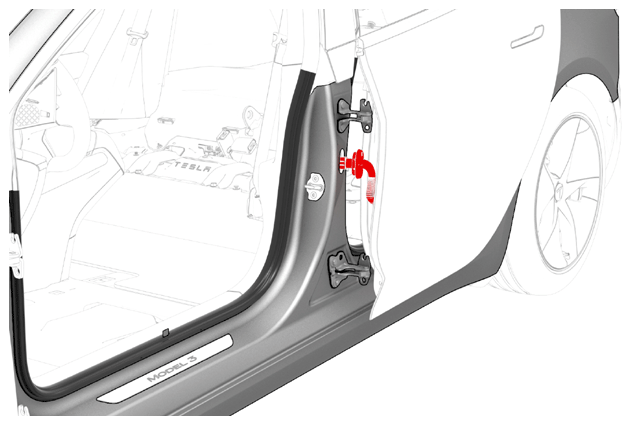

  13. Move the rear LH door electrical harness connector into the hole in the B-pillar, press the rear LH door wiring harness seal into the B-pillar, and fasten the clips (x4) that attach the seal to the B-pillar bulkhead.
    NOTE: Make sure that the rear LH door wiring harness seal fits tightly against the B-pillar bulkhead.
    G14738993Courtesy of TESLA, INC.
  14. Open the rear LH door, and then close the front LH door.

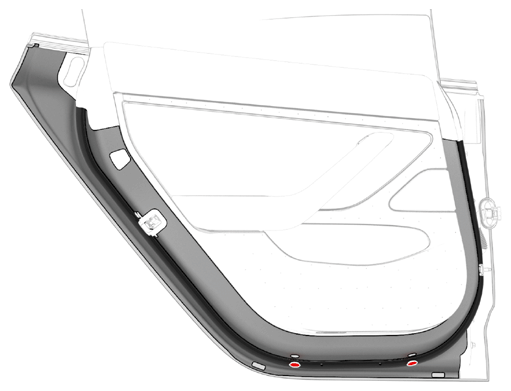

  15. Install the button plugs to the bottom of the door.
    G14738994Courtesy of TESLA, INC.
  16. Install the LH rear door exterior release handle. See HANDLE - EXTERIOR RELEASE - DOOR - REAR - LH (REMOVE AND REPLACE) .
  17. Install the LH rear door latch. See LATCH - DOOR - REAR - LH (REMOVE AND REPLACE) .
  18. Install the LH rear window regulator. See WINDOW MOTOR/REGULATOR ASSEMBLY - REAR - LH (REMOVE AND REPLACE) .
  19. Install the LH rear door outer belt seal. See SEAL - OUTER BELT - REAR DOOR - LH (REMOVE AND REPLACE) .
  20. Install the rear LH door glass. See GLASS - DOOR - LH - REAR (REMOVE AND REPLACE) .
  21. Remove the shop towel from the striker.
  22. Adjust the gap and flush at the latch and striker.
  23. Use Toolbox to calibrate the RH rear window. See WINDOW REGULATOR - REAR - LH (RECALIBRATE) .
