Motor - Seat Tilt - Driver Seat - Remove and Replace: Remove

  1. Remove the driver seat. See SEAT ASSEMBLY - 1ST ROW (LH) - REMOVE AND REPLACE .
  2. Remove the driver seat outboard side shield. See SIDE SHIELD - OUTBOARD - DRIVER SEAT (REMOVE AND REPLACE) .
    NOTE: This step is not necessary if performing this procedure for the front passenger seat.
  3. Disconnect the electrical harness from the driver seat tilt motor connector.

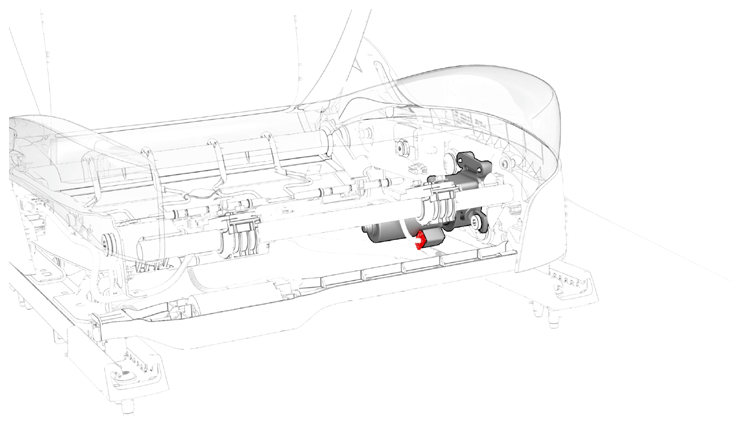

    G14740144Courtesy of TESLA, INC.
  4. If performing this procedure for the front passenger seat:  Release the clips (x2) that attach the RH front seat belt buckle harness to the seat cushion frame.
    G00651743Courtesy of TESLA, INC.
  5. Remove the bolts that attach the driver seat tilt motor to the seat frame.

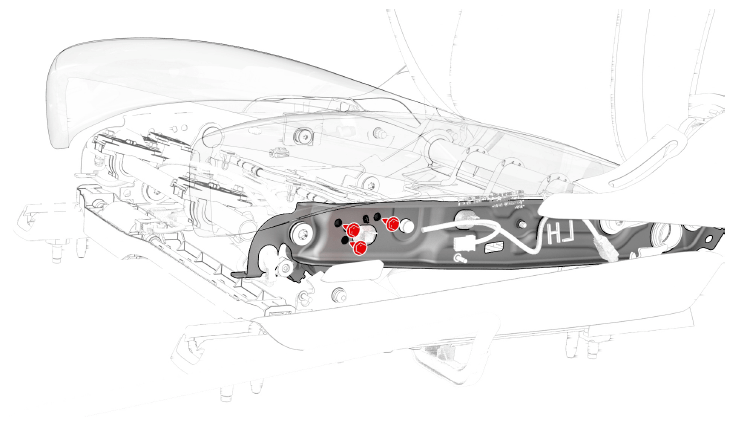

    G14740145Courtesy of TESLA, INC.
  6. Remove the bolt that attaches the driver seat tilt motor adjustment arm to the seat cushion tilt tube bracket, and then remove the driver seat tilt motor from the seat frame.

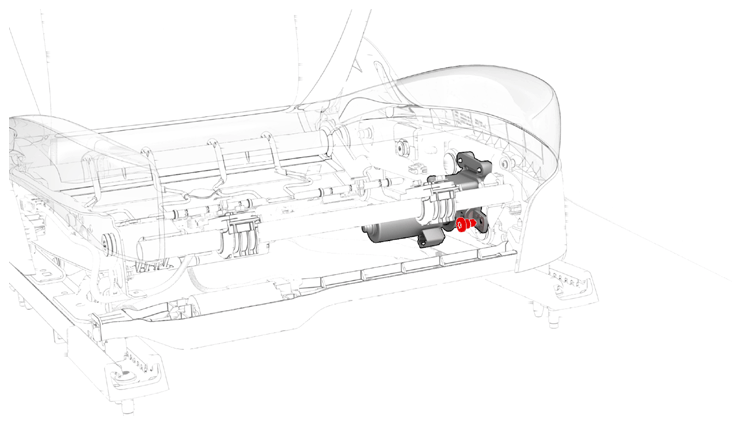

    G14740146Courtesy of TESLA, INC.

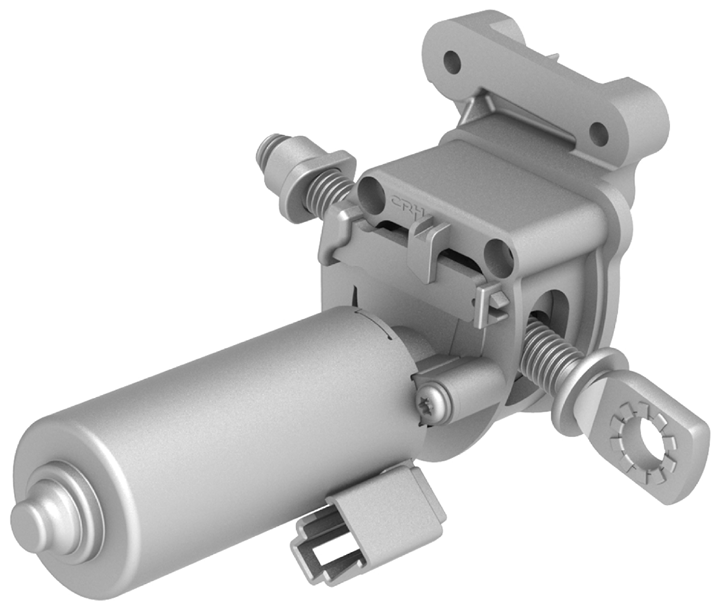

    G14740147Courtesy of TESLA, INC.
