Frame - Seat Cushion - Front Passenger Seat - Remove and Replace

Last Modified: 27/07/2023 13:28:25

G00643960Courtesy of TESLA, INC.
NOTE: See Personal Protection to make sure to wear proper PPE when performing below procedure.
WARNING: This procedure is a DRAFT, although it has been validated. Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near high voltage systems and components. Provide corrections and feedback to ServiceDevelopment@teslamotors.com.
  1. Check Firmware version
    NOTE: Firmware package installed must be 2023.2.11 or above for configuration routine to populate, If below target package, proceed with OTA update
  2. Remove the front passenger seat assembly. See Seat Assembly - 1st Row (LH) - Remove and Replace .
  3. Remove screw securing outer side cover to seat
    G00650759Courtesy of TESLA, INC.
    NOTE: 1x screw, T20, 4 Nm, Ensure the front of the seat is high enough to access the T20 screw

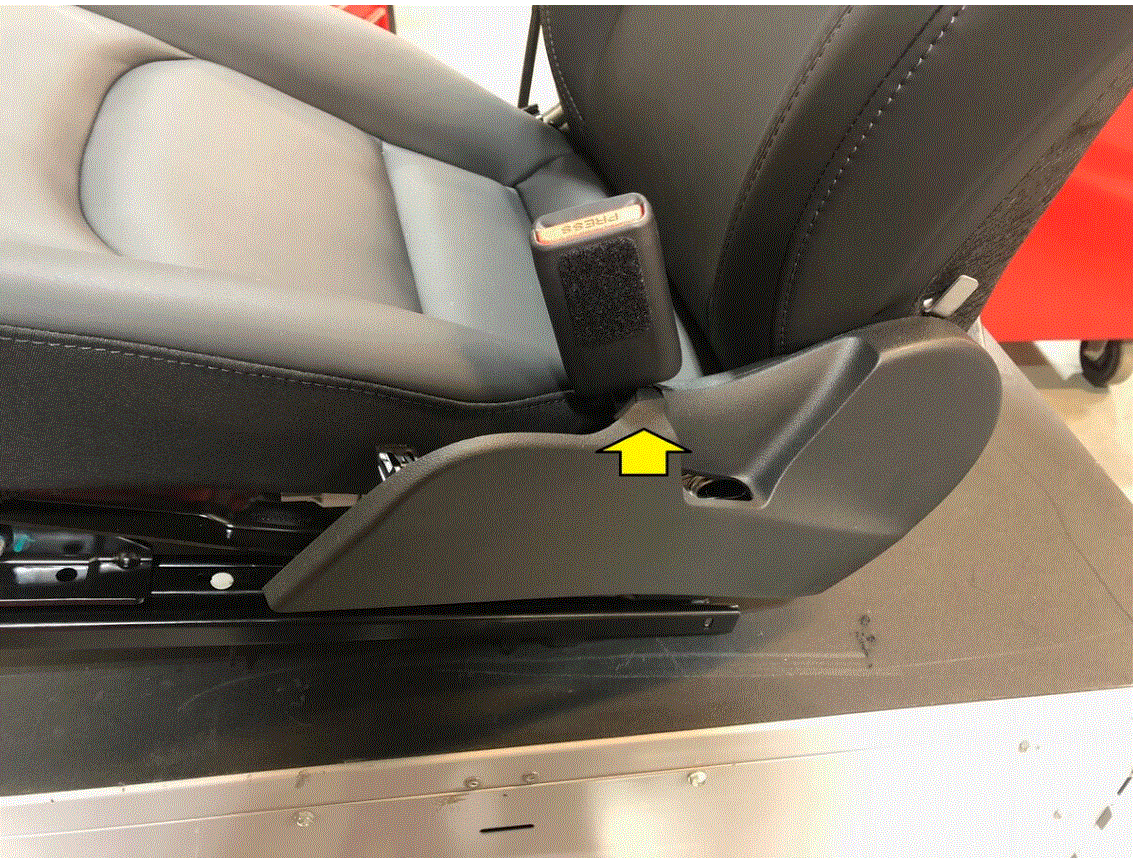

  4. Release outer side cover clip from seat, but do not remove
    NOTE: 1x clip, Do not fully remove, possible damage to the trim/switch pack/harness
    G00650760Courtesy of TESLA, INC.

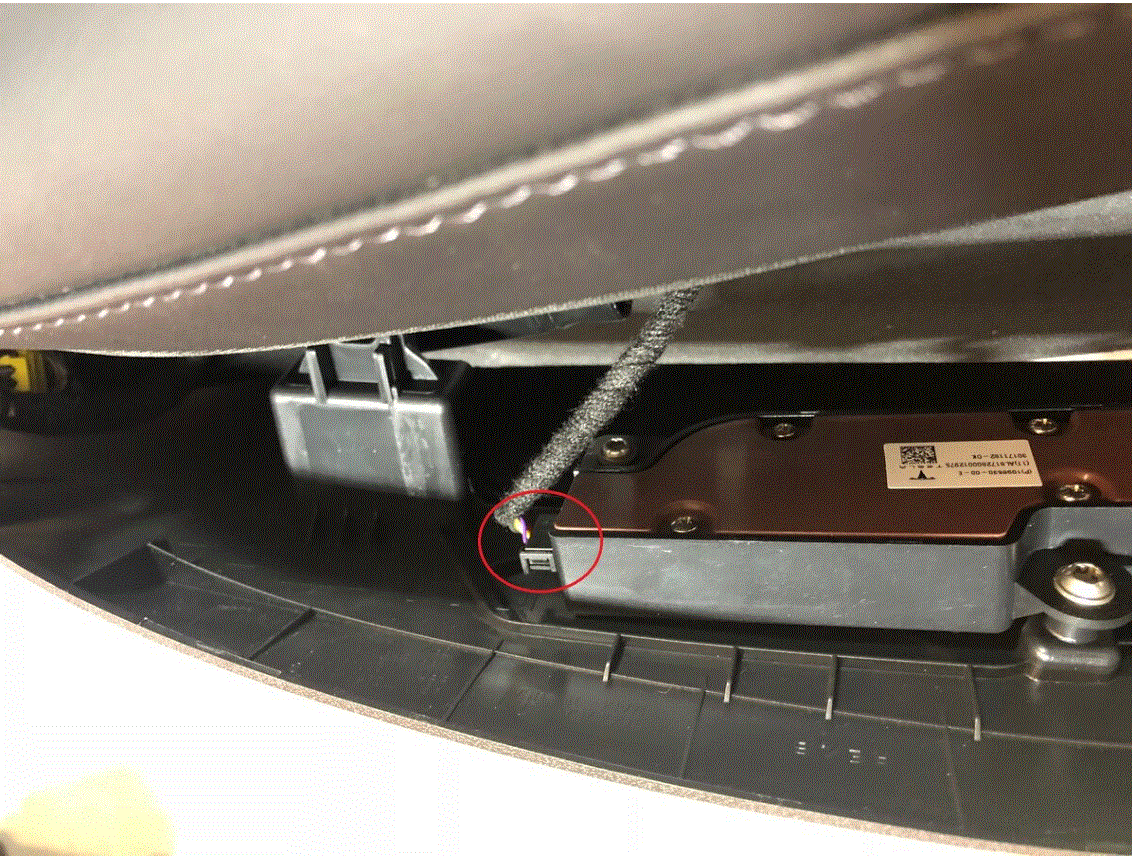

  5. Disconnect seat switch connector
    NOTE: 1x connector
    G00650761Courtesy of TESLA, INC.

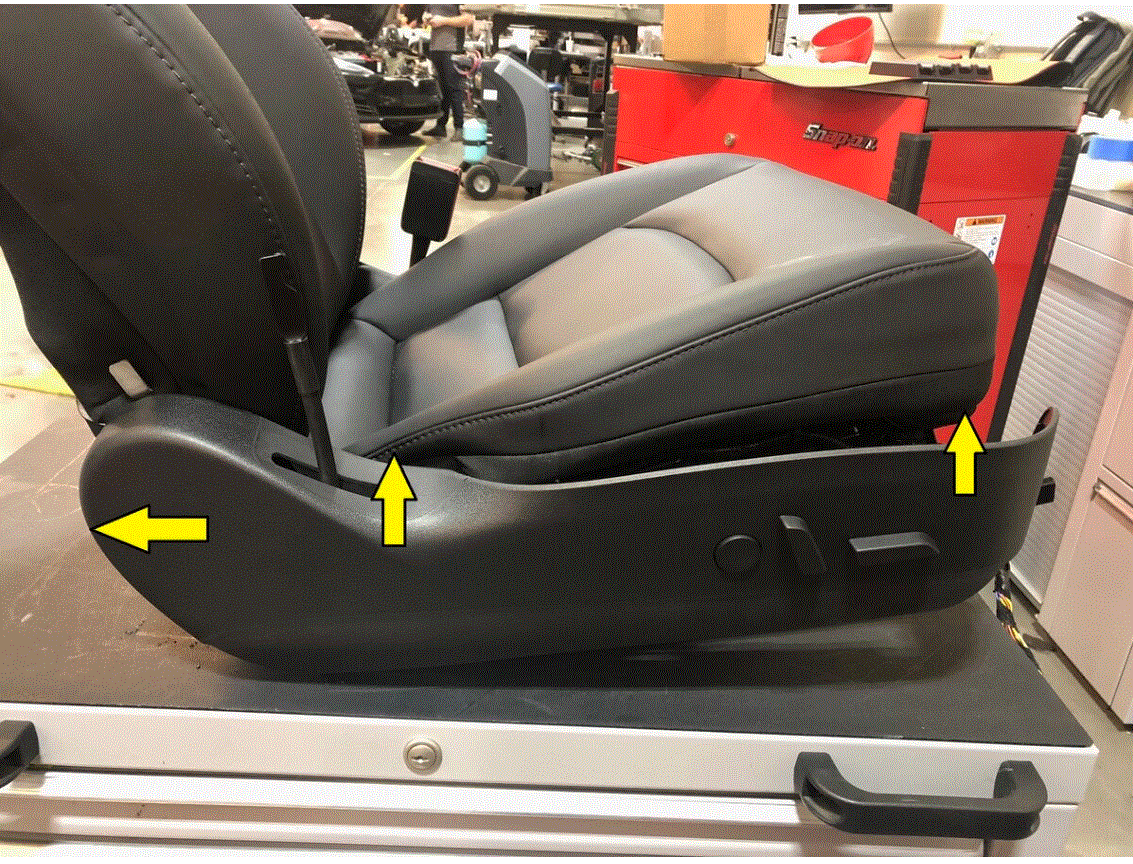

  6. Slide outer cover rearward to release clip from frame and lift up over pretensioner to remove
    NOTE: 1x clip
    G00650762Courtesy of TESLA, INC.

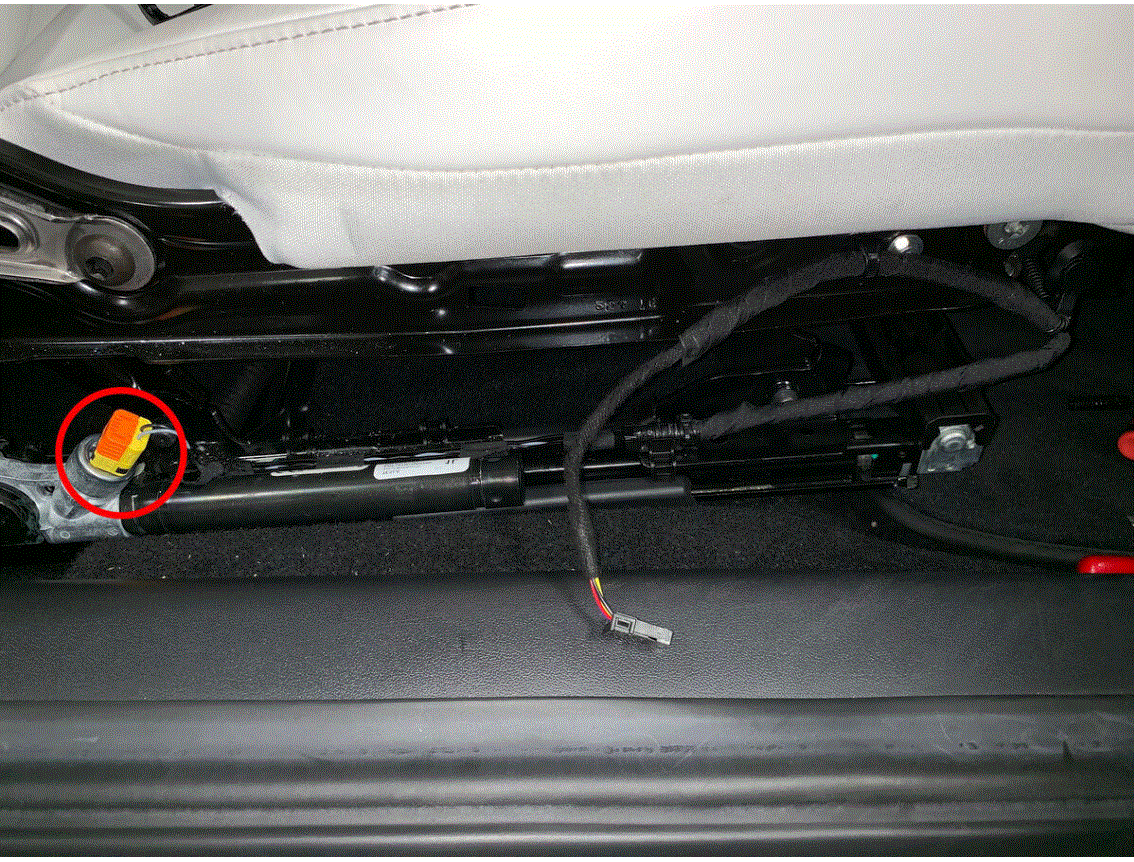

  7. Connect the RH front seat belt pretensioner
    NOTE: 1x connector
    G00650763Courtesy of TESLA, INC.

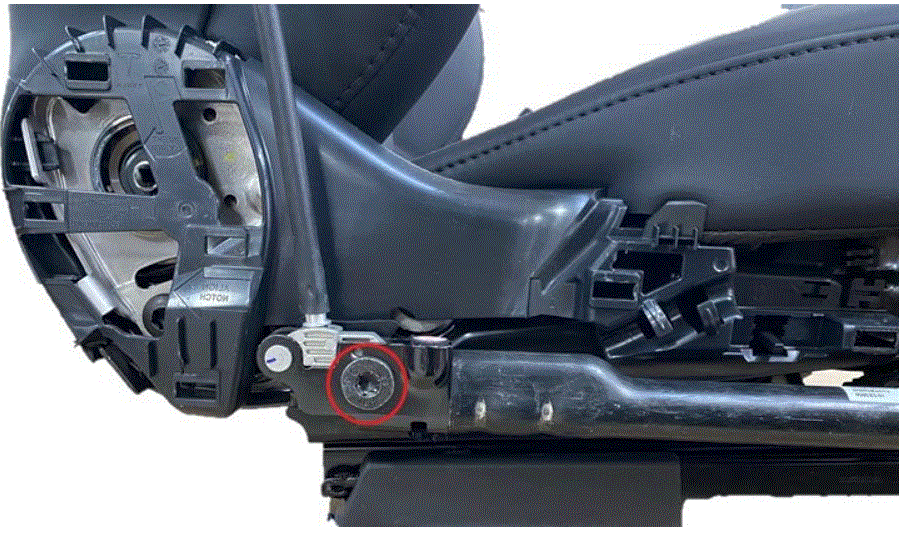

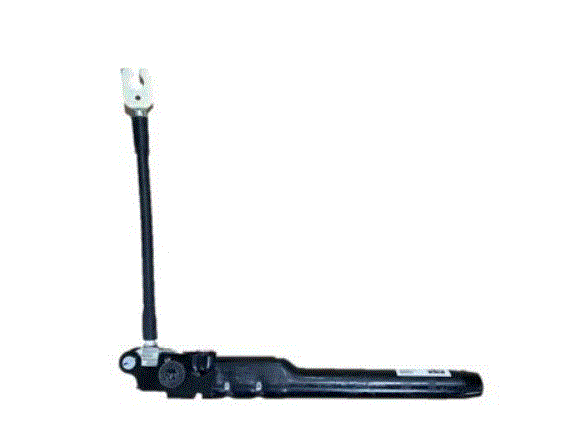

  8. Remove RH lap pretensioner from seat track
    NOTE: 1x patch bolt, T50, 40 Nm, Bolt is patched and held in place with metal clip
    G00650764Courtesy of TESLA, INC.
    G00650765Courtesy of TESLA, INC.

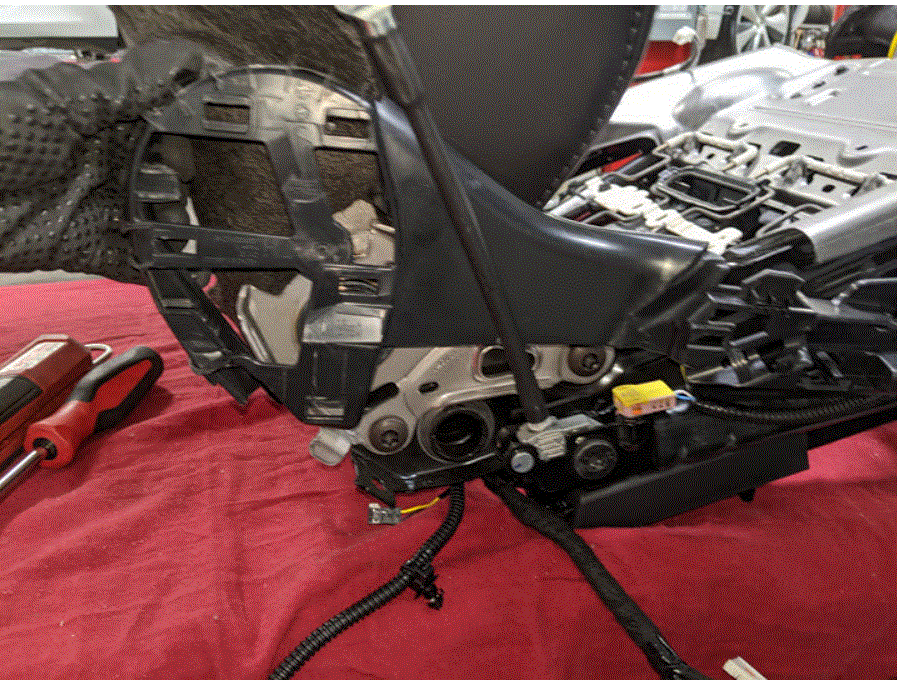

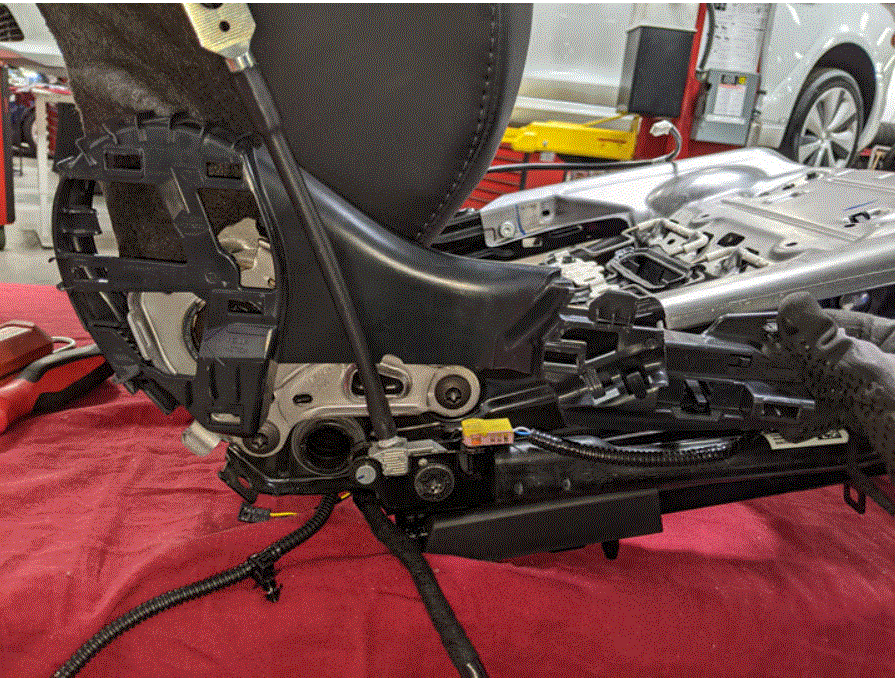

  9. Remove RH front seat RH sideshield carrier
    NOTE: 2x clips, 2x tabs, Release leading edge of trim and slide away from seat frame
    G00650766Courtesy of TESLA, INC.
    G00650767Courtesy of TESLA, INC.
    G00650768Courtesy of TESLA, INC.

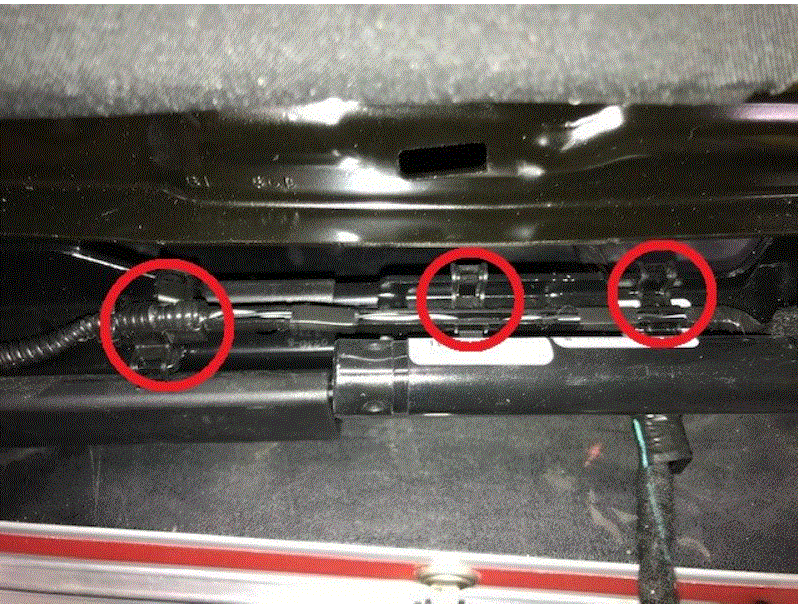

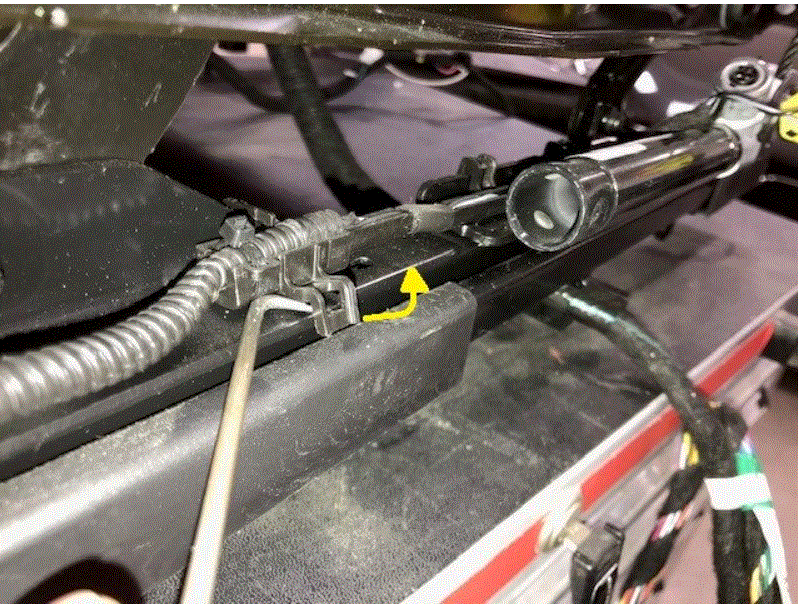

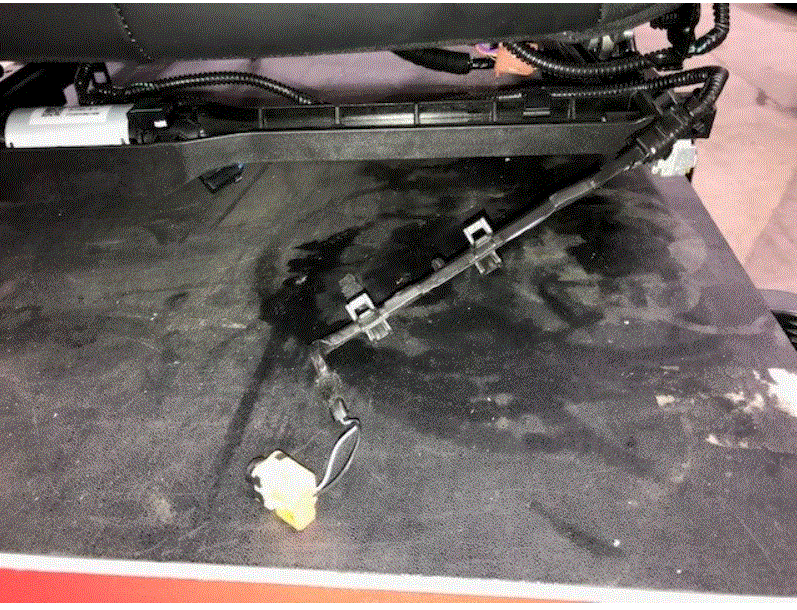

  10. Release seat belt pretensioner harness clips
    NOTE: 3x clips, Use 90 pick to release harness clips from seat track rail
    G00650769Courtesy of TESLA, INC.
    G00650770Courtesy of TESLA, INC.
    G00650771Courtesy of TESLA, INC.

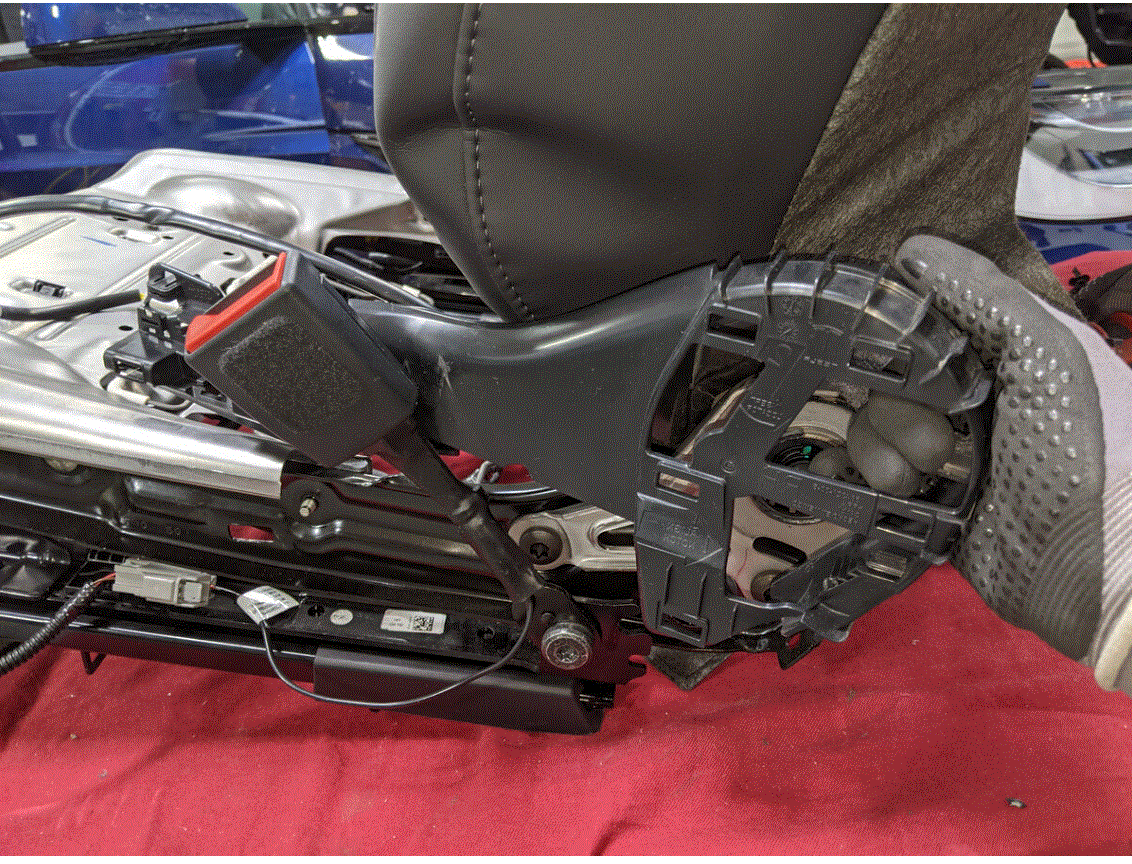

  11. Remove RH front seat LH sideshield carrier
    NOTE: 2x clips, 2x tabs, Release leading edge of trim and slide away from seat frame
    G00650772Courtesy of TESLA, INC.
    G00650773Courtesy of TESLA, INC.

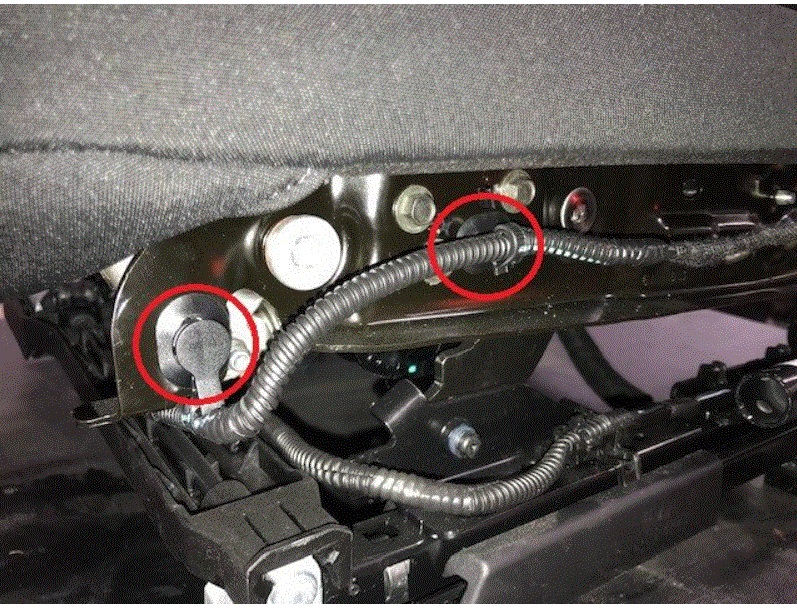

  12. Remove clips securing seat switch harness to seat cushion frame
    NOTE: 2x fir tree clips
    G00650774Courtesy of TESLA, INC.

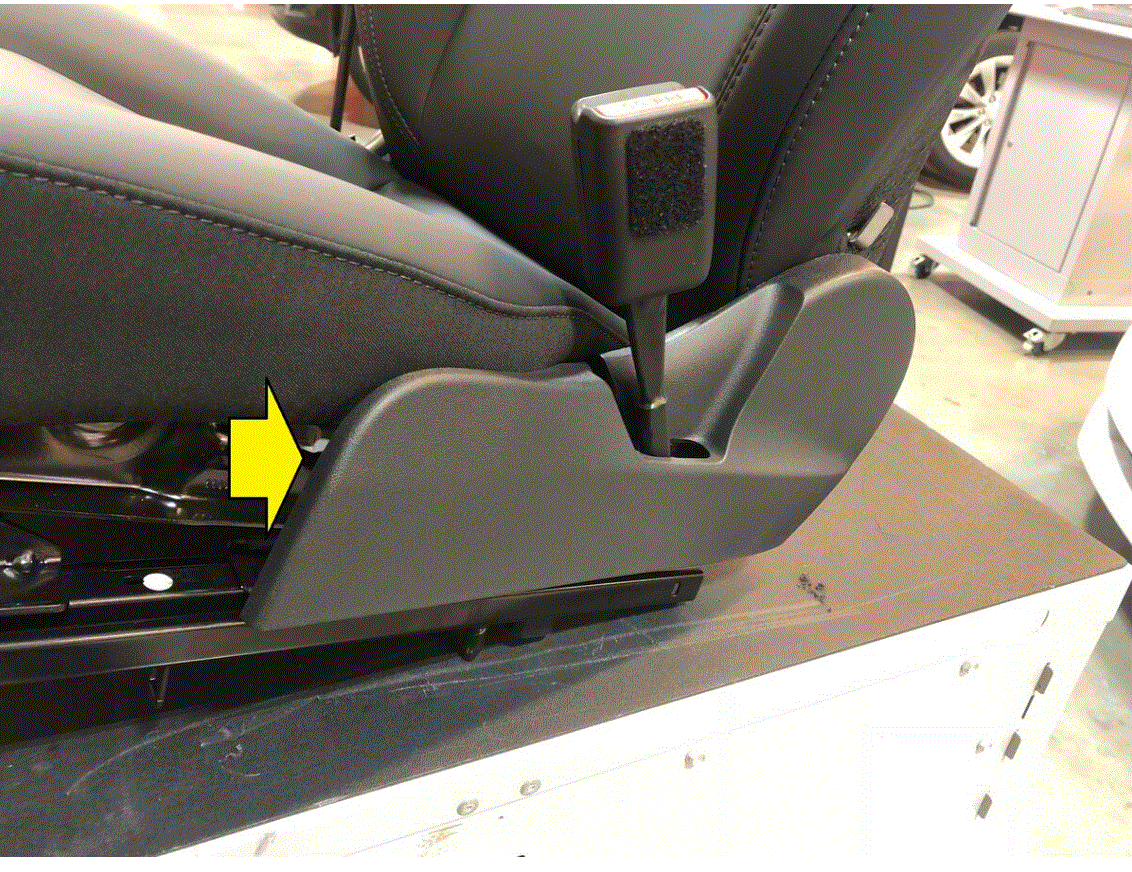

  13. Remove inner side shield from seat
    NOTE: 3x clips, Release side clip from seat bottom frame, then pull up on rear of trim to remove
    G00650775Courtesy of TESLA, INC.
    G00650776Courtesy of TESLA, INC.

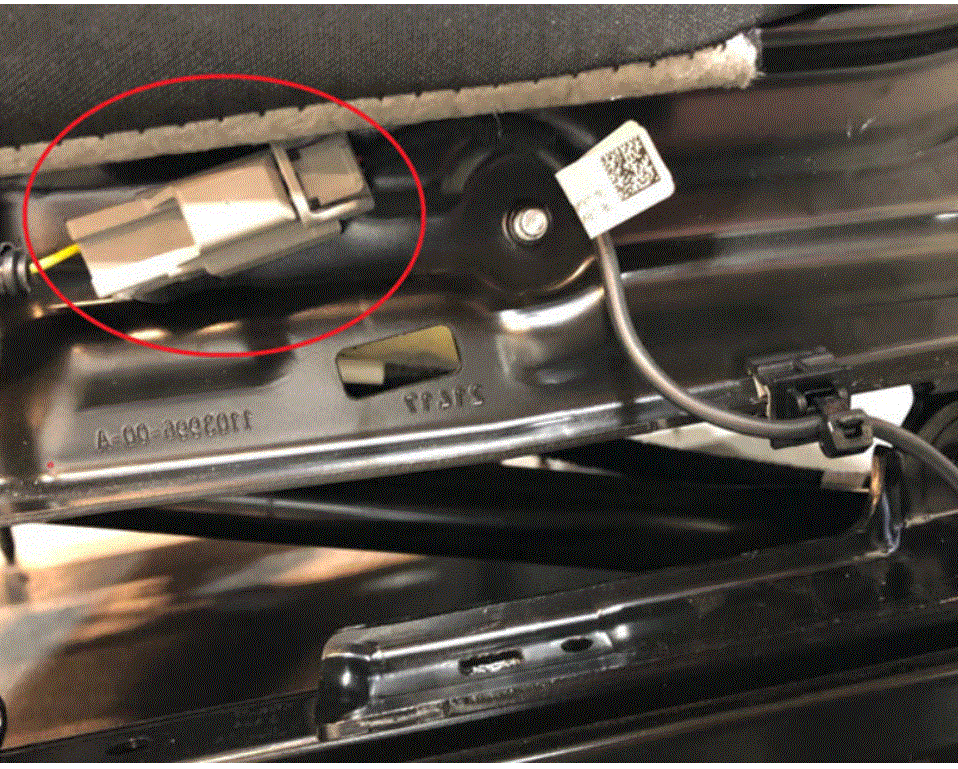

  14. Disconnect RH front seat belt buckle
    NOTE: 1x connector
    G00650777Courtesy of TESLA, INC.

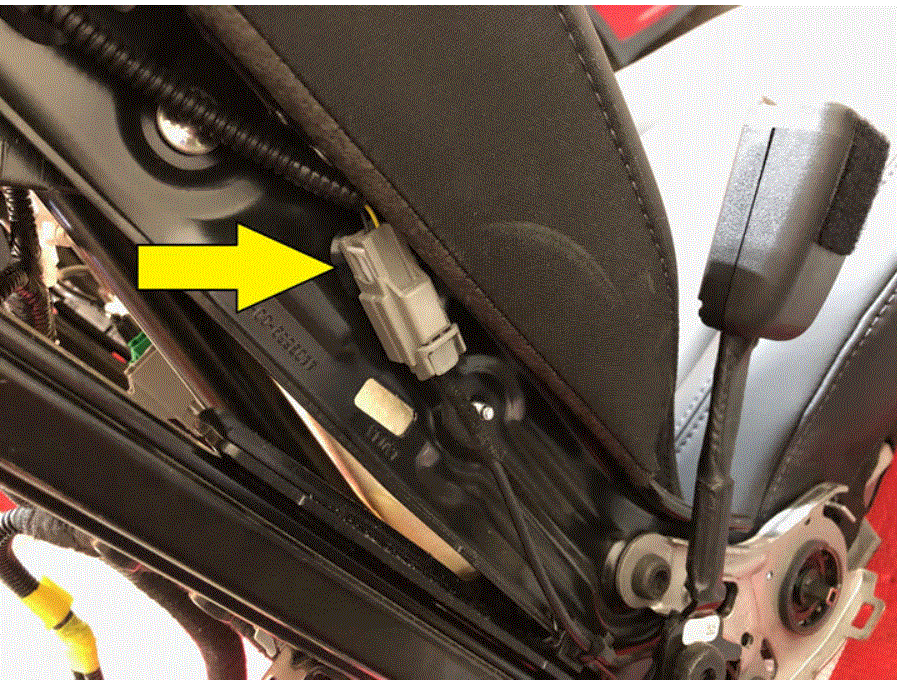

  15. Release RH front seat belt buckle harness clip
    NOTE: 1x fir tree clip
    G00650778Courtesy of TESLA, INC.

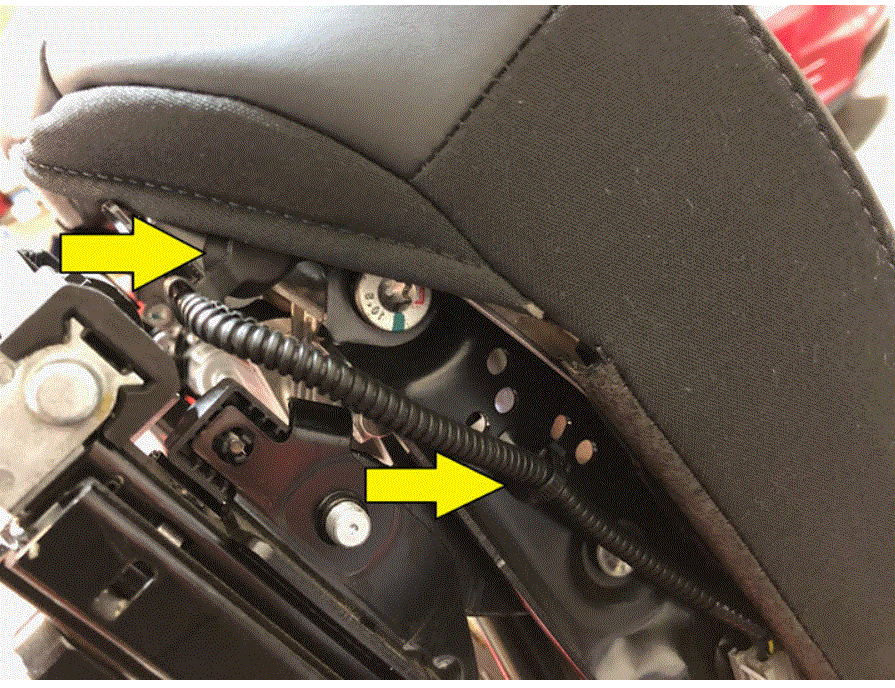

  16. Remove the clips securing RH front seat belt buckle connector harness to the seat cushion frame
    NOTE: 2x fir tree clips
    G00650779Courtesy of TESLA, INC.

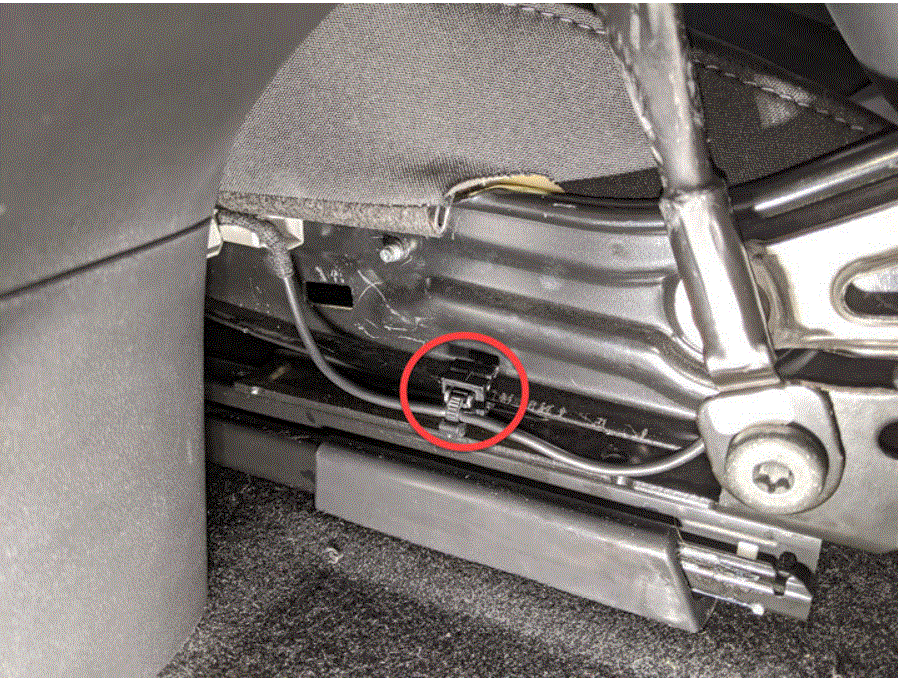

  17. Release harness clip from RH front seat bottom frame
    NOTE: 1x clip
    G00650780Courtesy of TESLA, INC.

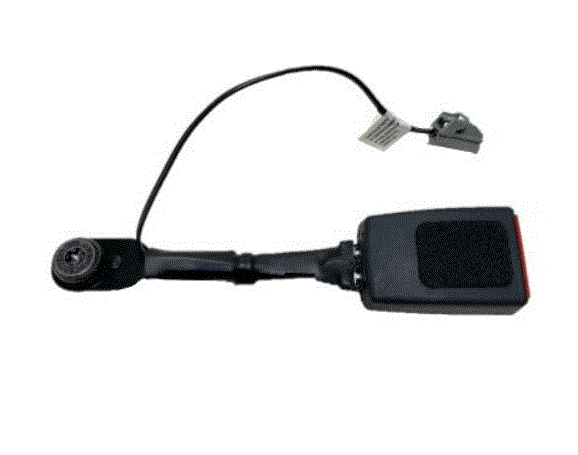

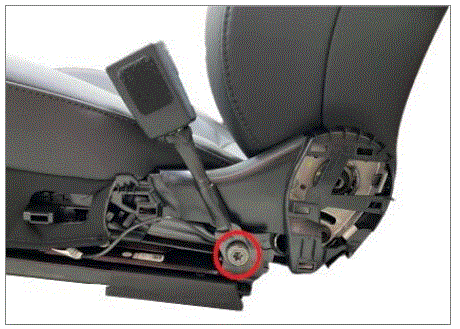

  18. Remove RH front seat buckle from seat track
    NOTE: 1x patch bolt, T50, 40 Nm
    G00650781Courtesy of TESLA, INC.
    G00650782Courtesy of TESLA, INC.

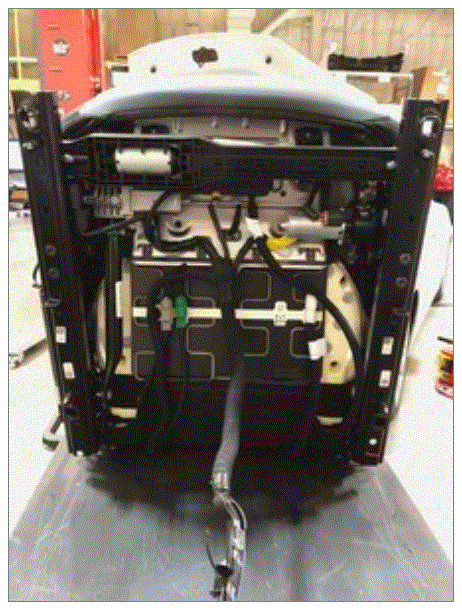

  19. Rotate the seat to gain access to the underside of the seat
    NOTE: Protect seat cushion from damage
    G00650783Courtesy of TESLA, INC.

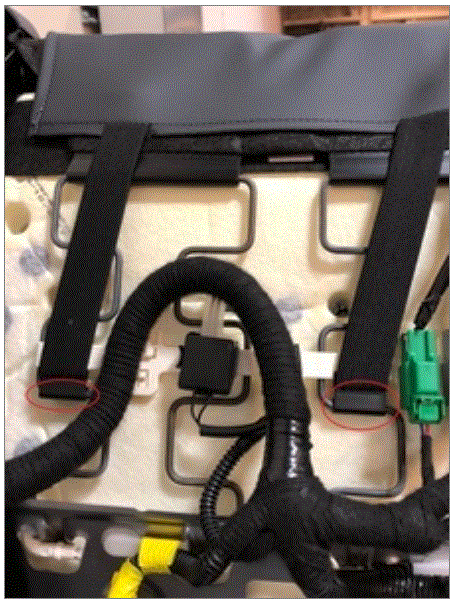

  20. Unhook the straps for the lower section of the seat back and move the seat back flap away from the underside of the seat
    NOTE: 2x clips
    G00650784Courtesy of TESLA, INC.

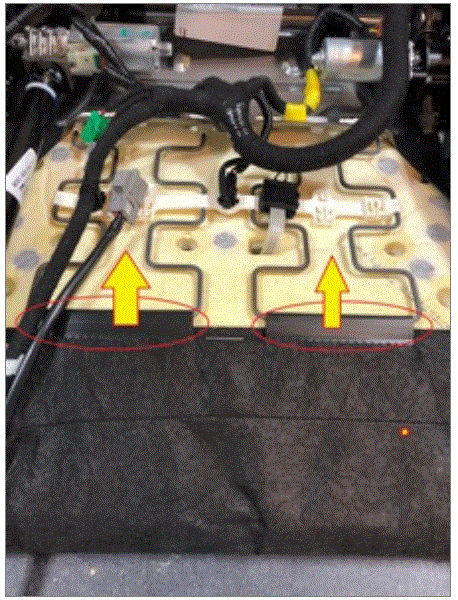

  21. Remove seat cushion retaining clips from the seat suspension
    NOTE: 2x clips
    G00650785Courtesy of TESLA, INC.

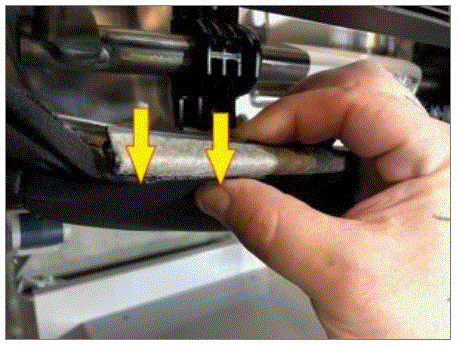

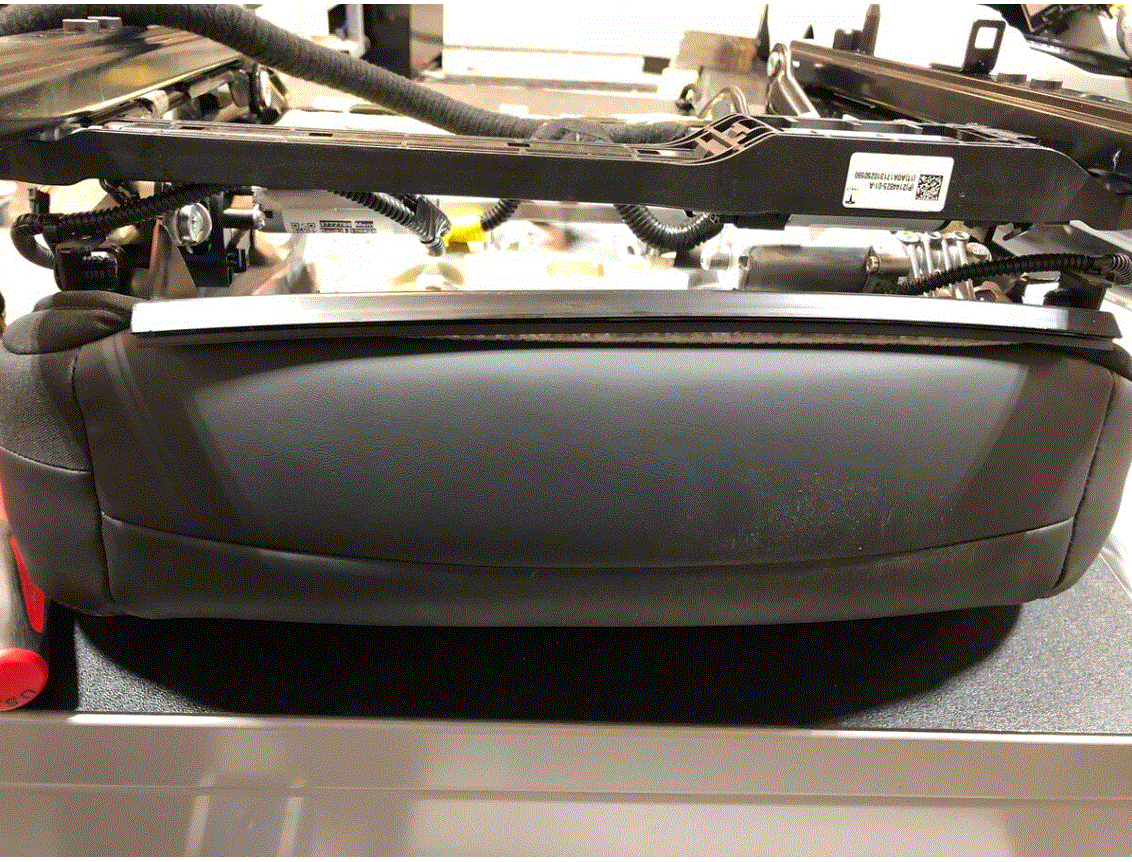

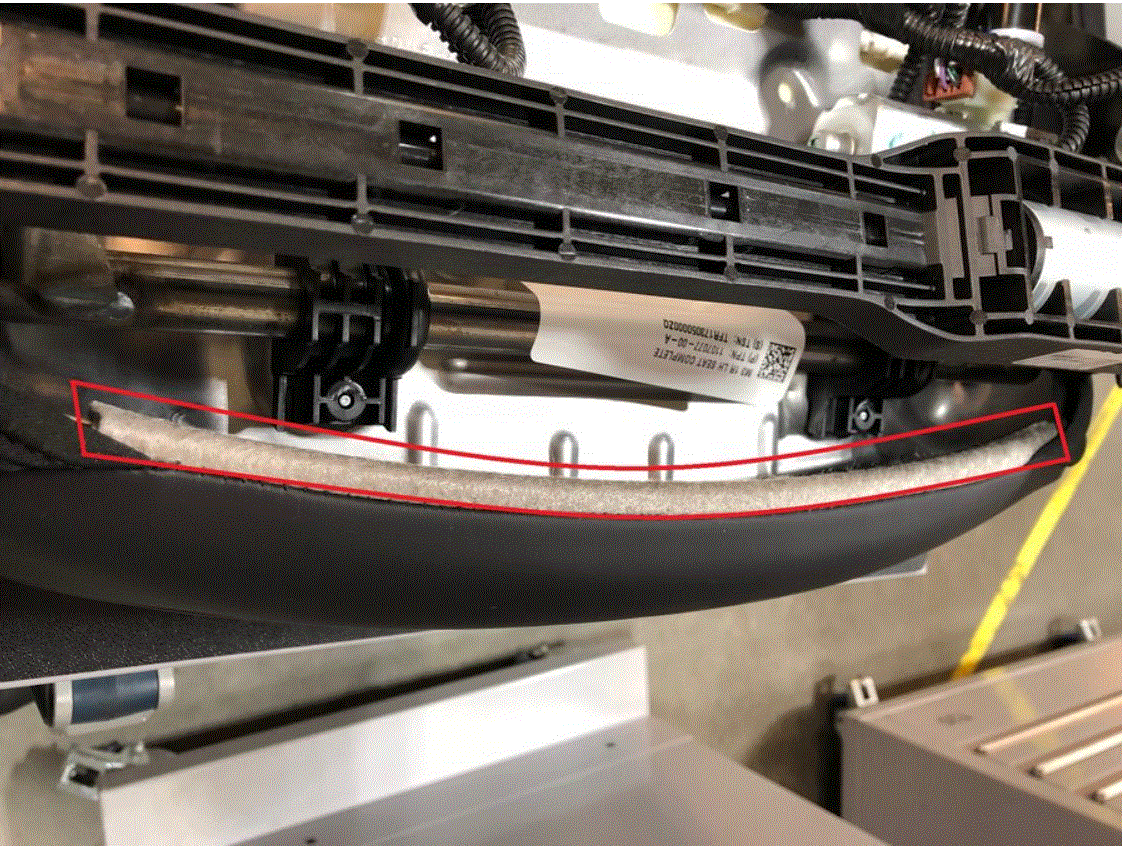

  22. Remove the front retaining clip from the seat cushion frame securing the front of the seat trim to the frame
    NOTE: 1x clip strip, May need to start with a hook tool, Pull the clip away from the frame to release
    G00650786Courtesy of TESLA, INC.
    G00650787Courtesy of TESLA, INC.
    G00650788Courtesy of TESLA, INC.

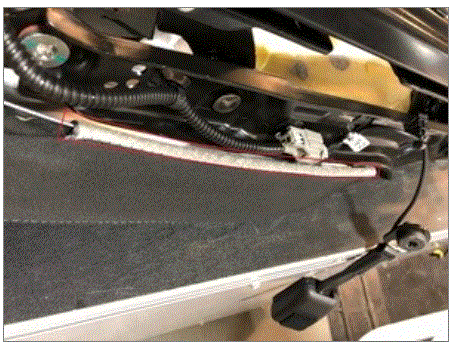

  23. Remove the inboard retaining clip from the seat cushion frame securing the side of the seat trim to the frame
    NOTE: 1x clip strip, May need to start with a hook tool, Pull the clip away from the frame to release
    G00650789Courtesy of TESLA, INC.
    G00650790Courtesy of TESLA, INC.

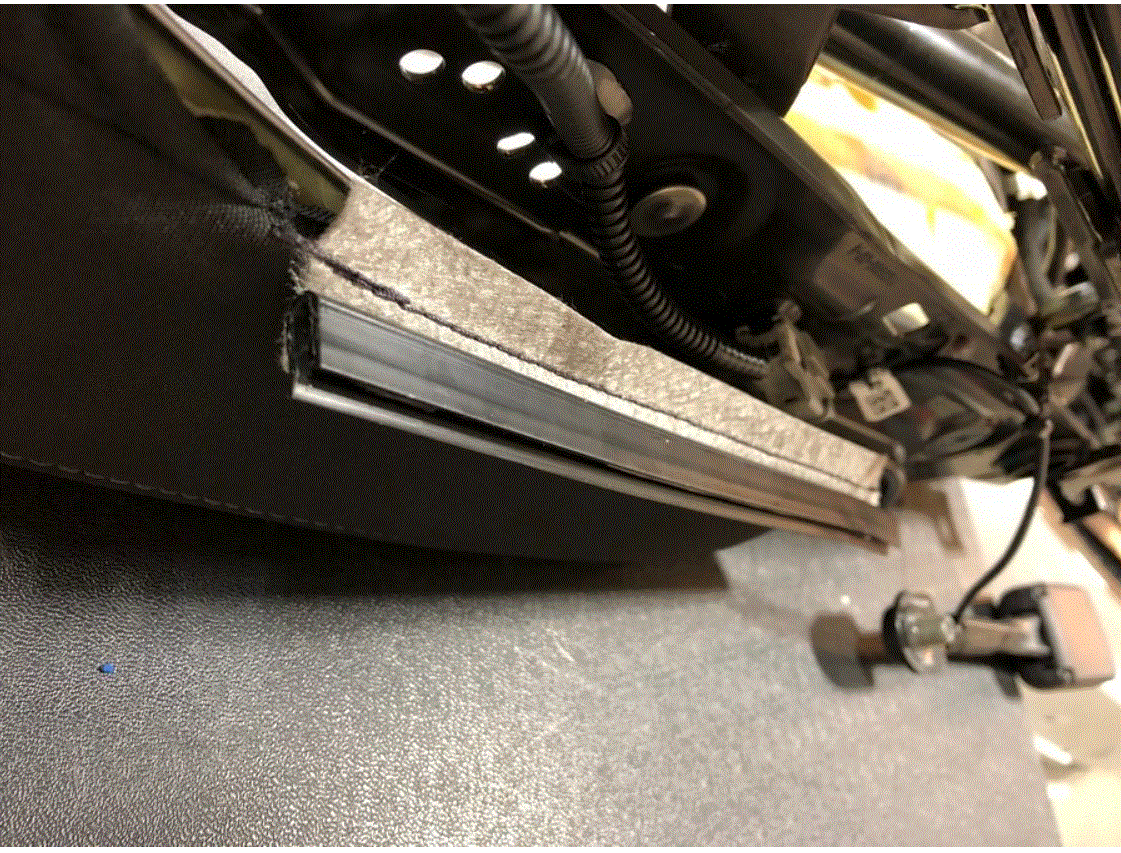

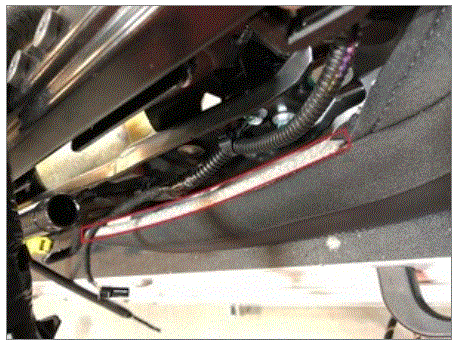

  24. Remove the outboard retaining clip from the seat cushion frame securing the side of the seat trim to the frame
    NOTE: 1x clip strip, May need to start with a hook tool, Pull the clip away from the frame to release
    G00650791Courtesy of TESLA, INC.
    G00650792Courtesy of TESLA, INC.
    G00650793Courtesy of TESLA, INC.

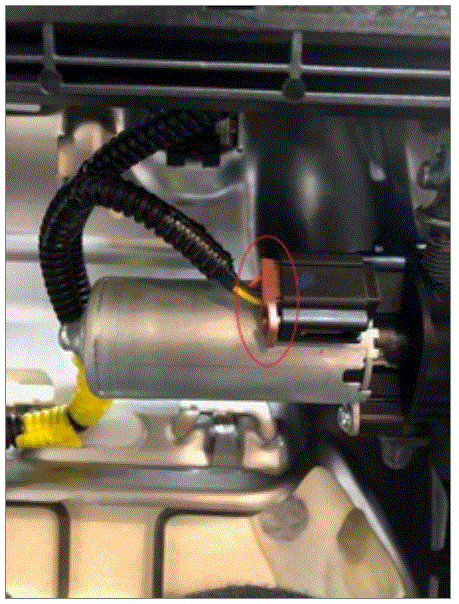

  25. Disconnect the tilt motor connector
    NOTE: 1x connector
    G00650794Courtesy of TESLA, INC.
  26. Remove the harness retaining clip under the tilt motor
    NOTE: 1x retaining clip
    G00650795Courtesy of TESLA, INC.

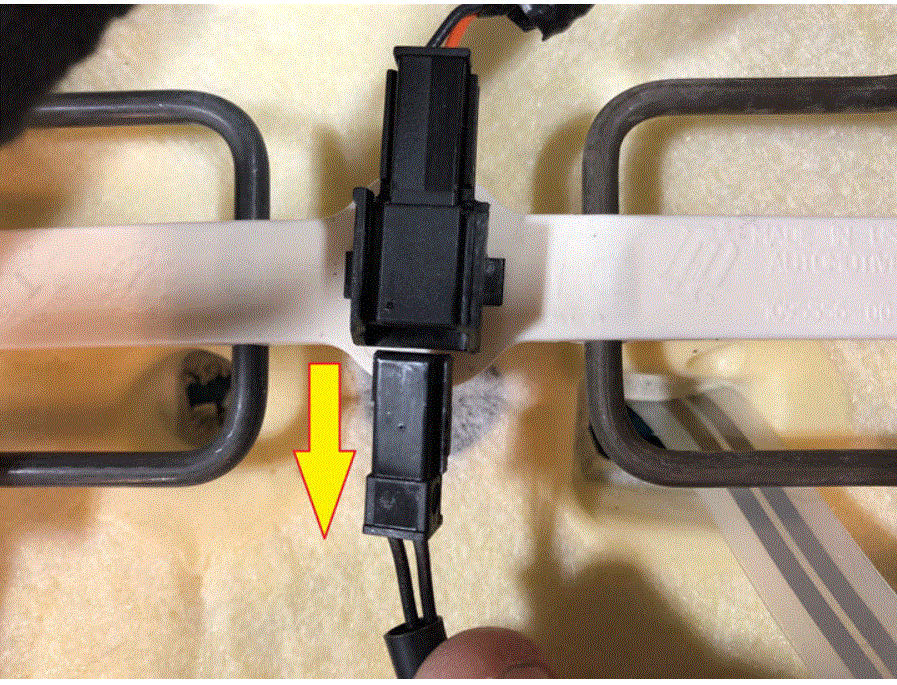

  27. Disconnect the seat occupied sensor
    NOTE: 1x connector
    G00650796Courtesy of TESLA, INC.

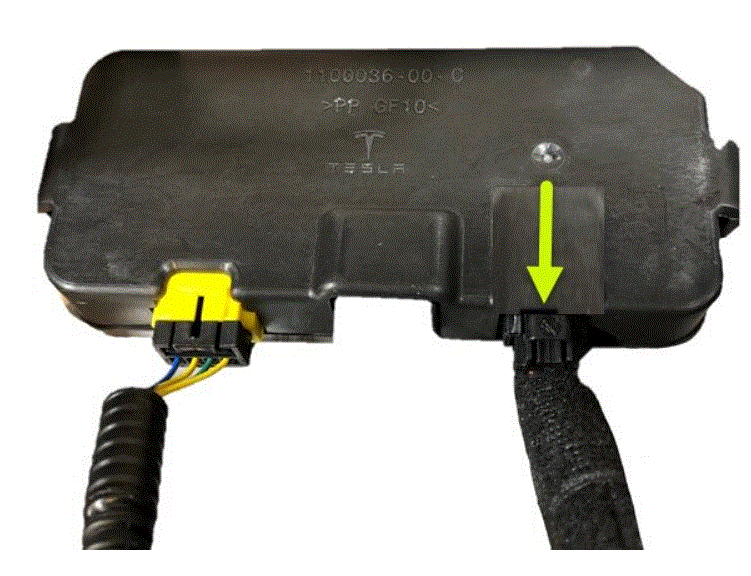

  28. Disconnect seat cushion heat pad from module
    NOTE: 1x connector
    G00650797Courtesy of TESLA, INC.

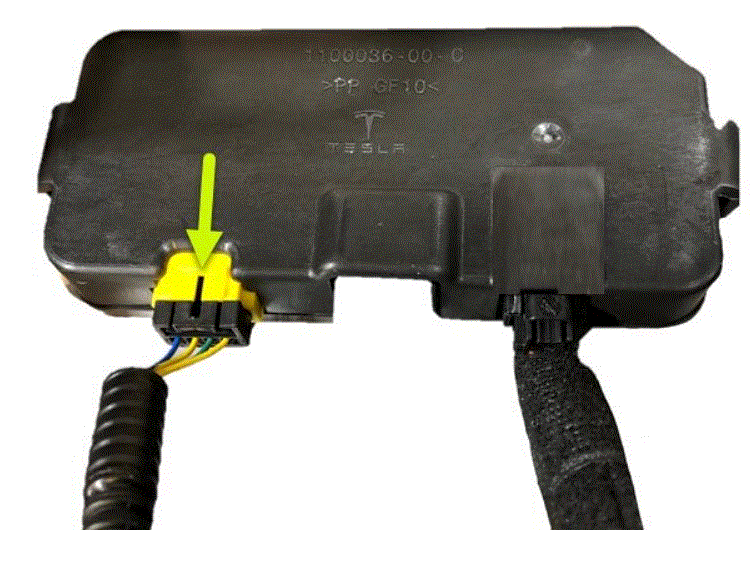

  29. Disconnect the CAN communication pass through connector from the OCS control module
    NOTE: 1x connector
    G00650798Courtesy of TESLA, INC.

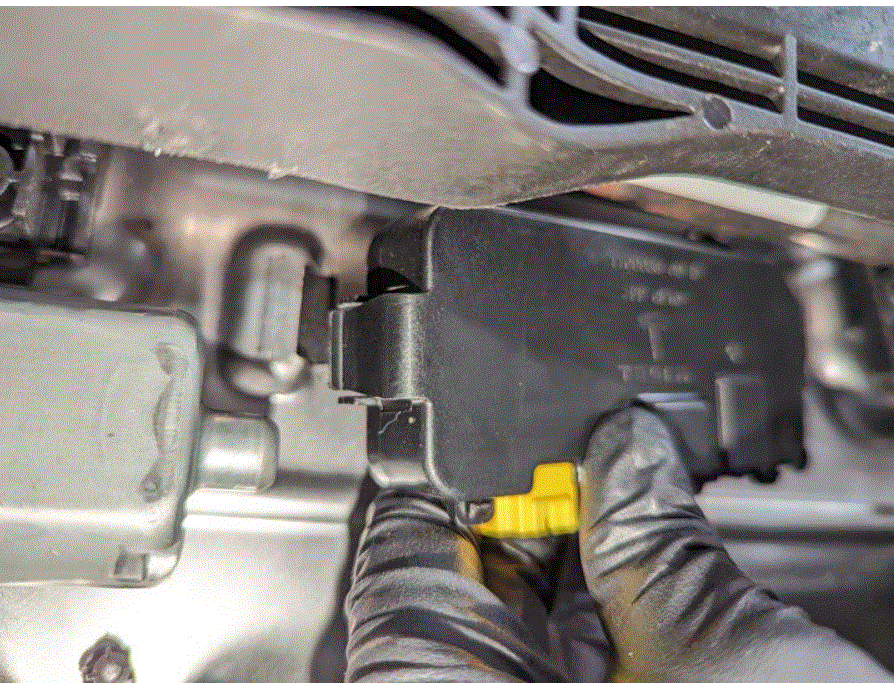

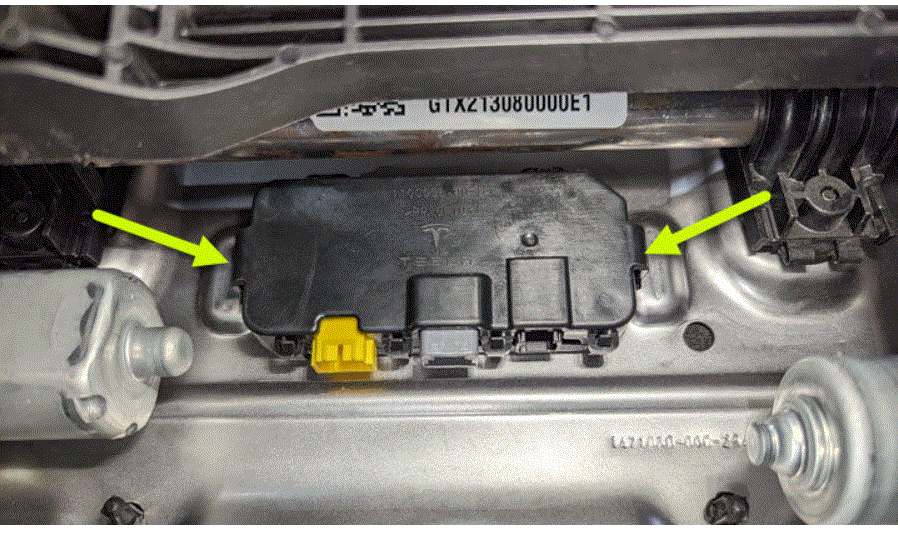

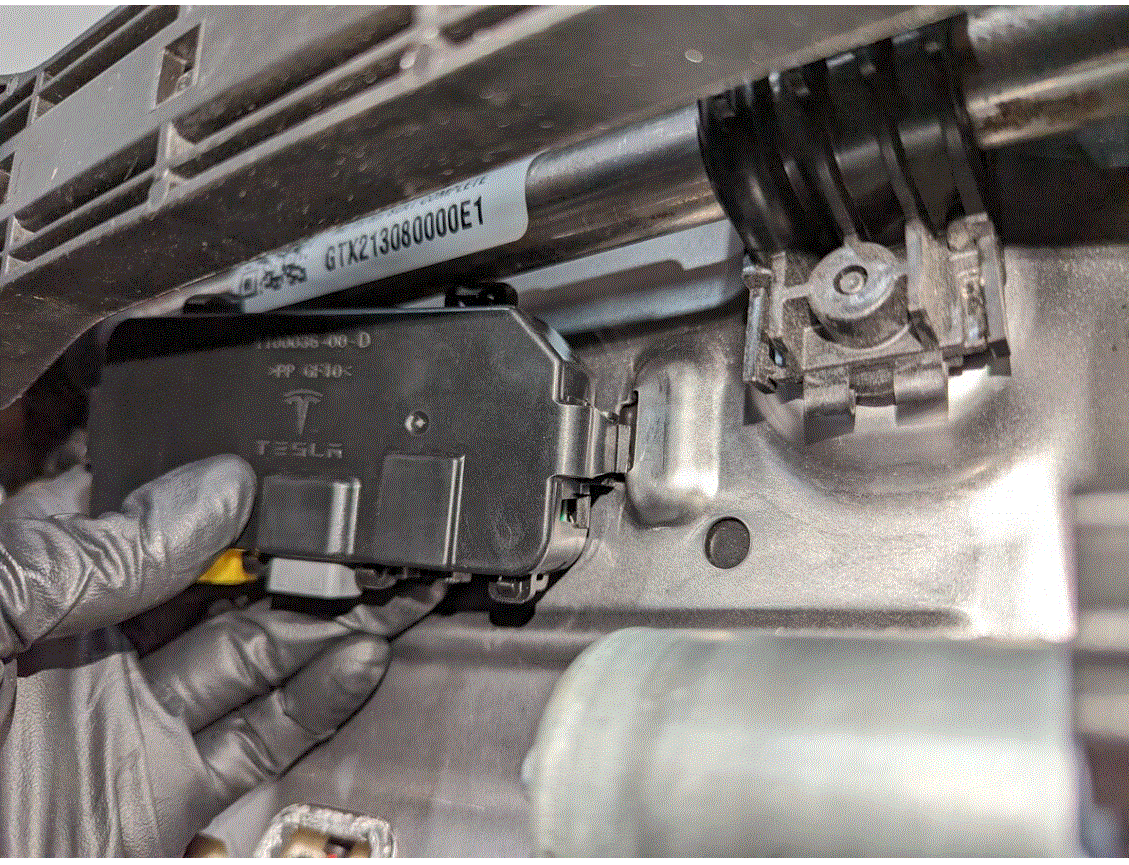

  30. Remove OCS control module from seat bottom frame
    NOTE: 2x tabs
    G00650799Courtesy of TESLA, INC.
    G00650800Courtesy of TESLA, INC.
    G00650801Courtesy of TESLA, INC.

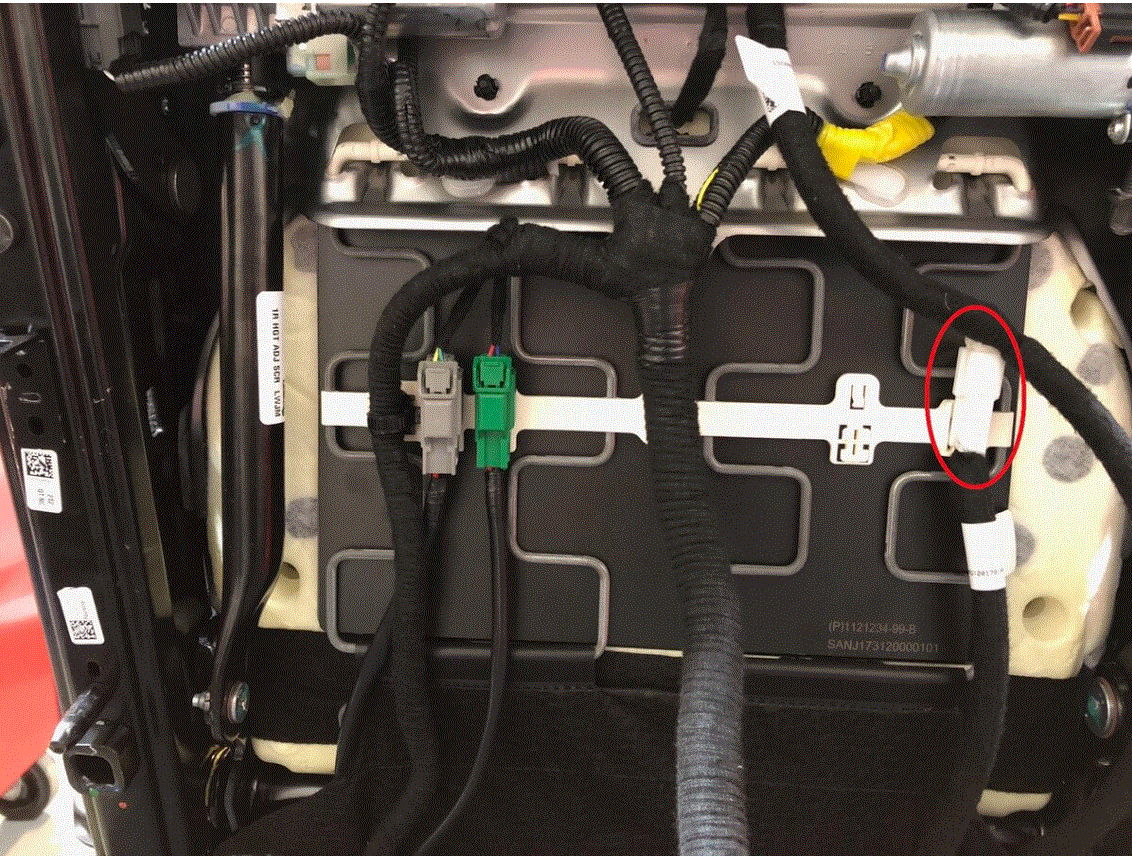

  31. Disconnect seat cushion heat pad from seat back heat pad connector
    NOTE: 1x connector
    G00650802Courtesy of TESLA, INC.

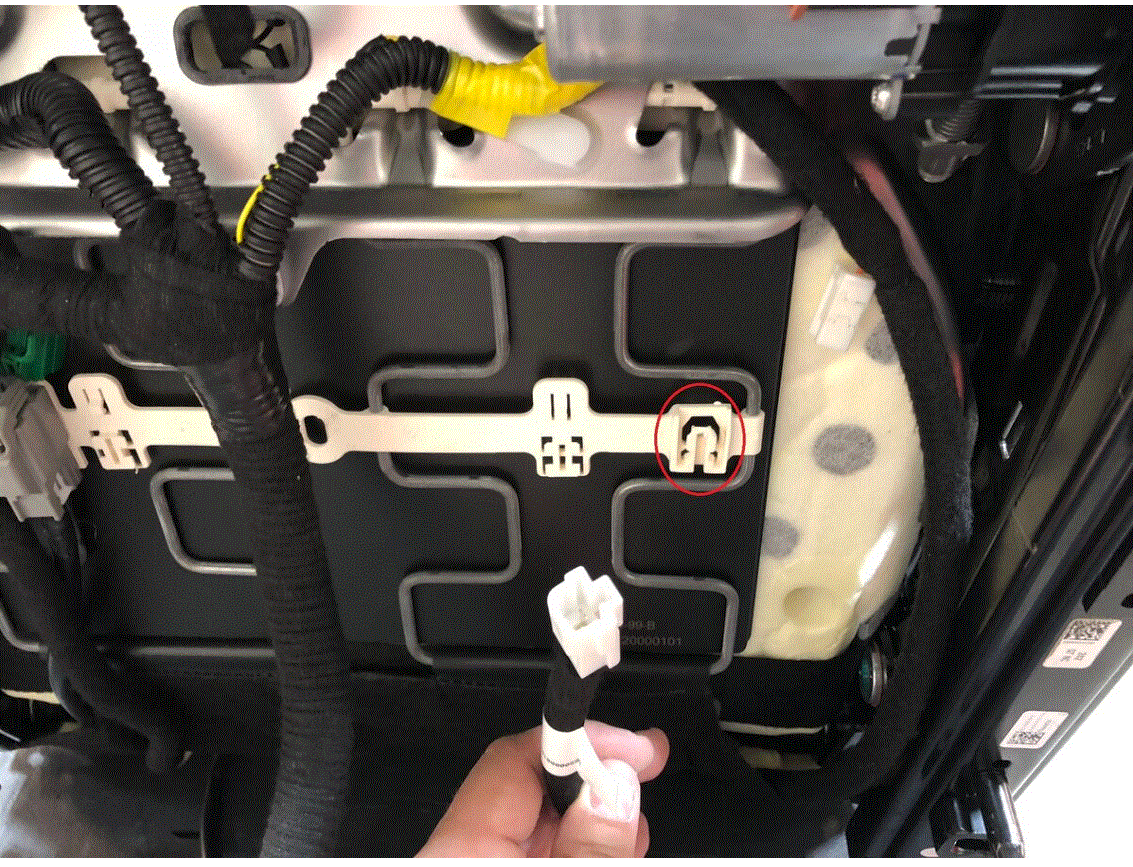

  32. Remove seat cushion connector from seat cushion suspension
    NOTE: Slide upward to release from trim
    G00650803Courtesy of TESLA, INC.

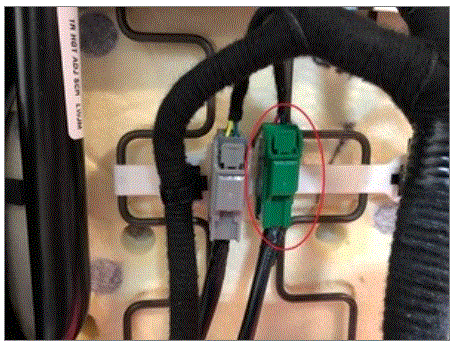

  33. Disconnect the seat back heater connector
    NOTE: 1x connector
    G00650804Courtesy of TESLA, INC.

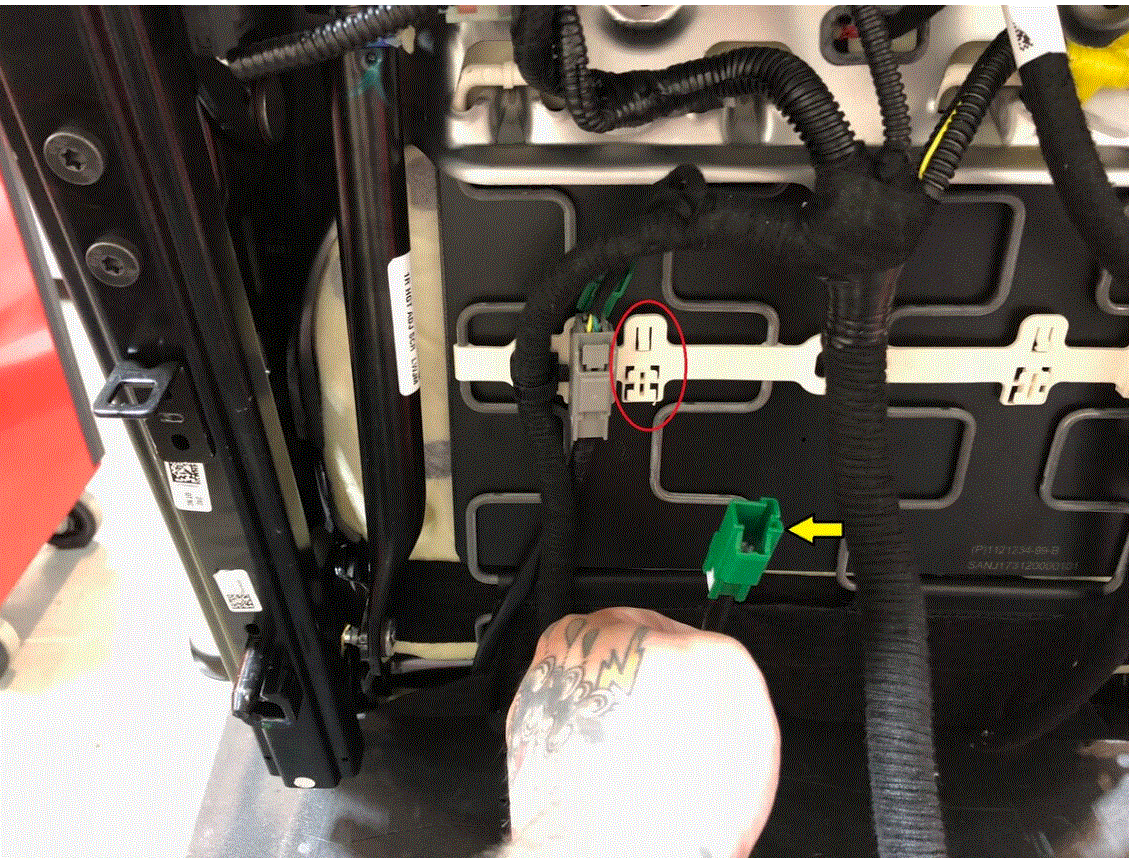

  34. Disconnect the seat back heater harness connector from seat cushion suspension
    NOTE: 1x connector
    G00650805Courtesy of TESLA, INC.

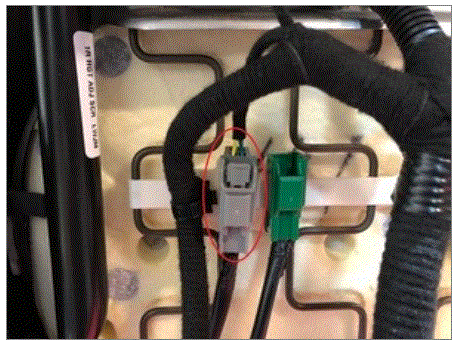

  35. Disconnect the seat cushion heat pad
    NOTE: 1x connector
    G00650806Courtesy of TESLA, INC.

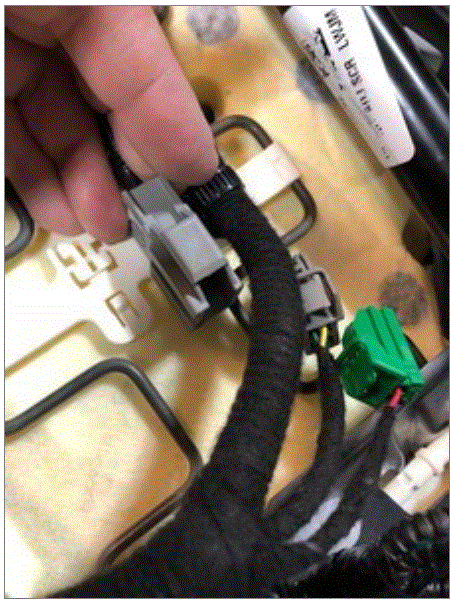

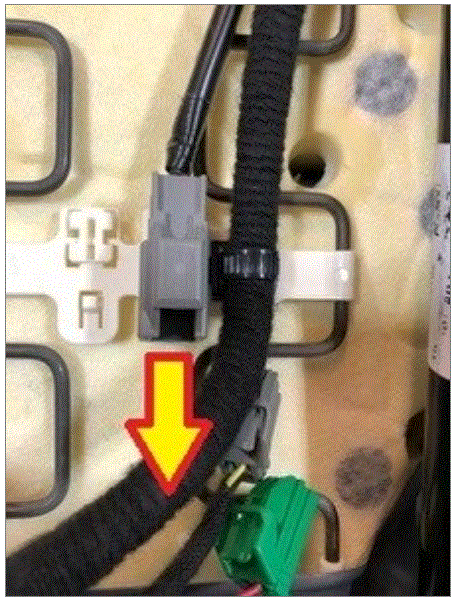

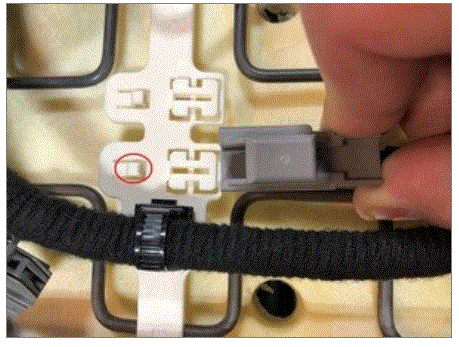

  36. Remove seat cushion heat pad from seat cushion suspension
    NOTE: 1x connector, 1x clip, Slide connector forward to release from seat bottom
    G00650809Courtesy of TESLA, INC.
    G00650807Courtesy of TESLA, INC.
    G00650808Courtesy of TESLA, INC.
  37. Remove clip securing the harness to the under side of the seat, next to the seat heater connectors
    NOTE: 1x retaining clip
    G00650810Courtesy of TESLA, INC.

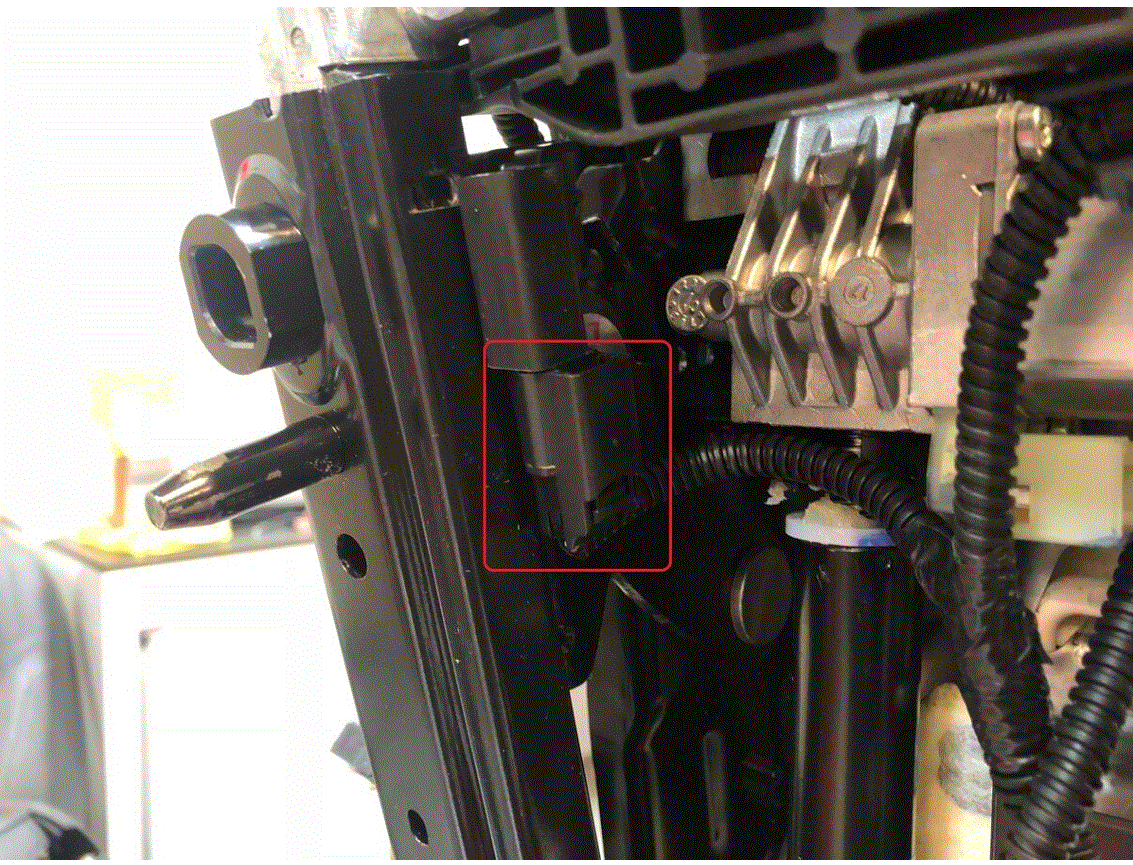

  38. Disconnect the seat track position sensor connector
    NOTE: 1x connector
    G00650811Courtesy of TESLA, INC.

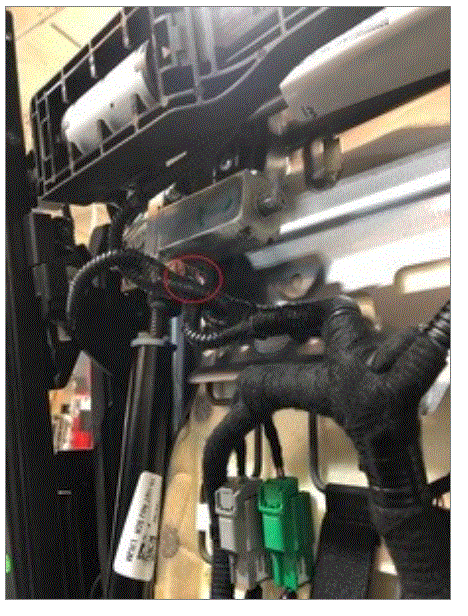

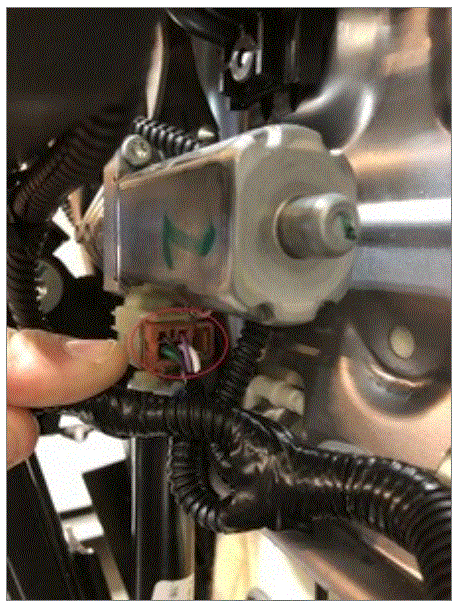

  39. Disconnect the lift motor connector
    NOTE: 1x connector
    G00650812Courtesy of TESLA, INC.
    G00650813Courtesy of TESLA, INC.

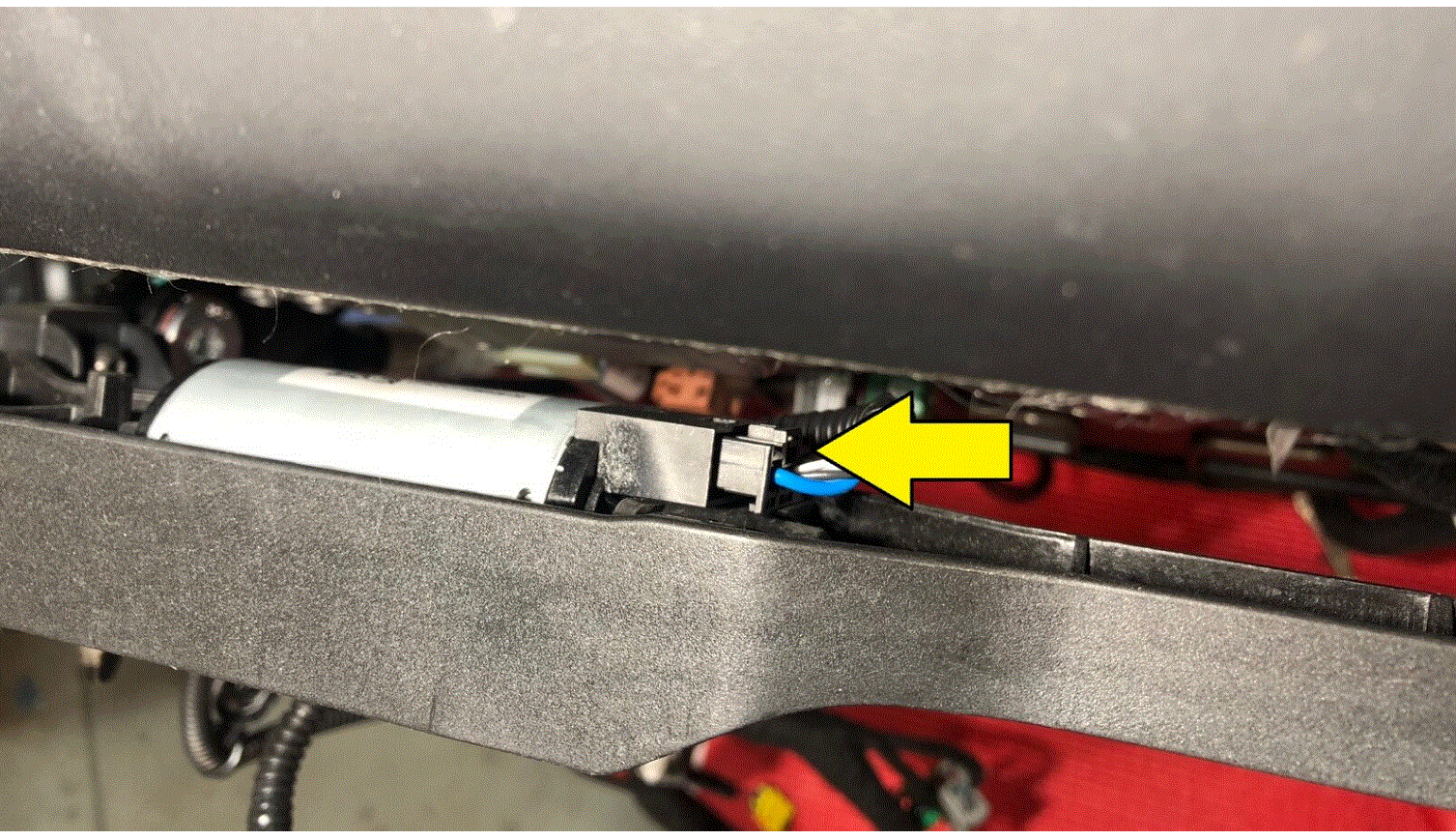

  40. Disconnect LH front seat track motor connector
    NOTE: 1x connector
    G00650814Courtesy of TESLA, INC.

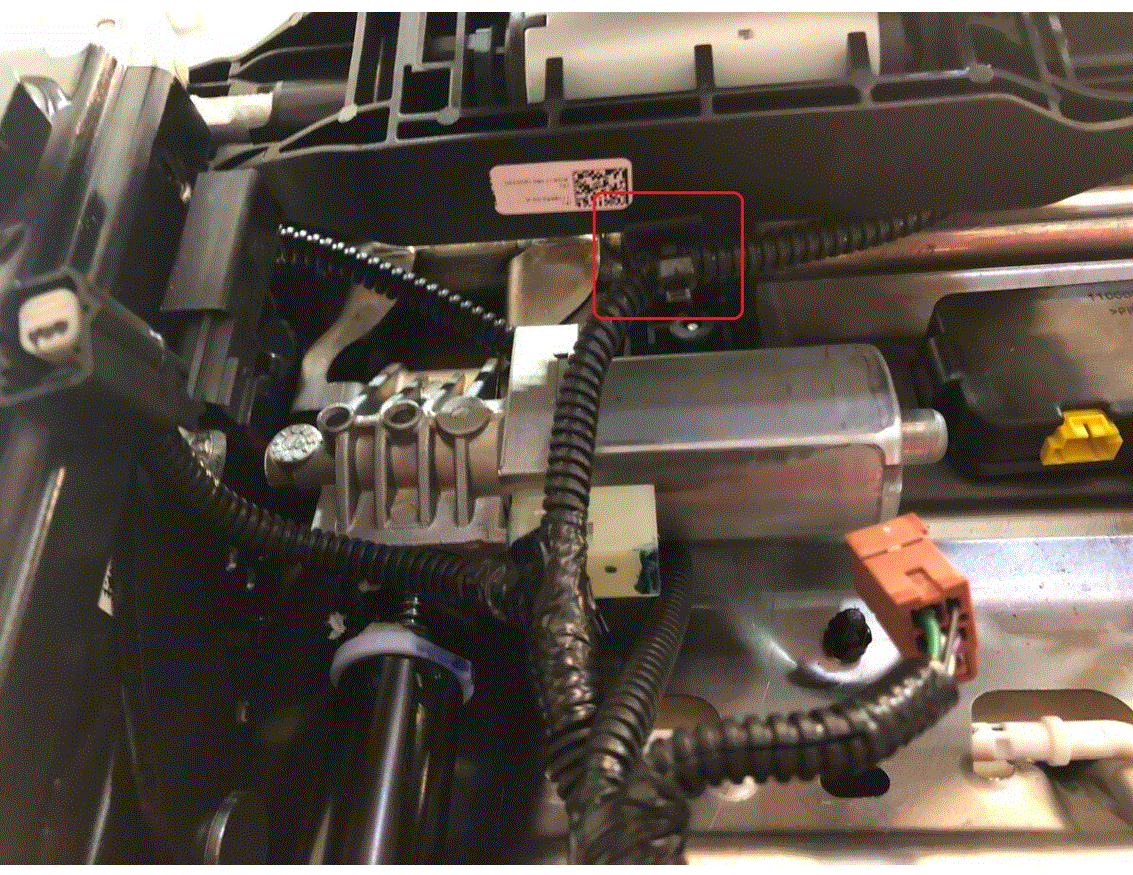

  41. Remove the clip securing the track motor harness to the track motor housing
    NOTE: 1x edge clip
    G00650815Courtesy of TESLA, INC.

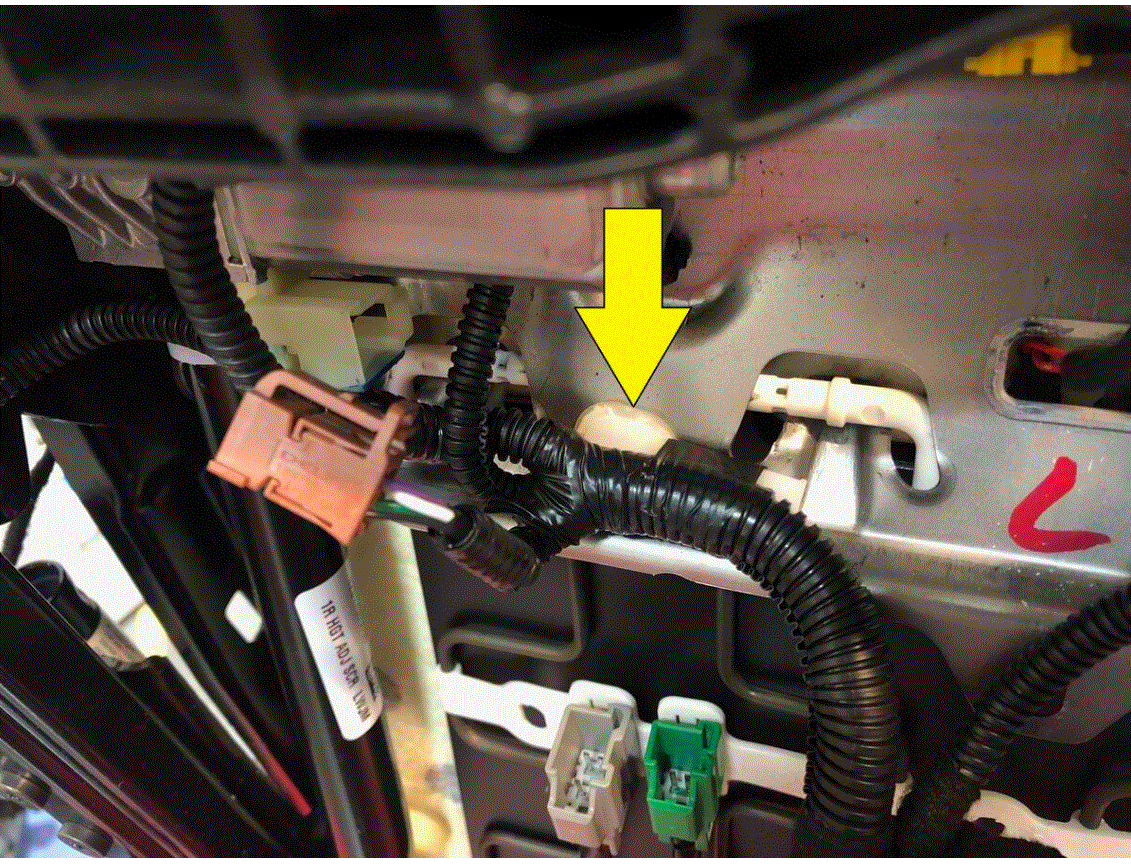

  42. Remove the clip securing the harness to the seat cushion frame under the lift motor
    NOTE: 1x retaining clip
    G00650816Courtesy of TESLA, INC.
  43. Remove the retaining clip under the main seat harness junction
    NOTE: 1x retaining clip
    G00650817Courtesy of TESLA, INC.

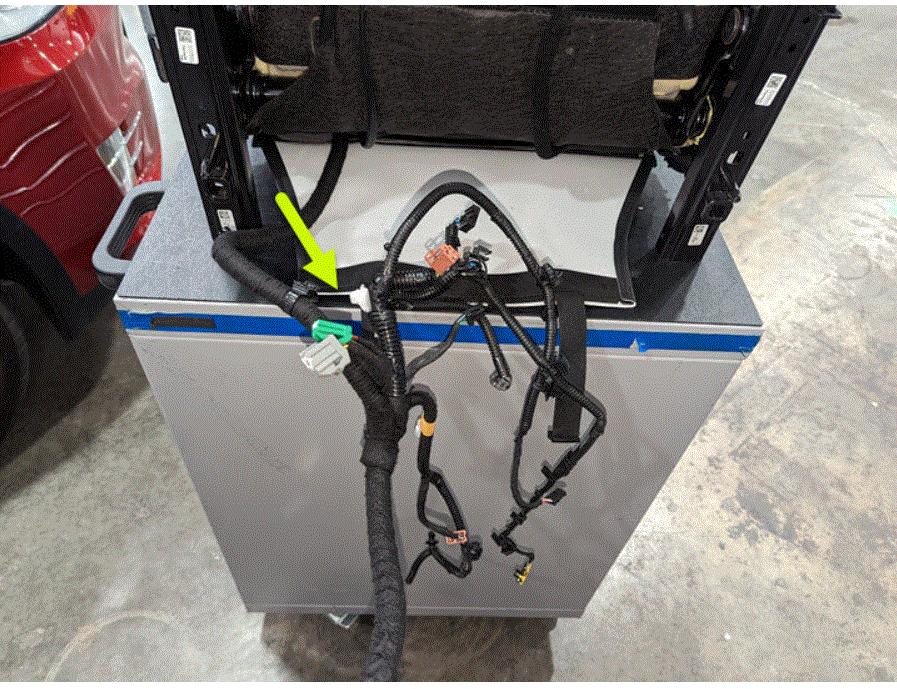

  44. Move harness away from seat frame
    G00650818Courtesy of TESLA, INC.

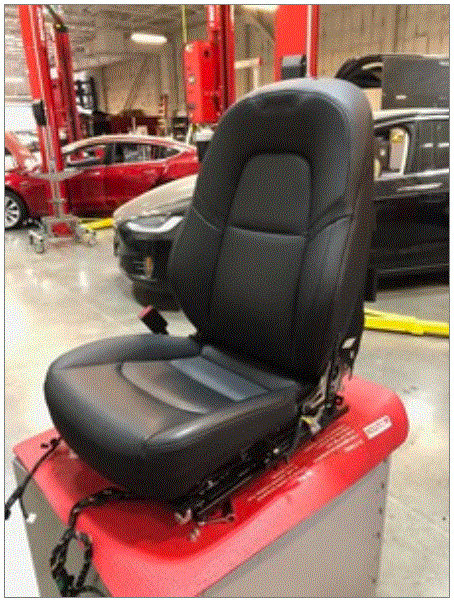

  45. Return seat to upright position
    G00650819Courtesy of TESLA, INC.

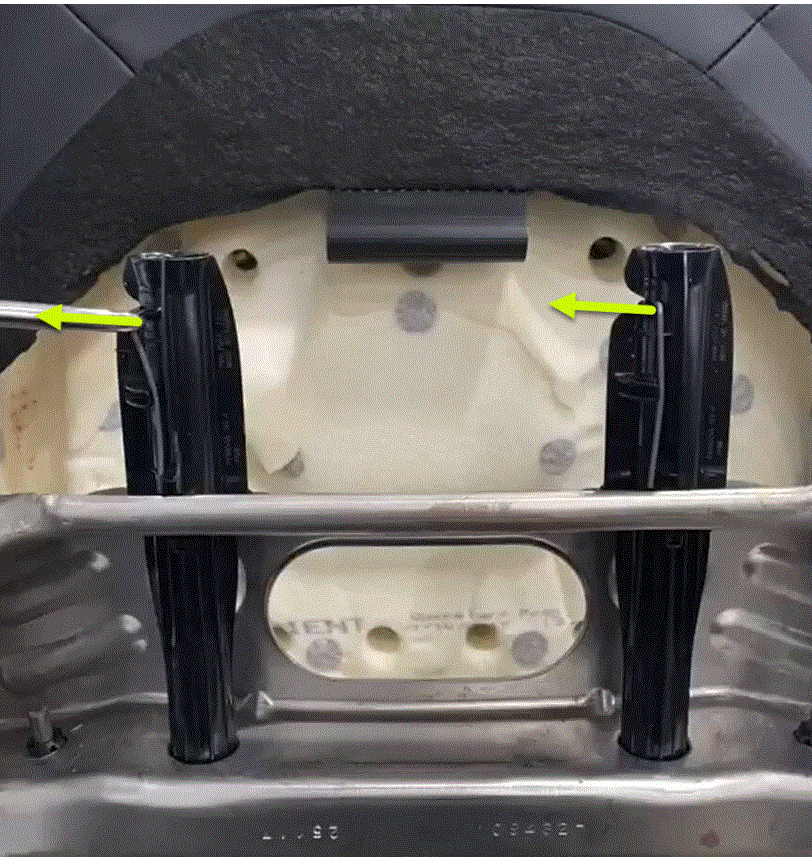

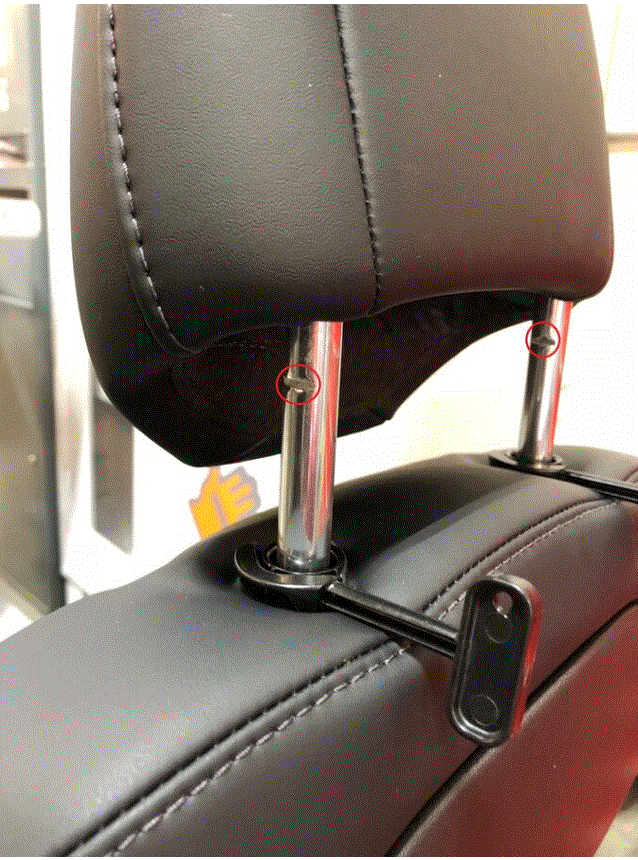

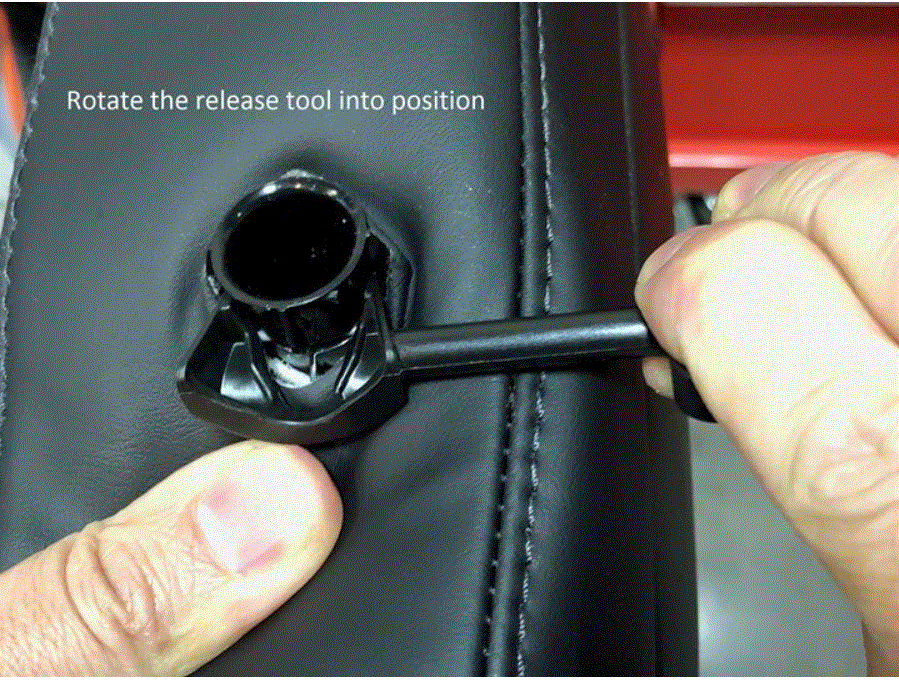

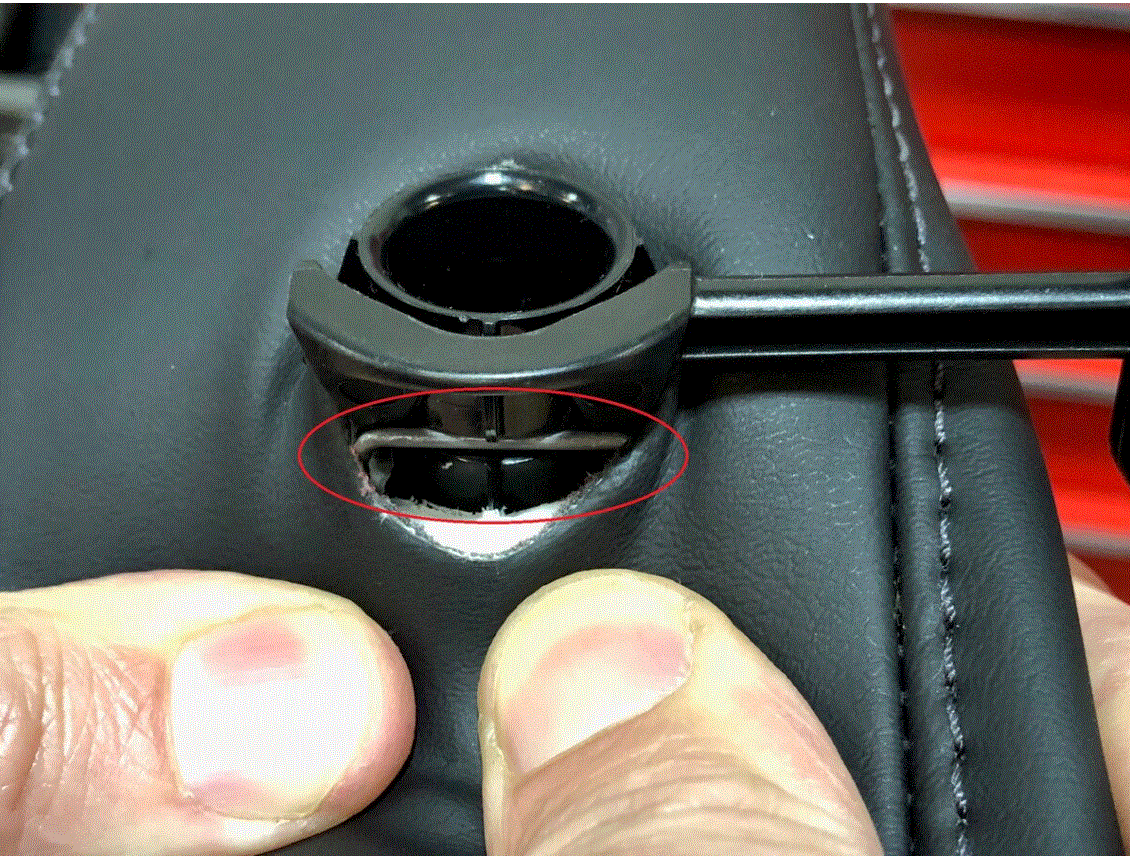

  46. Install the outboard headrest release tool
    NOTE: Depress the material around the headrest post to expose the release clip, Ensure both tangs of the release tool engage the retaining spring, The release tool is rotated into position, Images show headrest removed for clarity
    G00650820Courtesy of TESLA, INC.
    G00650821Courtesy of TESLA, INC.
    G00650822Courtesy of TESLA, INC.
    G00650823Courtesy of TESLA, INC.

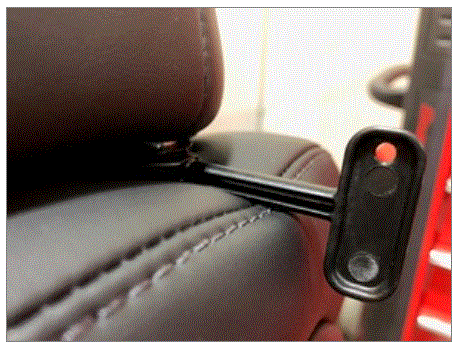

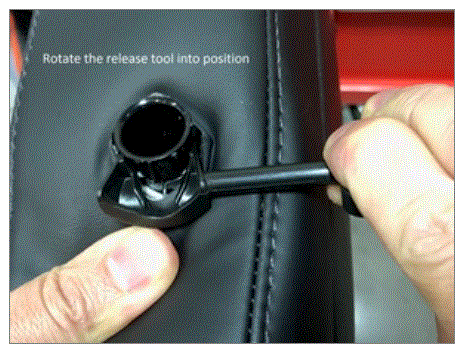

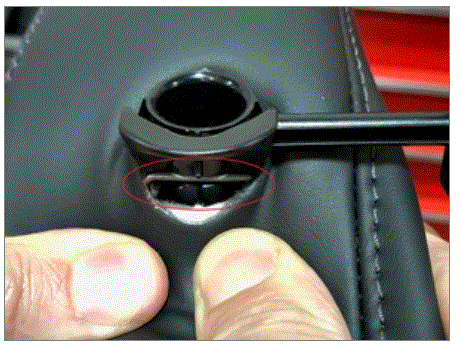

  47. Install the inboard headrest release tool
    NOTE: Depress the material around the headrest post to expose the release clip, Ensure both tangs of the release tool engage the retaining spring, The release tool is rotated into position, Images show headrest removed for clarity
    G00650824Courtesy of TESLA, INC.
    G00650825Courtesy of TESLA, INC.
    G00650826Courtesy of TESLA, INC.

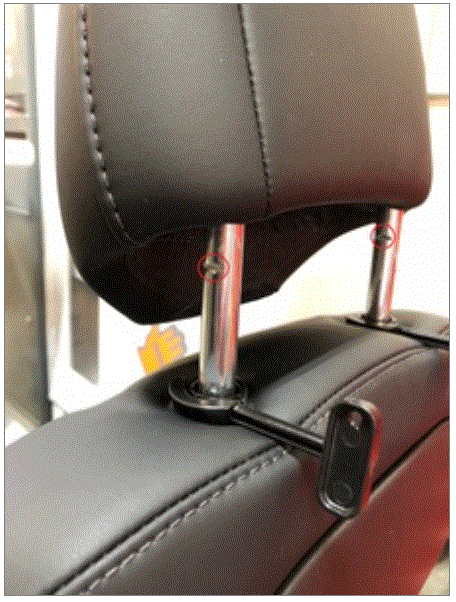

  48. Remove the headrest from seat
    NOTE: 2x locking clips, Remove by pulling straight up, out of the seat
    G00650827Courtesy of TESLA, INC.

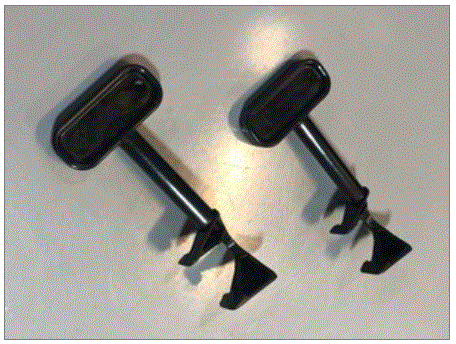

  49. Remove the inboard headrest release tool
    NOTE: Rotate the release tool out of position, Do not pull straight up or out
    G00650828Courtesy of TESLA, INC.
  50. Remove the outboard headrest release tool
    NOTE: Rotate the release tool out of position, Do not pull straight up or out
    G00650828Courtesy of TESLA, INC.

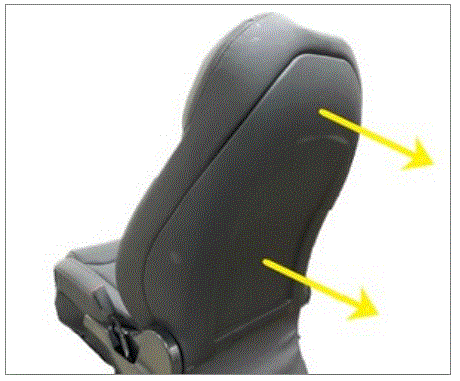

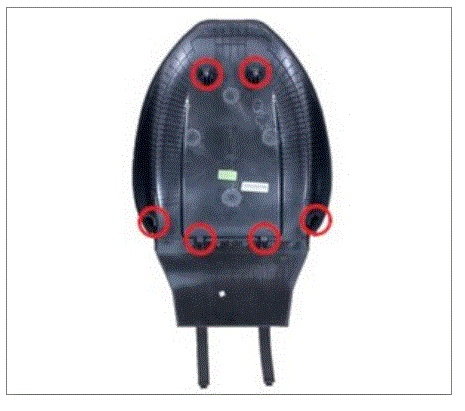

  51. Remove seat back from RH front seat
    NOTE: 6x clips, Start at the top of the seat and pull the shell away from the frame, When the side clips are free, pull the bottom and carefully roll the bottom tabs out of the slots, If pulled straight out the clips on the seat back can break off
    G00650829Courtesy of TESLA, INC.
    G00650830Courtesy of TESLA, INC.

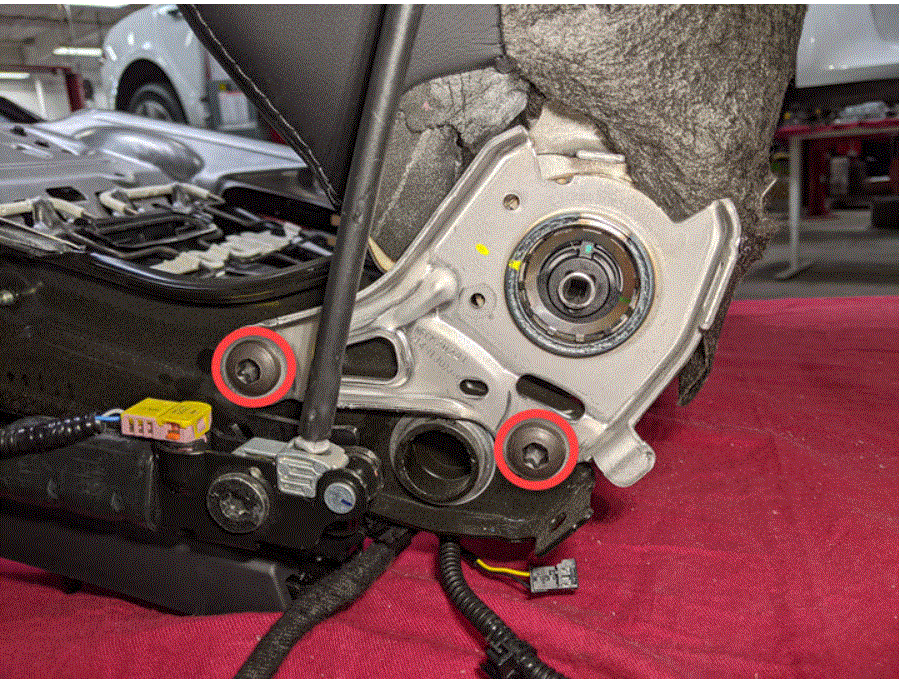

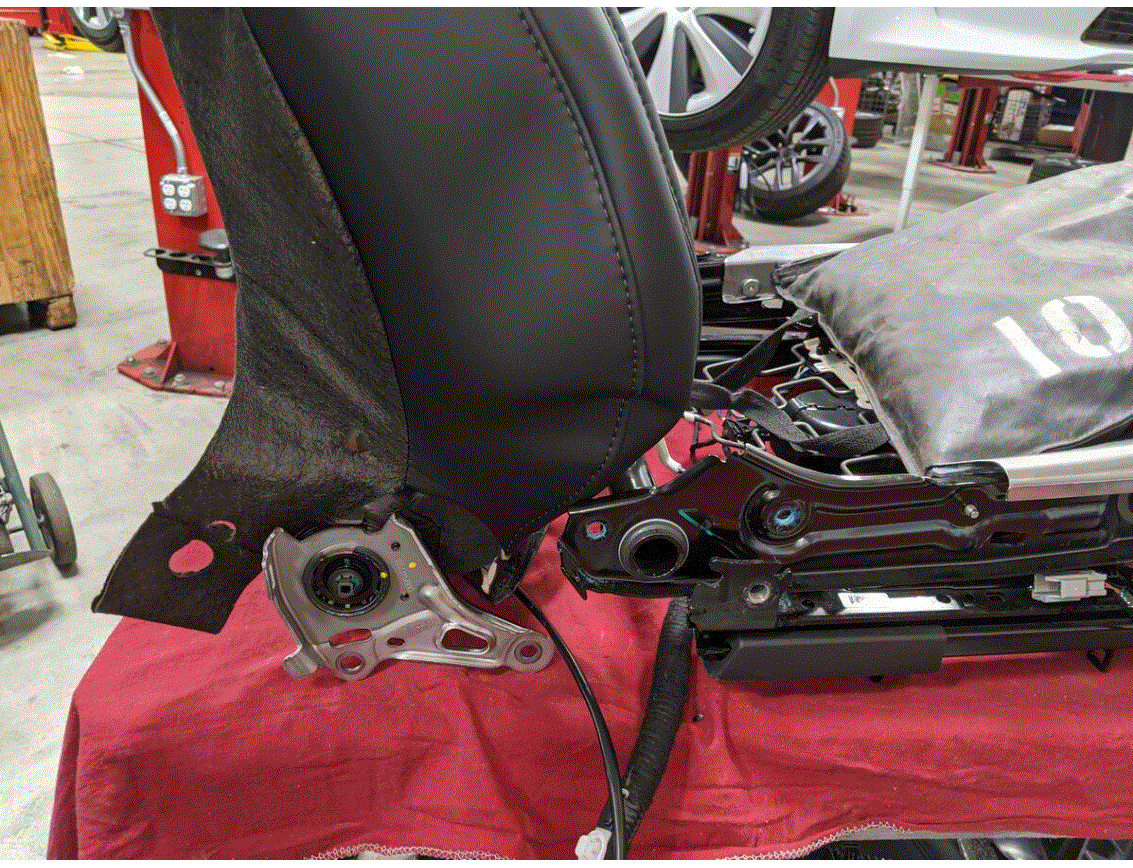

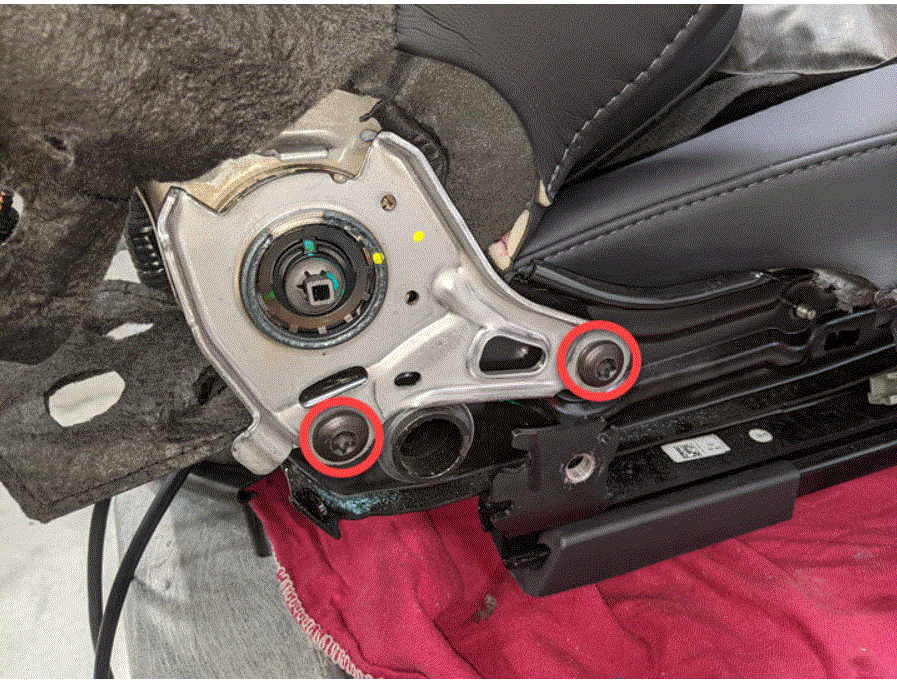

  52. Remove LH front seat back assembly from seat cushion frame
    NOTE: 4x bolts, T47P, 43 Nm, Recommend assistance, Discard bolts after removal
    G00650831Courtesy of TESLA, INC.
    G00650832Courtesy of TESLA, INC.
    G00650833Courtesy of TESLA, INC.

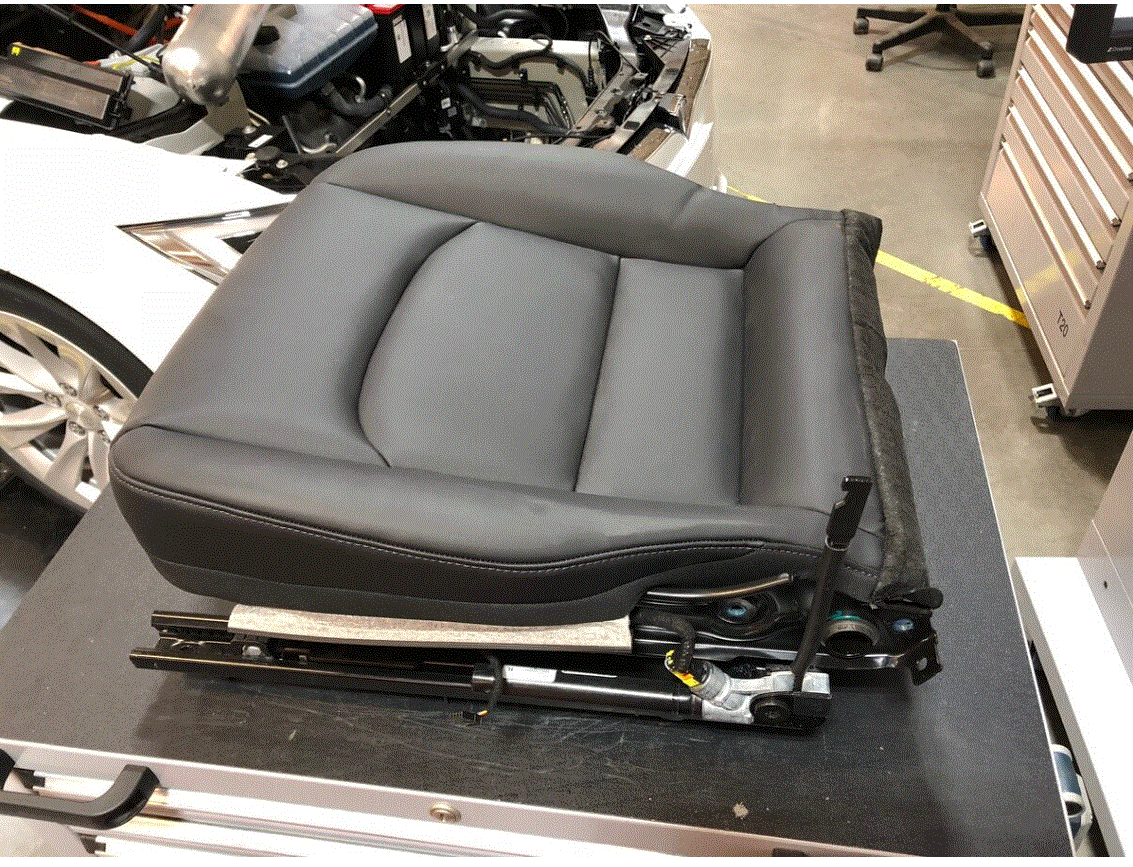

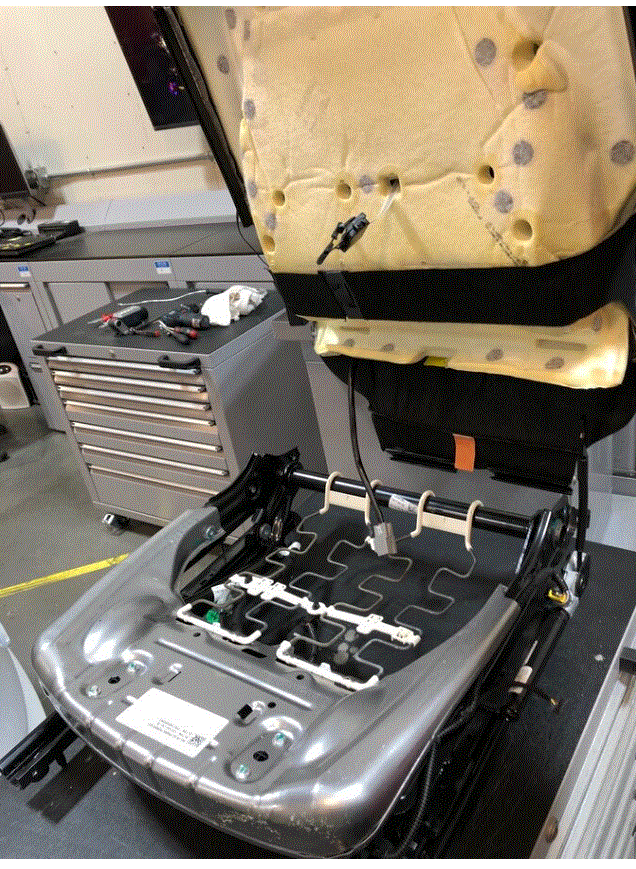

  53. Remove RH front seat cushion assembly from seat frame
    G00650834Courtesy of TESLA, INC.
    G00650835Courtesy of TESLA, INC.

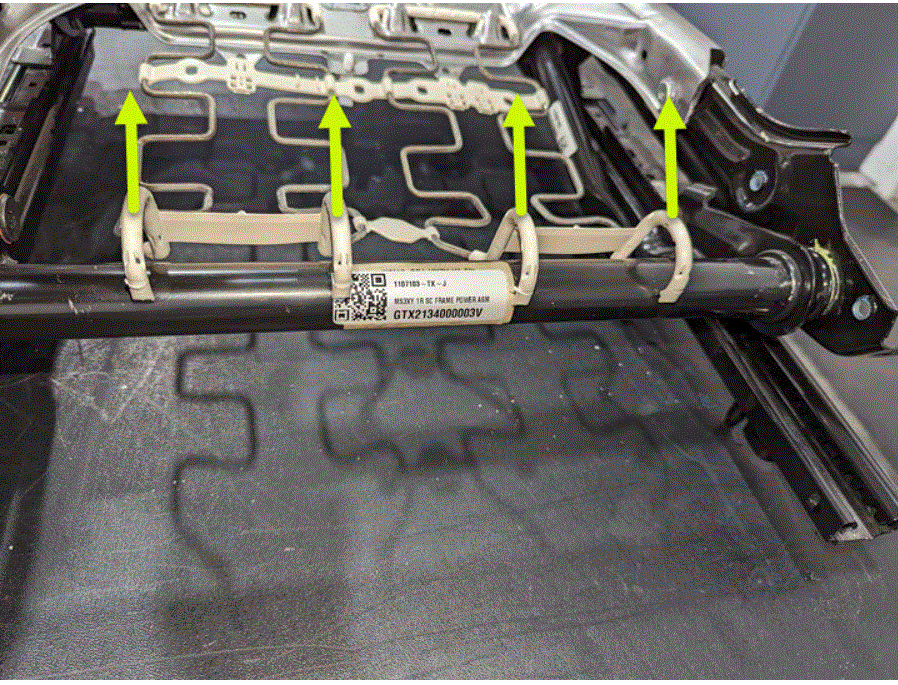

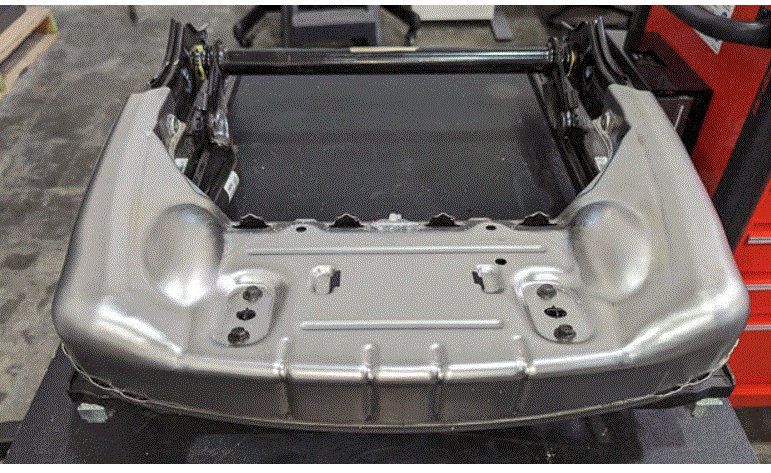

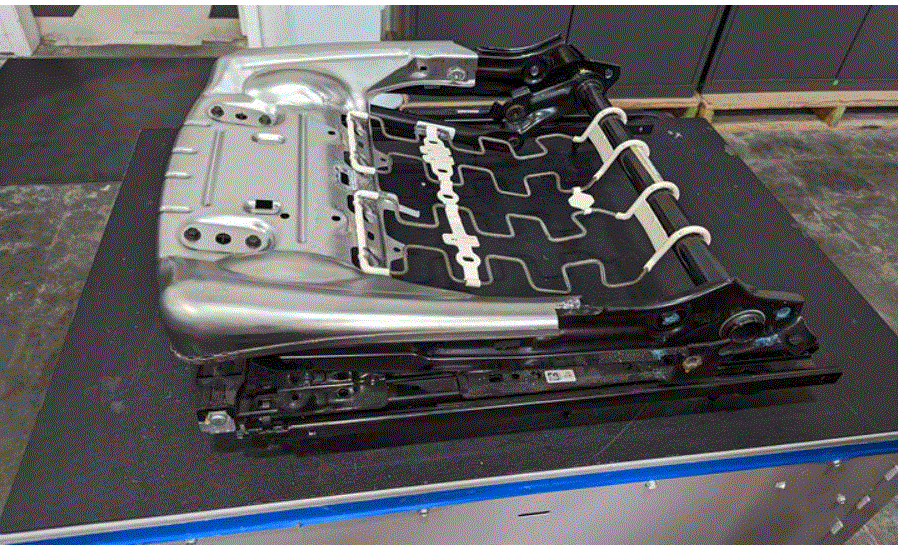

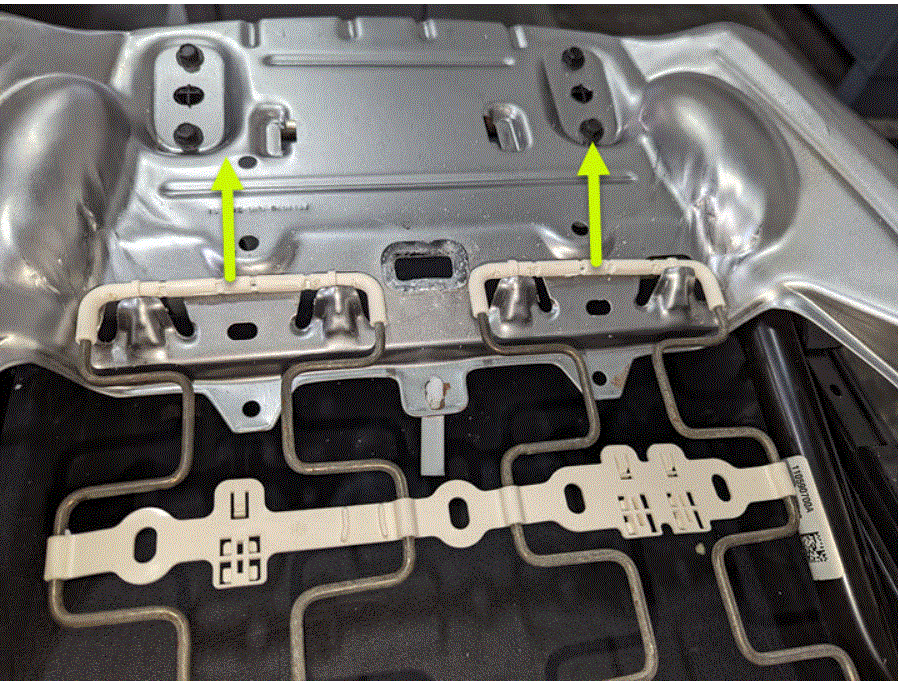

  54. Remove LH front seat cushion suspension from power seat cushion frame
    NOTE: 4x tabs, Raise portion seated on rear cushion tube, Then pull assembly away from tabs to release
    G00650836Courtesy of TESLA, INC.
    G00650837Courtesy of TESLA, INC.
    G00650838Courtesy of TESLA, INC.
    G00650839Courtesy of TESLA, INC.

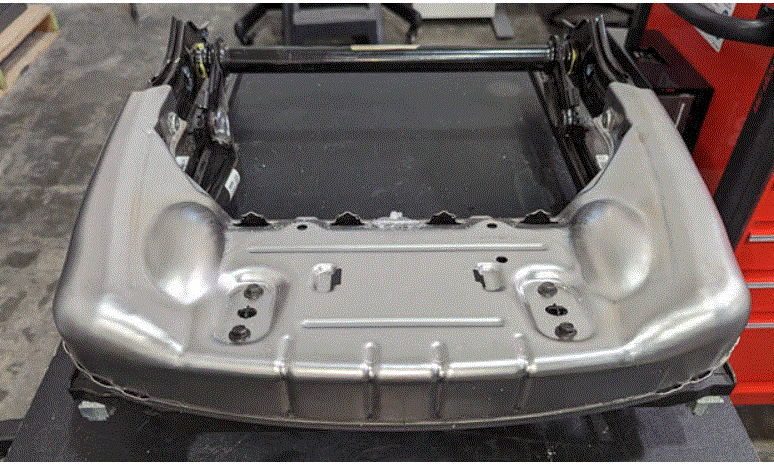

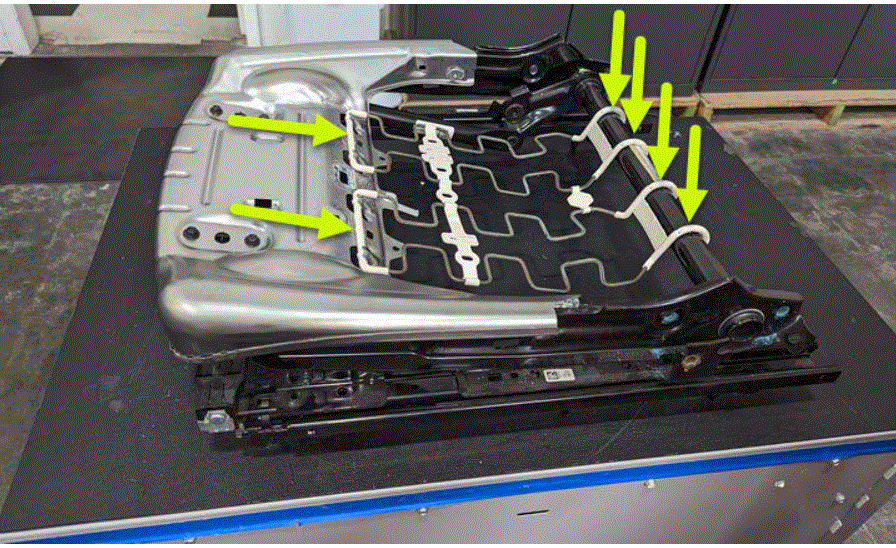

  55. Install LH front seat cushion suspension from power seat cushion frame
    NOTE: 4x tabs, Position suspension along metal tabs, Then seat rear portion on rear cushion tube
    G00650840Courtesy of TESLA, INC.
    G00650841Courtesy of TESLA, INC.

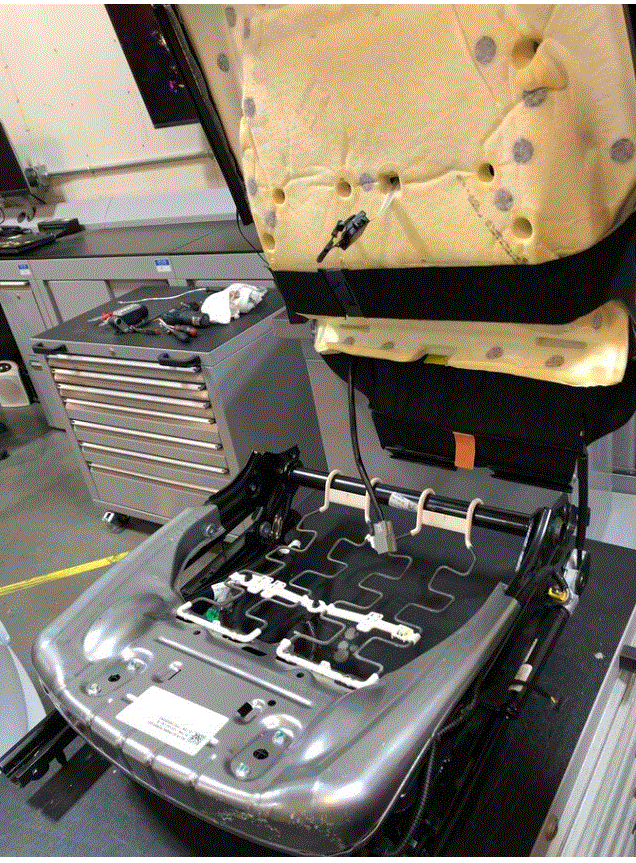

  56. Position RH front seat cushion assembly onto cushion frame
    G00650842Courtesy of TESLA, INC.
    G00650843Courtesy of TESLA, INC.

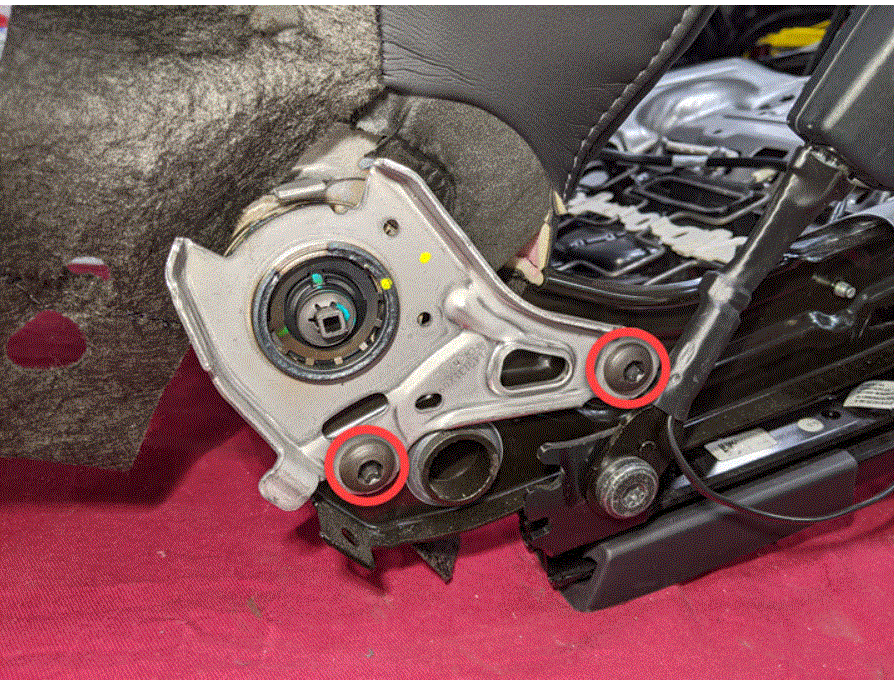

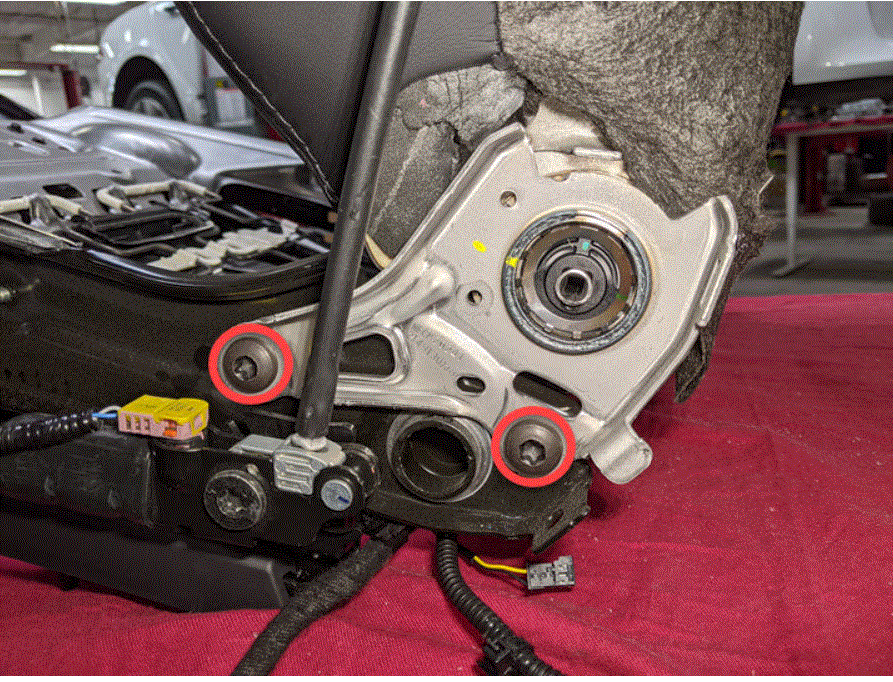

  57. Install LH front seat back assembly onto seat cushion frame
    NOTE: 4x bolts, T47P, 43 Nm, Recommend assistance, Install new patch bolts
    G00650844Courtesy of TESLA, INC.
    G00650845Courtesy of TESLA, INC.

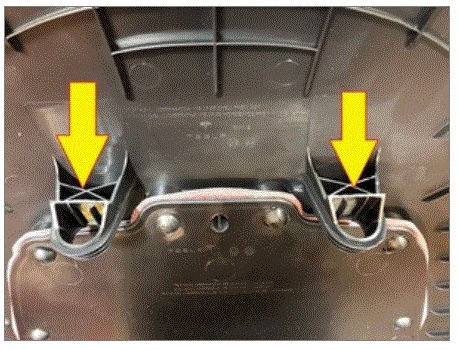

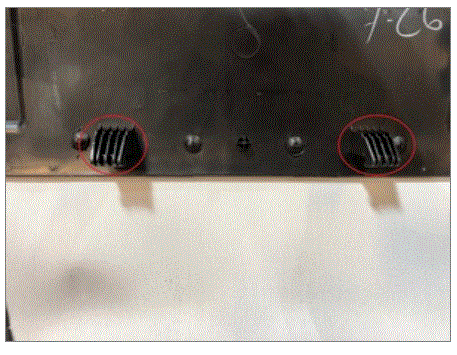

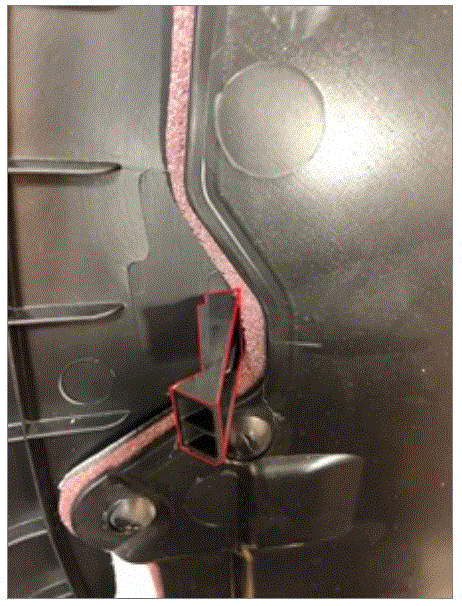

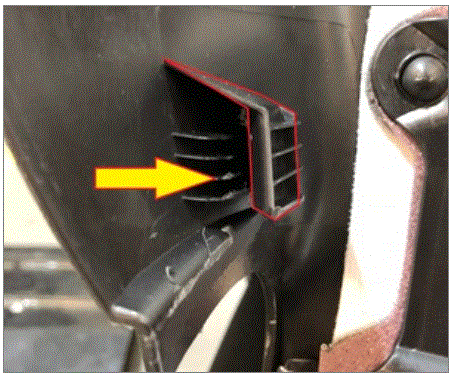

  58. Install the seat back shell base assembly to seat back frame
    NOTE: 6x clips, Install the lower clips first and rotate the shell up into place, Light pressure may need to be applied to the shell to ensure it's fully seated, The headrest posts will engage the seat back when installed
    G00650846Courtesy of TESLA, INC.
    G00650847Courtesy of TESLA, INC.
    G00650848Courtesy of TESLA, INC.
    G00650849Courtesy of TESLA, INC.

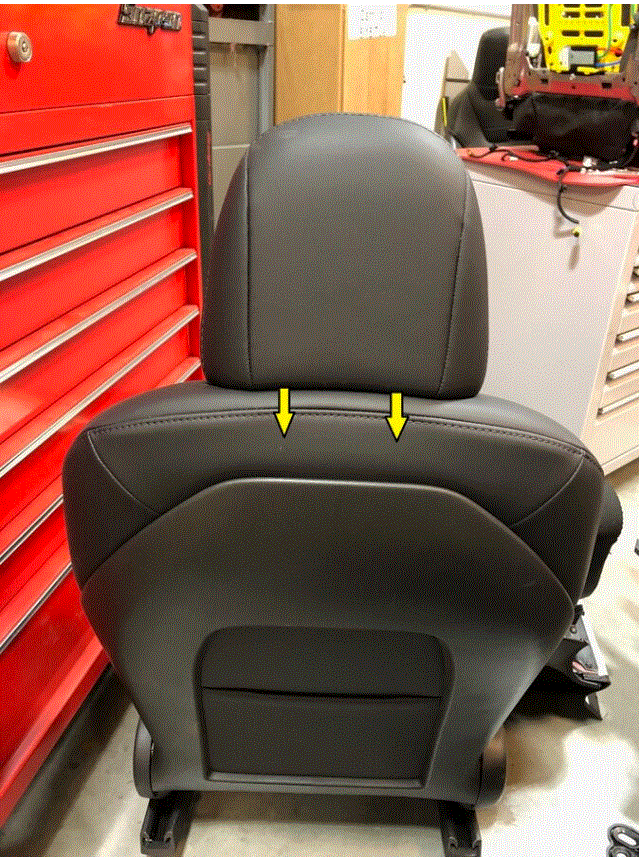

  59. Install RH front seat headrest
    NOTE: 2x locking clips, Ensure the headrest is fully seated, An audible click will be heard when installing the headrest, Ensure the headrest is seated by tugging up on the headrest
    G00650850Courtesy of TESLA, INC.

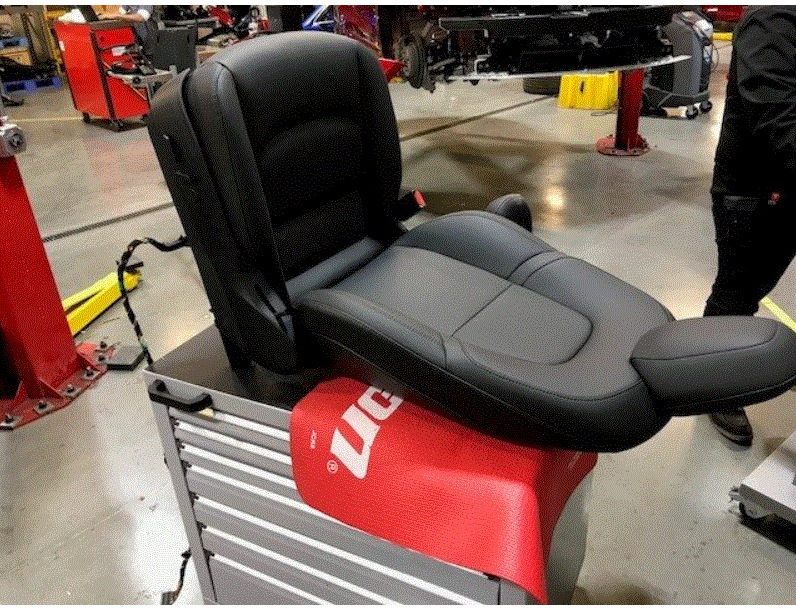

  60. Flip seat over to gain access to the bottom of the seat
    NOTE: Protect the seat back to prevent damage
    G00653211Courtesy of TESLA, INC.

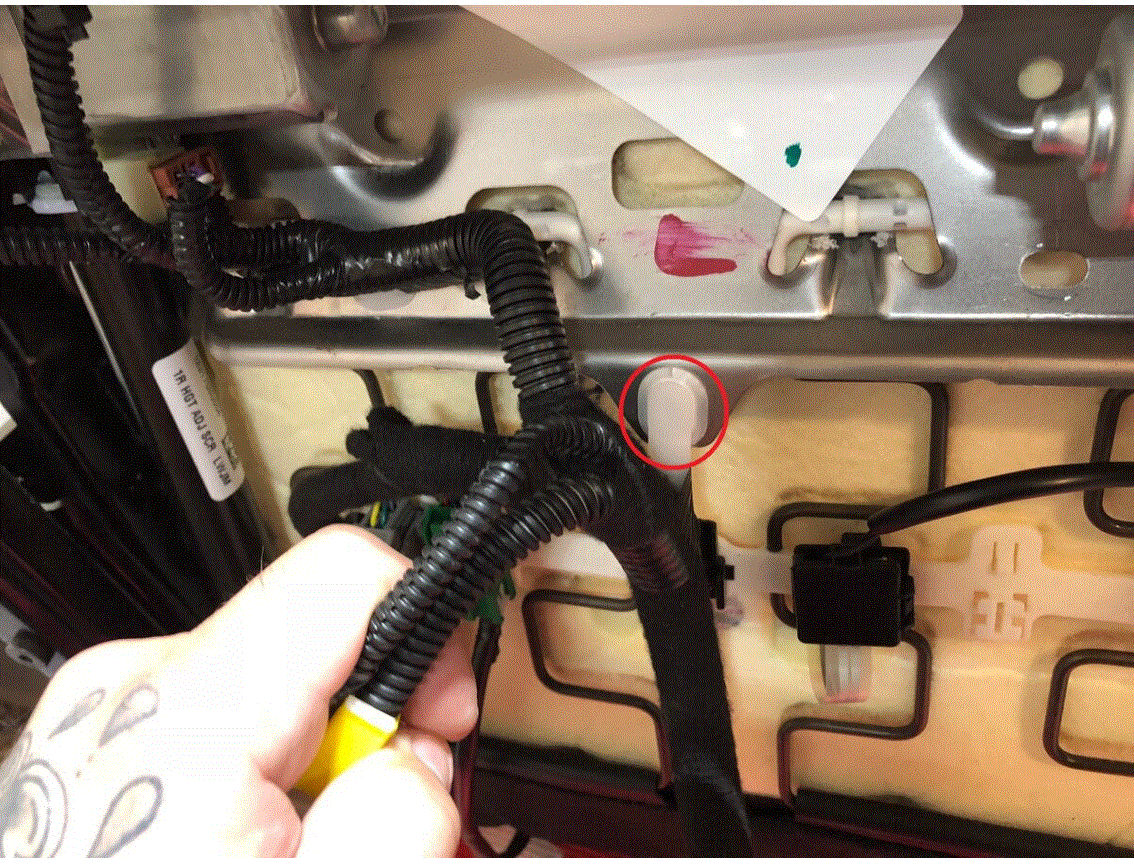

  61. Install the retaining clip under the main seat harness junction
    NOTE: 1x retaining clip
    G00653212Courtesy of TESLA, INC.

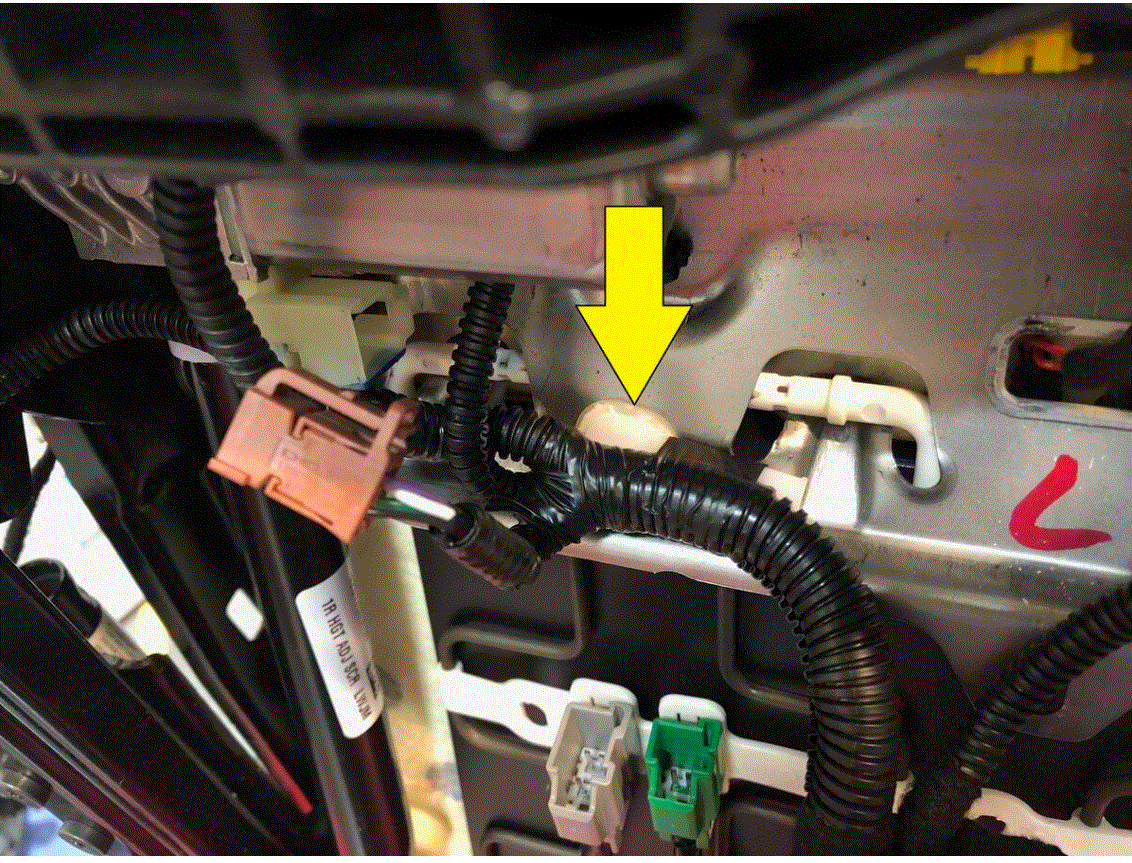

  62. Install the clip securing the harness to the seat cushion frame under the lift motor
    NOTE: 1x retaining clip
    G00653213Courtesy of TESLA, INC.

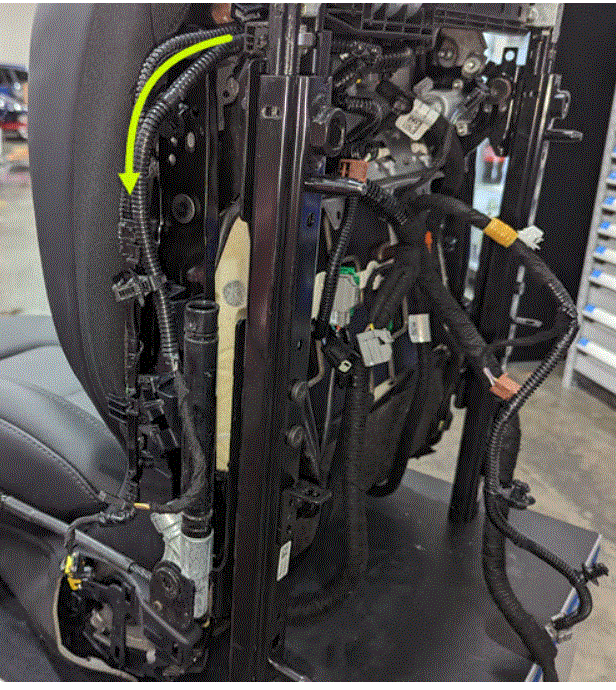

  63. Route harness towards pretensioner
    G00653214Courtesy of TESLA, INC.

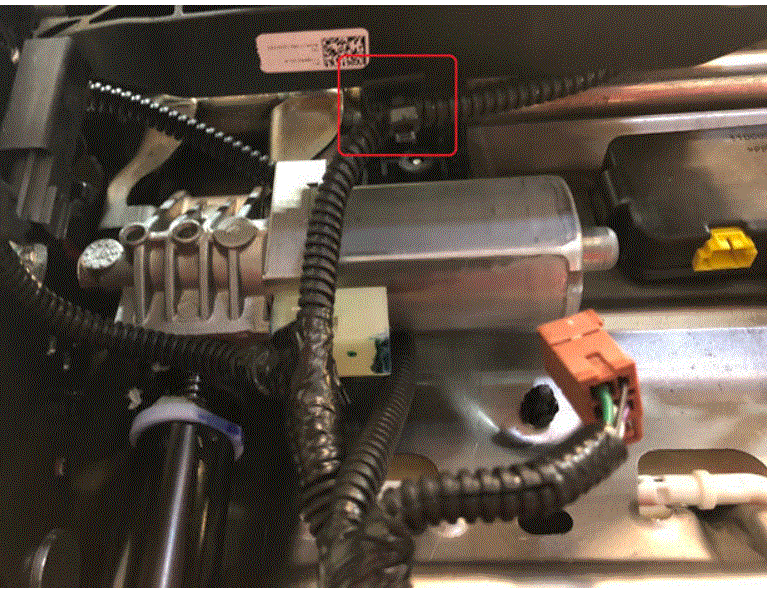

  64. Install the clip securing the track motor harness to the track motor housing
    NOTE: 1x edge clip
    G00653215Courtesy of TESLA, INC.

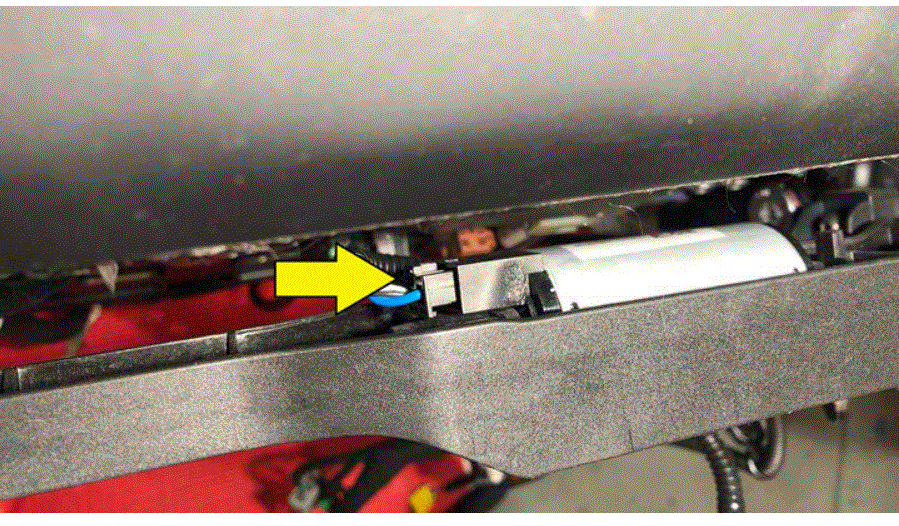

  65. Connect RH front seat track motor connector
    NOTE: 1x connector
    G00653216Courtesy of TESLA, INC.

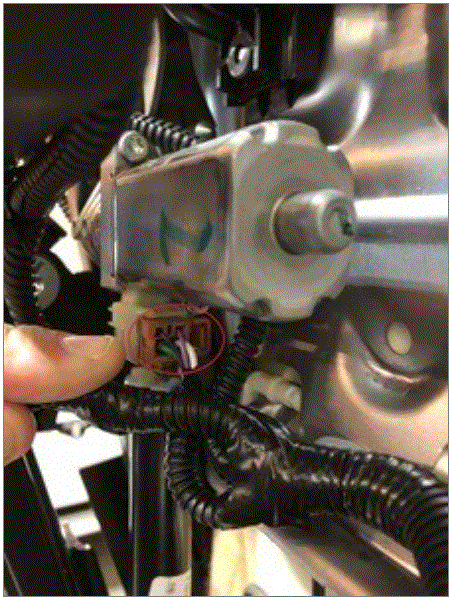

  66. Connect the lift motor connector
    NOTE: 1x connector
    G00653217Courtesy of TESLA, INC.

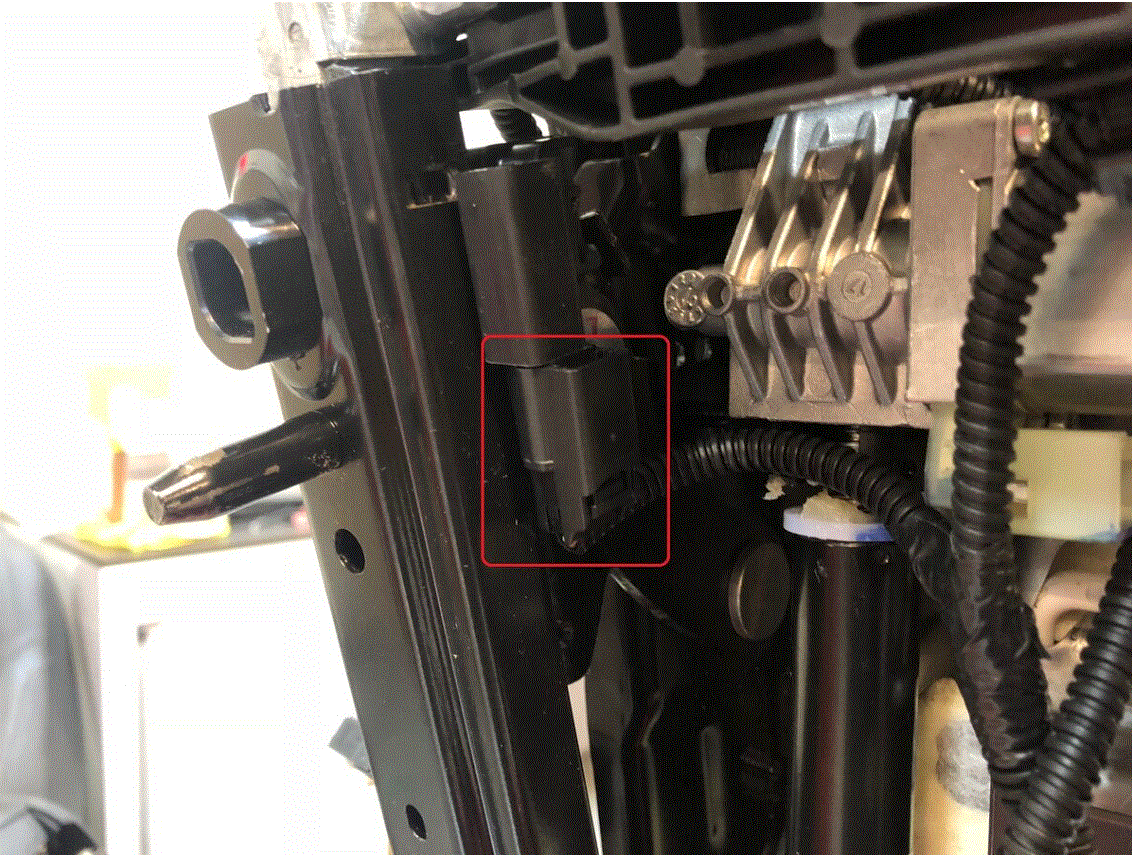

  67. Connect the seat track position sensor connector
    NOTE: 1x connector
    G00653218Courtesy of TESLA, INC.

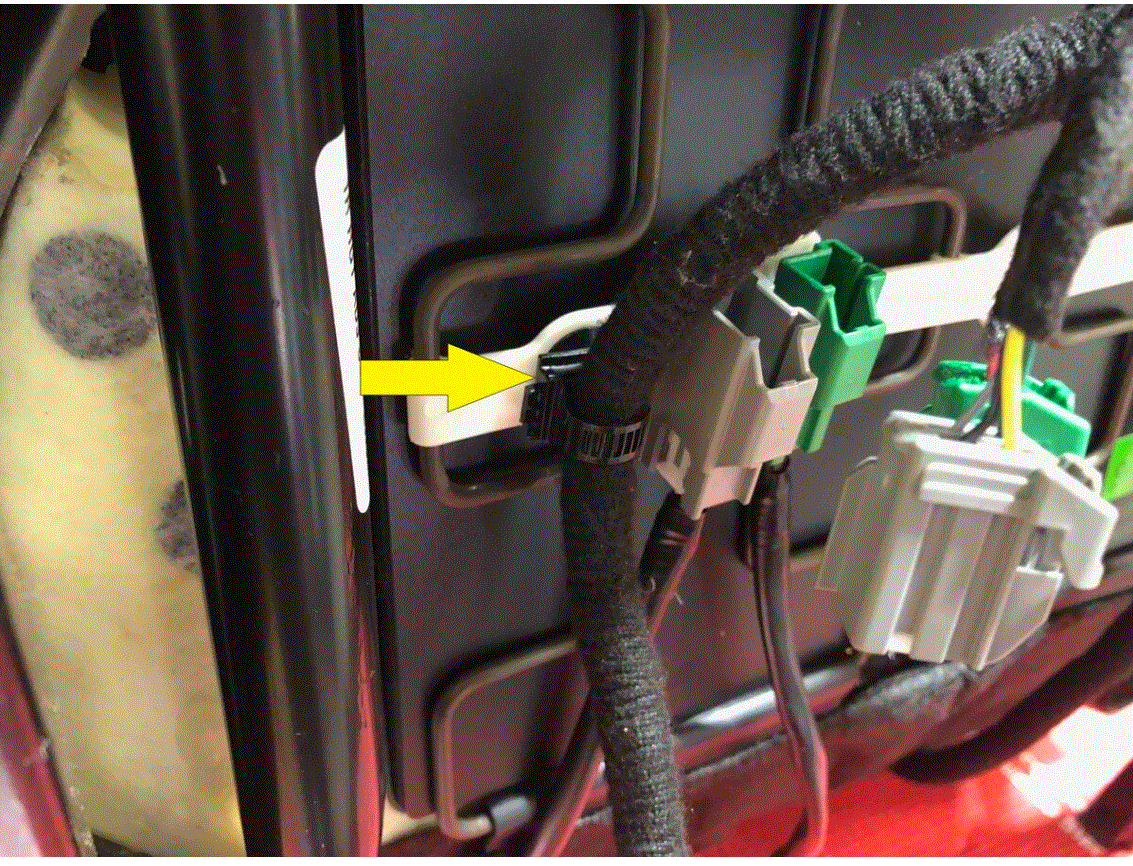

  68. Install the clip securing the harness to the under side of the seat, next to the seat heater connectors
    NOTE: 1x retaining clip
    G00653219Courtesy of TESLA, INC.

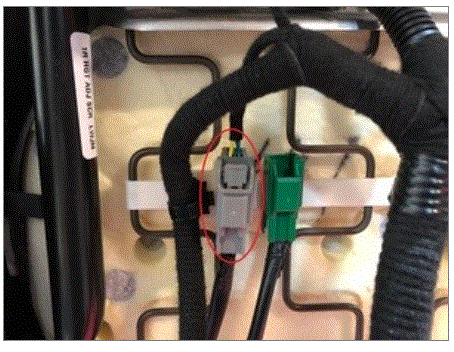

  69. Connect the heat pad connector
    NOTE: 1x connector
    G00653220Courtesy of TESLA, INC.

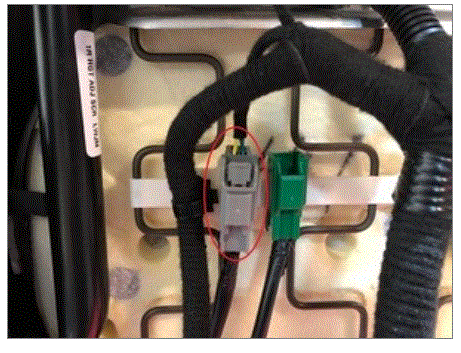

  70. Connect the heat pad connector
    NOTE: 1x connector
    G00653221Courtesy of TESLA, INC.

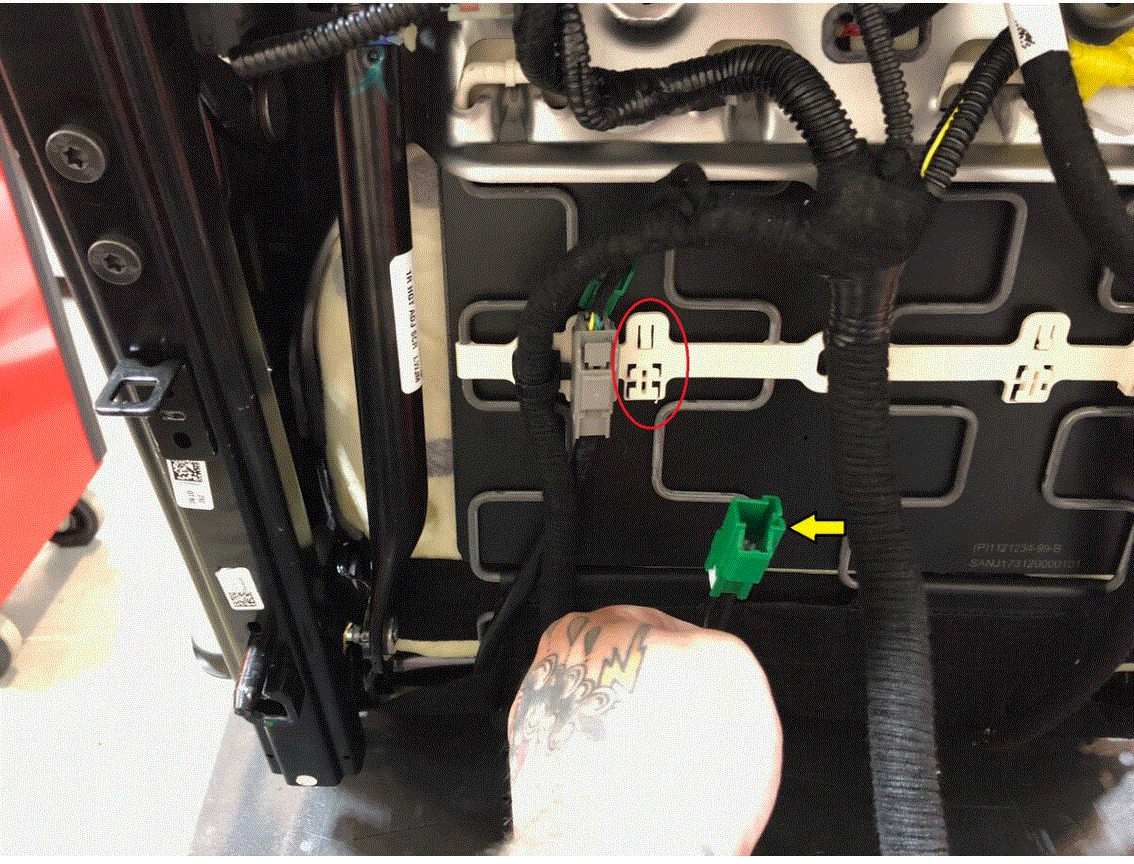

  71. Install the seat back heater harness connector to the seat bottom
    NOTE: 1x connector
    G00653222Courtesy of TESLA, INC.

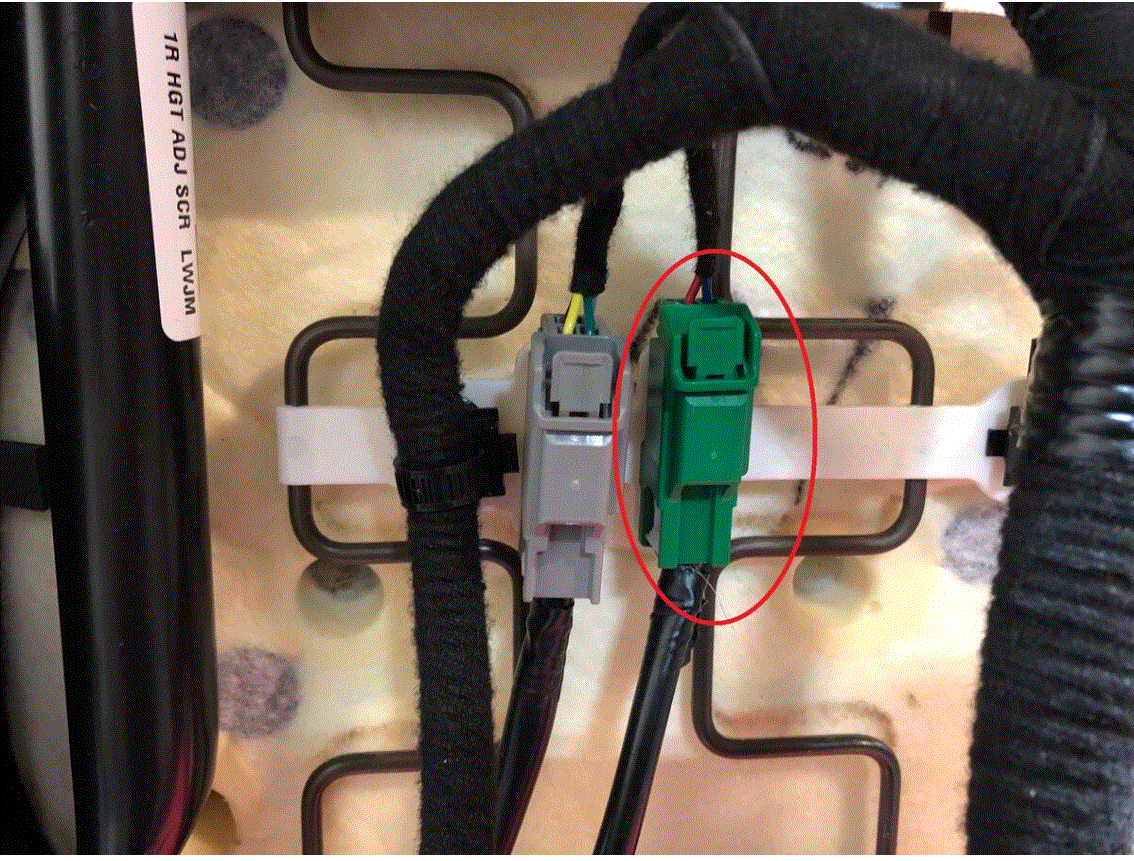

  72. Connect the seat back heater connector
    NOTE: 1x connector
    G00653223Courtesy of TESLA, INC.
  73. Install seat cushion heating pad connector onto cushion suspension
    NOTE: 1x connector
    G00653224Courtesy of TESLA, INC.

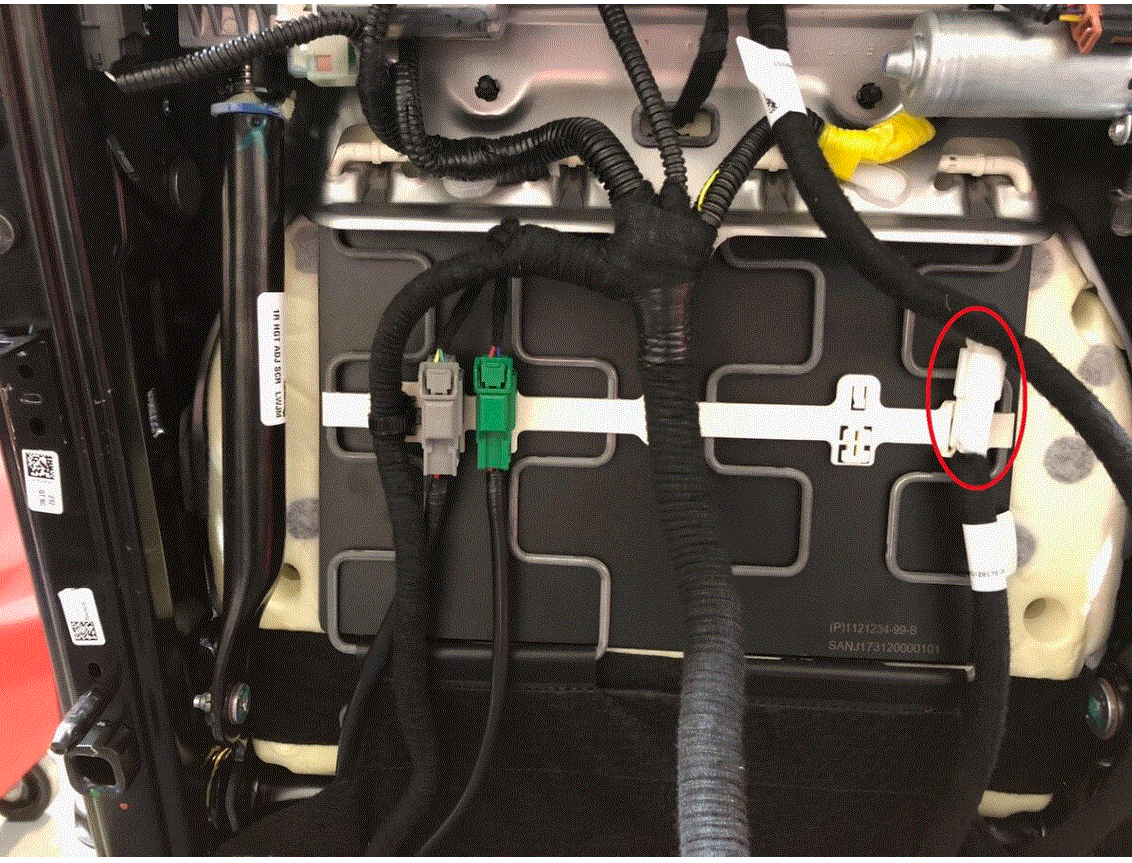

  74. Connect seat cushion heating pad to seat back heating pad
    NOTE: 1x connector
    G00653225Courtesy of TESLA, INC.

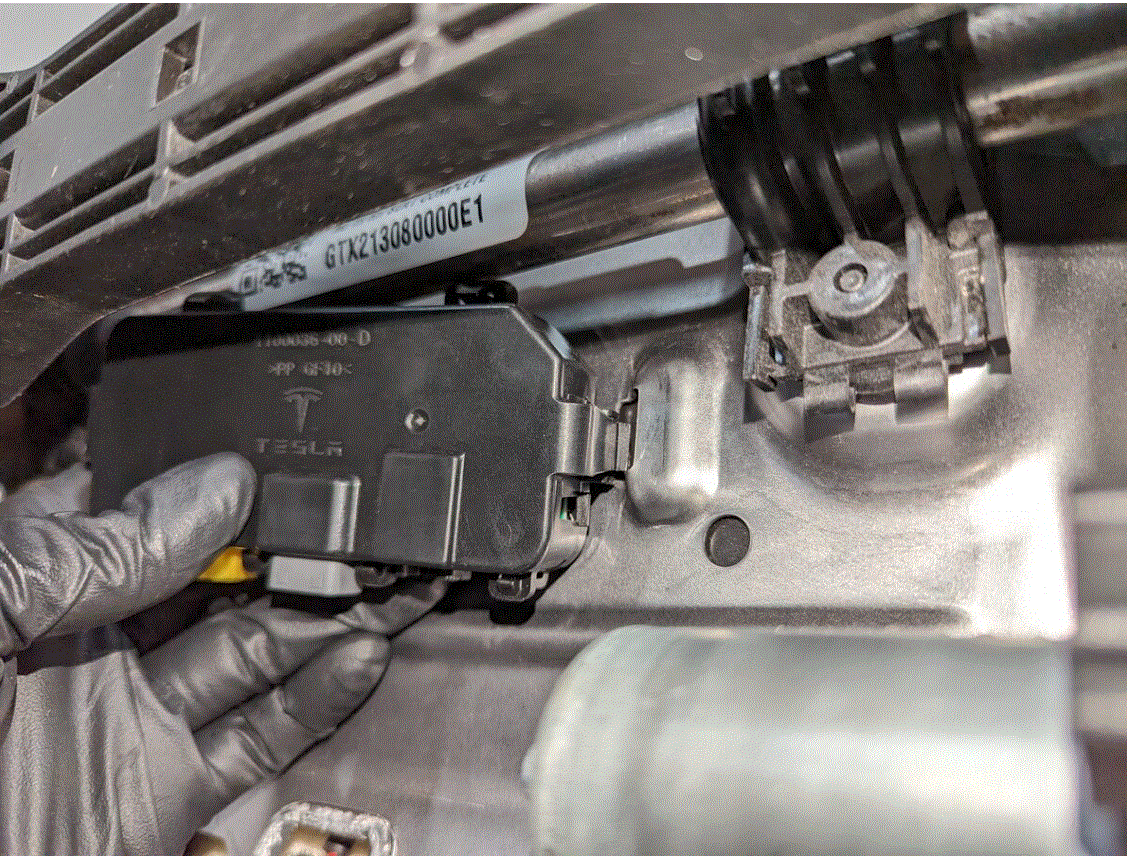

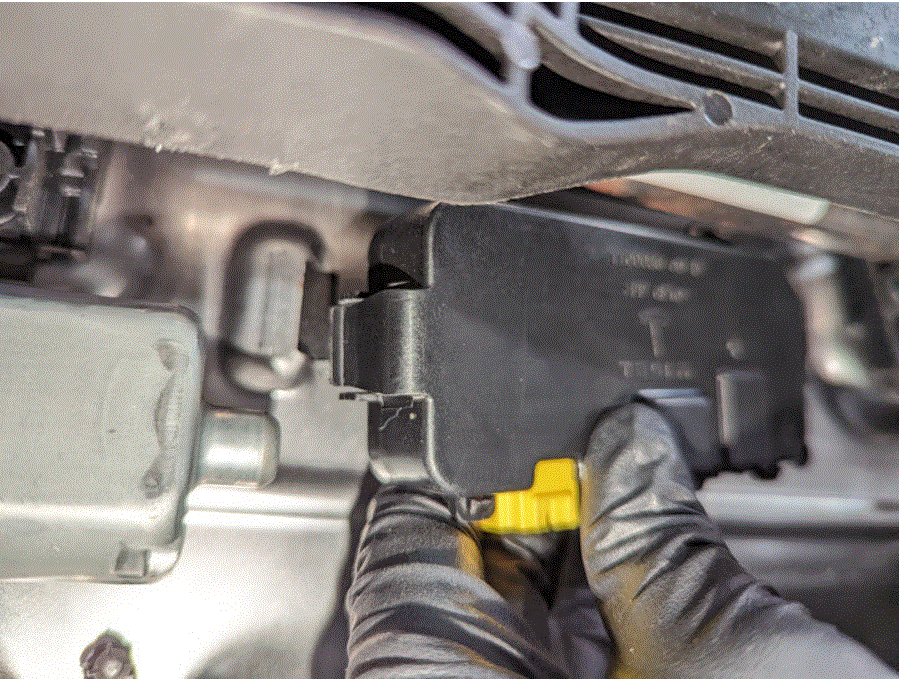

  75. Install OCS control module onto seat bottom frame
    NOTE: 2x tabs
    G00653226Courtesy of TESLA, INC.
    G00653227Courtesy of TESLA, INC.
    G00653228Courtesy of TESLA, INC.

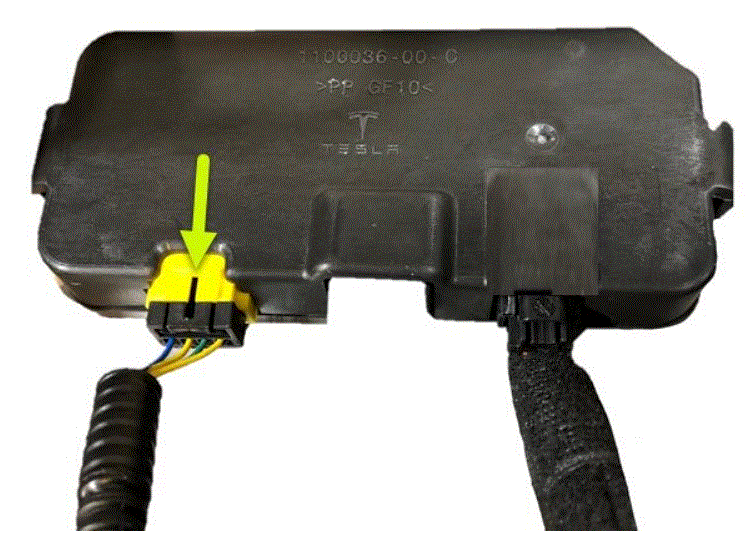

  76. Connect the SRS harness connector to the OCS control module
    NOTE: 1x connector
    G00653229Courtesy of TESLA, INC.

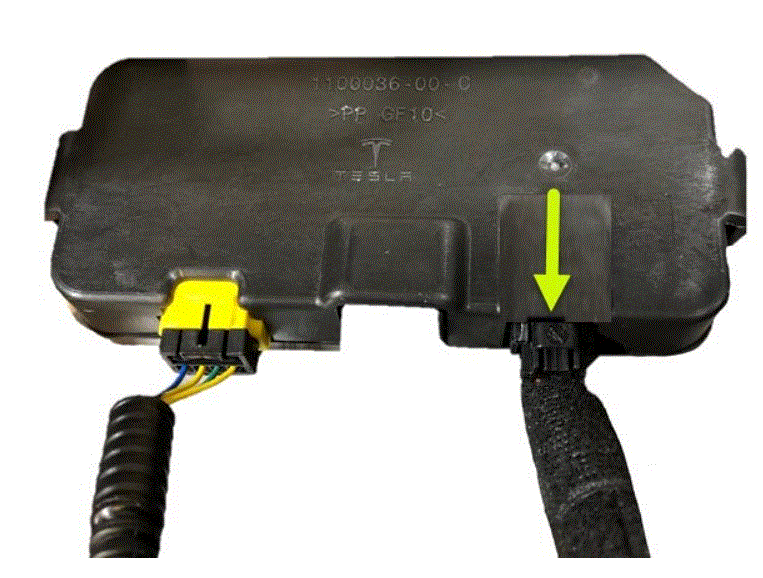

  77. Connect seat cushion heating pad to module
    NOTE: 1x connector
    G00653230Courtesy of TESLA, INC.

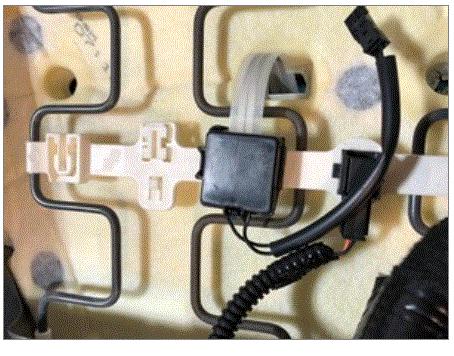

  78. Install the seat occupied sensor onto the seat frame
    NOTE: 1x clip
    G00653231Courtesy of TESLA, INC.

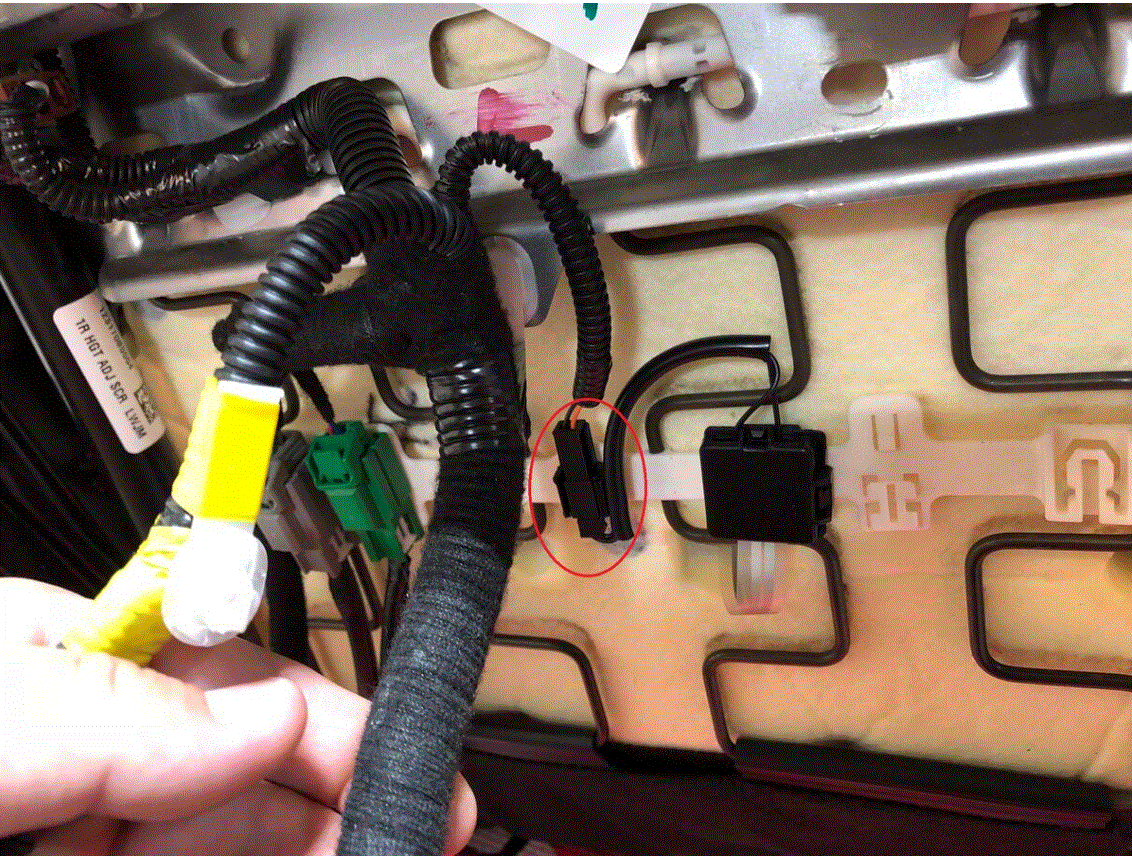

  79. Connect the seat occupied sensor and install the clip onto the seat bottom
    NOTE: 1x connector, 1x retaining clip, Ensure harness is not routed between cushion and frame to avoid friction
    G00653232Courtesy of TESLA, INC.

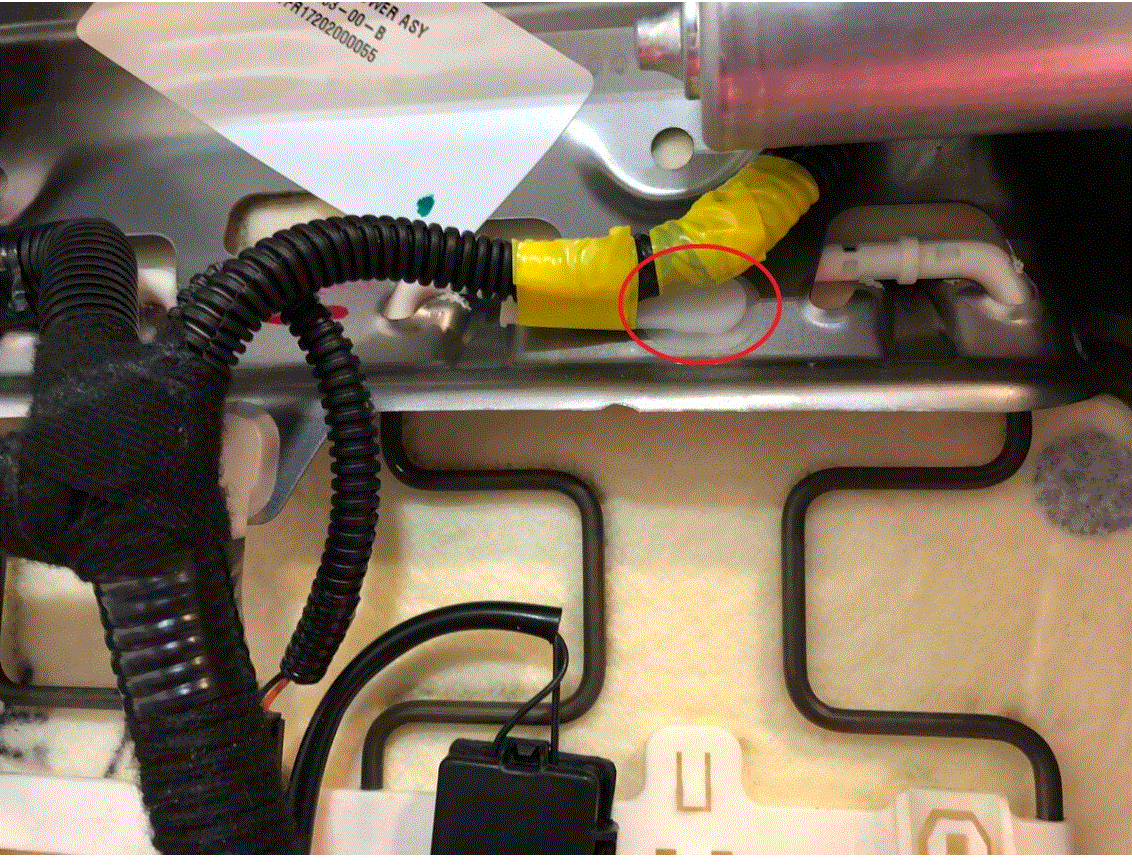

  80. Install the harness retaining clip under the tilt motor
    NOTE: 1x retaining clip
    G00653233Courtesy of TESLA, INC.

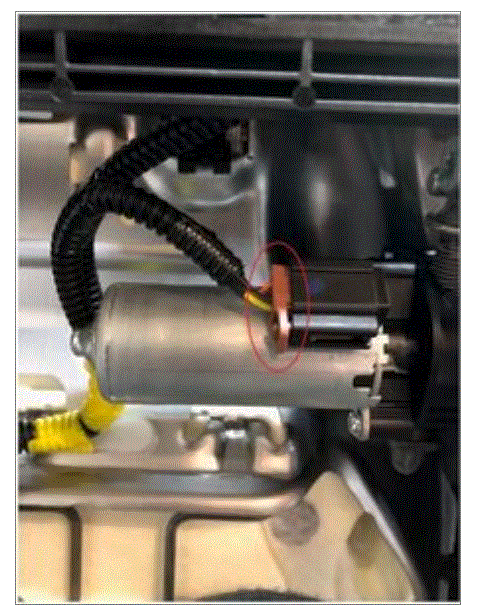

  81. Connect the tilt motor connector
    NOTE: 1x connector
    G00653234Courtesy of TESLA, INC.

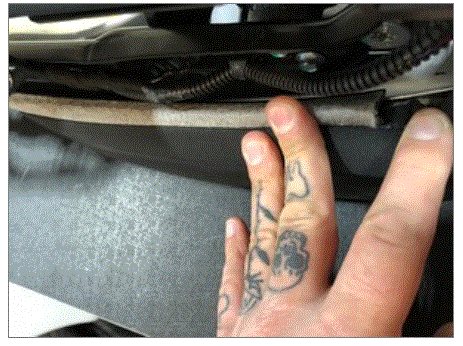

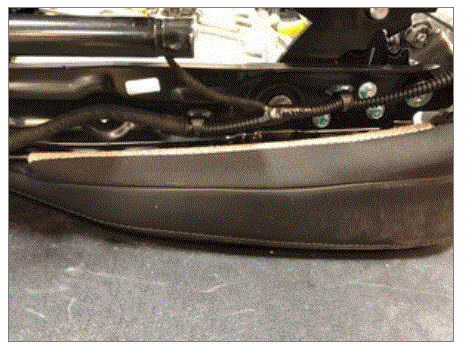

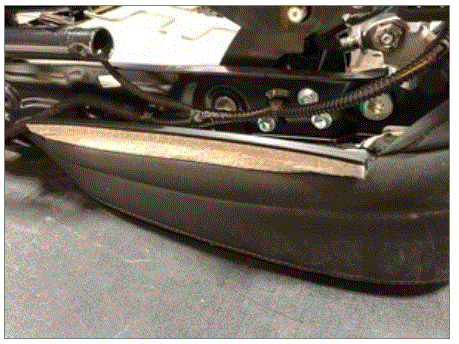

  82. Install the outboard seat trim retaining clip onto the seat frame
    NOTE: 1x clip strip, Fold the clip over towards the frame, The open end should engage the seat frame, if not the trim will need to be pulled until the correct amount of tension is achieved, Line up one end of the clip strip opening with the seat frame and press down until the clip is fully seated onto the frame
    G00653235Courtesy of TESLA, INC.
    G00653236Courtesy of TESLA, INC.
    G00653237Courtesy of TESLA, INC.

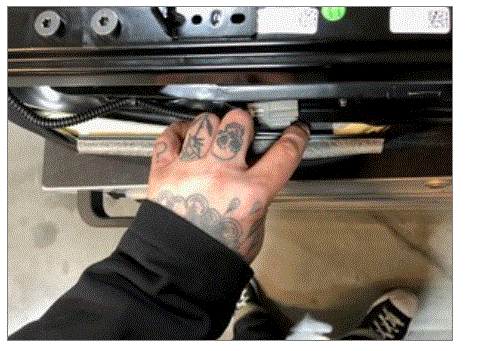

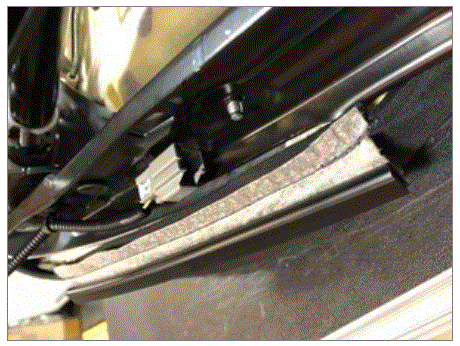

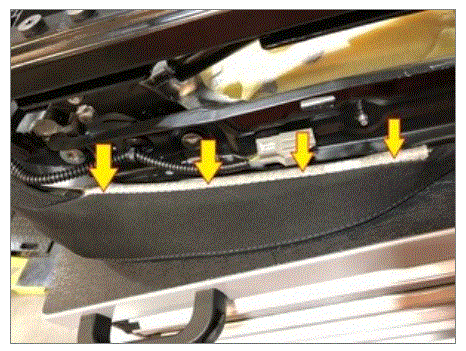

  83. Install the inboard seat trim retaining clip onto the seat frame
    NOTE: 1x clip strip, Fold the clip over towards the frame, The open end should engage the seat frame, if not the trim will need to be pulled until the correct amount of tension is achieved, Line up one end of the clip strip opening with the seat frame and press down until the clip is fully seated onto the frame
    G00653238Courtesy of TESLA, INC.
    G00653239Courtesy of TESLA, INC.
    G00653240Courtesy of TESLA, INC.

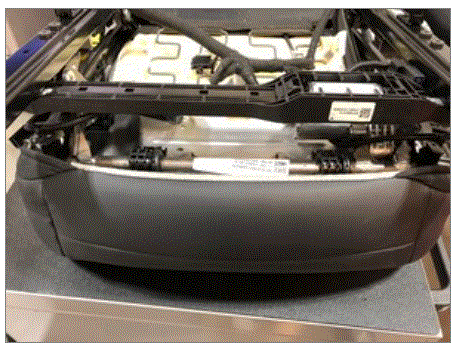

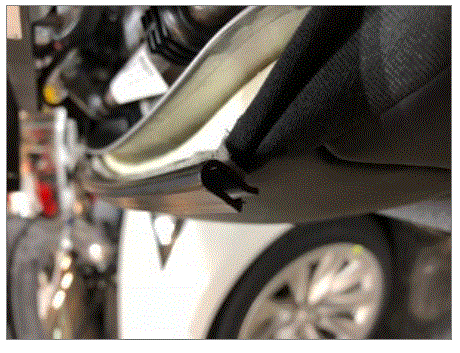

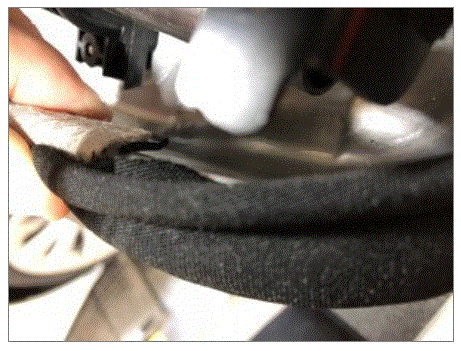

  84. Install the front seat trim retaining clip onto the seat frame
    NOTE: 1x clip strip, Fold the clip over towards the frame, The open end should engage the seat frame, if not the trim will need to be pulled until the correct amount of tension is achieved, Line up one end of the clip strip opening with the seat frame and press down until the clip is fully seated onto the frame
    G00653241Courtesy of TESLA, INC.
    G00653242Courtesy of TESLA, INC.
    G00653243Courtesy of TESLA, INC.

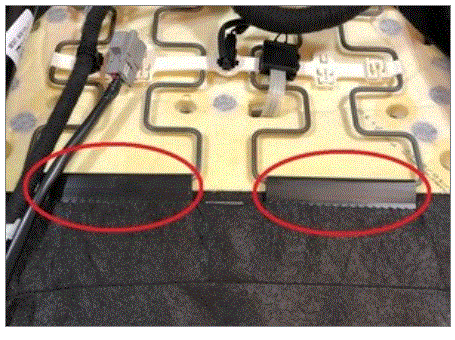

  85. Install the seat cushion retaining clips onto the seat suspension
    NOTE: 2x clips, The seat cushion and trim may need to be pulled tight for the hooks to achieve correct placement on the seat suspension
    G00653244Courtesy of TESLA, INC.

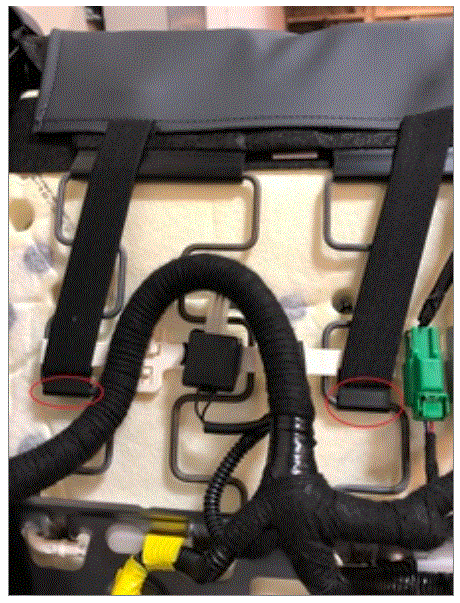

  86. Hook the strap clips for the seat back shell onto the seat suspension
    NOTE: 2x clips, Ensure the straps are tight for proper fit and installation
    G00653245Courtesy of TESLA, INC.

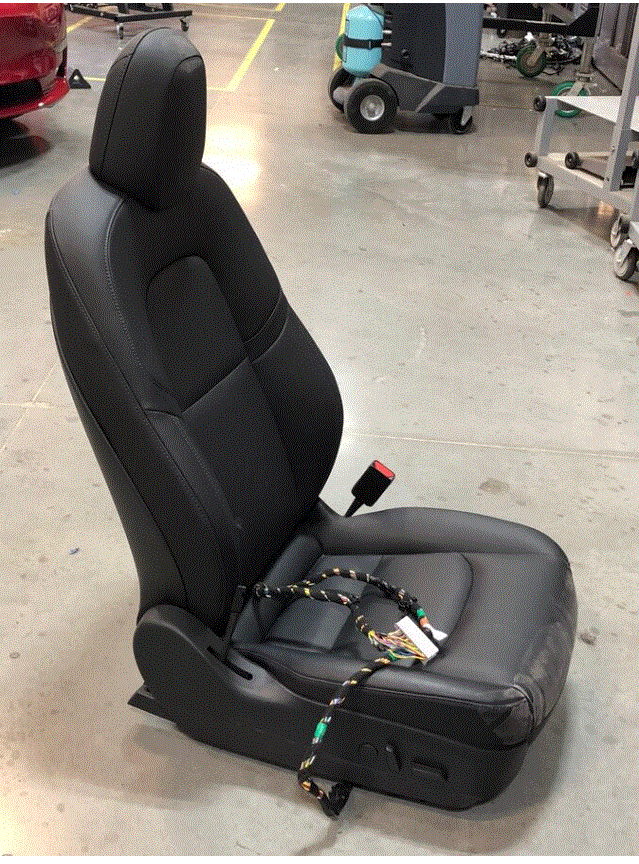

  87. Rotate the seat to normal upright position
    G00653246Courtesy of TESLA, INC.

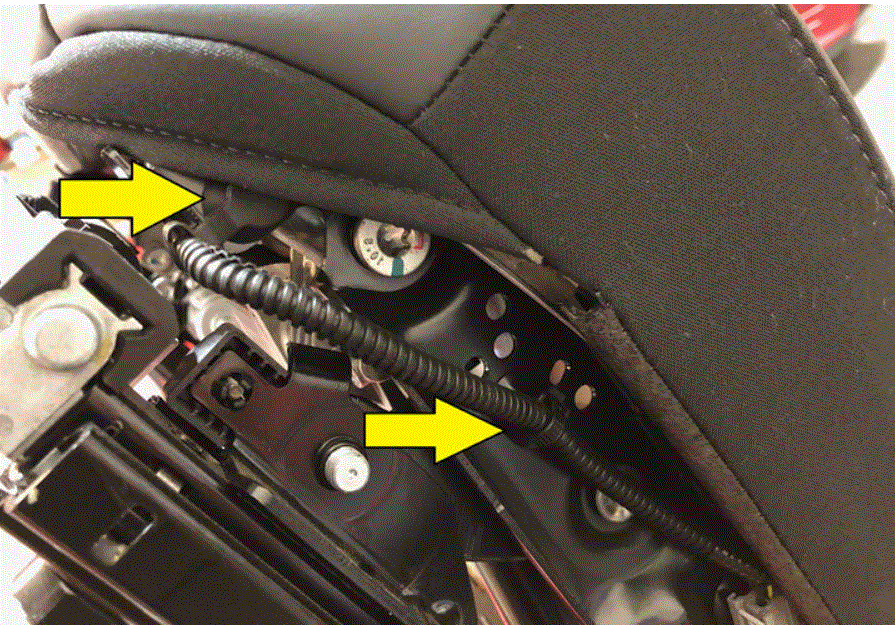

  88. Install the clips securing RH front seat belt buckle connector harness to the seat cushion frame
    NOTE: 2x fir tree clips
    G00653247Courtesy of TESLA, INC.

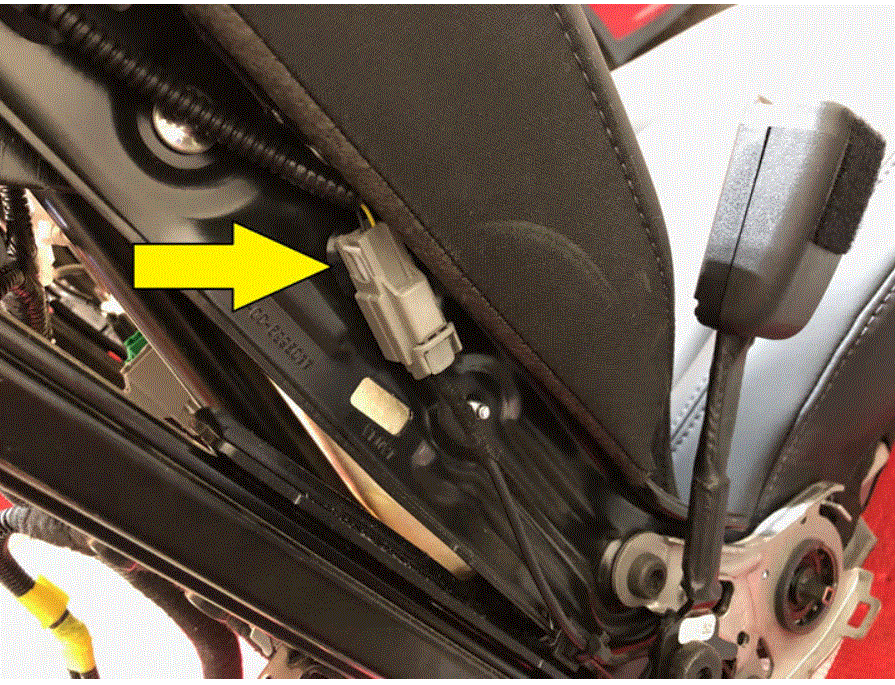

  89. Install clip securing RH front seat belt buckle harness connector to the seat cushion frame
    NOTE: 1x fir tree clip
    G00653248Courtesy of TESLA, INC.

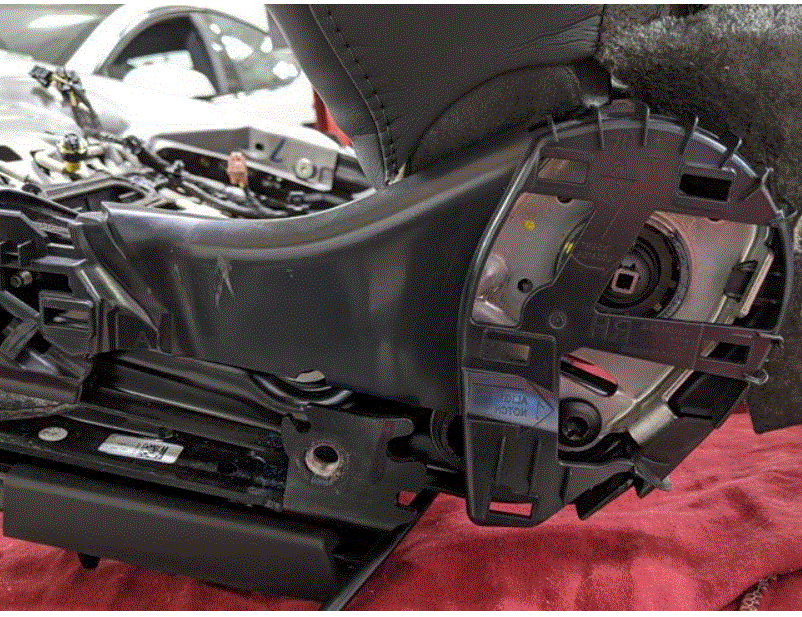

  90. Install LH sideshield carrier onto RH front seat
    NOTE: 2x clips, 2x tabs, Slide forward onto seat frame aligning clips and tabs
    G00653249Courtesy of TESLA, INC.

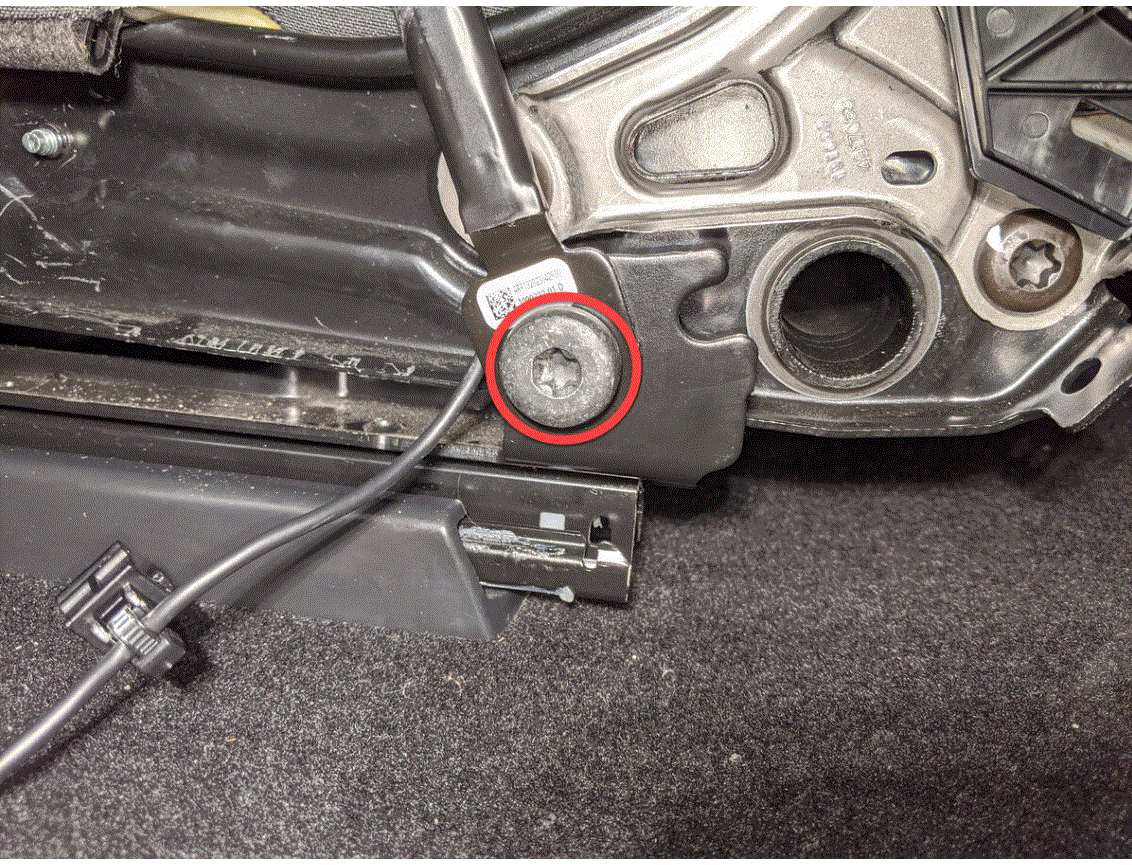

  91. Install the bolt securing the RH front seat buckle to seat track
    NOTE: 1x patch bolt, T50, 40 Nm, Buckle comes with bolt and metal clip
    G00653250Courtesy of TESLA, INC.

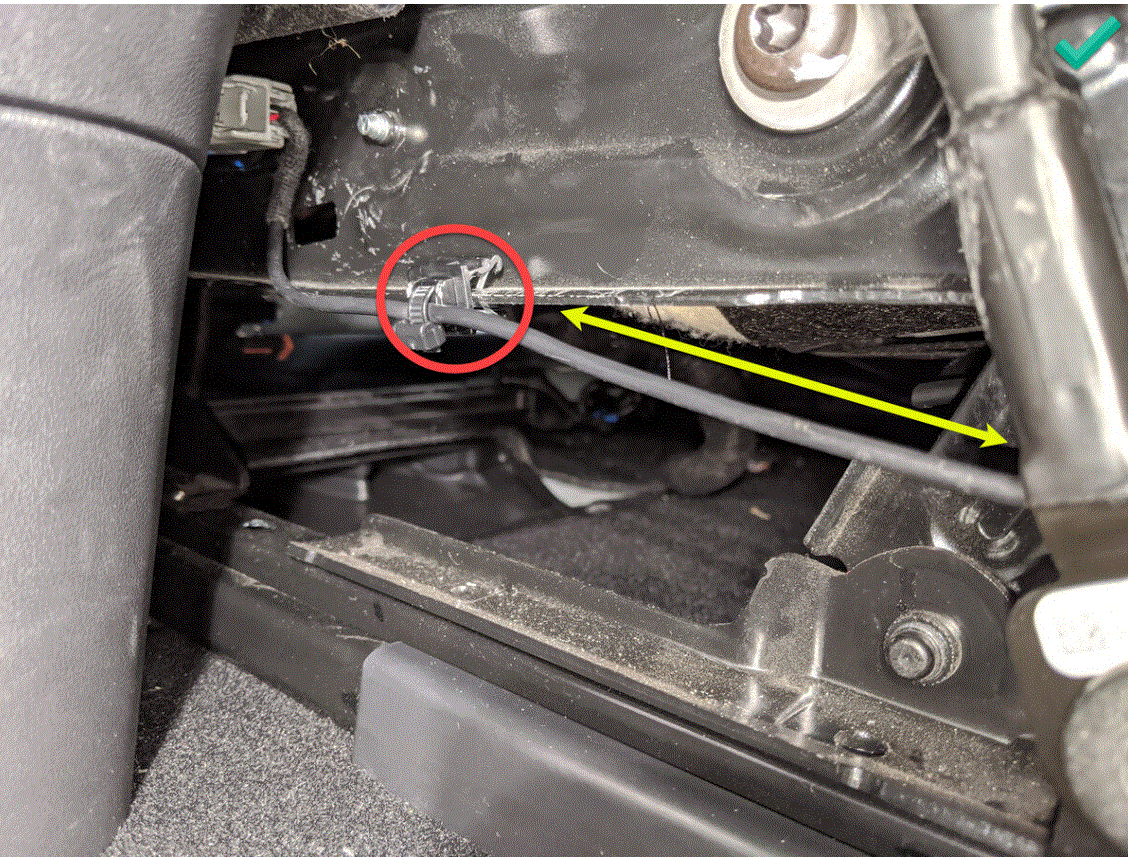

  92. Adjust RH front seat buckle harness clip along inner seat rail and verify harness is extended as far forward as possible to eliminate slack on the back side of the clip
    NOTE: 1x clip, Avoid straining harness, If harness is routed as shown in 2nd photo rework is needed
    G00653251Courtesy of TESLA, INC.

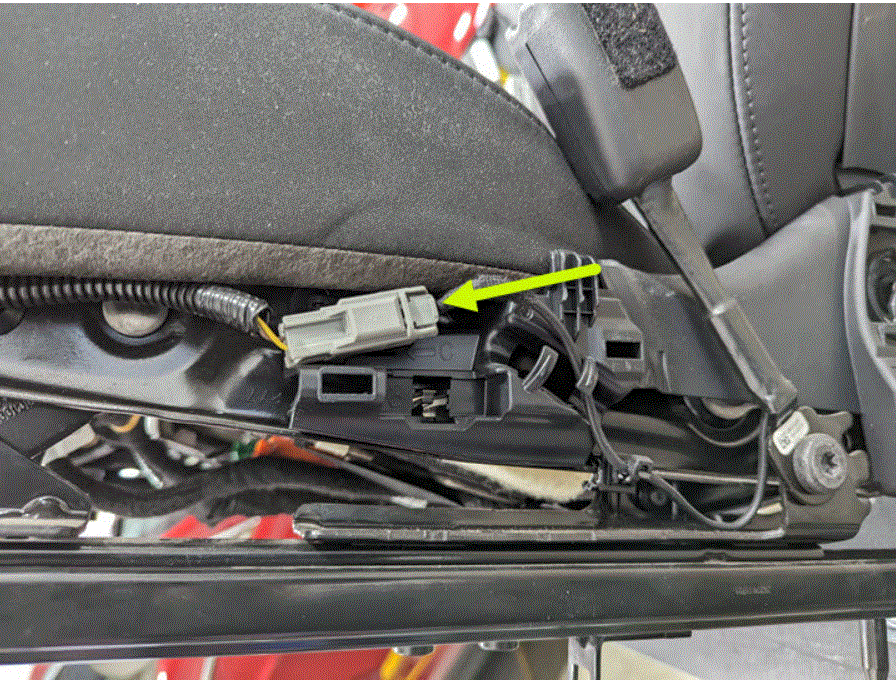

  93. Connect RH front seat belt buckle
    NOTE: 1x connector
    G00653252Courtesy of TESLA, INC.

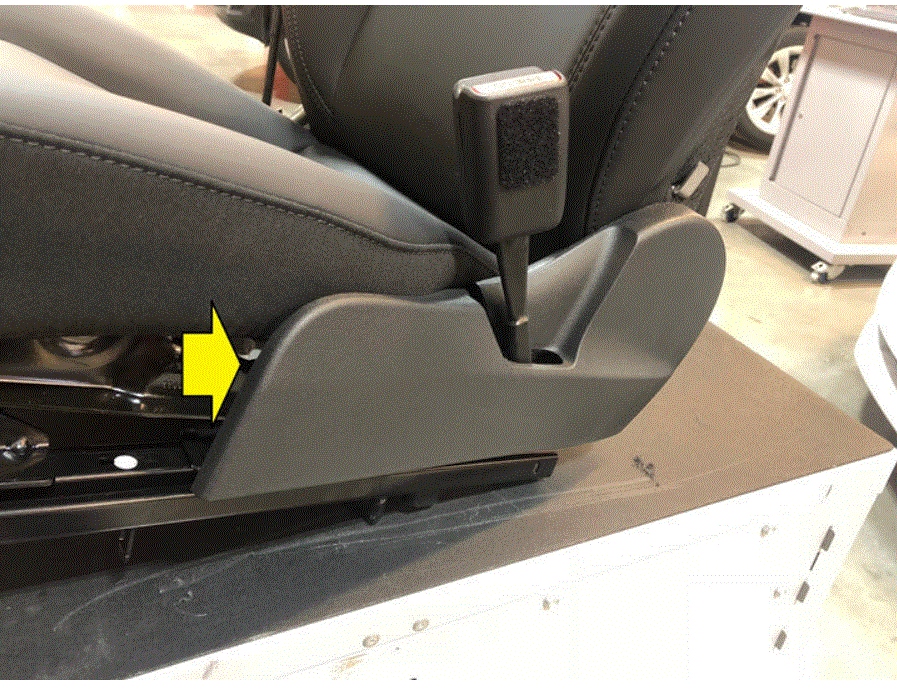

  94. Install inner side shield cover onto RH front seat
    NOTE: 3x clips, Slide the trim onto the seat from the opening for the buckle, then slide forward into position
    G00653253Courtesy of TESLA, INC.
    G00653254Courtesy of TESLA, INC.

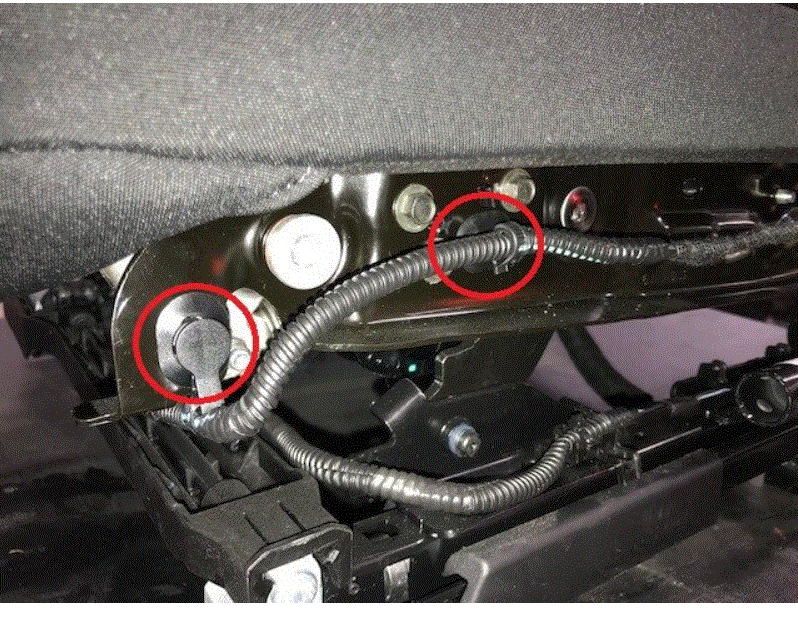

  95. Install clips securing seat switch harness to seat cushion frame
    NOTE: 2x fir tree clips
    G00653255Courtesy of TESLA, INC.

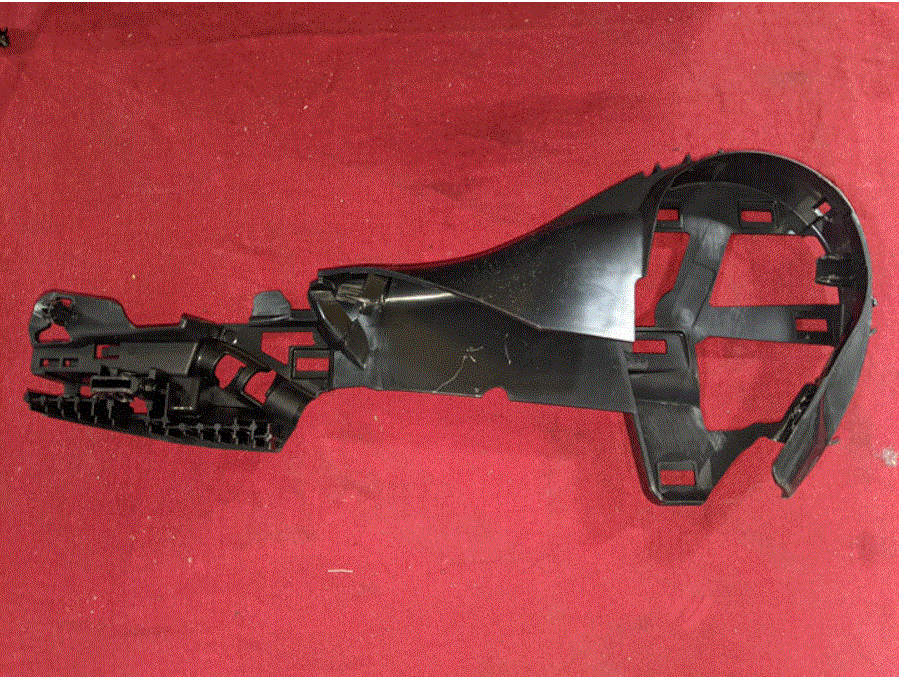

  96. Install RH front seat LH sideshield carrier
    NOTE: 2x clips, 2x tabs, Release leading edge of trim and slide away from seat frame
    G00653256Courtesy of TESLA, INC.
    G00653257Courtesy of TESLA, INC.

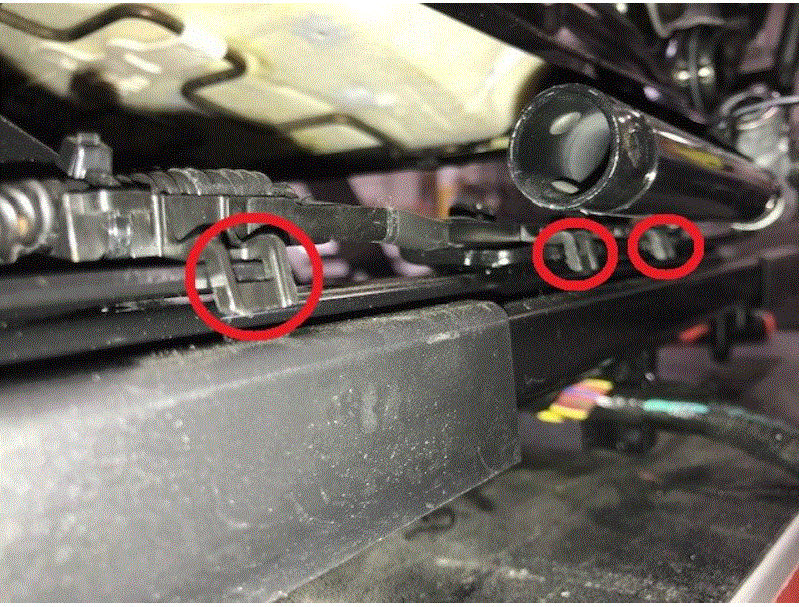

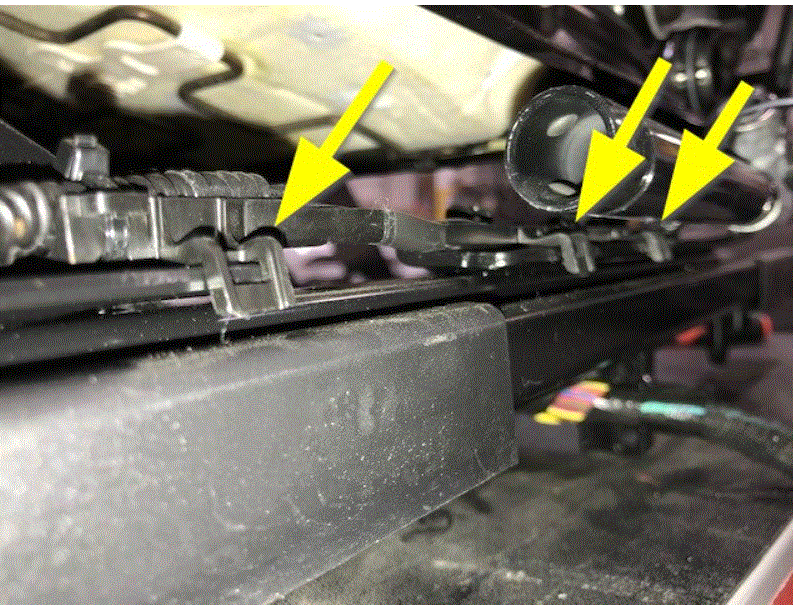

  97. Install seat belt pretensioner harness clips
    NOTE: 3x clips, Position seat belt pretensioner harness clips to seat track rail and press down on each clip to secure
    G00653258Courtesy of TESLA, INC.
    G00653259Courtesy of TESLA, INC.

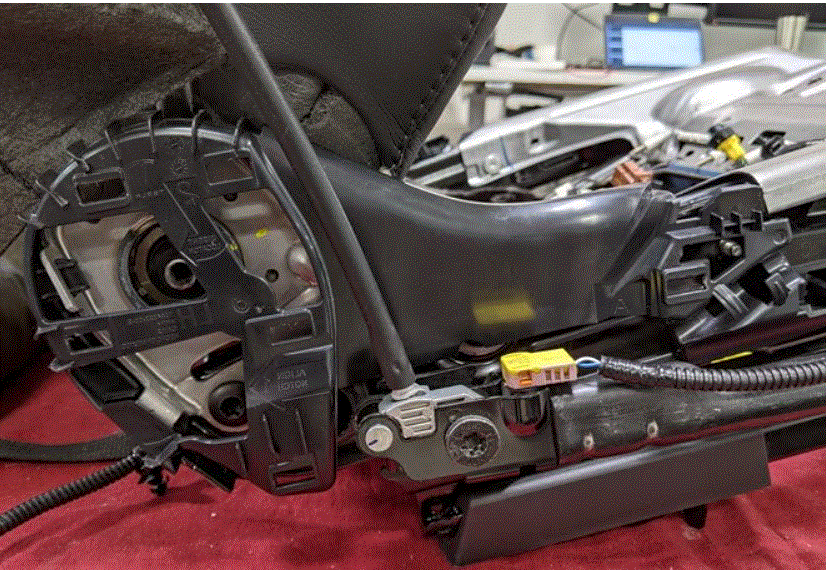

  98. Install RH front seat RH sideshield carrier
    NOTE: 2x clips, 2x tabs, Slide forward onto seat frame aligning clips and tabs
    G00653260Courtesy of TESLA, INC.

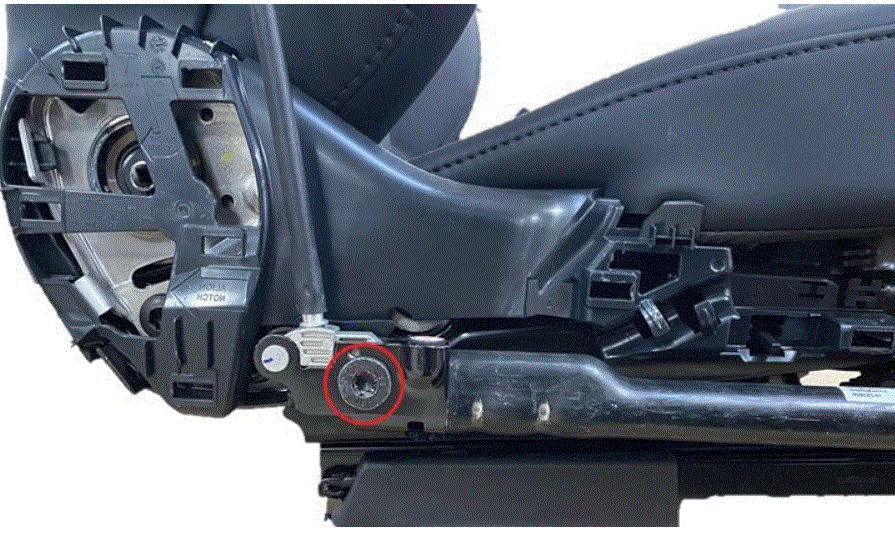

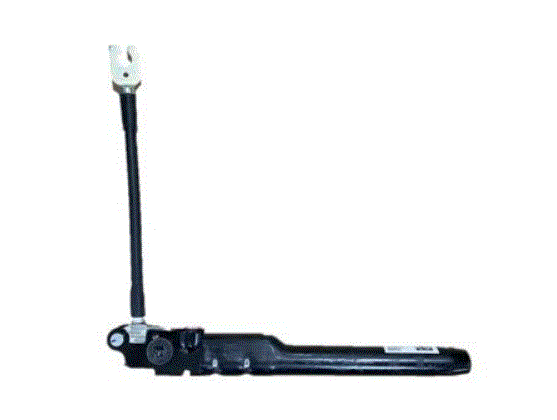

  99. Install RH lap pretensioner from seat track
    NOTE: 1x patch bolt, T50, 40 Nm, Bolt is patched and held in place with metal clip
    G00653261Courtesy of TESLA, INC.
    G00653262Courtesy of TESLA, INC.

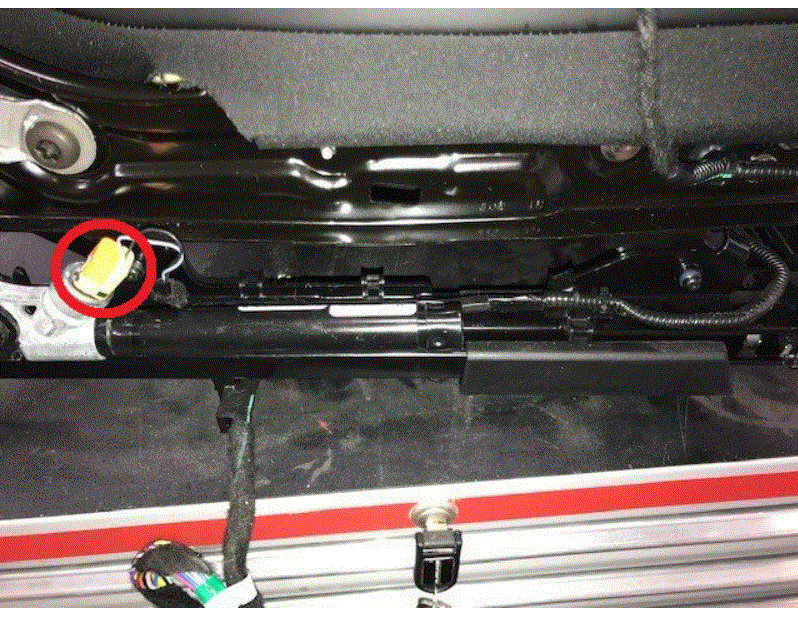

  100. Disconnect RH front seat belt pretensioner
    NOTE: 1x connector, Pull both of the orange tabs down to release the connector
    G00653263Courtesy of TESLA, INC.

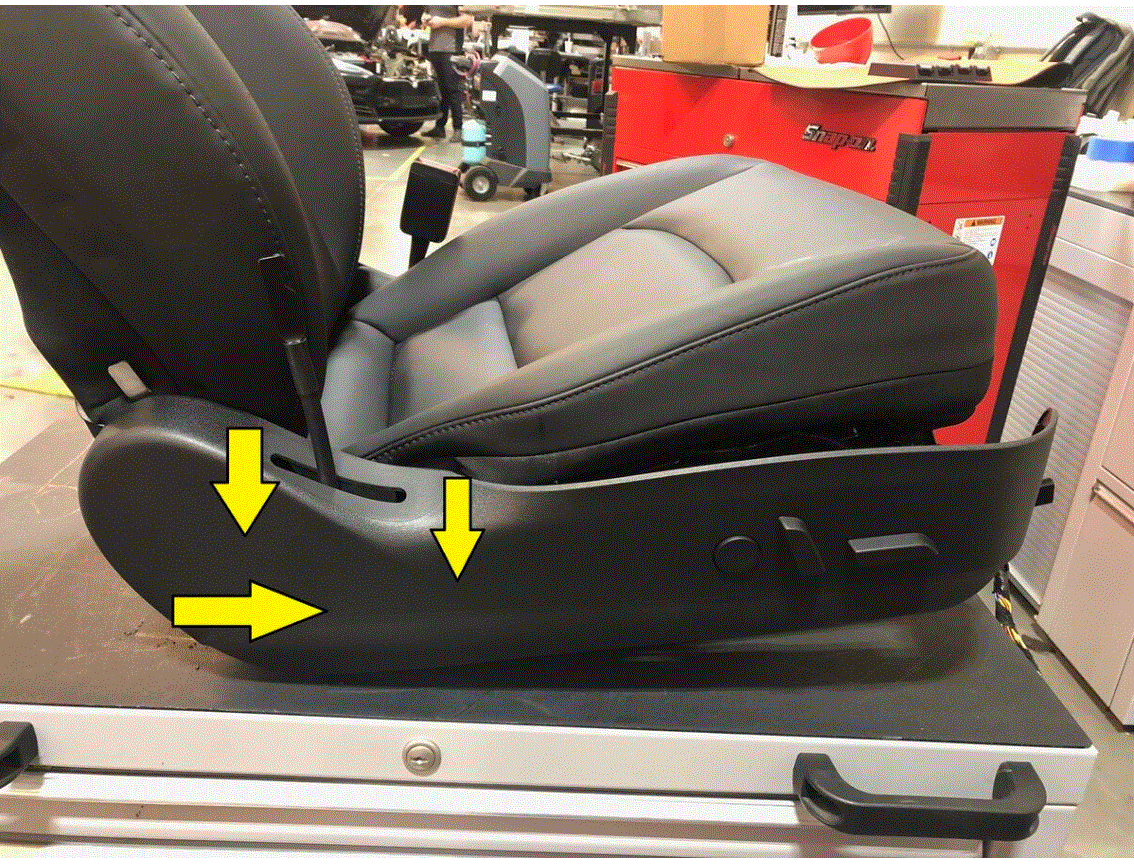

  101. Slide outer cover forward to engage clip into the frame and lift up over pretensioner to install
    NOTE: 1x clip
    G00653264Courtesy of TESLA, INC.

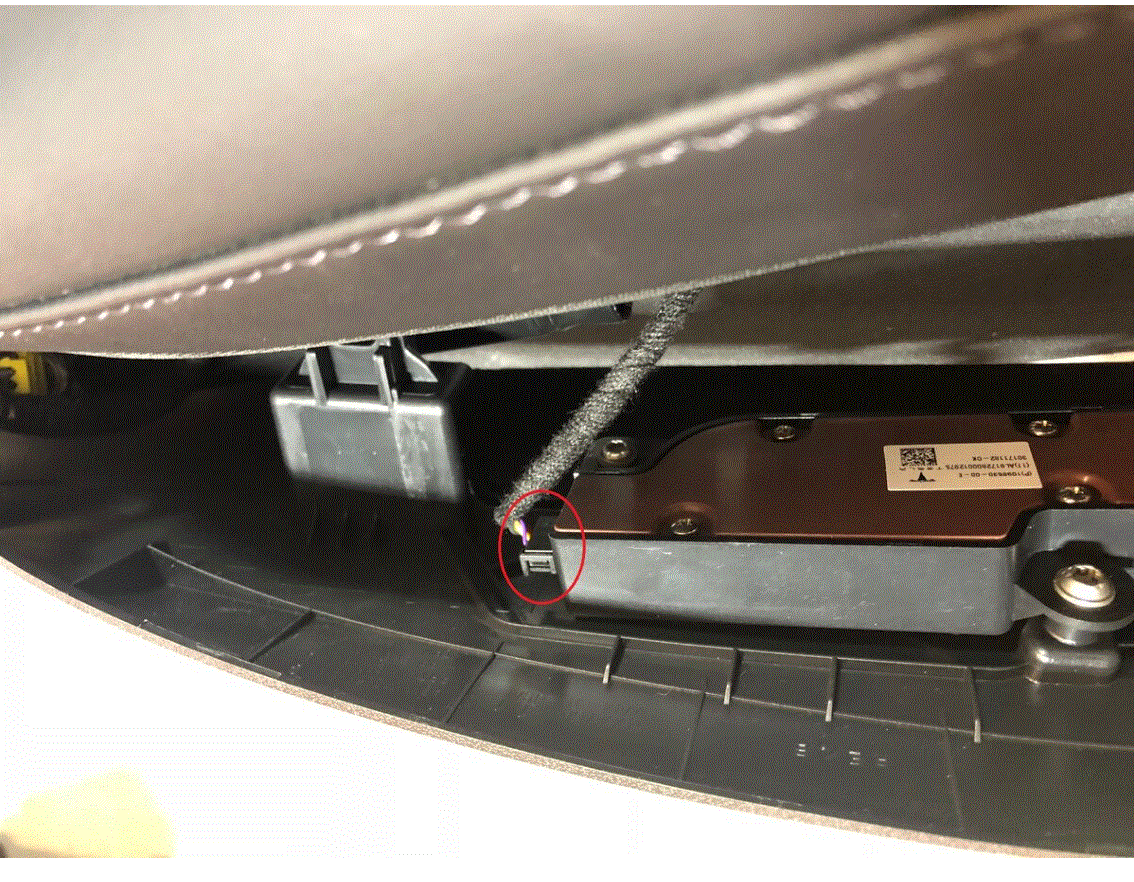

  102. Connect seat switch connector
    NOTE: 1x connector
    G00653265Courtesy of TESLA, INC.
  103. Install outer side cover clip to seat frame
    NOTE: 1x clip
    G00653266Courtesy of TESLA, INC.

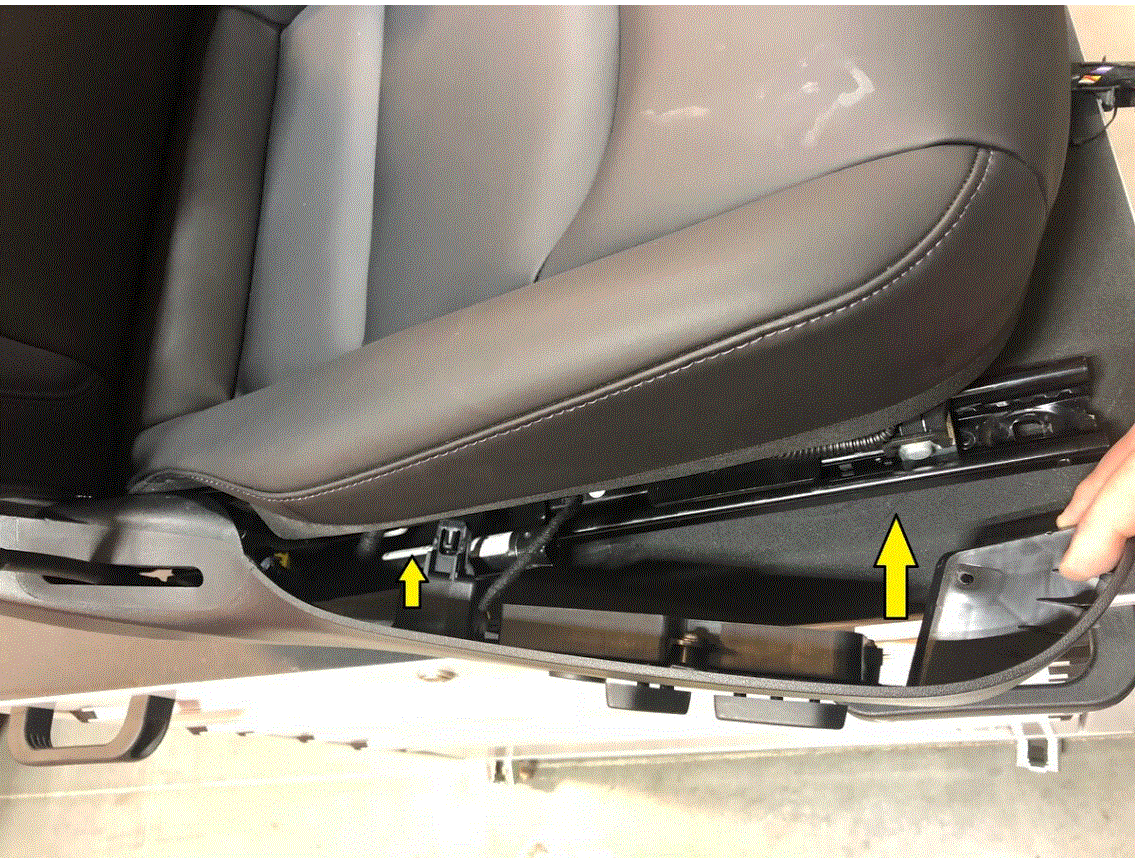

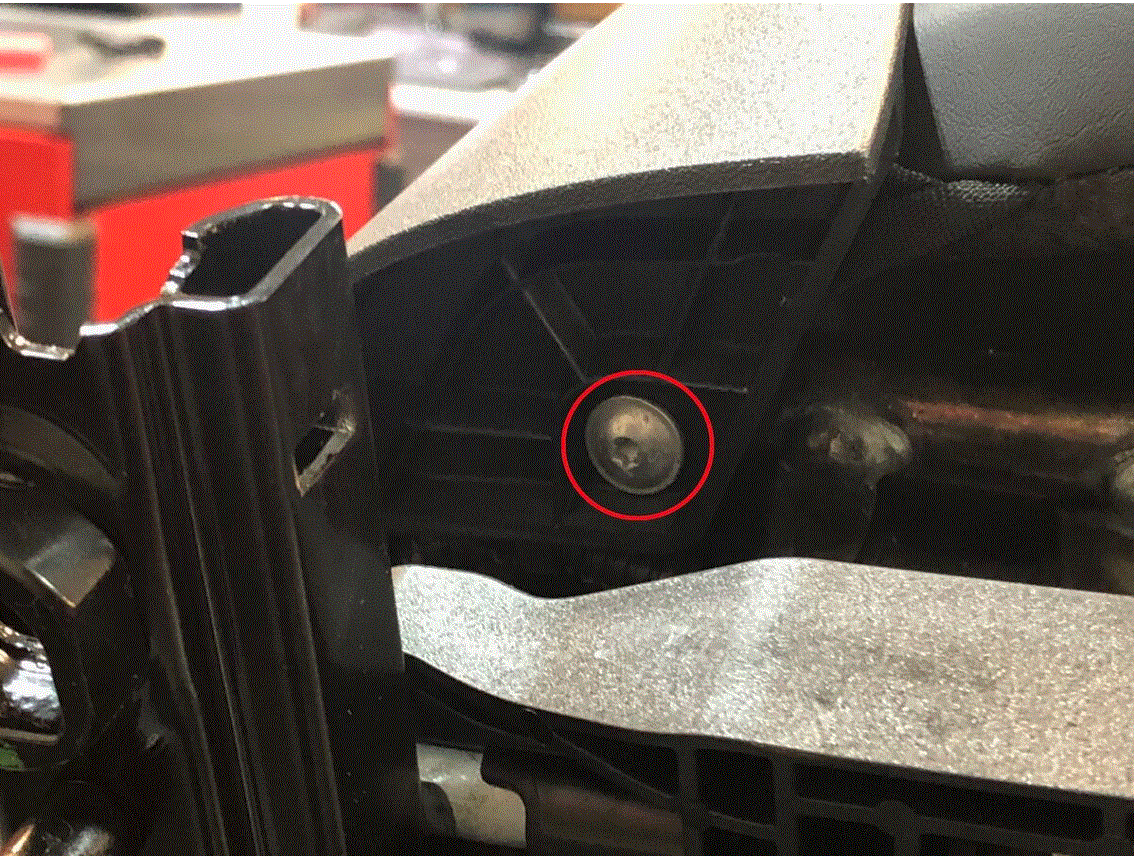

  104. Install screw securing outer side cover to seat
    NOTE: 1x screw, T20, 4 Nm
    G00653267Courtesy of TESLA, INC.
  105. Install the front passenger seat assembly. See Seat Assembly - 1st Row (LH) - Remove and Replace .
  106. Connect to vehicle using Toolbox 3.0
    NOTE: Vehicle connection is integrated into drivers footwell cover, Open Toolbox 3 website and establish connection to the vehicle, https://toolbox.teslamotors.com, Select connection status icon at top right corner, and select connect locally (icon will turn green when vehicle is connected)If RJ45 ethernet diagnostic connector present connect directly from laptop using an RJ45 Ethernet cable
  107. Unlock Gateway
    NOTE: After vehicle has been put into "Service Mode", place keycard on center console to turn on drive rails, hold down the brake pedal, while holding down break pedal simultaneously hold the turn signal stalk fully up for at least 10 seconds, "GTW UNLOCKING" should pop up on the UI next to the VIN during these 10 seconds, once gateway is unlocked "GTW UNLOCKED 5400" will be displayed on the UI next to the VIN, the gateway will remain unlocked for 90 minutes, follow steps on Toolbox article #5582900 for any additional information
  108. Select 'Actions' and search for 'OCS'
  109. Select 'PROC_OCS1P_SELF-CALIBRATION', click 'Run', and allow routine to complete
    NOTE: Select 'X' at top right of window to close once complete, Routine is specific to NA region vehicles
  110. Select 'Actions' and search for 'Seat calibration'
  111. Select 'PROC_VCRIGHT_X_SEAT-TEST-CALIBRATE', click 'Run', and allow routine to complete
    NOTE: Select 'X' at top right of window to close once complete
  112. Remove HSD or RJ45 cable from Ethernet port to disconnect Toolbox 3.0 from vehicle
  113. Raise all windows
  114. Close all four doors
    NOTE: Unlatch rear doors before closing
scientia non olet · About LEMON Manuals
