Suspension - Seat Cushion - Driver Seat - Remove and Replace: Install

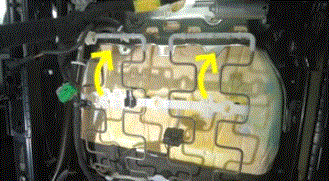

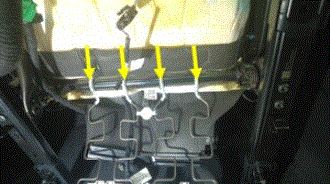

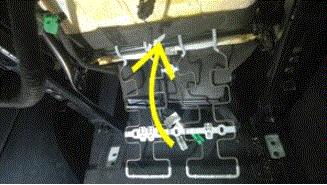

- With assistance, install the lower part of the LH front seat cushion suspension to the seat frame.NOTE: Clip the seat suspension to the seat frame in a horizontal position and then rotate upwards.

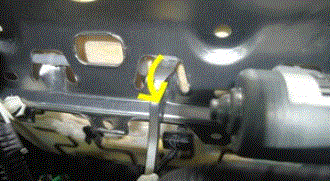

- With assistance, install the upper part of the LH front seat cushion suspension to the seat frame.NOTE: Reversely use the clip prytool to install the seat suspension. Press the seat suspension down with appropriate force to install it to the inside of the seat frame.
- Fasten the clip that attaches the seat cushion heat pad connector to the seat underside, and then connect the connector.NOTE: Slide the connector onto the seat frame clip to secure.
- Fasten the clip that attaches the seatback heater connector to the seat underside, and then connect the connector.NOTE: Slide the connector onto the seat frame clip to secure.
- Install the clips (x2) that attach the seat occupied sensor connector and the LH seat harness to the seat cushion suspension.
- Install the seat occupied sensor to the seat underside, and then fasten the clip that attaches the sensor to the seat underside.
- Secure the clip that attaches the seat occupied sensor to the seat assembly, and then connect occupied sensor electrical connector.
- Connect the LV power. See 12V/LV Power - Disconnect And Connect .
- Move the LH front seat to most rearward.
- With assistance, install the retaining clips (x4) under the main seat harness junction to the LH front seat frame.NOTE: The number of clips may vary.
- Fasten the clips (x2) that attach the seat cushion to the seat suspension.
- Attach the clips that attach the lower section of the seat back trim to the seat suspension.NOTE: Ensure the straps are tight for proper fit and installation.
- Return the LH front seat to the vertical position.NOTE: Take care when moving the seat. Ensure the carpet is not damaged.
- Secure the LH front seat harness under the LH front cabin carpet.
- Install the LH front seat harness to the sill trim clips (x3).
- Install new LH front seat front fasteners (x2).
33.5 Nm (24.7 lbs-ft)
Tip: Use of the following tool(s) is recommended:
- Torx Plus T45 socket
- Ratchet/torque wrench
- Cordless Ratchet/Impact Driver
- Flex head ratchet/flex head torque wrench
- Move the LH front seat forward, and then install new LH front seat rear fasteners (x2).
Tip: Use of the following tool(s) is recommended:
- Torx Plus T45 socket
- Ratchet/torque wrench
- Cordless Ratchet/Impact Driver
- Flex head ratchet/flex head torque wrench
- Install the LH lower A-pillar trim. See Trim - A-Pillar - Lower - LH - Remove and Replace .
- Install the LH middle A-pillar trim. See Trim - A-Pillar - Middle - LH - Remove And Replace .
- Connect the 2nd row seat cushion harness and install the 2nd row seat cushion. See Seat Cushion - Lower - 2nd Row (Remove And Replace) .
- Move both front seats to original position.
- Raise all windows and close all doors.
