Diamond Cover - Seat Side - 1st Row - RH - Remove and Replace: Remove
- Remove the drive seat inboard side shield. See SIDE SHIELD - INBOARD - DRIVER SEAT (REMOVE AND REPLACE)
- Disconnect 12V power. See 12V/LV POWER (DISCONNECT AND CONNECT)

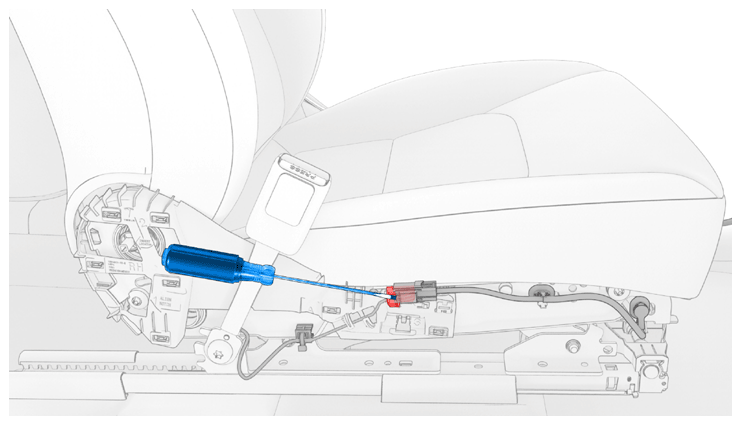

- Use the screwdriver to disconnect LH front seat buckle connectors (x2).
 Courtesy of TESLA, INC.
|

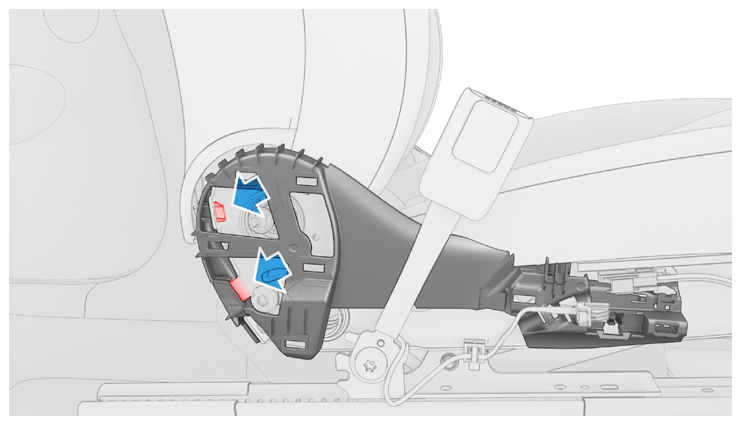

- Remove the diamond cover clips (X2) from the LH front seat.
 Courtesy of TESLA, INC.
|

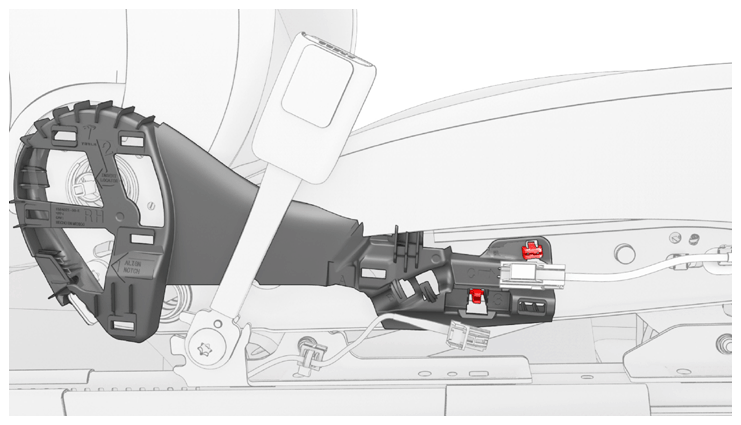

- Remove the diamond cover clips (x2) from the LH front seat.
 Courtesy of TESLA, INC.
|

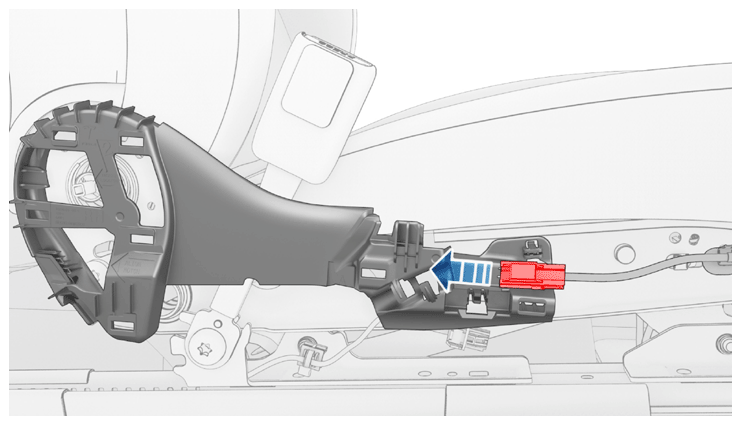

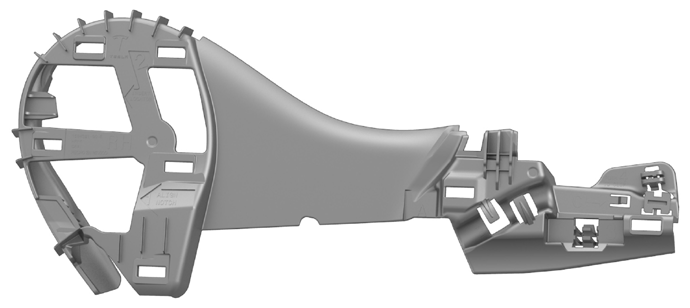

- Disconnect LH front seat buckle connector and remove the diamond cover.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
