Cover - Seat Back - 2nd Row Seat - RH - Remove and Replace: Remove

  1. Remove the 2nd row lower seat cushion. See SEAT CUSHION - LOWER - 2ND ROW (REMOVE AND REPLACE) .
  2. Remove the RH 2nd row seat side bolster. See BOLSTER - SIDE - SEAT - 2ND ROW - LH (REMOVE AND REPLACE) .
  3. Remove the RH 2nd row seat back. See SEAT BACK - 2ND ROW - RH (REMOVE AND REPLACE) .

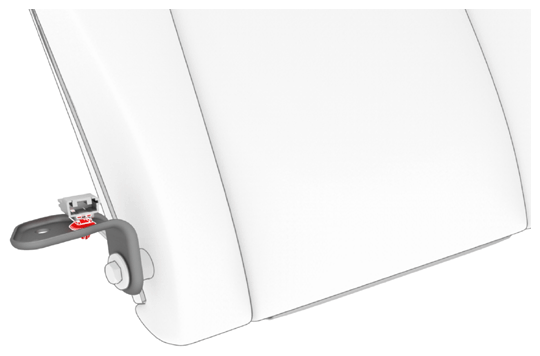

  4. Release the clip that attaches the electrical harness connector to the seat back hinge bracket.
    G14740542Courtesy of TESLA, INC.

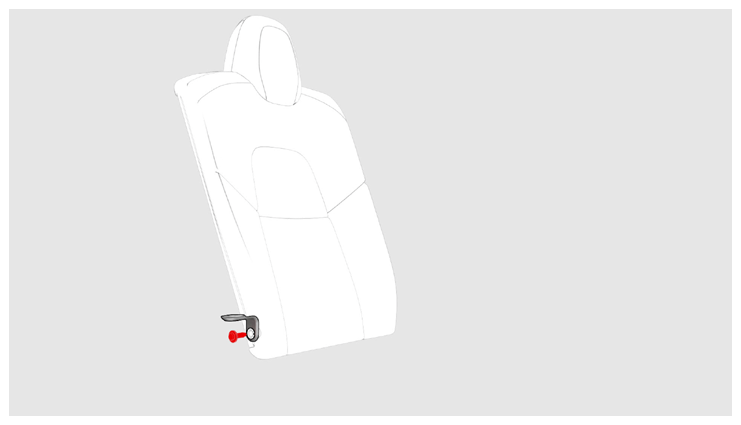

  5. Remove the bolt that attaches the seat back hinge bracket to the RH seat back.

    45 N.m (33.2 ft-lbs)

    G14740543Courtesy of TESLA, INC.

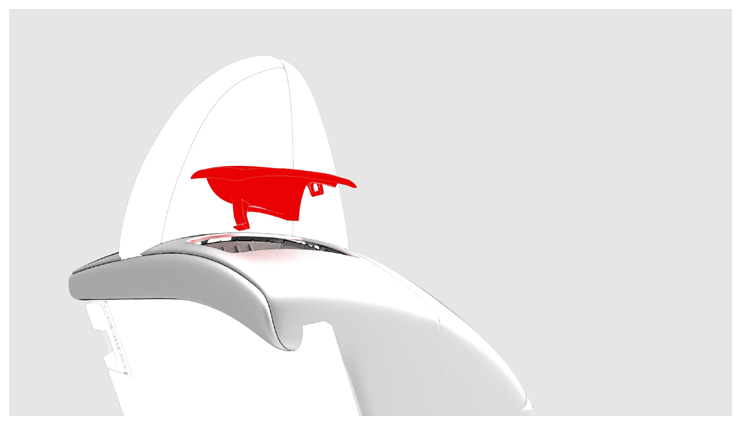

  6. Release the clips that attach the 2nd row seat back bezel to the seat back.
    G14740544Courtesy of TESLA, INC.

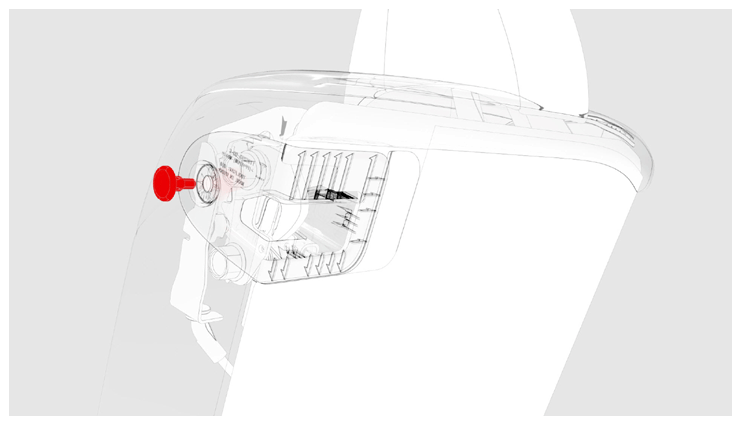

  7. Remove the push clip and release the clips that attach the 2nd row seat latch bezel to the seat back.
    G14740545Courtesy of TESLA, INC.
  8. Unzip the RH 2nd row seat back cover, and then remove the cover from the seat.
