Cover - Seat Back - 2nd Row - LH - Remove and Replace

Last modified: 24/10/2022 13:58:06

NOTE: See Personal Protection to make sure to wear proper PPE when performing below procedure.
WARNING: This procedure is a DRAFT, although it has been validated. Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near high voltage systems and components. Provide corrections and feedback to ServiceDevelopment@teslamotors.com.
  1. Open all four doors
    NOTE: If vehicle is being powered down, Latch rear doors to prevent accidental closure
  2. Lower all four windows
  3. Move RH front seat forward
  4. Move LH front seat forward
  5. Remove 2nd row seat cushion and disconnect harness
    NOTE: 2x tabs, 2x connectors, Press tab toward LH side of vehicle on each side to release front edge of seat cushion
    G00647362Courtesy of TESLA, INC.
    G00647363Courtesy of TESLA, INC.
    G00647364Courtesy of TESLA, INC.
    G00647365Courtesy of TESLA, INC.
  6. Fold the 60 seat in down position
    NOTE: Protect the seat cushion
    G00647366Courtesy of TESLA, INC.
  7. Remove LH side bolster
    NOTE: 1x clip, 1 tab, Pull outward then slightly upward to remove
    G00647367Courtesy of TESLA, INC.
  8. Fold the 60 seat into vertical position
    NOTE: Remove seat protection
    G00647368Courtesy of TESLA, INC.
  9. Disconnect 60 seat back seat heater harness
    NOTE: 1x connector
    G00647369Courtesy of TESLA, INC.
  10. Remove nuts securing 60 seat back hinge bracket to body
    NOTE: 2x nuts, 13mm, 18 Nm
    G00647370Courtesy of TESLA, INC.
  11. Remove LH rear seat belt buckle
    NOTE: 1x patch bolt, 15mm, 40 Nm, If the bolt is difficult to remove, Use an inductive heating tool to melt the adhesive patch material, Position the inductive heating tool coil around the bolt, then heat the bolt for 20 seconds, Allow the bolt to cool for 2 minutes, Discard after removal
    G00647371Courtesy of TESLA, INC.
    G00647372Courtesy of TESLA, INC.
  12. Remove 60 seat back by lifting up on LH side and pulling inner pivot out of 40 seat back and set onto padded work surface
    G00647373Courtesy of TESLA, INC.
  13. Release tabs securing pivot sleeve to 60 seat back and remove pivot sleeve
    NOTE: 4x tabs
    G00647374Courtesy of TESLA, INC.
    G00647375Courtesy of TESLA, INC.
  14. Remove seat back hinge bracket from 60 seat back and connector
    NOTE: 1x bolt, 13mm, 45 Nm
    G00647376Courtesy of TESLA, INC.
    G00647377Courtesy of TESLA, INC.
    G00647378Courtesy of TESLA, INC.
  15. Remove bolt securing armrest to 2nd row 60 seat back assembly
    NOTE: 1x bolt, T45, 15 Nm
    G00647379Courtesy of TESLA, INC.
    G00647380Courtesy of TESLA, INC.
  16. Pull RH side of armrest system towards front of seat, and then slide armrest towards RH side of seat to release pivot from 60 seat back
    NOTE: Watch out for the plastic piece in the photo when removing the armrest it may or may not fall off if it does return it to it's original position
    G00647381Courtesy of TESLA, INC.
    G00647382Courtesy of TESLA, INC.
  17. Release clips securing center headrest to seat back and pull up to remove
    NOTE: 2x clips, Press both clip then remove headrest at the simultaneously
    G00647383Courtesy of TESLA, INC.
    G00647384Courtesy of TESLA, INC.
    G00647385Courtesy of TESLA, INC.
    G00647386Courtesy of TESLA, INC.
  18. Remove 2nd row 60 backrest LH and RH center headrest guides
    NOTE: 2x tabs, Use trim tool to pull up guides and slide up until they release
    G00647387Courtesy of TESLA, INC.
    G00647388Courtesy of TESLA, INC.
    G00647389Courtesy of TESLA, INC.
    G00647390Courtesy of TESLA, INC.
    G00647391Courtesy of TESLA, INC.
    G00647392Courtesy of TESLA, INC.
    G00647393Courtesy of TESLA, INC.
  19. Remove 2nd row armrest closeout panel from seat frame
    NOTE: 3x clips, 2x tabs, Pull up by headrest guides to release clips then slide upwards off to clear tabs and remove closeout panel
    G00647394Courtesy of TESLA, INC.
    G00647395Courtesy of TESLA, INC.
    G00647396Courtesy of TESLA, INC.
    G00647398Courtesy of TESLA, INC.
    G00647399Courtesy of TESLA, INC.
    G00647400Courtesy of TESLA, INC.
    G00647401Courtesy of TESLA, INC.
  20. Remove the 2nd row seat back bezel from seat back
    NOTE: 2x clips, Use trim tool to release clip like photo 1 then pull up and off to release the other clip
    G00647402Courtesy of TESLA, INC.
    G00647403Courtesy of TESLA, INC.
    G00647404Courtesy of TESLA, INC.
    G00647405Courtesy of TESLA, INC.
    G00647406Courtesy of TESLA, INC.
  21. Remove the center escutcheon from seat back
    NOTE: 2x clips, Release clips then spread escutcheon to remove from seat belt
    G00647407Courtesy of TESLA, INC.
    G00647408Courtesy of TESLA, INC.
  22. Remove the 2nd row armrest lower closeout from 2nd row seat frame
    NOTE: 2x clips, 2x slide clips, Release the 2x upper clips then pull upward to remove
    G00647409Courtesy of TESLA, INC.
    G00647410Courtesy of TESLA, INC.
    G00647411Courtesy of TESLA, INC.
    G00647412Courtesy of TESLA, INC.
    G00647413Courtesy of TESLA, INC.
    G00647414Courtesy of TESLA, INC.
    G00647415Courtesy of TESLA, INC.
  23. Unzip 2nd row 60 seat back trim cover
    G00647416Courtesy of TESLA, INC.
    G00647417Courtesy of TESLA, INC.
    G00647418Courtesy of TESLA, INC.
  24. Release rear side of 2nd row 60 seat back trim cover from frame
    NOTE: Release guide clips from the side and upper left area then pull rear section of trim cover backwards away from frame
    G00647419Courtesy of TESLA, INC.
    G00647420Courtesy of TESLA, INC.
    G00647421Courtesy of TESLA, INC.
  25. Release 2nd row 60 seat back from front lower left portion from tabs
    NOTE: Unhook the long metal piece from the tabs to clear seat cover material
    G00647422Courtesy of TESLA, INC.
    G00647423Courtesy of TESLA, INC.
    G00647424Courtesy of TESLA, INC.
  26. Release lower section of 2nd row 60 seat back from pivot bar
    NOTE: 1x connector, Clear seat cover from pivot bar starting on the right side first then the left
    G00647425Courtesy of TESLA, INC.
    G00647426Courtesy of TESLA, INC.
    G00647427Courtesy of TESLA, INC.
    G00647428Courtesy of TESLA, INC.
  27. Release Velcro securing 2nd row 60 seat back cover from foam pad
    NOTE: Fold back until you reach first row of hog rings
    G00647429Courtesy of TESLA, INC.
    G00647430Courtesy of TESLA, INC.
  28. Remove front hog rings securing 2nd row 60 seat back trim cover from foam pad
    NOTE: 3x hog rings, Push down on foam to allow access to rings, Verify any excess pieces have been removed from foam
    G00650531Courtesy of TESLA, INC.
    G00650532Courtesy of TESLA, INC.
  29. Release remaining Velcro securing 2nd row 60 seat back trim cover from foam pad
    NOTE: Fold back until all Velcro is completely released
    G00650533Courtesy of TESLA, INC.
  30. Remove 2nd row 60 seat back trim cover from foam pad
    NOTE: Remove seat cover from entire assembly, Carefully clear seat belt and seat release bezel
    G00650534Courtesy of TESLA, INC.
    G00650535Courtesy of TESLA, INC.
    G00650536Courtesy of TESLA, INC.
    G00650537Courtesy of TESLA, INC.
  31. Install 2nd row 60 seat back trim cover to foam pad
    NOTE: Begin with headrest and work your way down
    G00650538Courtesy of TESLA, INC.
    G00650539Courtesy of TESLA, INC.
    G00650540Courtesy of TESLA, INC.
    G00650541Courtesy of TESLA, INC.
    G00650542Courtesy of TESLA, INC.
  32. Secure upper Velcro of 2nd row 60 seat back trim cover onto foam pad
    NOTE: Attach velcro until the hog rings area on the foam pad
    G00650543Courtesy of TESLA, INC.
    G00650544Courtesy of TESLA, INC.
    G00650545Courtesy of TESLA, INC.
  33. Install hog rings securing 2nd row 60 seat back trim cover to foam pad
    NOTE: 3x hog rings, Push down on foam pad to allow access for clamping, Place hog ring into pliers prior to installation, Start with center ring and work your way out
    G00650546Courtesy of TESLA, INC.
    G00650547Courtesy of TESLA, INC.
    G00650548Courtesy of TESLA, INC.
  34. Secure lower Velcro of 2nd row 60 seat back trim cover onto foam pad
    NOTE: 1x connector, Attach remaining velcro all the way down past pivot bar and connect
    G00650549Courtesy of TESLA, INC.
    G00650550Courtesy of TESLA, INC.
    G00650551Courtesy of TESLA, INC.
    G00650552Courtesy of TESLA, INC.
    G00650553Courtesy of TESLA, INC.
    G00650554Courtesy of TESLA, INC.
  35. Secure 2nd row 60 seat back to armrest back frame hooks
    NOTE: Secure hooks from seat back cover to the metal piece of the frame by the arm rest towards foam pad
    G00650555Courtesy of TESLA, INC.
    G00650556Courtesy of TESLA, INC.
    G00650557Courtesy of TESLA, INC.
  36. Secure rear side of 2nd row 60 seat back trim cover to frame
    NOTE: Secure guide hooks to the side and upper left area of the armrest frame
    G00650558Courtesy of TESLA, INC.
    G00650559Courtesy of TESLA, INC.
    G00650560Courtesy of TESLA, INC.
  37. Zip 2nd row 60 seat back trim cover
    G00650561Courtesy of TESLA, INC.
    G00650562Courtesy of TESLA, INC.
    G00650563Courtesy of TESLA, INC.
    G00650564Courtesy of TESLA, INC.
  38. Install 2nd row armrest lower closeout to 2nd row seat frame
    NOTE: 2x clips, 2x slide clips, Tuck zip behind armrest lower closeout to cover it
    G00650565Courtesy of TESLA, INC.
    G00650566Courtesy of TESLA, INC.
    G00650567Courtesy of TESLA, INC.
    G00650568Courtesy of TESLA, INC.
  39. Install the center escutcheon to seat back
    NOTE: 2x clips, Push to engage both clips onto seat back cover and pad
    G00650569Courtesy of TESLA, INC.
    G00650570Courtesy of TESLA, INC.
  40. Install the 2nd row seat back bezel to seat back
    NOTE: 2x clips, Make sure to push bezel firmly till clips are engage
    G00650571Courtesy of TESLA, INC.
    G00650572Courtesy of TESLA, INC.
    G00650573Courtesy of TESLA, INC.

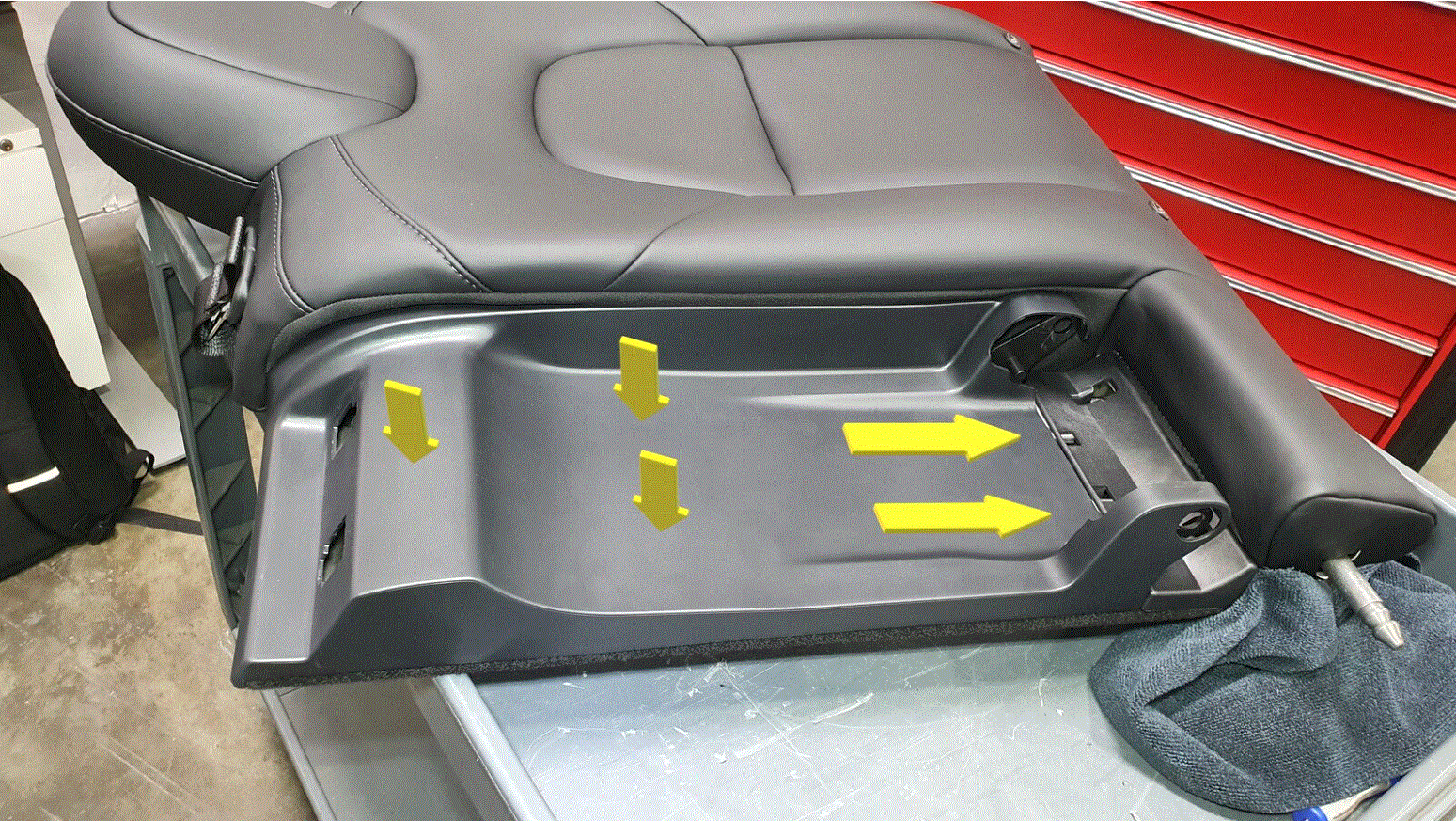

  41. Install armrest closeout panel onto seat frame
    NOTE: 3x clips, 2x tabs, Slide tabs in first then line up clips and engage
    G00650574Courtesy of TESLA, INC.
    G00650575Courtesy of TESLA, INC.
    G00650576Courtesy of TESLA, INC.
    G00650577Courtesy of TESLA, INC.
  42. Install 2nd row 60 backrest LH and RH headrest guides onto upper seat assembly
    NOTE: 2x tabs, Push until guides bottom out
    G00650578Courtesy of TESLA, INC.
    G00650579Courtesy of TESLA, INC.
    G00650580Courtesy of TESLA, INC.
    G00650581Courtesy of TESLA, INC.
  43. Install center headrest into 2nd row 60 seat back assembly
    NOTE: 2x push headrest in until it locks on the clip
    G00650582Courtesy of TESLA, INC.
    G00650583Courtesy of TESLA, INC.
    G00650584Courtesy of TESLA, INC.
  44. Install armrest into into original position
    NOTE: Place plastic piece back into position if it falls off as shown in the photos then install armrest assembly
    G00650585Courtesy of TESLA, INC.
    G00650586Courtesy of TESLA, INC.
    G00650587Courtesy of TESLA, INC.
    G00650588Courtesy of TESLA, INC.
  45. Install bolt securing armrest to 2nd row 60 seat back assembly
    NOTE: 1x bolt, T45, 15 Nm
    G00650589Courtesy of TESLA, INC.
    G00650590Courtesy of TESLA, INC.
    G00650591Courtesy of TESLA, INC.
  46. Secure plastic tab onto pivot sleeve of 2nd row 60 seat back assembly
    NOTE: 4x tabs
    G00650592Courtesy of TESLA, INC.
    G00650593Courtesy of TESLA, INC.
  47. Install seat back hinge bracket onto 2nd row 60 seat back assembly
    NOTE: 1x bolt, 13mm, 45 Nm 1x connector, Secure connector to bracket in the process
    G00650594Courtesy of TESLA, INC.
    G00650595Courtesy of TESLA, INC.
    G00650596Courtesy of TESLA, INC.
  48. Install 2nd row 60 seat back assembly into vehicle
    G00650597Courtesy of TESLA, INC.
    G00650598Courtesy of TESLA, INC.
    G00650599Courtesy of TESLA, INC.
  49. Install nuts securing 60 seat back hinge bracket to body
    NOTE: 2x nuts, 13mm, 18 Nm
    G00650600Courtesy of TESLA, INC.
  50. Connect 60 seat back seat heater harness
    NOTE: 1x connector
    G00650601Courtesy of TESLA, INC.
  51. This video shows how to properly stack the 2nd row LH seat buckle onto the 2nd row center seat belt anchor:
    multimedia:A supplement to the article is available.
  52. Set the 2nd row center seat belt anchor onto the 2nd row LH inner penthouse rail, with the belt to the RH side.
    G00650602Courtesy of TESLA, INC.
  53. Make sure that the belt is not twisted, and lays flat against the 2nd row seatback.
    G00650603Courtesy of TESLA, INC.
  54. Set the guide pin of the 2nd row LH seat buckle bracket into the hole of the 2nd row LH inner penthouse rail, and pivot the bracket down onto the anchor, aligning the guide pin to the slot in the anchor.
    G00650604Courtesy of TESLA, INC.
  55. Install a new bolt to attach the seat buckle bracket, the seat belt anchor, and the inner penthouse rail to the body.
    G00650605Courtesy of TESLA, INC.
  56. Verify the stacking.
    G00650606Courtesy of TESLA, INC.
  57. Install the plastic bracket that attaches the female side of the electrical connector to the body studs.
    G00650607Courtesy of TESLA, INC.
  58. Connect the electrical harness to the LH rear seat belt buckle connector.
    G00650608Courtesy of TESLA, INC.
  59. Connect 2nd row seat cushion harness and install 2nd row seat cushion
    NOTE: 2x connectors, 2x clips, Insert the seat belt buckles through the holes, Slide rear cushion inward then align front guide tabs to locking tabs, Make sure cushion is fully seated with push & pull test near clips
    G00650609Courtesy of TESLA, INC.
    G00650610Courtesy of TESLA, INC.
    G00650611Courtesy of TESLA, INC.
  60. Install LH side bolster
    NOTE: 1x clip, 1x tab, Align the bottom tab then push inward to install
    G00650612Courtesy of TESLA, INC.
  61. Move RH front seat to original position
  62. Move LH front seat to original position
  63. Raise all windows
  64. Close all four doors
    NOTE: Unlatch rear doors before closing
scientia non olet · About LEMON Manuals
