Seat Cushion - Lower - 2nd Row - Remove and Replace: Remove

  1. Move the driver seat and the front passenger seat fully forward.
    NOTE: Note the position of the driver seat and the front passenger seat prior to movement so that both seats are restored to their original position during installation.

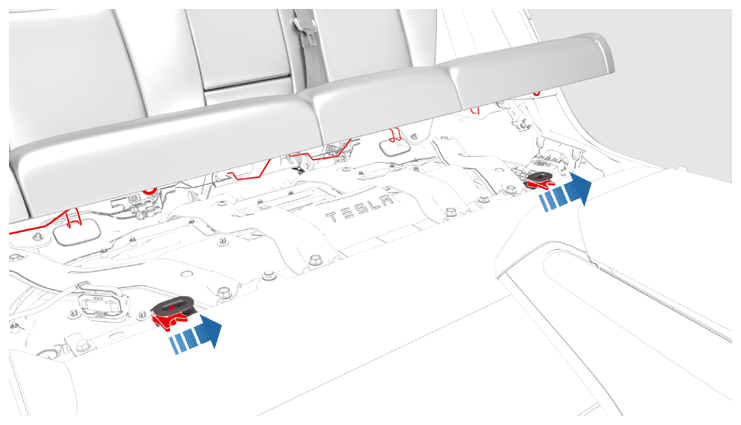

  2. While pressing the LH and RH tabs towards the LH side of the vehicle, lift the front edge of the seat cushion.
    G14740265Courtesy of TESLA, INC.

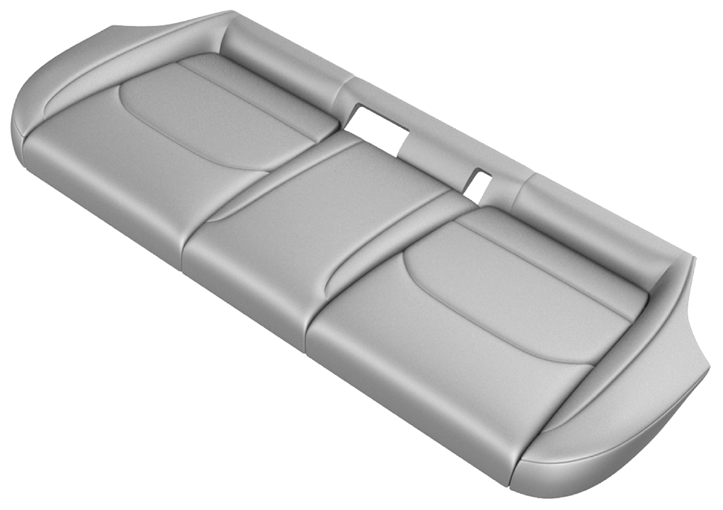

  3. Disconnect the electrical connectors on each end of the seat cushion, and then remove the seat cushion from the vehicle.
    G14740266Courtesy of TESLA, INC.

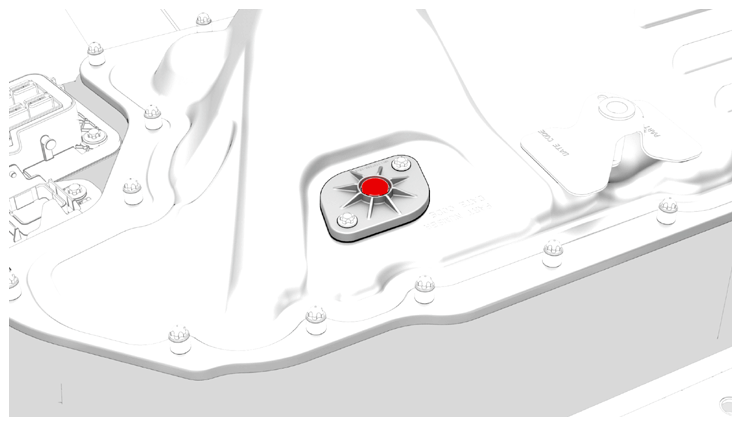

  4. Inspect the penthouse probe lid cover on the penthouse for the presence of a breather.
    G14740267Courtesy of TESLA, INC.
  5. If the breather is missing, install one now.
    NOTE: After installing the breather, if necessary, return to the procedure that required removal of the 2nd row lower seat cushion.
