Rail - 2nd Row - Outer - LH - Remove and Replace: Remove

  1. Remove the 2nd row lower seat cushion. See SEAT CUSHION - LOWER - 2ND ROW (REMOVE AND REPLACE) .

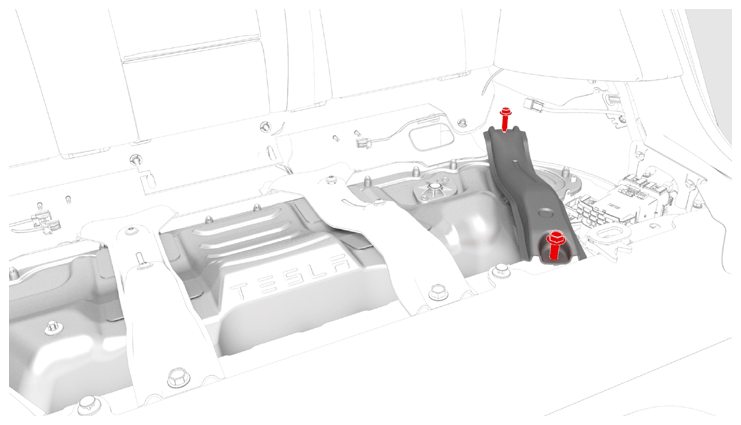

  2. Remove the bolts that attach the outer 2nd row rail to the body, and then remove the rail from the vehicle.

    24 N.m (17.7 ft-lbs)

    G14740253Courtesy of TESLA, INC.

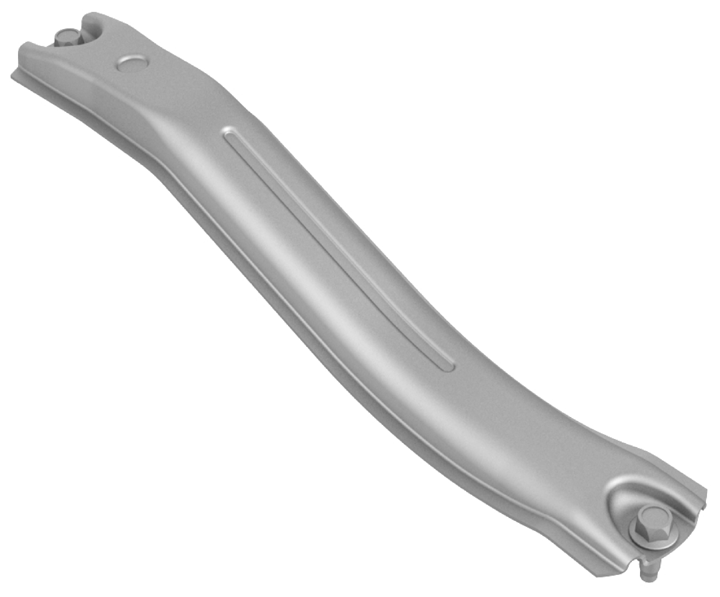

    G14740254Courtesy of TESLA, INC.
