Pivot Sleeve - Seat Back - 2nd Row - LH - Remove and Replace: Remove

  1. Remove the 2nd row LH seat back assembly. See SEAT BACK - 2ND ROW - LH (REMOVE AND REPLACE) .
  2. Release the tabs that attach the pivot sleeve to the seat back assembly pivot pin, and then remove the sleeve from the pin.

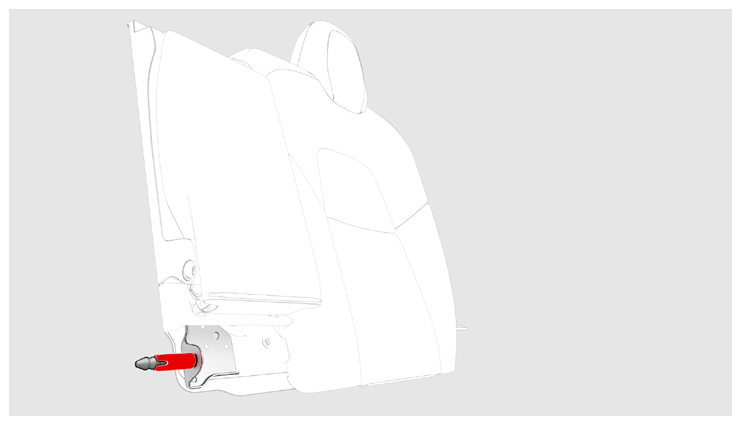

    G14740245Courtesy of TESLA, INC.

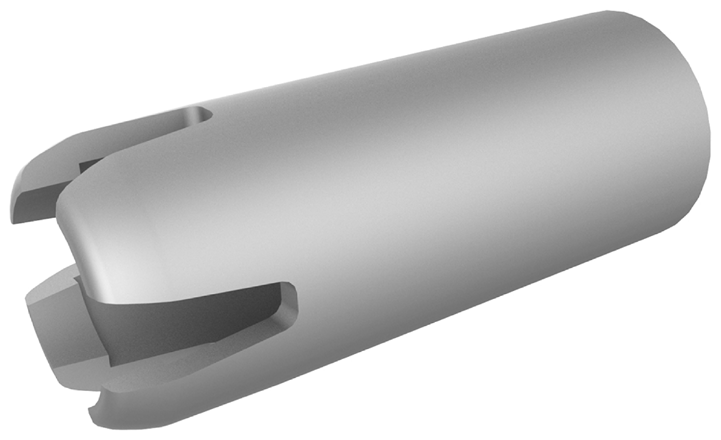

    G14740246Courtesy of TESLA, INC.
