Handle - Seat Back - 2nd Row - LH - Remove and Replace: Remove

  1. Remove the 2nd row lower seat cushion. See SEAT CUSHION - LOWER - 2ND ROW (REMOVE AND REPLACE) .
  2. Remove the rear underhood apron. See UNDERHOOD APRON - REAR (REMOVE AND REPLACE) .
  3. Disconnect 12V power. See 12V/LV POWER (DISCONNECT AND CONNECT) .
  4. Remove the LH 2nd row buckle. See BUCKLE - 2ND ROW - LH (REMOVE AND REPLACE) .
  5. Remove the LH 2nd row seat side bolster. See BOLSTER - SIDE - SEAT - 2ND ROW - LH (REMOVE AND REPLACE) .
  6. Remove the 2nd row LH seat back hinge bracket. See BRACKET - HINGE - SEAT BACK - 2ND ROW - LH (REMOVE AND REPLACE) .
  7. Remove the 2nd row center seatbelt assembly. See SEATBELT - 2ND ROW - CENTER (REMOVE AND REPLACE) .
  8. Remove the LH 2nd row seat back latch. See LATCH - SEAT BACK - 2ND ROW - LH (REMOVE AND REPLACE) .

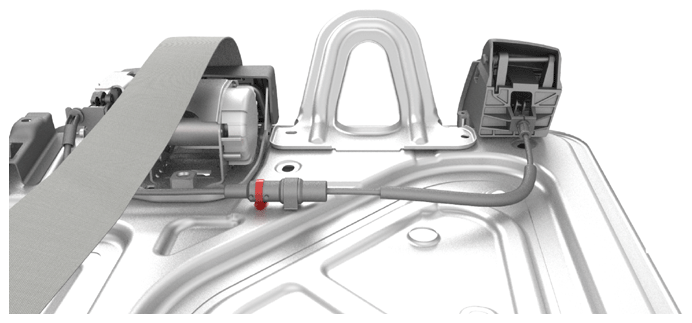

  9. Release the clip that attaches the LH 2nd row seat back latch control cable to the LH 2nd row seat backplate.
    G14740232Courtesy of TESLA, INC.

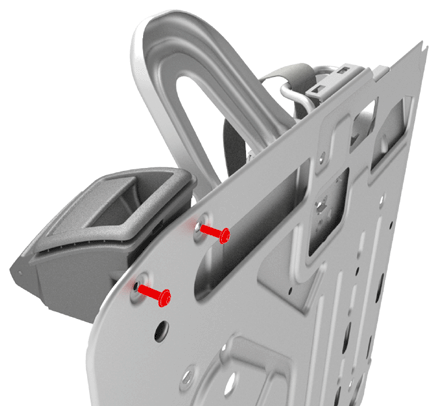

  10. Remove the bolts that attach the LH 2nd row seat back handle assembly to the backplate, and then slide the handle assembly from the backplate.
    G14740233Courtesy of TESLA, INC.

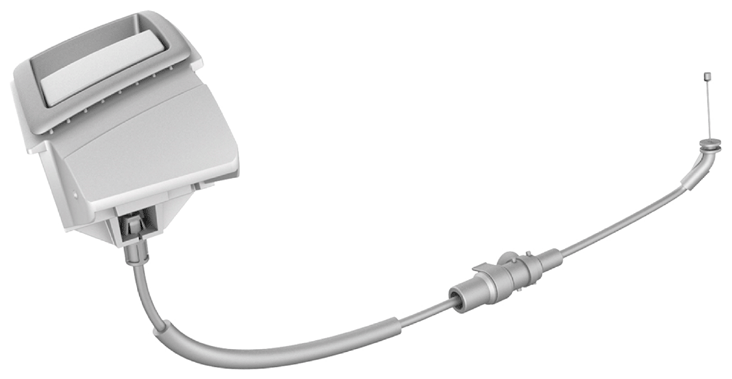

    G14740234Courtesy of TESLA, INC.
