Handle - Seat Back - 2nd Row - LH - Remove and Replace: Install

  1. Slide the LH 2nd row seat back handle assembly onto the LH 2nd row seat backplate, and then install the bolts that attach the handle assembly to the backplate.

    2 N.m (1.5 ft-lbs)

    G14740235Courtesy of TESLA, INC.
  2. Fasten the clip that attaches the LH 2nd row seat back latch control cable to the LH 2nd row seat backplate.
    G14740236Courtesy of TESLA, INC.
  3. Install the LH 2nd row seat back latch. See LATCH - SEAT BACK - 2ND ROW - LH (REMOVE AND REPLACE) .
  4. Install the 2nd row center seatbelt assembly. See SEATBELT - 2ND ROW - CENTER (REMOVE AND REPLACE) .
  5. Install the 2nd row LH seat back hinge bracket. See BRACKET - HINGE - SEAT BACK - 2ND ROW - LH (REMOVE AND REPLACE) .
  6. Install the LH 2nd row seat side bolster. See BOLSTER - SIDE - SEAT - 2ND ROW - LH (REMOVE AND REPLACE) .
  7. This video shows how to properly stack the 2nd row LH seat buckle onto the 2nd row center seat belt anchor:
    multimedia:A supplement to the article is available.

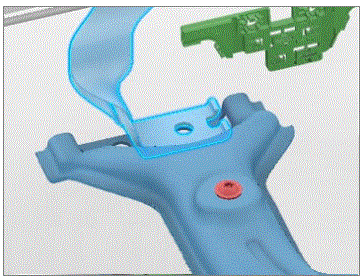

  8. Set the 2nd row center seat belt anchor onto the 2nd row LH inner penthouse rail, with the belt to the RH side.
    G00651796Courtesy of TESLA, INC.
  9. Make sure that the belt is not twisted, and lays flat against the 2nd row seatback.
    G00651797Courtesy of TESLA, INC.

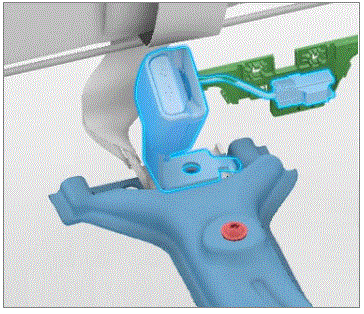

  10. Set the guide pin of the 2nd row LH seat buckle bracket into the hole of the 2nd row LH inner penthouse rail, and pivot the bracket down onto the anchor, aligning the guide pin to the slot in the anchor.
    G00651798Courtesy of TESLA, INC.
  11. Install a new bolt to attach the seat buckle bracket, the seat belt anchor, and the inner penthouse rail to the body.

    40 Nm (29.5 lbs-ft)

    G00651799Courtesy of TESLA, INC.
  12. Verify the stacking.
    G00651800Courtesy of TESLA, INC.
    Callout  Description
    1 LH 2nd Row Buckle on Top
    2 Center 2nd Row Seatbelt Anchor in the Middle
    3 LH Inner Penthouse Rail at the Bottom
  13. Install the plastic bracket that attaches the female side of the electrical connector to the body studs.
    G00651801Courtesy of TESLA, INC.
  14. Connect the electrical harness to the LH rear seat belt buckle connector.
    G00651802Courtesy of TESLA, INC.
  15. Connect 12V power. See 12V/LV POWER (DISCONNECT AND CONNECT) .
  16. Install the rear underhood apron. See UNDERHOOD APRON - REAR (REMOVE AND REPLACE) .
  17. Install the 2nd row lower seat cushion. See SEAT CUSHION - LOWER - 2ND ROW (REMOVE AND REPLACE) .
