Clip - Seat Cushion - Lower - 2nd Row - LH - Remove and Replace: Remove

  1. Remove the 2nd row seat cushion. See SEAT CUSHION - LOWER - 2ND ROW (REMOVE AND REPLACE) .
  2. Press the upper locking tabs to removal LH seat cushion clip.

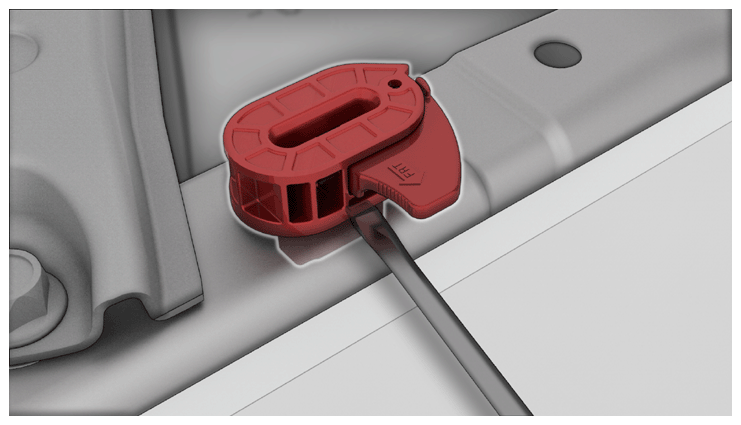

    G14740219Courtesy of TESLA, INC.

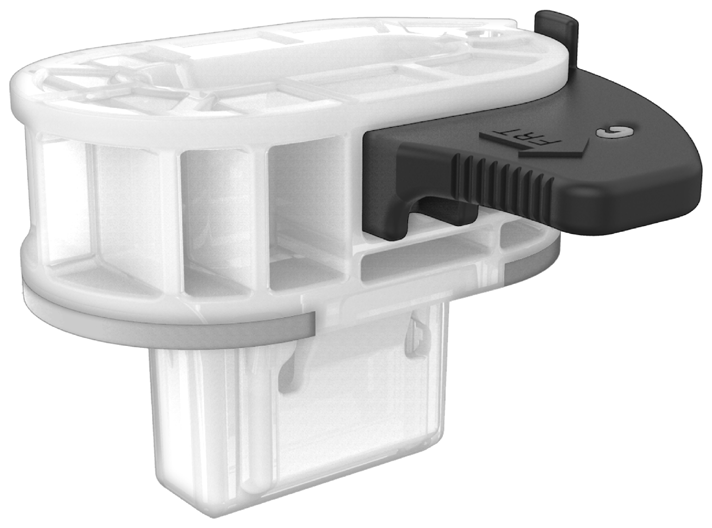

    G14740220Courtesy of TESLA, INC.
