Clip - Seat Cushion - Lower - 2nd Row - LH - Remove and Replace: Install

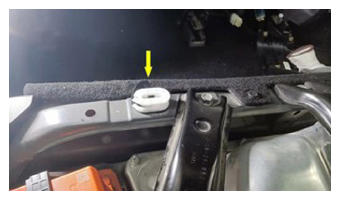

  1. Install the seat cushion clip LH.
    NOTE: Make sure the locking tabs are in place.
    G14740221Courtesy of TESLA, INC.
  2. Install 2nd row seat cushion. See SEAT CUSHION - LOWER - 2ND ROW (REMOVE AND REPLACE) .
