Cap - HV - Penthouse - Remove and Replace: Remove

  1. Remove the 2nd row lower seat cushion. See SEAT CUSHION - LOWER - 2ND ROW (REMOVE AND REPLACE) .

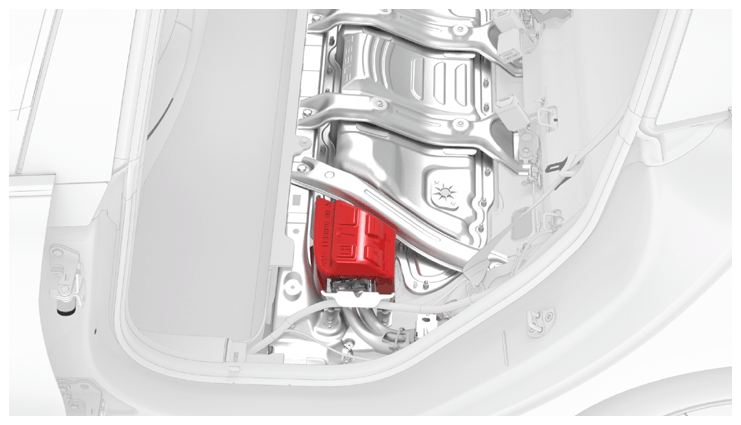

  2. Lift the HV cap straight up from over the DC input connector on the LH side of the penthouse, and then remove the HV cap from the vehicle.
    G14740217Courtesy of TESLA, INC.
