Bracket - Hinge - Seat Back - 2nd Row - LH - Remove and Replace: Remove

  1. Remove the 2nd row lower seat cushion. See SEAT CUSHION - LOWER - 2ND ROW (REMOVE AND REPLACE) .
  2. Remove the LH 2nd row seat side bolster. See BOLSTER - SIDE - SEAT - 2ND ROW - LH (REMOVE AND REPLACE) .
  3. Remove the LH 2nd row seat back. See SEAT BACK - 2ND ROW - LH (REMOVE AND REPLACE) .
  4. Release the clip that attaches the electrical connector to the hinge bracket.

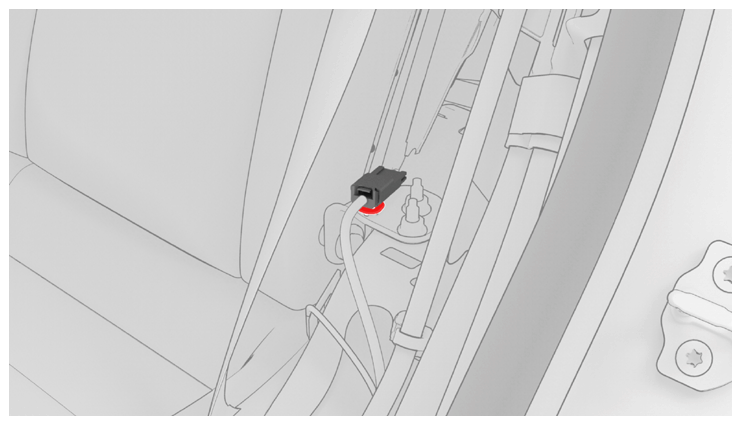

    G14740213Courtesy of TESLA, INC.
  5. Remove the bolt that attaches the LH 2nd row seat back hinge bracket to the seat back, and then remove the bracket from the seat back.

    45 N.m (33.2 ft-lbs)

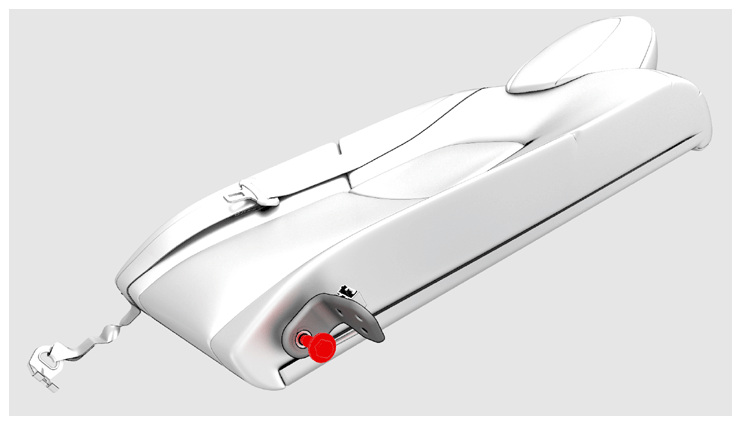

    G14740214Courtesy of TESLA, INC.

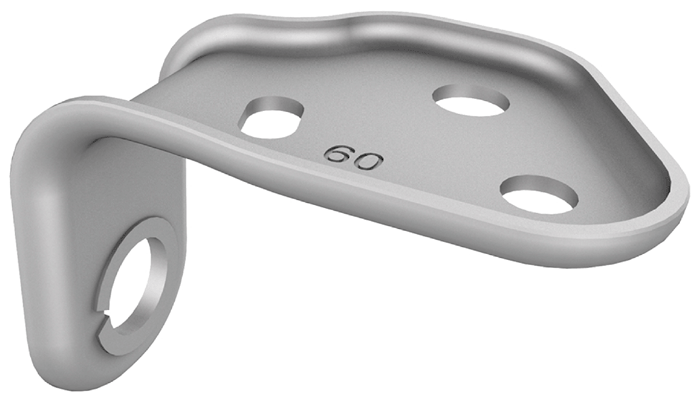

    G14740215Courtesy of TESLA, INC.
