Bracket - Edge Support - Seat Cushion - 2nd Row - LH - Remove and Replace: Remove
- Open all four doors.
- Lower all four windows.
- Move both front seats fully forward.
- Remove the 2nd row lower seat cushion. See SEAT CUSHION - LOWER - 2ND ROW (REMOVE AND REPLACE) .
- Remove the LH rear sill panel trim. See TRIM - SILL PANEL - REAR - LH (REMOVE AND REPLACE) .

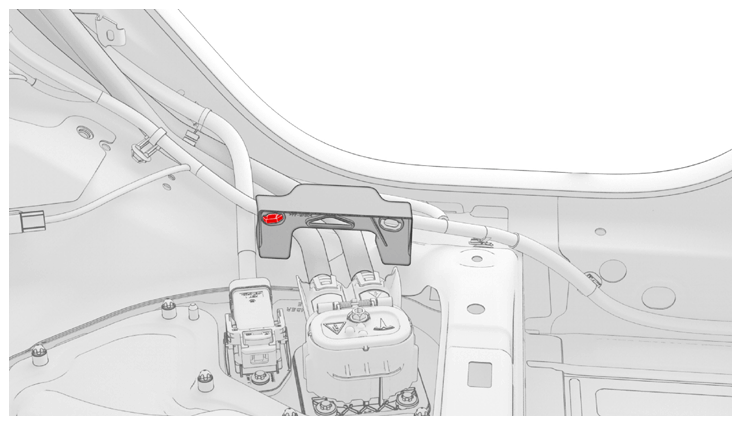

- Release the clip that attaches the electrical harness to the 2nd row seat cushion edge support bracket.

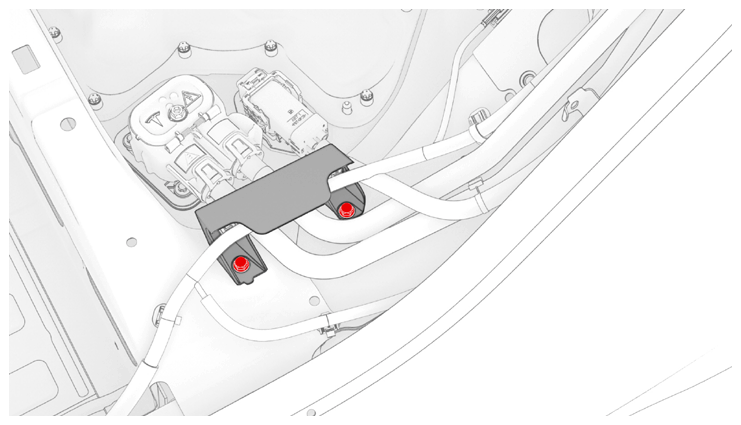

- Remove the bolts that attach the 2nd row seat cushion edge support bracket to the vehicle, and then remove the bracket from the vehicle.
Tip: Use of the following tool(s) is recommended:
- 10 mm socket
- 4 in extension
- Ratchet/torque wrench
