Bolster - Side - Seat - 2nd Row - LH - Remove and Replace: Remove

  1. Fold down the LH 2nd row seat.

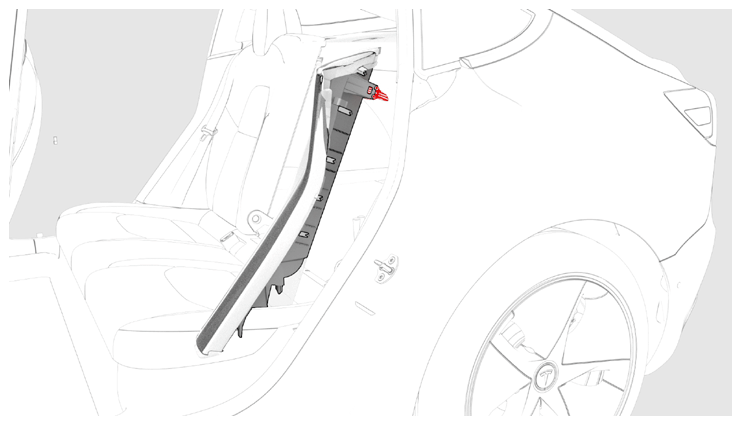

  2. Pull the 2nd row side bolster inward, and then move the bolster up to remove from the vehicle.
    WARNING: The retaining clips may become dislodged when performing this procedure. Wear eye protection to avoid personal injury.
    G14740207Courtesy of TESLA, INC.

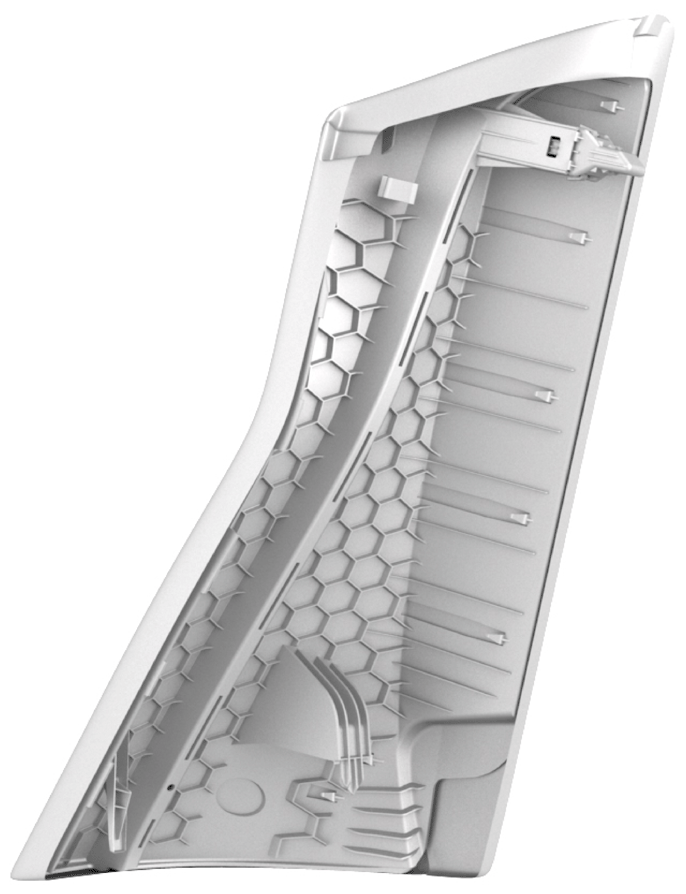

  3. Remove and discard the bolster plastic bracket from the vehicle.
    NOTE: The bracket might have come out with the bolster.
    G14740208Courtesy of TESLA, INC.
