Bezel - Handle - Seat Back - 2nd Row - LH - Remove and Replace: Remove

  1. Release the LH 2nd row seat back and fold it slightly forward.

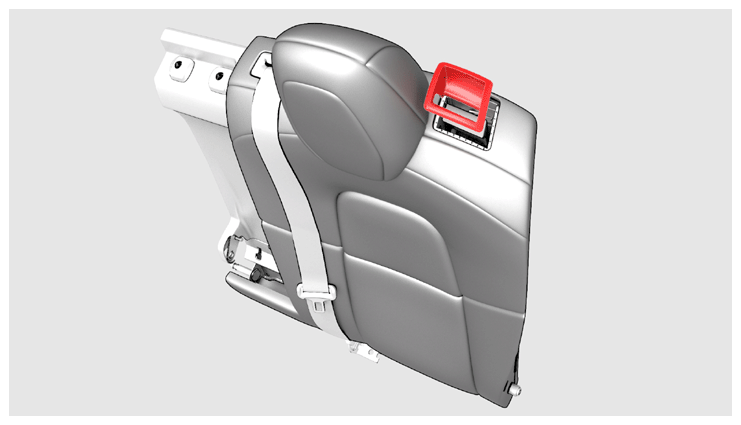

  2. Use a pry tool to release the clips (x2) that attach the LH 2nd row seat back handle bezel to the LH 2nd row seat back handle assembly, and then remove the bezel from the handle assembly.
    G14740204Courtesy of TESLA, INC.
