Bezel - Handle - Seat Back - 2nd Row - LH - Remove and Replace: Install

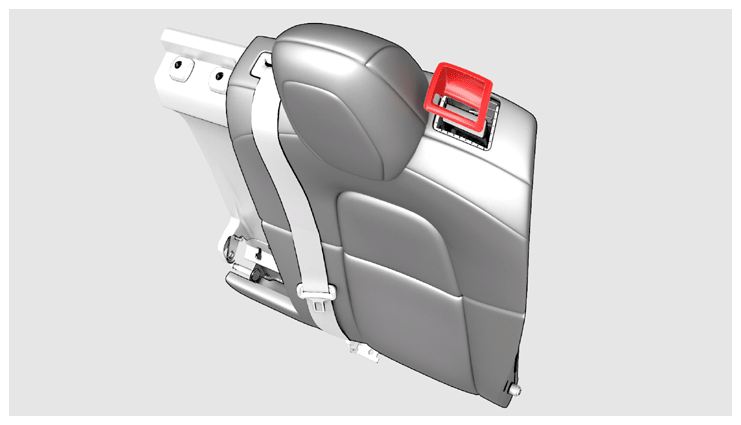

  1. Install the LH 2nd row seat back handle bezel into the LH 2nd row seat back handle assembly, and then fasten the clips (x2) that attach the bezel to the handle assembly.
    G14740205Courtesy of TESLA, INC.
  2. Unfold the LH 2nd row seat back so that it is upright and secured.
