Cover -- Tow Hitch - Remove and Replace: Remove

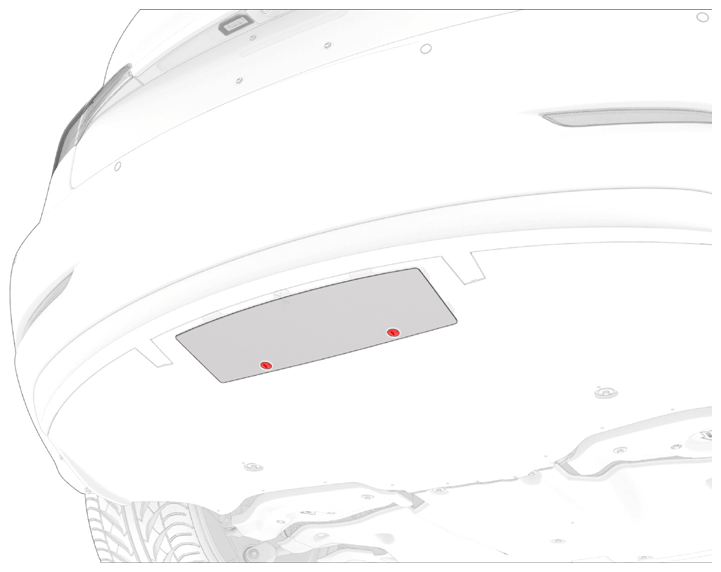

  1. Use a plastic trim tool to release the push clips (x2) that attach the tow hitch cover to the diffuser.
    NOTE: On some vehicles the clips may be slotted instead of being push clips. On these vehicles, use a flathead screwdriver to turn the clip until it is in an unlocked position.
    G14740002Courtesy of TESLA, INC.
  2. Remove the tow hitch cover.
