Mud Flap - LH - Remove and Replace: Install
- 1st generation kits:

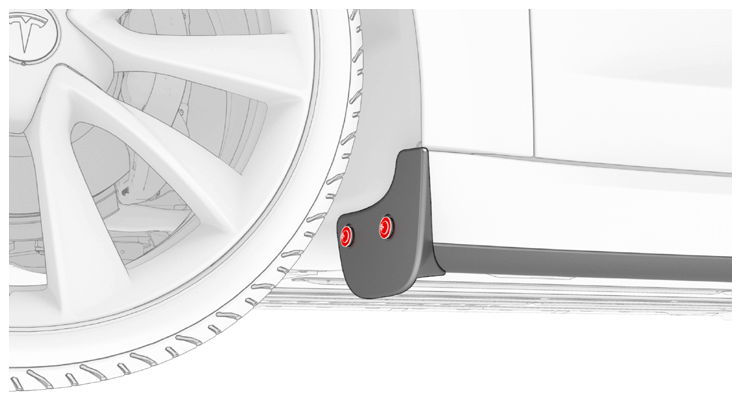

Place washers over the screws, then install the screws and washers that secure the mud flap to the U-nuts in the front LH wheel arch liner.
1.5 N.m (1.1 ft-lbs)
- 2nd generation kits:

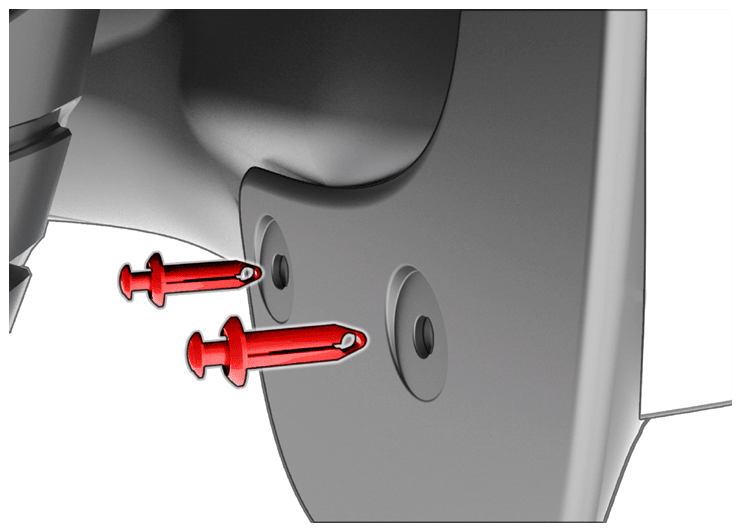

Align the holes in the mud flap/splash guard to the holes in the front wheel arch liner, and then insert the opened (plastic rivet pulled out) push clips into the holes. Once the push clips are fully inserted, push the plastic rivets in to close the push clips and lock the mud flap/splash guard in place.

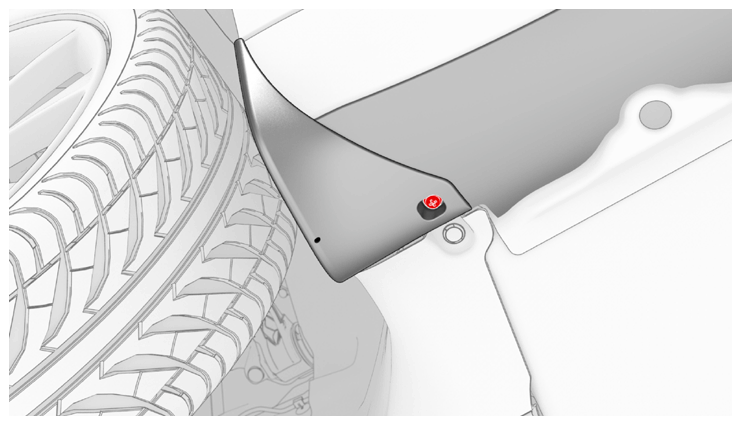

- Install the bolt that attaches the bottom of the mud flap to the lower rocker panel cover.
5 N.m (3.7 ft-lbs)
- Ensure the mud flap is aligned with the body. Make adjustments as necessary.
