Trim - Side - Trunk - LH - Remove and Replace: Remove

  1. Remove the 2nd row lower seat cushion. See SEAT CUSHION - LOWER - 2ND ROW (REMOVE AND REPLACE) .
  2. Inspect the LH side of the trunk carpet, under the LH 2nd row seat back.
    • If the frontmost edge of the carpet is mounted on body studs (Figure A), the LH 2nd row seat back must be removed. Skip to step  3.
    • If the frontmost edge of the carpet is not  mounted to datums (Figure B), skip to step  6.
    NOTE:

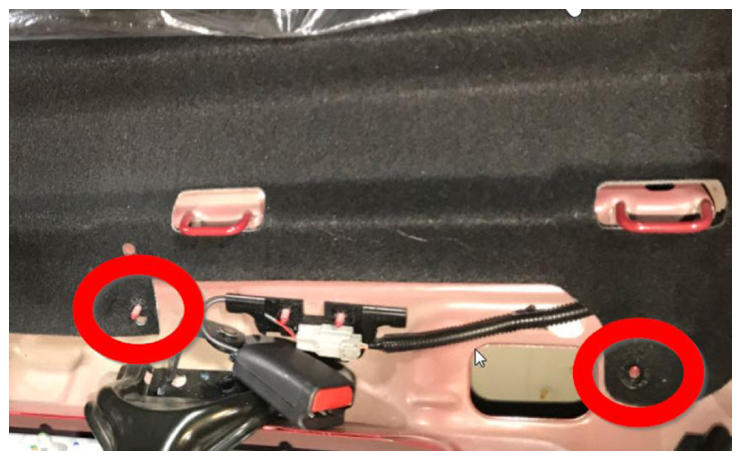

    Figure A

    G14741091Courtesy of TESLA, INC.
    NOTE:

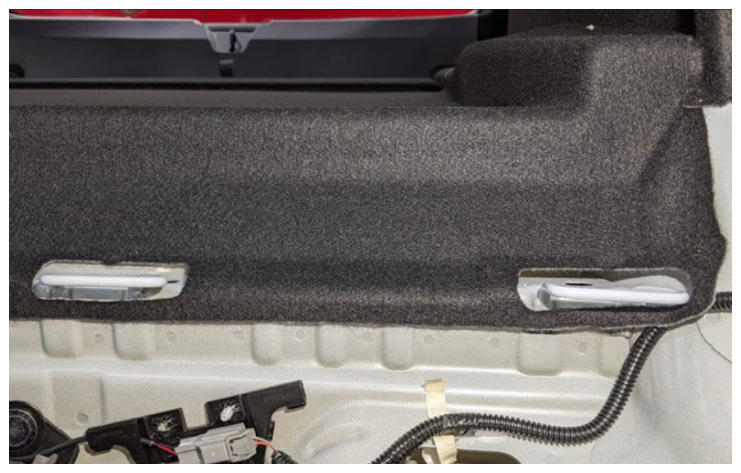

    Figure B (Seat Back Removed For Clarity)

    G14741092Courtesy of TESLA, INC.
  3. Remove the LH 2nd row seat back. See SEAT BACK - 2ND ROW - LH (REMOVE AND REPLACE) .

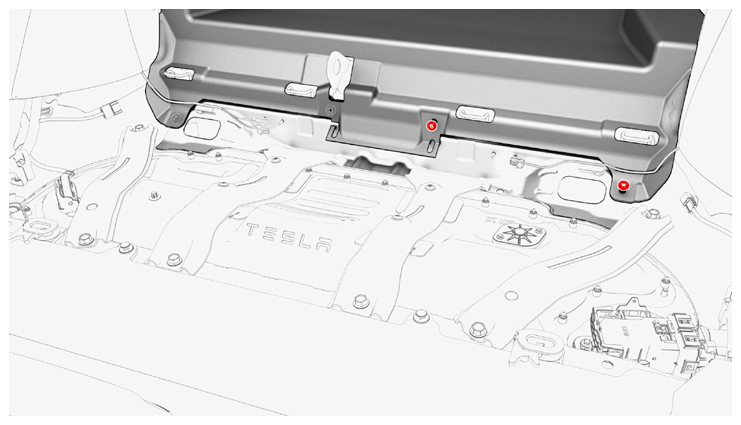

  4. Working in the 2nd row area, release the clips that attach the LH side of the trunk carpet.
    G14741093Courtesy of TESLA, INC.
  5. Lift the LH side of the trunk carpet off of the ISOFIX bars.
  6. Remove the trunk garnish. See GARNISH - TRUNK (REMOVE AND REPLACE) .
  7. Remove the trunk floor trim. See TRIM - FLOOR - TRUNK (REMOVE AND REPLACE) .
  8. Remove the trunk sill trim panel. See TRIM - SILL - TRUNK (REMOVE AND REPLACE) .

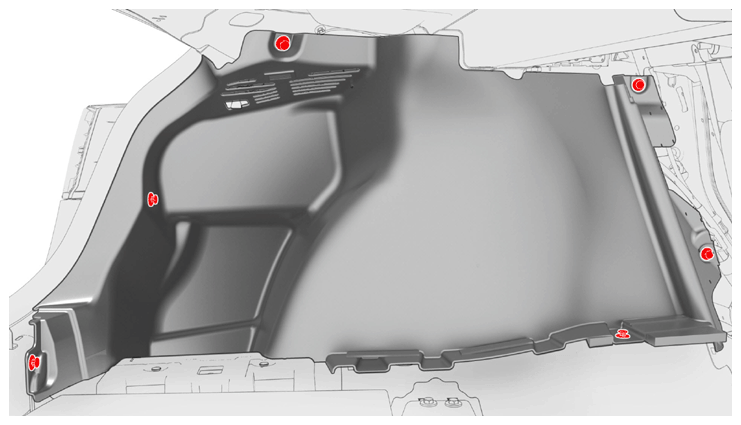

  9. Release the push clips that attach the LH trunk side trim to the vehicle.
    G14741094Courtesy of TESLA, INC.

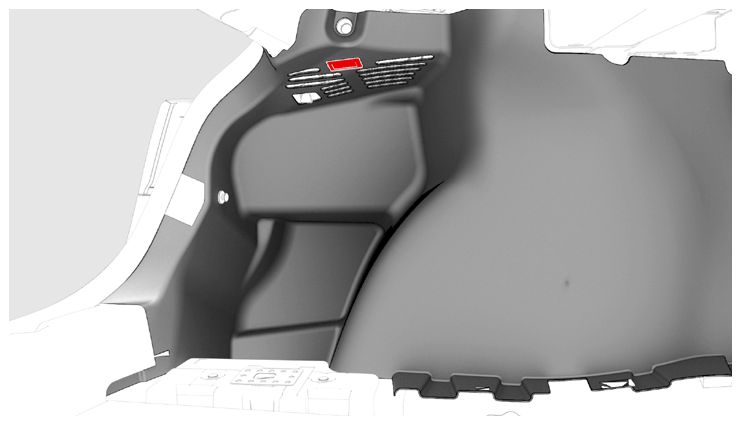

  10. Disconnect the electrical connector from the puddle lamp.
    G14741095Courtesy of TESLA, INC.

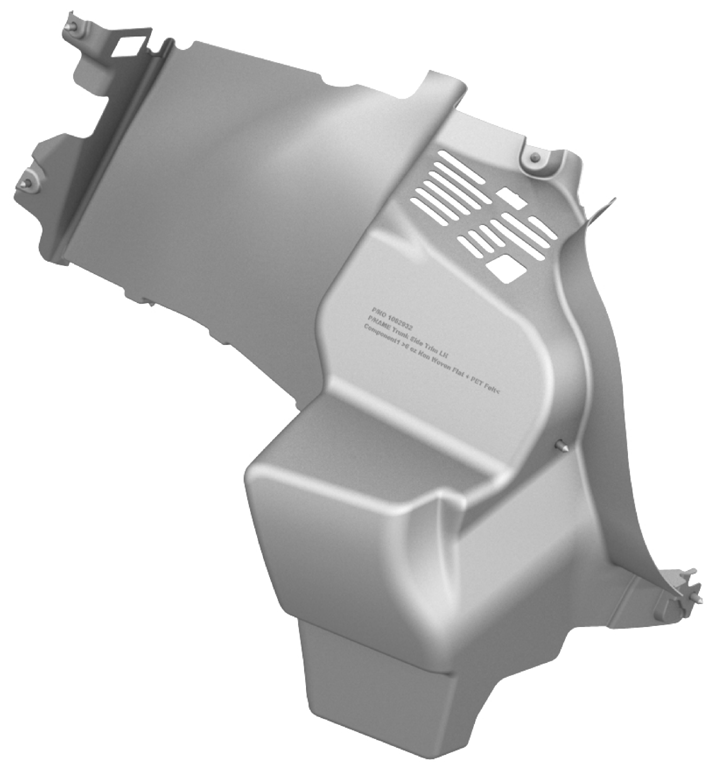

  11. Remove the LH trunk side trim from the vehicle.
    G14741096Courtesy of TESLA, INC.
