Bag Holder Hook - Underhood Storage Unit (LH) - Remove and Replace: Install

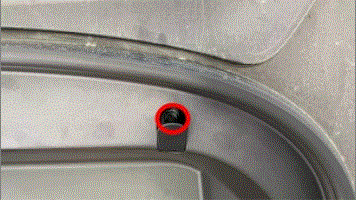

  1. Install the bolt that attaches the LH bag holder hook to the frunk assembly.

    5 Nm (3.7 lbs-ft)

    NOTE: Newer vehicles may not be equipped with underhood storage unit bag hook covers.

    Tip: Use of the following tool(s) is recommended:

    • 10 mm socket
    • 4 in extension
    • Ratchet/torque wrench

    G00643649Courtesy of TESLA, INC.
  2. Close the hood.
  3. Raise the LH front window and close the LH front door.
