Trim - Sill Panel - Rear - LH - Remove and Replace: Remove

  1. Open all doors.
  2. Lower all windows.
  3. Remove the 2nd row lower seat cushion. See SEAT CUSHION - LOWER - 2ND ROW (REMOVE AND REPLACE) .
  4. Place a protective cover, such as a fender cover, on top of the 2nd row lower seat cushion area.
  5. Remove the LH 2nd row seat side bolster. See BOLSTER - SIDE - SEAT - 2ND ROW - LH (REMOVE AND REPLACE) .

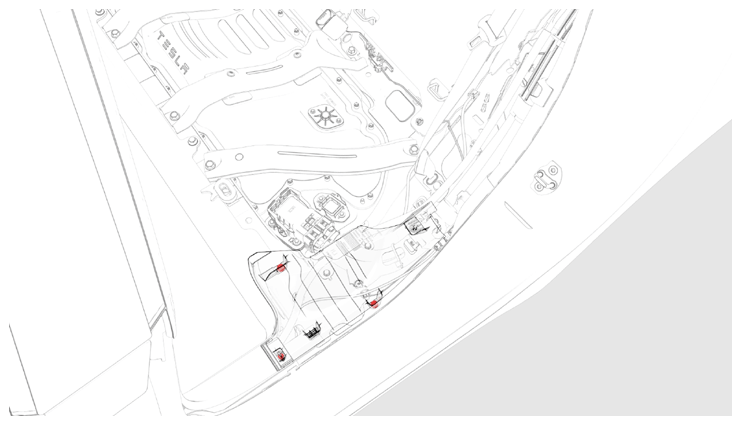

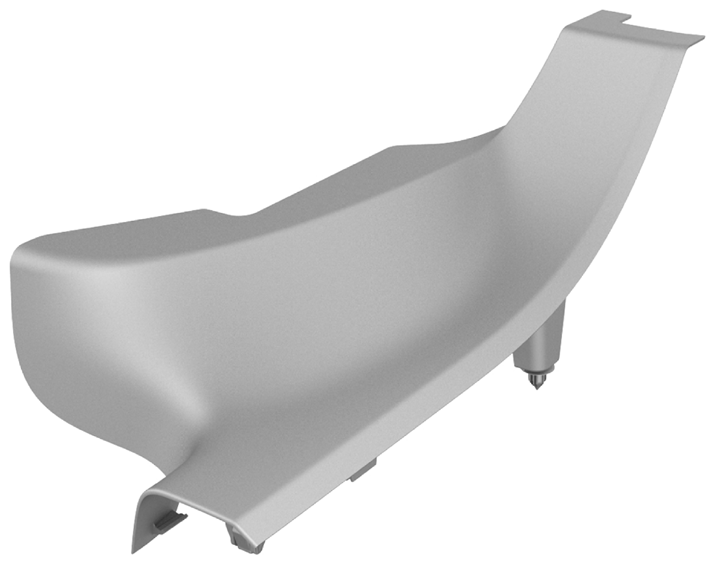

  6. Pull upward at the lower corner of the rear LH sill panel trim to release clips that attach the rear LH sill panel trim to the lower C-pillar, and then remove the sill panel trim from the vehicle.
    NOTE: Remove any remaining rear LH sill panel trim clips from the LH C-pillar, and if the rear LH sill panel trim is to be later installed, remove all clips from the trim.
    G14740917Courtesy of TESLA, INC.
    G14740918Courtesy of TESLA, INC.
