Trim - Side Rail - LH - Remove and Replace: Install

  1. If not pre-installed, install new push clips (x2) onto the new LH side rail trim.

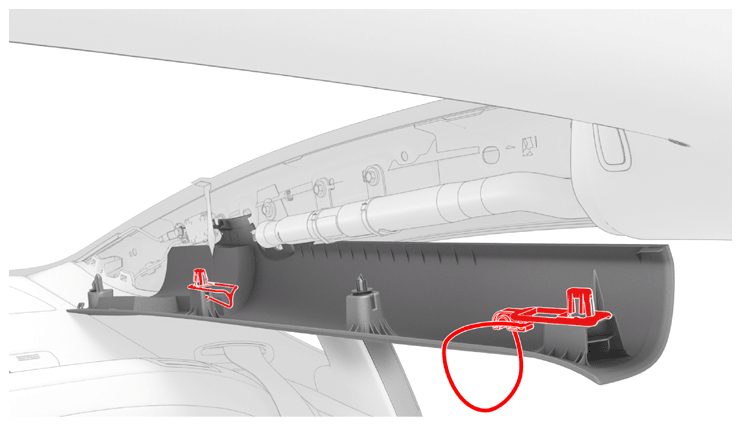

  2. Remove the new side rail trim tether clips from the new LH side rail trim.
    G14740911Courtesy of TESLA, INC.

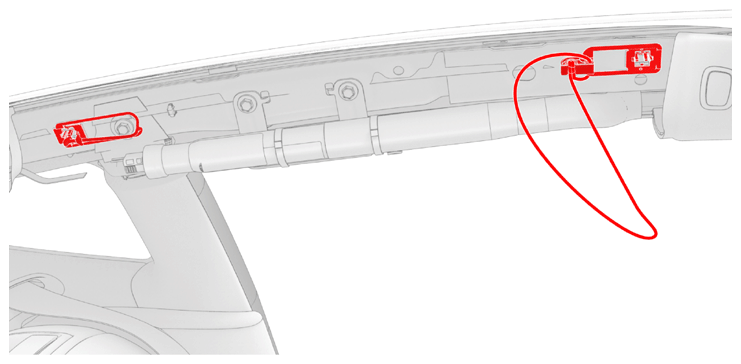

  3. Install the new side rail trim tether clips on the LH side rail.
    CAUTION: Do not remove the clips after they are fully seated on the LH side rail. The clips are one time use.
    G14740912Courtesy of TESLA, INC.

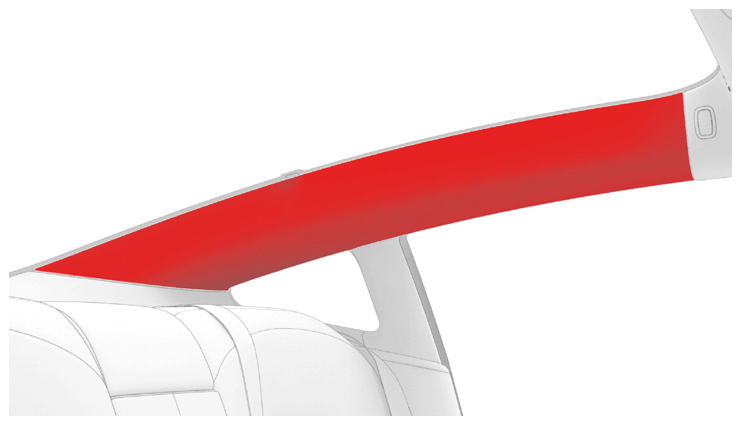

  4. Hook the LH side rail trim tethers (x2) on the LH side rail trim, and then position the side rail trim on the side rail.
    G14740913Courtesy of TESLA, INC.
    G14740914Courtesy of TESLA, INC.

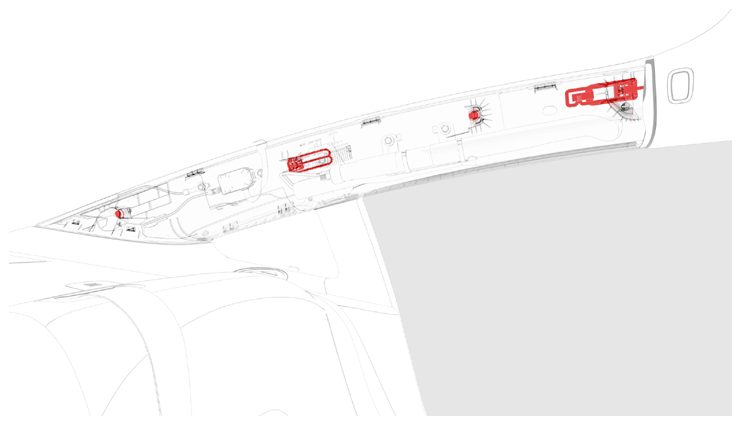

  5. Firmly fasten the push clips that attach the LH side rail trim to the LH side rail.
    G14740915Courtesy of TESLA, INC.
    NOTE: Fasten the top clip first near the coat hanger, and work towards the trunk.
    IMPORTANT: Make sure each clip makes an audible snap as they engage with the side rail. If there is no audible snap, the clip has not properly attached. Remove the side rail trim, inspect the clips, replace any damaged clips, and then re-install the trim.
