Trim - C-Pillar - Upper - LH - Remove and Replace: Remove
- Remove the LH 2nd row seat side bolster. See BOLSTER - SIDE - SEAT - 2ND ROW - LH (REMOVE AND REPLACE) .
- Remove the LH side rail trim. See TRIM - SIDE RAIL - LH (REMOVE AND REPLACE) .

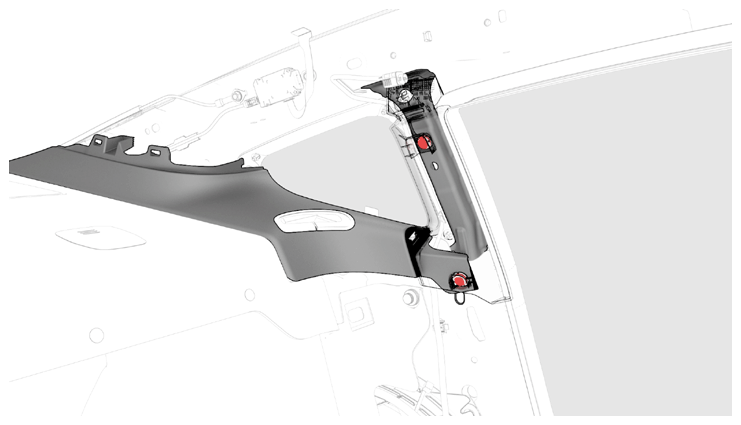

- Release the clips that attach the upper C-pillar trim, and then remove the trim from the vehicle.
Tip: Pull outward at the lower section of the upper C-pillar trim until both clips release, and then move the trim slightly downwards to remove the trim from the vehicle.

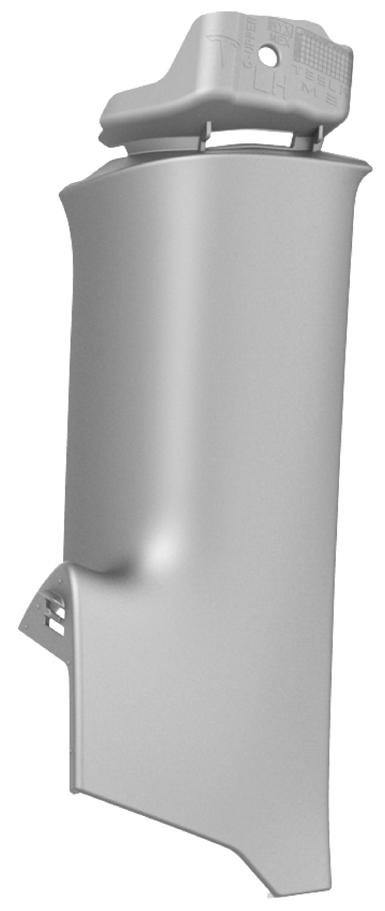

NOTE: Remove any remaining LH upper C-pillar trim clips from the LH C-pillar, and if the LH upper C-pillar trim is to be later installed, remove all clips from the trim.
