Trim - C-Pillar - Rear - LH - Remove and Replace: Remove

  1. Remove the LH 2nd row seat side bolster. See BOLSTER - SIDE - SEAT - 2ND ROW - LH (REMOVE AND REPLACE) .
  2. Remove the LH side rail trim. See TRIM - SIDE RAIL - LH (REMOVE AND REPLACE) .
  3. Remove the LH upper C-pillar trim. See TRIM - C-PILLAR - UPPER - LH (REMOVE AND REPLACE) .

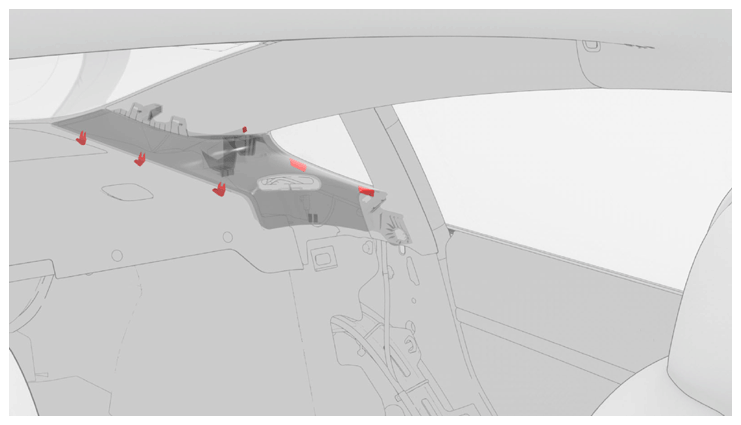

  4. Release the clip and tabs that attach the LH rear C-pillar trim to the body, and then set the trim aside.
    G14740891Courtesy of TESLA, INC.

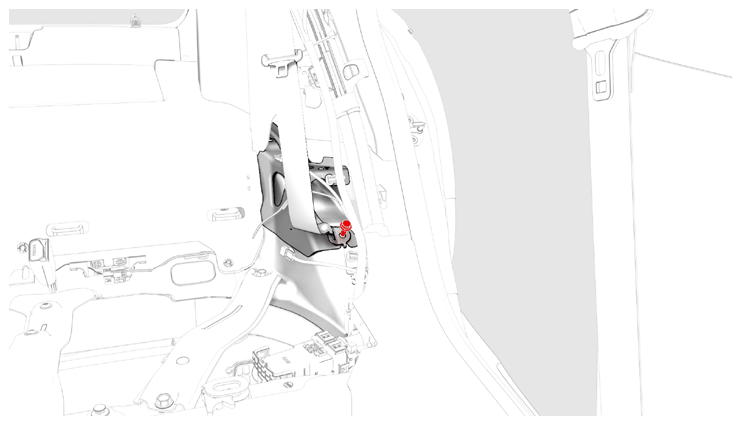

  5. Remove and discard the bolt that attaches the lower seatbelt anchor to the vehicle.
    G14740892Courtesy of TESLA, INC.

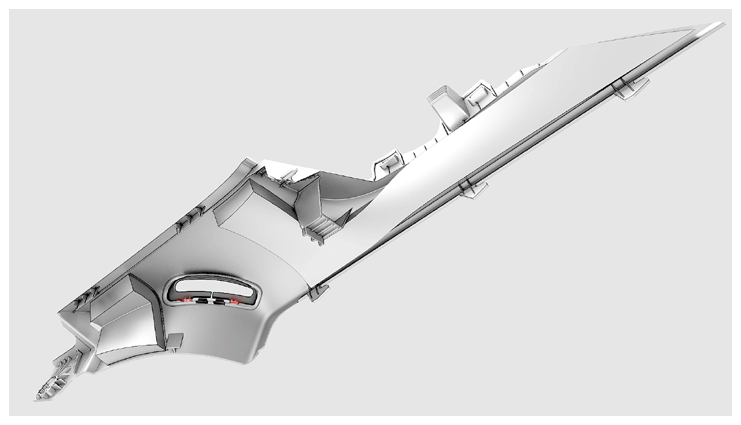

  6. Release the bezel clips that attach the seatbelt bezel to the LH rear C-pillar trim, and then slide the bezel off of the seatbelt.
    G14740893Courtesy of TESLA, INC.

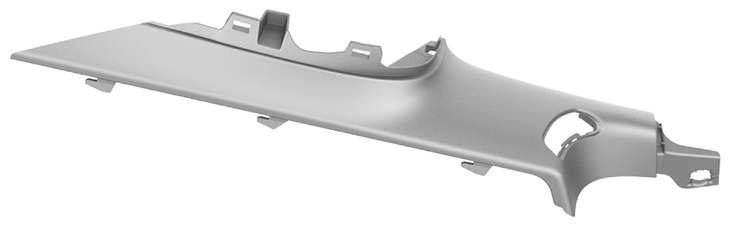

  7. Move the seatbelt through the LH rear C-pillar trim, and then remove the trim from the vehicle.
    NOTE: Remove any remaining LH rear C-pillar trim clips from the LH C-pillar, and if the LH rear C-pillar trim is to be later installed, remove all clips from the trim.
    G14740894Courtesy of TESLA, INC.
