Trim - C-Pillar - Rear - LH - Remove and Replace: Install
- If reusing the same LH rear C-pillar trim, install new clips onto the trim.
- Move the seatbelt through the LH rear C-pillar trim.

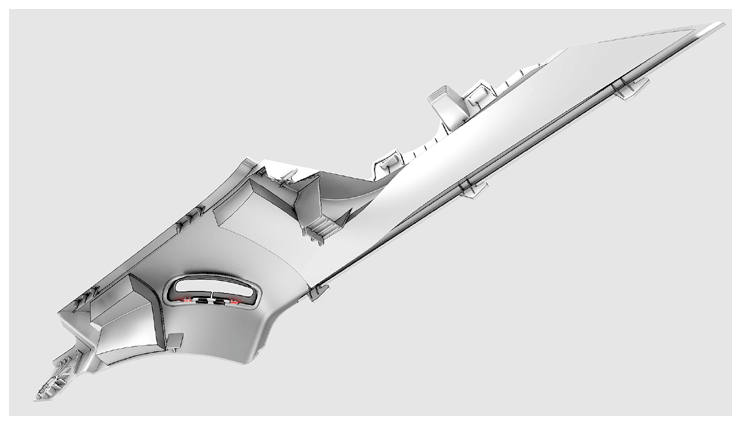

- Slide the seatbelt bezel onto the seat belt, and then fasten the bezel clips that attach the seatbelt bezel to the LH rear C-pillar trim.

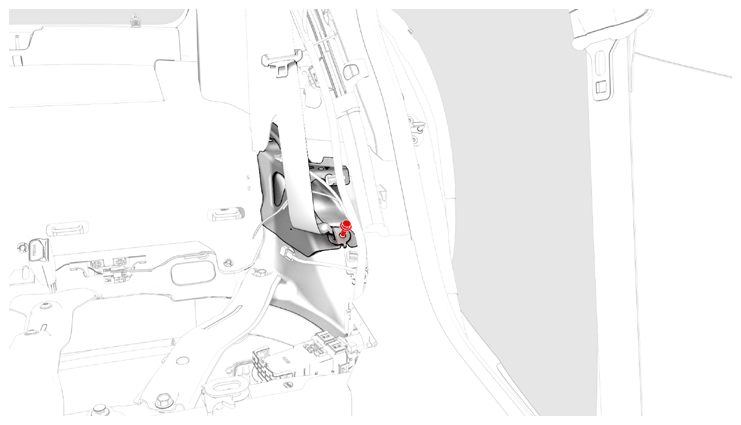

- Install a new bolt to attach the lower seatbelt anchor to the vehicle.
30 N.m (22.1 ft-lbs)

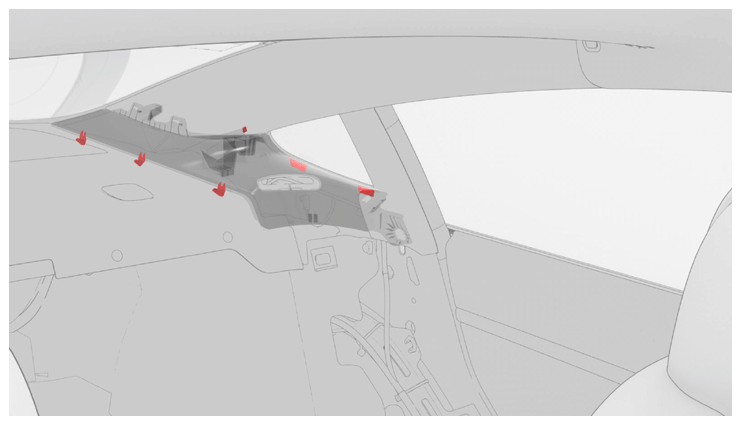

- Slide the rearmost tabs of the LH rear C-pillar trim into the body first, push the front most tabs toward the rear, and then fasten the clip and tabs that attach the LH rear C-pillar trim to the body.
- Install the LH upper C-pillar trim. See TRIM - C-PILLAR - UPPER - LH (REMOVE AND REPLACE) .
- Install the LH side rail trim. See TRIM - SIDE RAIL - LH (REMOVE AND REPLACE) .
- Install the LH 2nd row seat side bolster. See BOLSTER - SIDE - SEAT - 2ND ROW - LH (REMOVE AND REPLACE) .
- Install the 2nd row lower seat cushion. See SEAT CUSHION - LOWER - 2ND ROW (REMOVE AND REPLACE) .
