Trim - B-Pillar - Upper - LH - Remove and Replace: Remove

  1. Open both LH doors.
  2. Move the LH front seat fully forward.

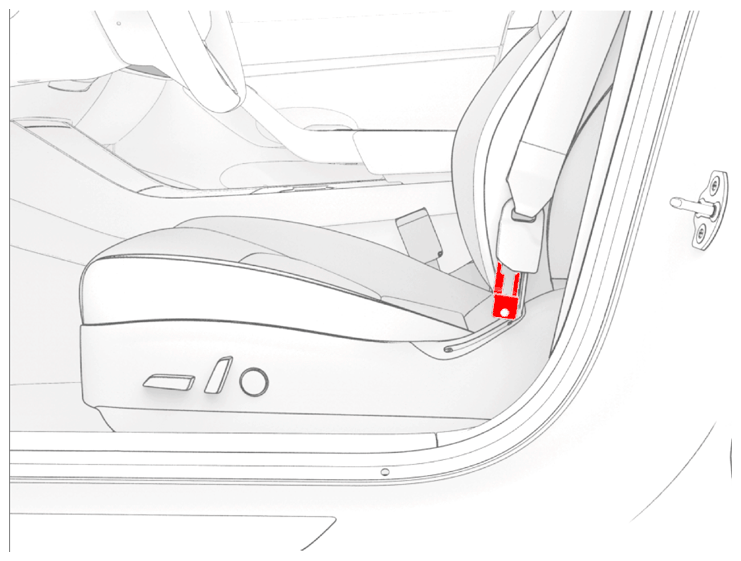

  3. Insert the seat belt release key (1133787-00-A) into the bottom of the seatbelt pretensioner coupling to release the seatbelt from the pretensioner.
    G14740887Courtesy of TESLA, INC.
  4. Move the seatbelt shoulder adjustment to the fully down position.

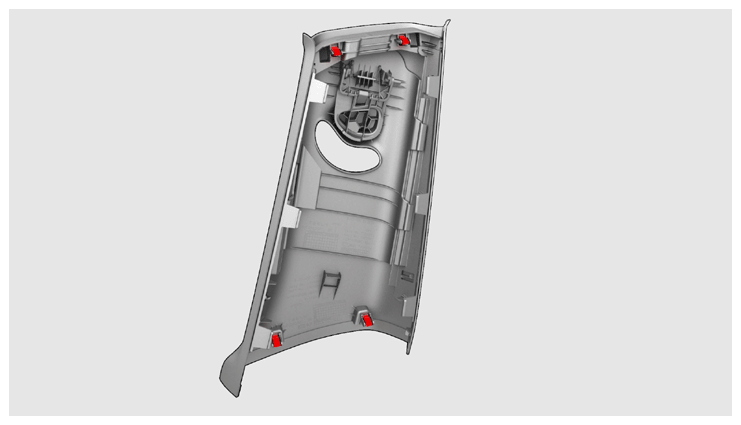

  5. While wearing suitable gloves, spread the bottom of the LH upper B-pillar trim open, and then release the clips that attach the bottom of the trim to the LH lower B-pillar trim.
    CAUTION: Be careful not to pull the LH upper B-pillar trim too far, otherwise it might break the seatbelt shoulder adjustment mechanism.
    NOTE: Move the body seals to aid removal.
    G14740888Courtesy of TESLA, INC.
  6. Slip your fingers beneath the seal at the top part of the upper B-pillar trim, and then separate the upper B-pillar trim from the body.

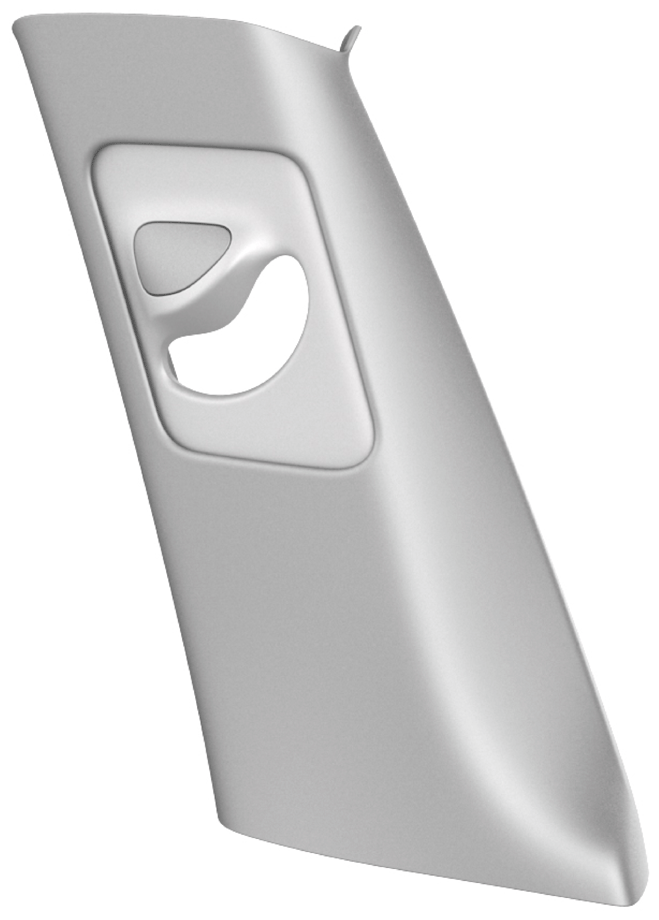

  7. Guide the seatbelt retainer through the LH upper B-pillar trim, and then remove the trim from the vehicle.
    NOTE: Remove any remaining LH upper B-pillar trim clips from the LH B-pillar, and if the LH upper B-pillar trim is to be later installed, remove all clips from the trim.
    G14740889Courtesy of TESLA, INC.
