Trim - B-Pillar - Lower - LH - Remove and Replace: Remove

  1. Remove the LH instrument panel end cap. See END CAP - INSTRUMENT PANEL - LH (REMOVE AND REPLACE) .
  2. Remove the LH middle A-pillar trim. See TRIM - A-PILLAR - MIDDLE - LH (REMOVE AND REPLACE) .
  3. Remove the LH lower A-pillar trim. See TRIM - A-PILLAR - LOWER - LH (REMOVE AND REPLACE) .
  4. Remove the 2nd row lower seat cushion. See SEAT CUSHION - LOWER - 2ND ROW (REMOVE AND REPLACE) .
  5. Remove the LH 2nd row seat side bolster. See BOLSTER - SIDE - SEAT - 2ND ROW - LH (REMOVE AND REPLACE) .
  6. Remove the LH rear sill panel trim. See TRIM - SILL PANEL - REAR - LH (REMOVE AND REPLACE) .

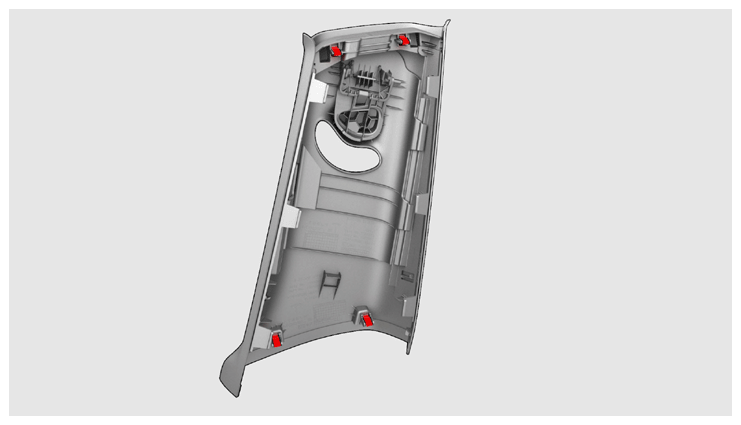

  7. Release the clips that attach the LH upper B-pillar trim to the vehicle, and then set the trim aside.
    NOTE: Pull the bottom of the LH upper B-pillar trim towards the inside of the vehicle to release the bottom clips, and then pull the top of the trim to release the remaining upper clips.
    G14740883Courtesy of TESLA, INC.

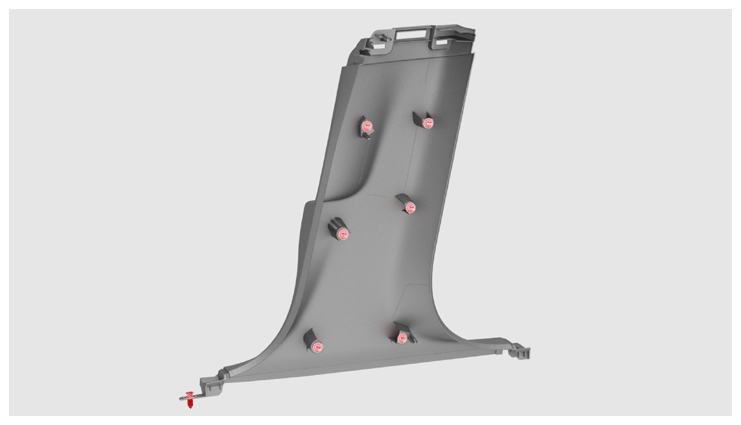

  8. Release the clips that attach the LH lower B-pillar trim to the body, and remove the trim from the vehicle.
    NOTE: Remove any remaining LH lower B-pillar trim clips from the LH B-pillar, and if the LH lower B-pillar trim is to be later installed, remove all clips from the trim.
    G14740884Courtesy of TESLA, INC.

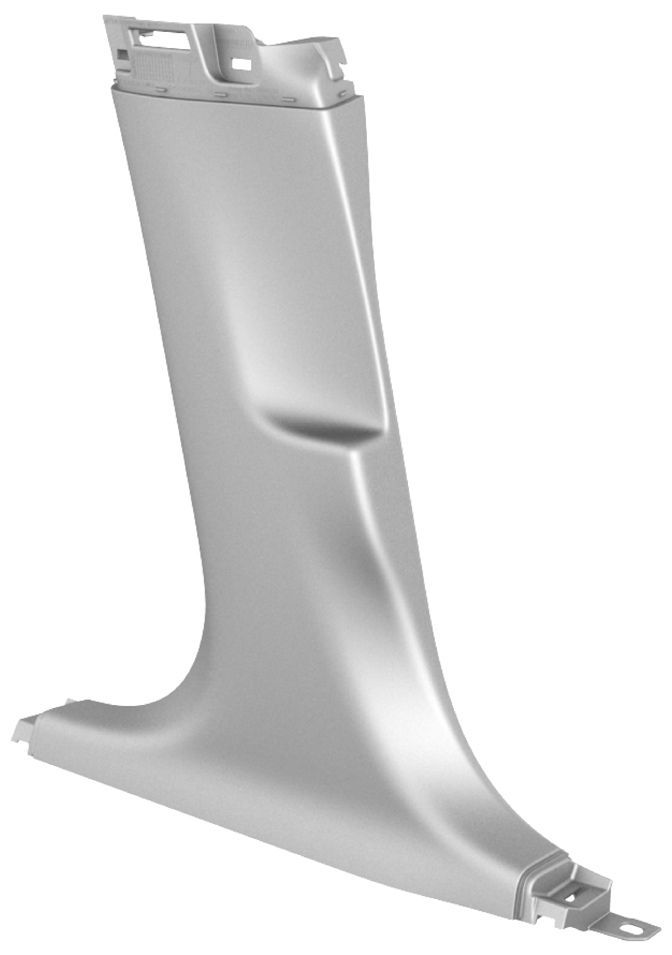

    G14740885Courtesy of TESLA, INC.
