Trim - A-Pillar - Upper - LH - Remove and Replace: Install

If reusing the same LH upper A-pillar trim, install new clips onto the trim.
Make sure that the clips are undamaged, and at the correct positions on the trim.

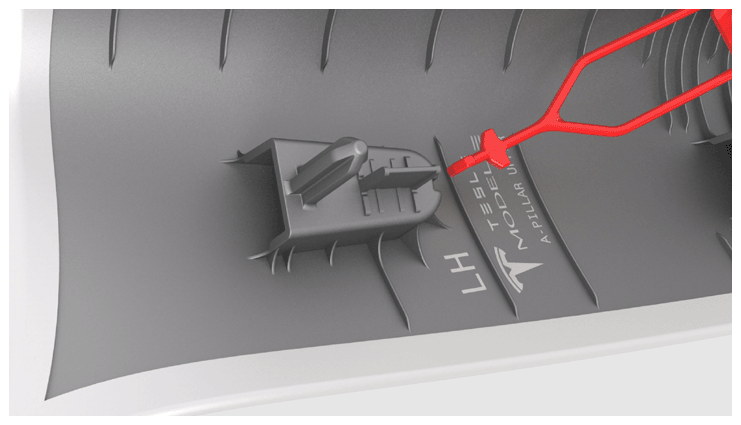

Fasten the tether hooks (x3) to the LH upper A-pillar trim.

Courtesy of TESLA, INC.

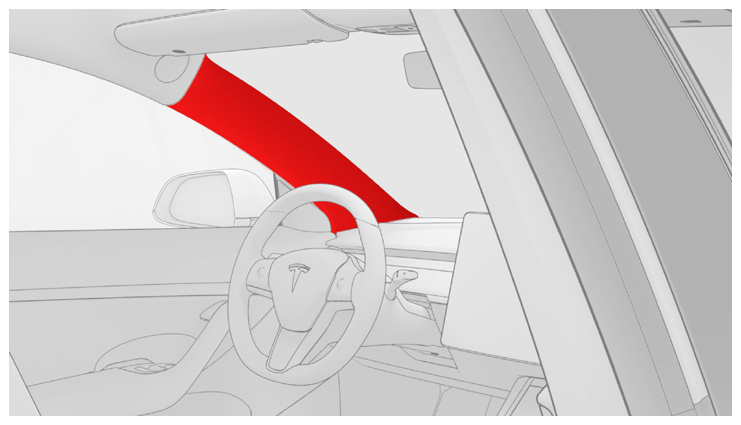

Insert the front lower edge of the trim into the instrument panel carrier, and then firmly fasten the clips that attach the LH upper A-pillar trim to the A-pillar.
NOTE: Fasten the top clip first, and then work toward the front of the vehicle.

NOTE: Look through the windshield from outside of the vehicle to check that the LH upper A-pillar trim is flush with the A-pillar.

Courtesy of TESLA, INC.
Pull the primary front side body seal over the LH upper A-pillar trim.
Install the LH middle A-Pillar trim. See TRIM - A-PILLAR - MIDDLE - LH (REMOVE AND REPLACE) .
Install the LH instrument panel end cap. See END CAP - INSTRUMENT PANEL - LH (REMOVE AND REPLACE) .
