Trim - A-Pillar - Middle - LH - Remove and Replace: Remove

  1. Remove the LH instrument panel end cap. See END CAP - INSTRUMENT PANEL - LH (REMOVE AND REPLACE) .
  2. Release the upper clip that attaches the LH middle A-Pillar trim to the vehicle, and then pull the trim upwards to remove it from the vehicle.
    NOTE: Remove any remaining LH middle A-pillar trim clips from the LH A-pillar, and if the LH middle A-pillar trim is to be later installed, remove the clip from the trim.

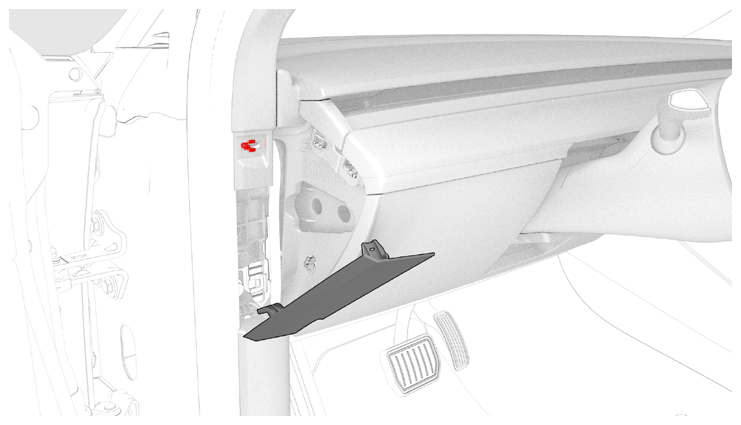

    G14740873Courtesy of TESLA, INC.

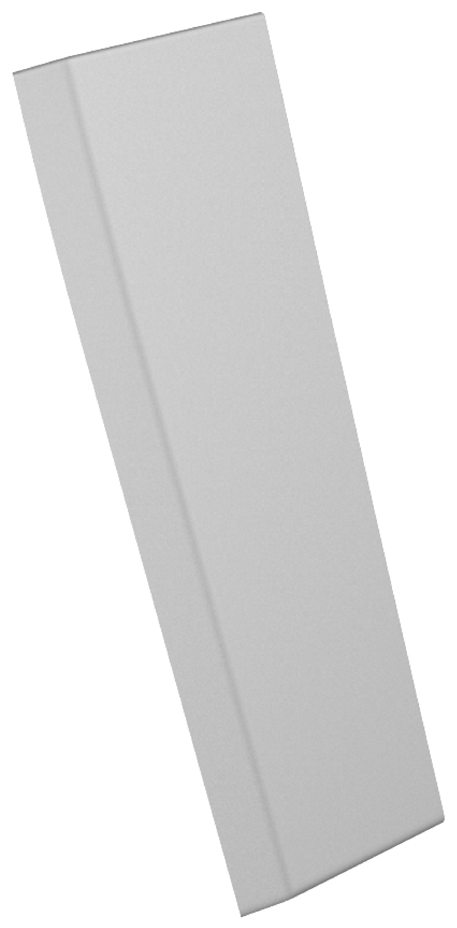

    G14740874Courtesy of TESLA, INC.
