Trim - A-Pillar - Lower - LH - Remove and Replace: Remove

  1. Open the LH front door.
  2. Remove the LH instrument panel end cap. See END CAP - INSTRUMENT PANEL - LH (REMOVE AND REPLACE) .
  3. Remove the LH middle A-Pillar trim panel. See TRIM - A-PILLAR - MIDDLE - LH (REMOVE AND REPLACE) .

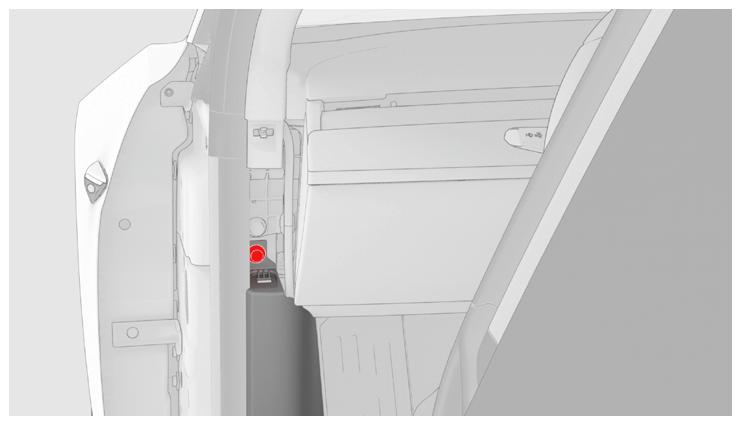

  4. Release the topmost clip on the LH lower A-pillar trim.
    G14740869Courtesy of TESLA, INC.

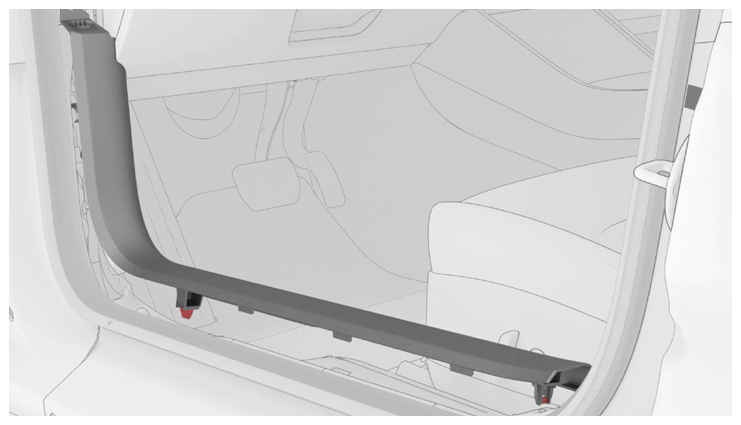

  5. Pull the rearmost part of the LH lower A-pillar trim upward to release the clips and tabs, and then pull the entire trim rearward to remove the trim from the vehicle.

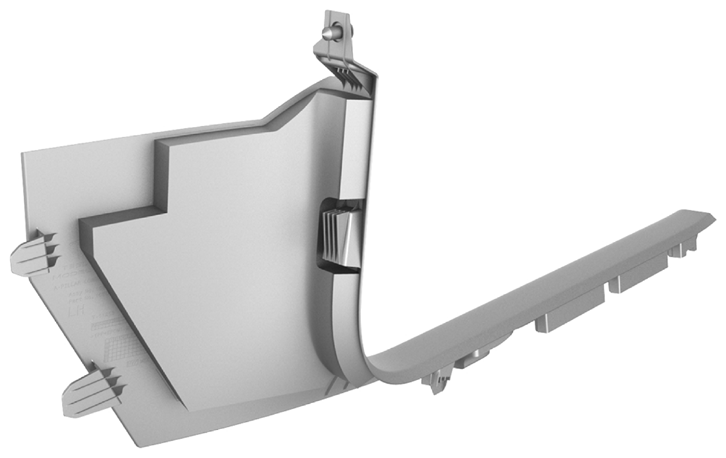

    NOTE: Remove any remaining LH lower A-pillar trim clips from the LH A-pillar and sill, and if the LH lower A-pillar trim is to be later installed, remove all clips from the trim.
    G14740870Courtesy of TESLA, INC.
    G14740871Courtesy of TESLA, INC.
