Carpet - Rear Trunk - Remove and Replace: Remove
- Remove the trunk sill trim. See TRIM - SILL - TRUNK (REMOVE AND REPLACE) .

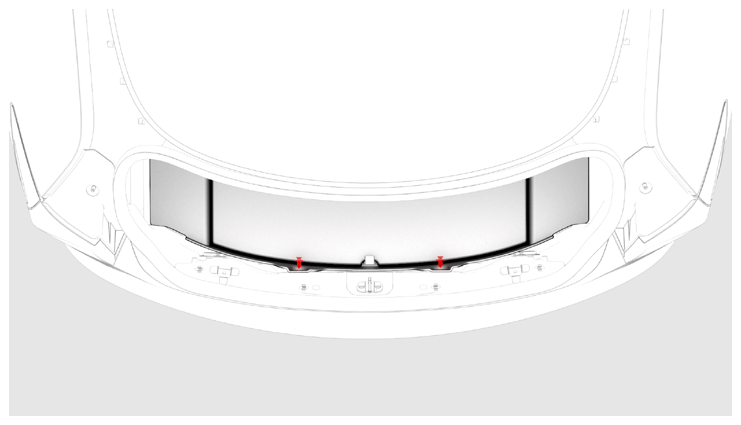

- Release the clips that attach the trunk carpet to the sill.
 Courtesy of TESLA, INC.
|
- Remove the LH 2nd row seat back. See SEAT BACK - 2ND ROW - LH (REMOVE AND REPLACE)
.
- Remove the RH 2nd row seat back. See SEAT BACK - 2ND ROW - RH (REMOVE AND REPLACE)
.

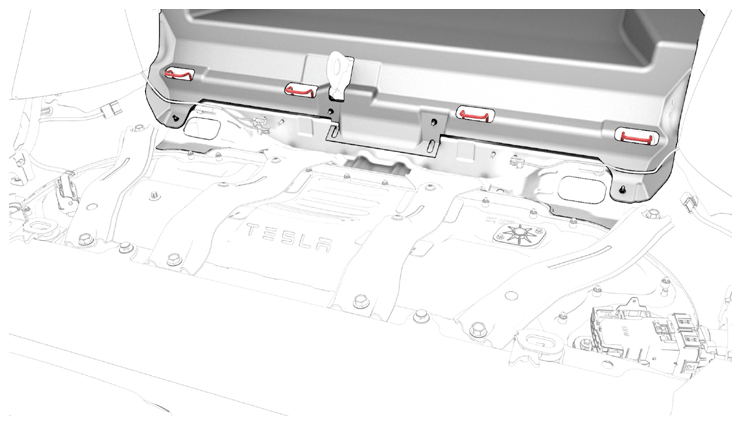

- Release the clips that attach the trunk carpet to the 2nd row area.
 Courtesy of TESLA, INC.
|
- Lift the trunk carpet off the ISOFIX bars.
 Courtesy of TESLA, INC.
|

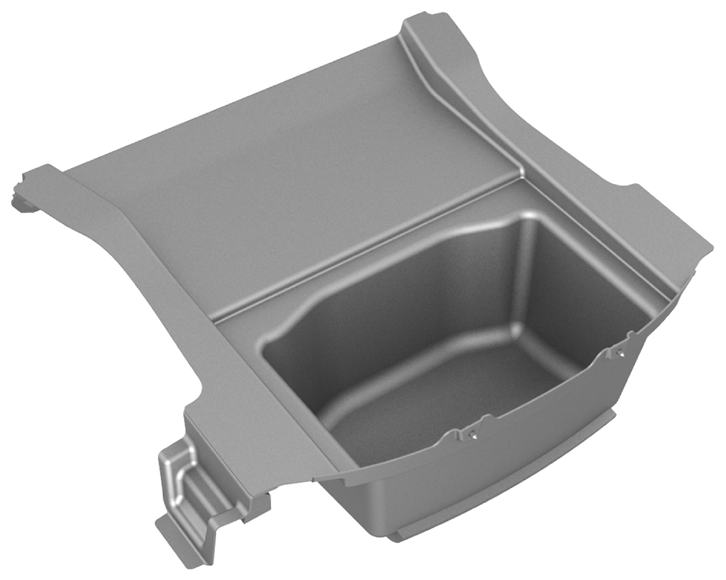

- Release the clips that attach the trunk carpet to the body studs, and then remove the trunk carpet from the vehicle.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
